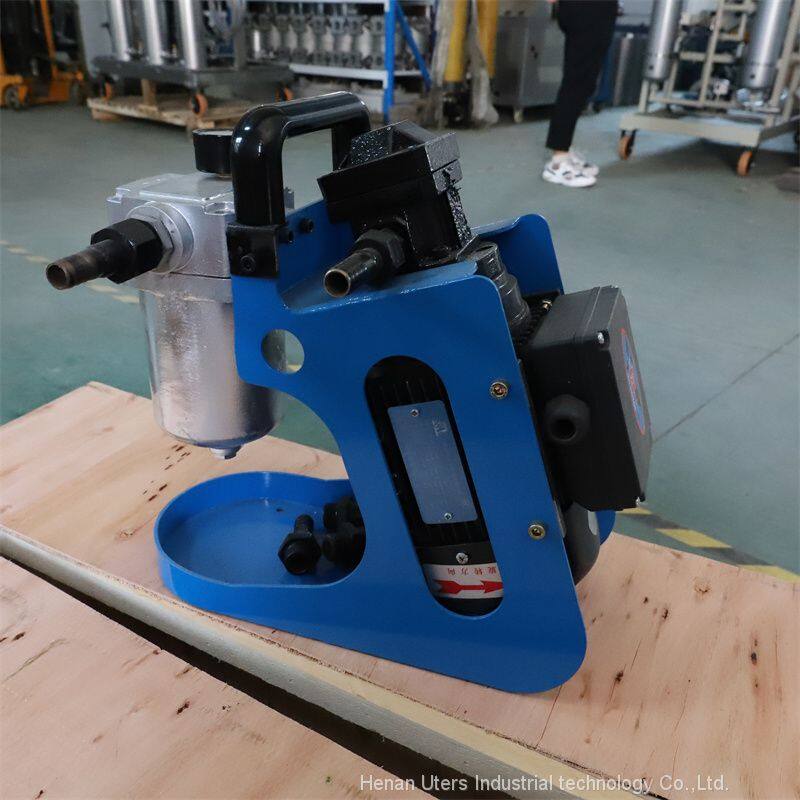

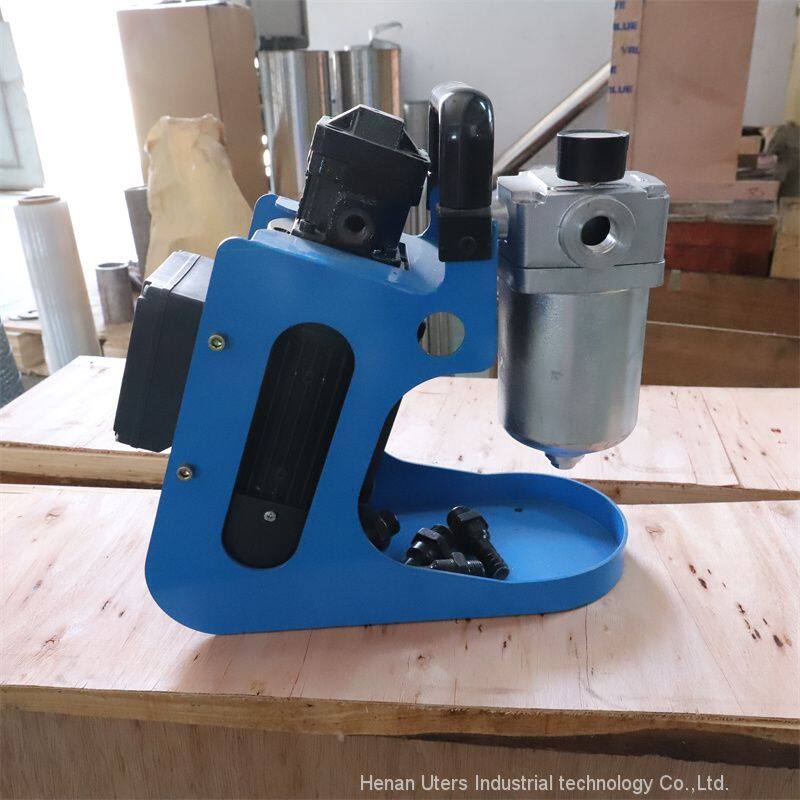

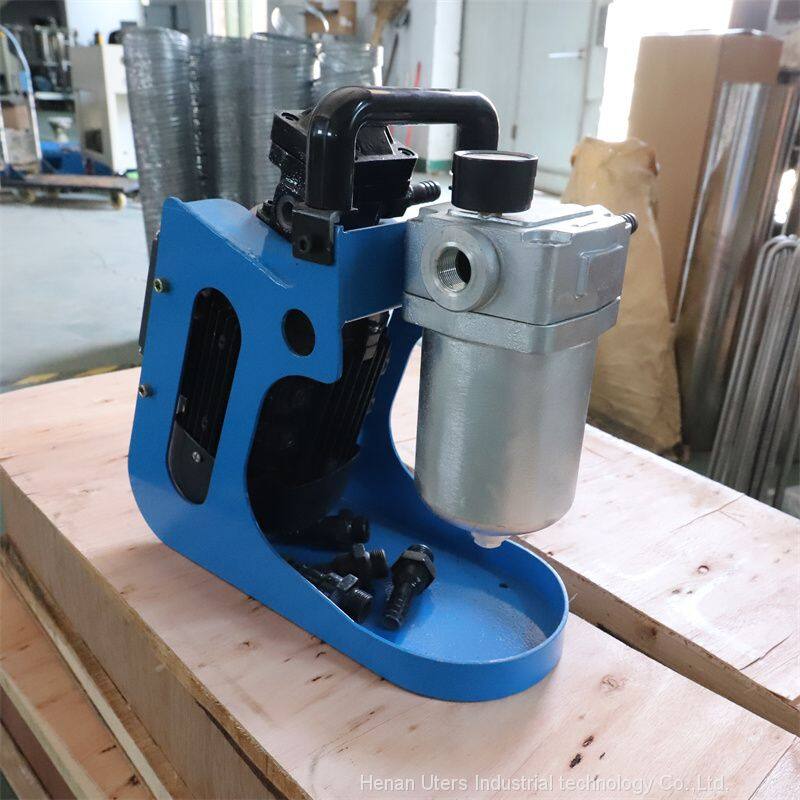

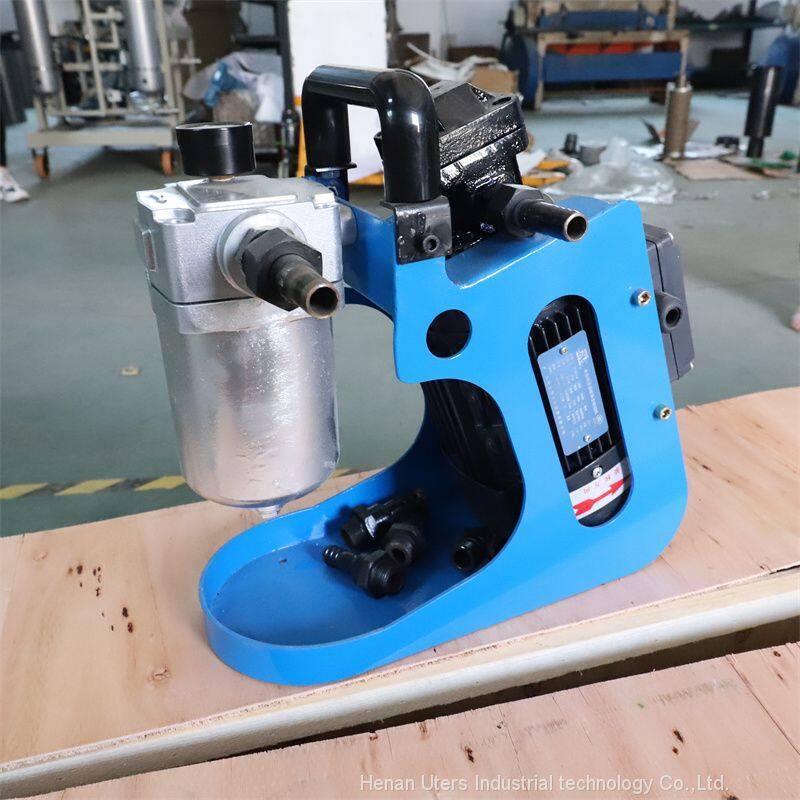

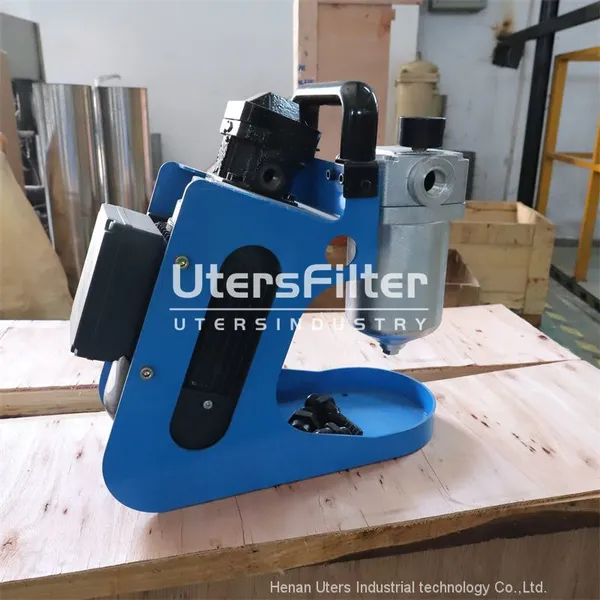

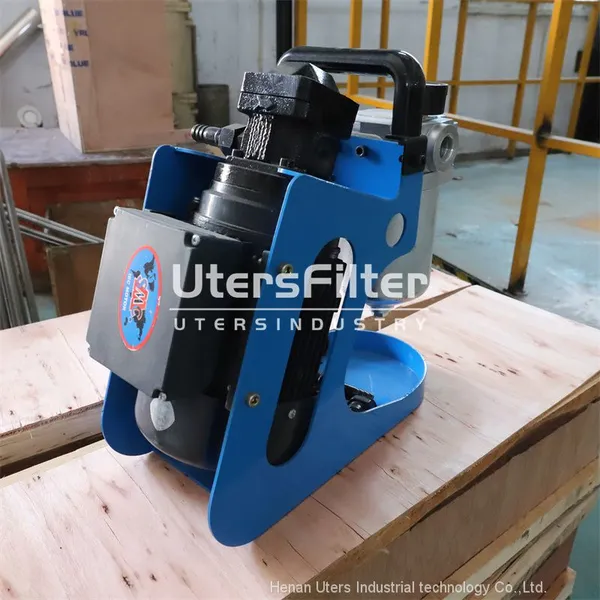

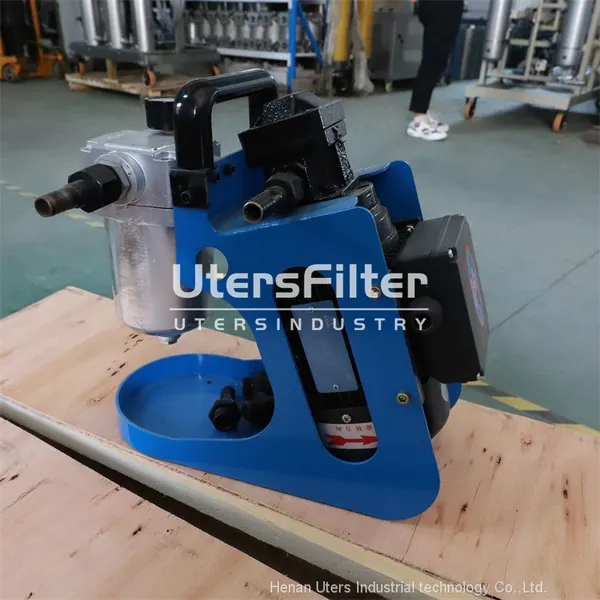

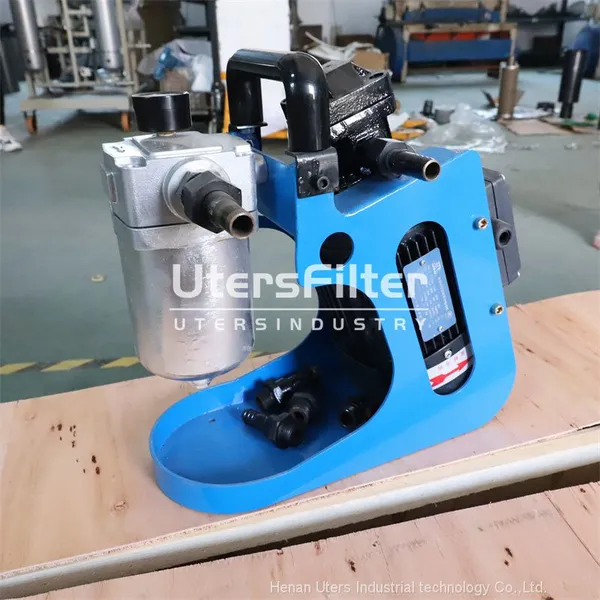

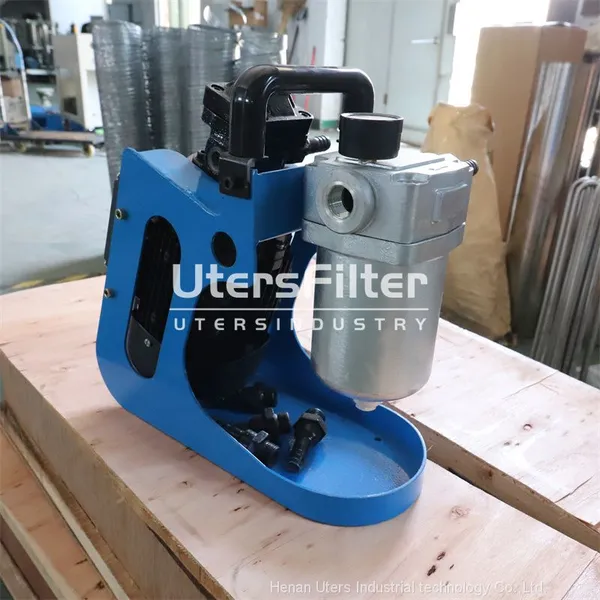

UTERS Industrial Portable Oil Filter BLYJ-10
Applications
●Hydraulic lubrication system refueling and regular maintenance
●Bypass filtration when hydraulic lubrication system works
Product Description
The oil purifier includes a special gear pump driven by a motor, with low noise, strong self-priming ability, stable operation, and an overflow protection device in the high-pressure pipeline. It can effectively protect the safety of the hydraulic system. Thermal relay protection is adopted to prevent motor damage caused by motor overload, and a coarse filter at the oil suction port protects the oil pump and prolongs the life of the main filter. The fine filter can choose different precision according to the different needs of users to meet the required requirements. The oil filter housing adopts a quick-opening structure, which can quickly open the upper cover and replace the filter element without any tools. The panel is equipped with pressure The meter, during operation, continuously indicates the operating condition of the system and the degree of contamination of the filter element.
Technical Parameter
Medium: general hydraulic oil, water, glycol, phosphate ester hydraulic oil
Medium viscosity: ≤160cst
Rated flow: 0.6Mpa Filtration precision: 3-10 microns
Voltage: AC380V three-phase AC220V two-phase
Specifications Table
Model |
BLYJ-6-*/** |
BLYJ-10-*/** |
BLYJ-16-*/** |
Rated Flow (L/min) |
6 |
10 |
16 |
Rated pressure (Mpa) |
0.4 |
||
Original pressure loss (Mpa) |
≤0.02 |
||
Pre-pump filtration accuracy (µm) |
40 |
||
Filtration accuracy after pump (µm) |
40 |
||
Motor power (Kw) |
0.18 |
0.25 |
0.35 |
Voltage (V) |
AC 380V three-phase AC 220V two-phase |
||
Weight (Kg) |
13 |
16 |
18 |
Dimensions |
380*200*510 |
400*200*510 |
420*200*510 |
Note: * is the precision of the fine filter, such as 003 is 3 microns
** is the applicable medium, omitted: general hydraulic oil;
