Uters Industrial Circulation Filtration High Precision Oil Purifier LYC-50C

UTERS Three-Stage Box-Type Mobile Oil Filter LYC-C series

Applications

Filtration of hydraulic lubrication systems when refueling

Bypass filtration when hydraulic lubricating system works

Circulation filtration before the hydraulic lubrication system is put into operation

Access the hydraulic lubrication system to improve the cleanliness of the system in an all-round way

Product performance

1 This machine uses a refined shell to cover all components to protect the equipment from external pollution, especially suitable for

It is suitable for occasions with high requirements on the use environment.

2. This machine includes a special gear pump driven by a motor ↓ with low noise and self-priming ability

Strong, stable operation and so on.

3. The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.

4. Adopt thermal relay protection. Prevent motor damage caused by motor overload.

5. The oil suction port coarse filter protects the oil pump and prolongs the service life of the main filter.

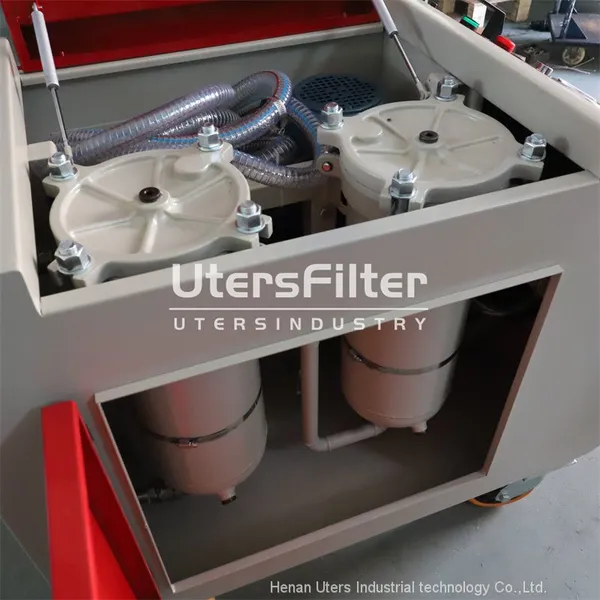

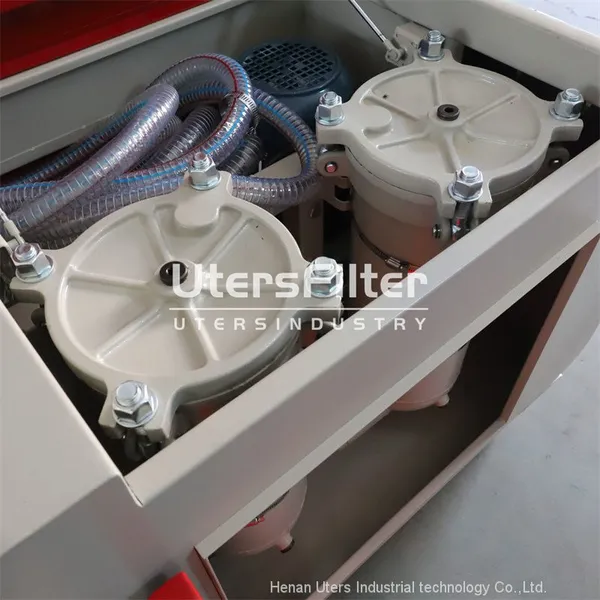

6. There is a two-stage fine filter behind the pump, so that the oil can quickly reach a high degree of cleanliness.

7.- The first-grade fine filter can filter out larger particles and impurities, and the second-grade fine filter can filter out fine particles or moisture.

8. The fine filter can choose different precision according to the different needs of users. Provide better protection for the system.

9. The oil filter housing adopts a quick-opening structure, which can quickly and quickly open the upper cover and replace the filter element without any tools.

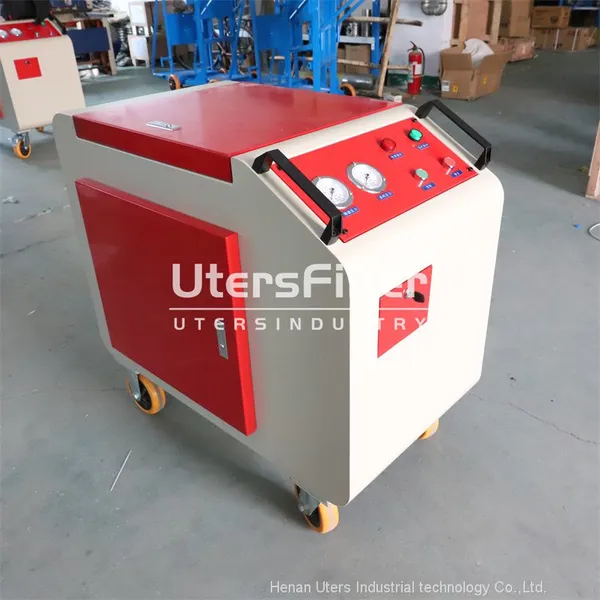

10. The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the filter element during operation.

Note:

* is the precision of the fine filter, such as 003 is 3 microns.

** is the applicable medium, omitted: general hydraulic oil;

BH: water-ethylene glycol;

V: Phosphonate hydraulic fluid

***Adapted to medium viscosity≤200cSt
