Help CenterGood Price Dongfeng 4tons Wrecker Tow Truck With Telescopic Boom for Sale
Related Products
-
Dongfeng D9 8T Wrecker Towing Truck With Crane for Sale,HOT SALE! Road Wrecker Towing Vehicle With Knuckle Crane Boom for SaleUS$ 30000 - 35000MOQ: 1 Piece -
Dongfeng 4T Wrecker Towing Truck With Crane for Sale, Good Price Dongfeng Brand 4T Road Wrecker Towing Truck With Telescopic Crane Boom for SaleUS$ 28000 - 35000MOQ: 1 Piece
-
HOT SALE! FOTON AUMARK 4*2 LHD 130hp Diesel 3T Road Block Removal Car for SaleUS$ 25000 - 30000MOQ: 1 Piece
-
Customized Dongfeng Brand 4*2 LHD 4T Flatbed Wrecker Towing TruckUS$ 20000 - 30000MOQ: 1 Piece
-
20000 Capacity Poultry Babychicks Transported Van Truck for SlaughterhousesUS$ 18900 - 45000MOQ: 1 Piece
As a professional tow truck wrecker supplier, our tow trucks can meet all your demand. We Chengli Special Automobile Co., Ltd. can manufacture and sell Right hand wrecker tow trucks, left hand drive wrecker tow trucks, 4x2 wreckers, 6x4 wreckers, 8x4 tow wrecker trucks,etc. In wrecker truck types, we produce flatbed tow truck, under lift wrecker truck, rotator tow truck, full landing wrecker tow truck, etc.
main technical parameters of Euro 5 dongfeng tianjin wrecker towing truck manufactured by Chengli Special Automobile Co., Ltd. as below
1. The road wrecker truck is also called rollback wrecker beds truck, tow truck wrecker, wrecker towing truck, wrecker, road block removal truck, breakdown truck, tow truck, recovery truck, towing truck, etc, which is used for dealing with the cars and trucks in accident.
2. Our recovery truck vehicle consist of the chassis, hoisting equipment,truck tow hook, tow truck winch,
tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.
3. Currently there are tow mainly design for wrecker trucks, flat bed model and towing model.
Flat bed model is mainly designed for cars, which could transport two units cars, with the weight design 5 tons around.
Towing model is mainly designed for deal with heavy duty vehicles, with the weight above 10 tons.
If you're interested in our flatbed wrecker truck with telescopic crane boom, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995）

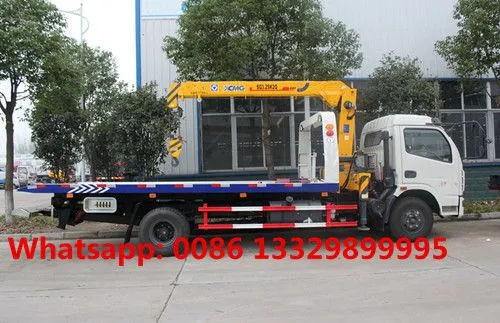

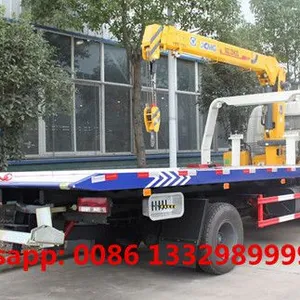

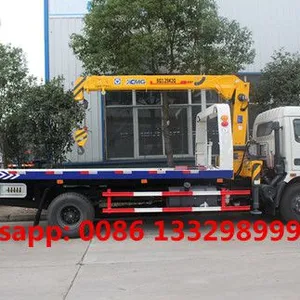

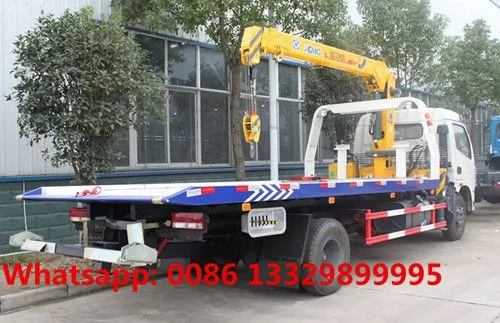

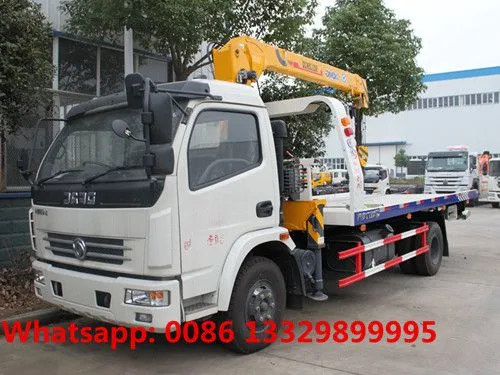

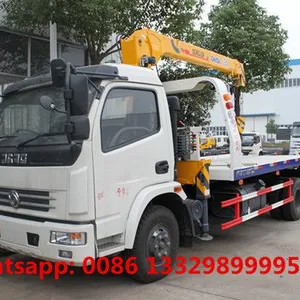

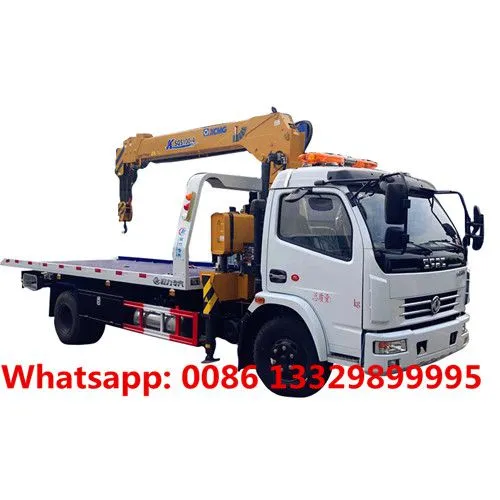

More pictures of DONGFENG wrecker towing truck with crane boom is as below.
main technical parameters of DONGFENG wrecker towing truck with crane boom is as below.
Overall parameters |
Product name |
dongfeng 4tons wrecker tow truck with telescopic boom for sale |
Manufacturer |
Chengli Special Automobile Co., Ltd. |
|
Product model |
CLW5081TQZ3 |
|
Total mass(kgs) |
8495 |
|
Rated mass(kgs) |
||
Curb mass(kgs) |
6150 |
|
Overall dimension (L*W*H)(mm) |
8000×2300×3250 |
|
Chassis parameters |
Driver cab |
dongfeng 4*2 LHD single row driver cab with 3 seats |
Approach/departure angle(°) |
22/11 |
|
Front/rear suspension(mm) |
1180/2420 |
|
Axles nos. |
2 |
|
Wheelbase(mm) |
4400 |
|
Axle load(kgs) |
3060/5435 |
|
Max speed(km/h) |
90 |
|
Tire specification |
8.25-16*6 |
|
Steel spring |
11/13+8 |
|
Front/rear tread(mm) |
1770/1640 |
|
Engine model |
CY4102BZQ; B140 33 |
|
Fuel type |
Diesel |
|
Emission standard |
Euro Ⅲ/Ⅳ/Ⅴ |
|
Gearbox |
5 speed gearbox, manual |
|
|
Upper part parameters
|
Flatbed dimension(L*W)(mm) |
5600*2300 |
Rear hydraulic flapping plate Length (mm) |
1000 |
|
Total flatbed length (mm) |
5600+1000 |
|
Hydraulic winch |
4tons |
|
Operation way |
Bilateral linkage operation |
|
Rear towing arm |
2.5tons loading capacity of the rear towing arm |
|
Loading capacity of the flatbed |
4tons |
|
Wire rope |
21m length |
|
Auxiliary wheels |
2 sets |
|
Special binding belts |
4 sets |
|
Caller with alarm light |
Yes |
|
Crane boom |
Choose to install 3.2tons/4tons telescopic crane boom |
