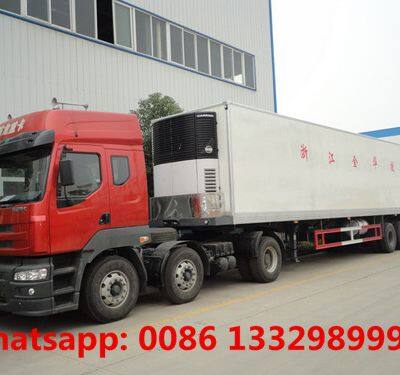

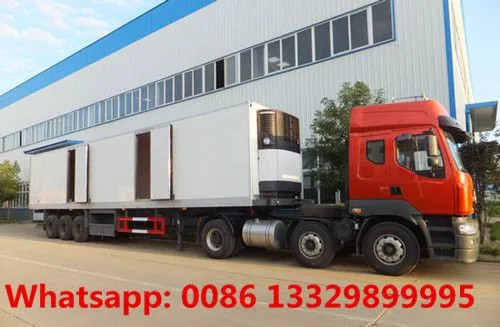

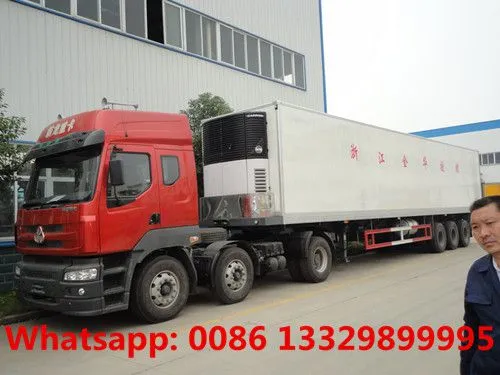

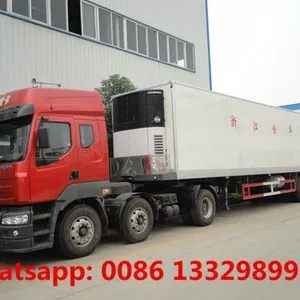

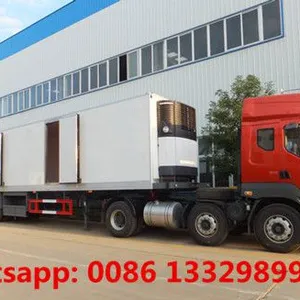

HOT SALE! CLW brand refrigerated van semitrailer for sale,, 13m length refrigerated container trailer for sale

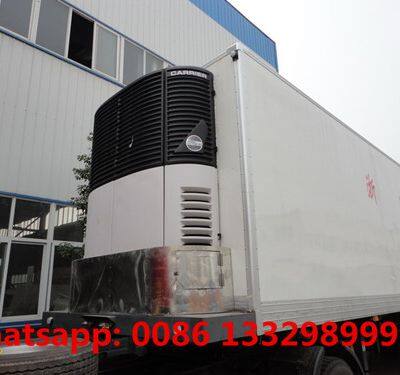

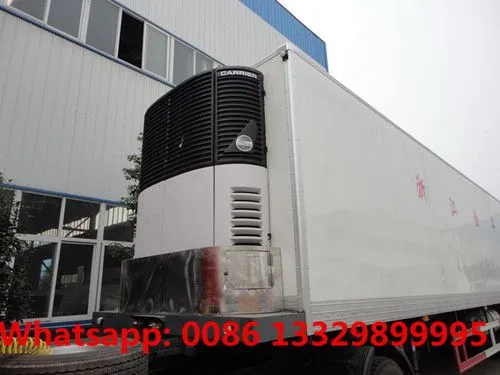

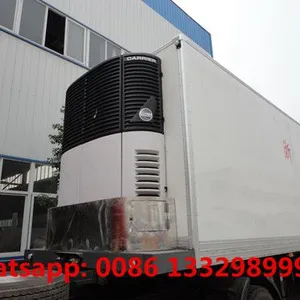

New manufactured refrigerated van semitrailer is with the model of CLW9401XLC. And the overall dimension(L*W*H) is 13500x2600x3995 (mm); while the dimension（L*W*H） of the refrigerated container semitrailer is 13300X2400X2300(mm). High quality new processed refrigerated van body is with interior and exterior of high quality glass fiber-reinforced plastic (FRP). And the middle layer is with high quality 100mm thickness PU FOAM material. One side door(left or right is ok). The floor base adopts high quality aluainum alloy air trunking. Equipped with high quality Chinamade or USA Brand CARRIER independent self-powered reefer unit(the lowest temperature is up to -15 ℃).
The driving part of this CLW brand refrigerated container semitrailer is as below.
1, 13TONS FUWA axles*3,
2, 12R22.5 tires*12,
3, 28T outriggers.
Main technical parameters of CLW brand 13.3m refrigerated container semitrailer manufactured by Chengli Special Automobile Co., Ltd. is as below.
Main technical parameters | |||
Product name |
CLW9401XLC refrigerated container semitrailer for sale |
||
Total mass(Kg) |
40000 |
Overall dimension(L*W*H)(mm) |
13500×2600×3995 |
Rated mass(Kg) |
29600 |
Van dimension (L*W*H)(mm) |
13000×2400×2300 |
Curb mass(Kg) |
10400 |
Wheelbase(mm) |
7350+1310+1310 |
Approach/departure angle(°) |
-/12 |
Tire specification |
12R22.5 12PR*12 |
Steel spring |
-/8/8/8 |
Tires nos. |
12 |
Axle load(Kg) |
-/24000(triples axles) |
Axle nos. |
3 |
Front tread(mm) |
- |
Rear tread(mm) |
1840/1840/1840 |
If you're interested in our refrigerated vehicle, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

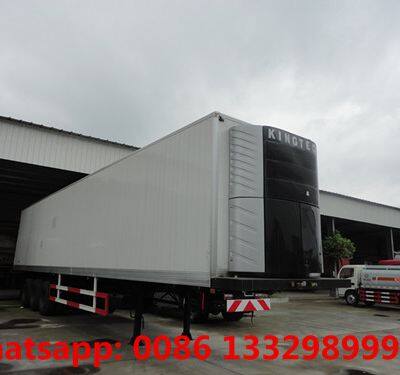

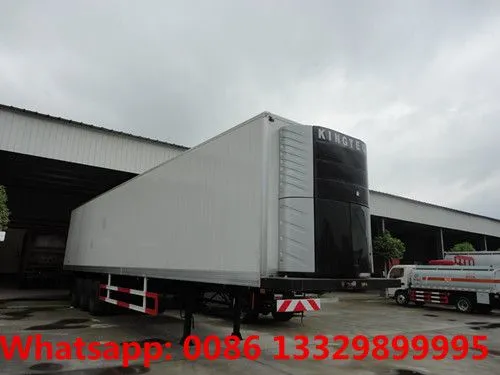

And the insulation body adopts high quality fiberglass for exterior and interior layers, 80mm PU foam sheets with one-formed vacuum negative pressure as the middle insulation layer. And the insulation body van is a sealed sheets, adopting high quality safe adhesive glued them the sheets together, fastened by buried with high strength screws. And there will be aluminum alloy ventilating slots at the bottom for the long van. The cooling unit of the refrigerated semitrailer adopts USA K brand SK1800 model trailer independent cooling unit, and the temperature can be adjusted with below 12 degree. The insulation van trailer can installed ith meat hooks.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of refrigerated trucks, such as ISUZU refrigerated truck, dongfeng reefer van truck, Foton refrigerated truck, JMC freezer van, Chang'an freezer minivan, etc. More information, please feel free to contact with Ms. Anita Deng.
