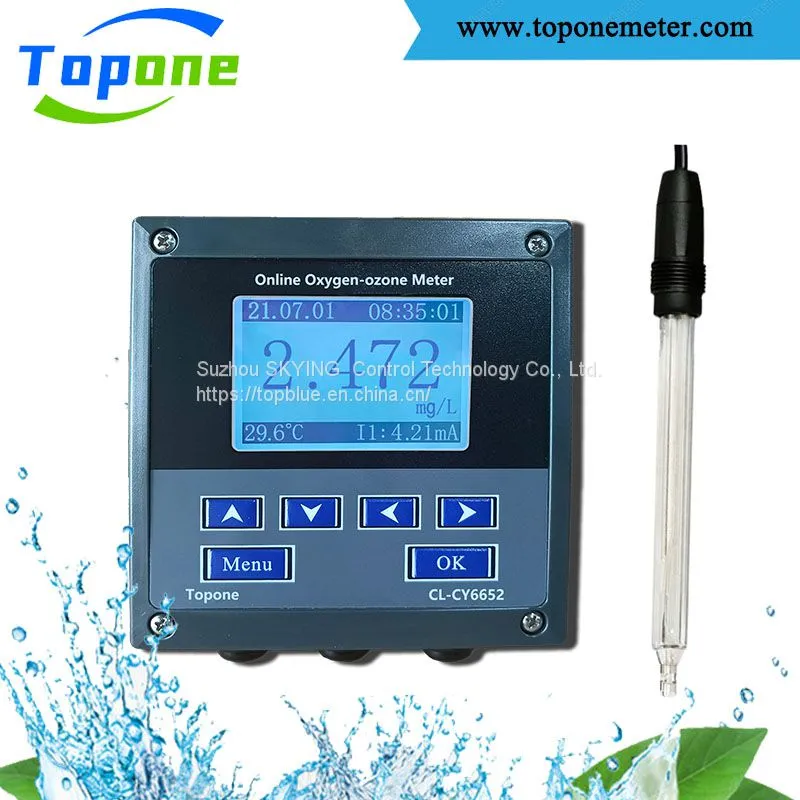

CL-CY6652 Online Dissolved Ozone monitor

Applications：

 Industrial online ozone monitor is an online water

quality monitor with a microprocessor. The instrument

is widely used in drinking water treatment plants,

drinking water distribution networks, swimming pools,

water quality treatment projects, sewage treatment,

water quality disinfection (ozone generator matching),

and other industrial processes. It continuously monitors

and controls the ozone value in water solution.

Feature：

●LCD display.

●Intelligent menu operation.

●data record & curve display.

●Multiple automatic calibration functions.

●Three relay control switches.

●High alarm & low alarm, hysteresis control

●4-20mA&RS485 multiple output modes.

●Residual chlorine, temperature and current, etc.simultaneously showed in one screen.

●Password protection function to prevent misoperationby non-staff.

Technical parameters:

Measurement range:Ozone:0~20.00mg/L;Temperature:0~50.0ºC;

Resolution:Ozone:0.001mg/L;Temperature:0.1ºC;

Basic error:ozone:±1%F.S;

Temperature:±0.3ºC;

Response time:90%less than 90s;

Two Current output:0/4~20mA(load resistance<750Ω);20~4mA(load resistance<750Ω);

Communication output:RS485 MODBUS RTU;

Three sets of relay control contacts:5A 250VAC,5A 30VDC;

Power supply(selection):85~265VAC±10%,50±1Hz,

power consumption ≤3W;

9~36VDC,power consumption≤3W;

Dimensions:144x144x118mm;

Installation:

Panel,wall hanging and pipeline ;

Panel opening size:138×138mm;

Protection Grade:IP65;

Weight:0.8kg;

Working environment:

Operating temperature:-10~60ºC;

Relative humidity: ≤90%;

No strong magnetic field around exceptthe geomagnetic field.
