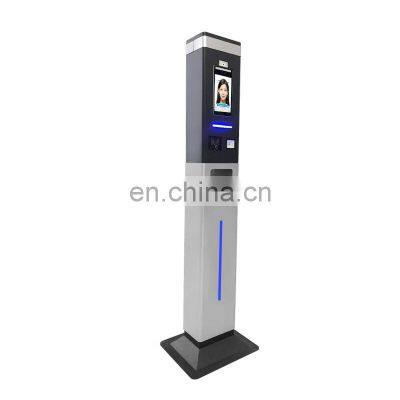

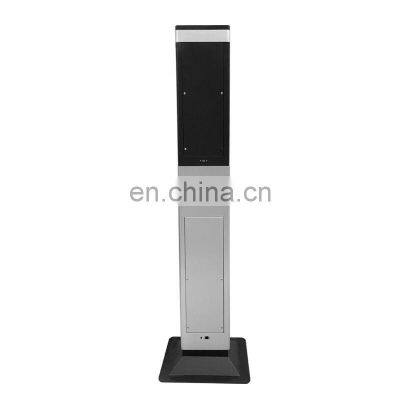

Access Control Attendancel Facial Face Recognition Hand Sanitizer QR Code Detection ID Card Scanner Four in One Device Kiosk

Characteristics

Camera

Software

Dynamic

automatic

automatic

Vertical wide

angle

84°

84°

Horizontal wide

angle

54°

54°

Infrared

supplement light

White

supplement light

Core parameters

Human-comput er interaction

Monitor

8 inches, full viewing angle, 170 ° IPS LCD screen, resolution

800 * 1280

Face sensing

module

Face temperature measurement

module

support,Serial / I2C interface

Communication

method

Identification Method

Input output interface

Power supply

interface

DC12V-2A

Environmental requirements

Operating

temperature

Working

humidity

20%~90% (non-condensing)

Static protection

level

IEC61000-4-2, LEVEL3

Relay

NC COM NO

Relay normal off/Common/normal on.Usually,door lock supply is positively connected to the COM port,and then according to the door lock type,relay power negatively connected NO port or NC

port. Note: Maximum load of relay contact is 2A

Gate sensor

IN

GND

Check door open/close status, input

Exit

button

PUSH1

GND

Press the button,door opening control signal,input

Serial

RX

TX

RS232

Output power

5V

GND

Support device external output 5V

Wiegand

WG_D1 WG_D0

GND

Wiegand output interface, support 26bit / 34bit protocol

Input power

GND

12V+

Temperature measurement module

0℃ ~ +55℃

-20℃ ~ +65℃

< 0.3w

Basic Parameters

Pixel

32*32 Real-time temperature output

I + 0.5℃

0.3 ~ 1.0m

WIFI

2.4G 802.11b/g/n

Bluetooth

BluetooH4.0
