Product Description
Arduino In-counter QR Code Barcode Scanner Omnidirectional Table Top USB 1D 2D Barcode Scanner
Products Introduction:
In recent years, people get a valid QR code on their phone screen, and they will get the information they need or even print their tickets directly at the kiosk.
For such public area application, the efficiency is very important. People need to get satisfactory experience in a short time. The response time of scanner is extremely important. RD4600 barcode scanner module is such a scanner. When phone screen code is presented, it only needs less than 0.4 seconds to respond. Users can get first time scan easily. The phenomenon of crowds waiting at info kiosk is greatly relieved with this high tech kiosk.
When you develop such kiosk, pls kindly contact us for RD4600 2d barcode reader, which will be just right for you!
Why Choose this model:

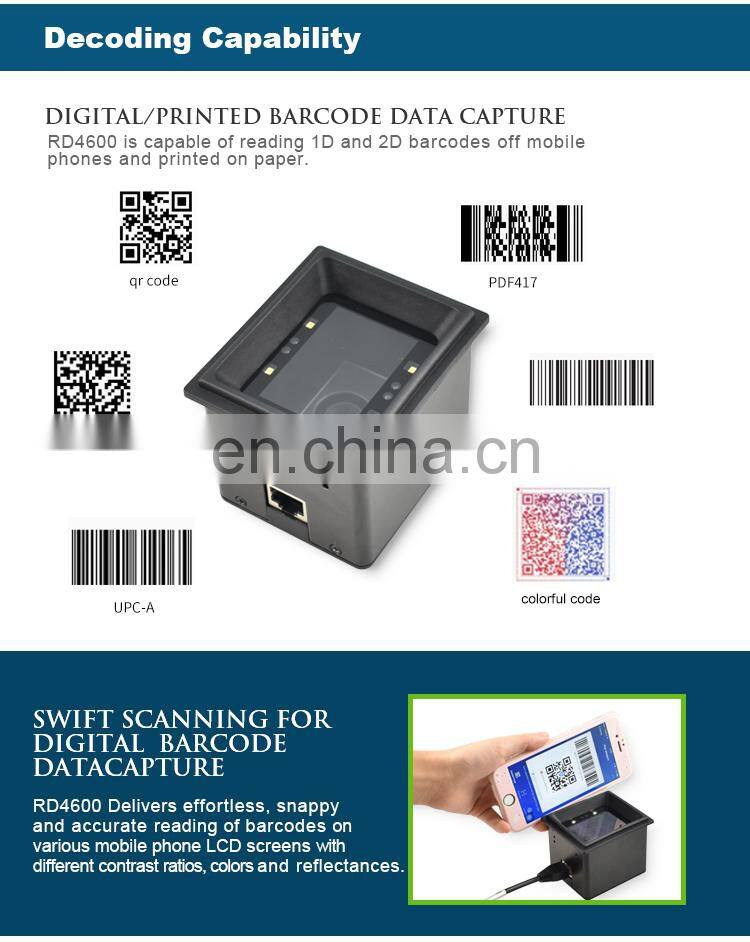

1. Read all major 1D & 2D symbols, as well as those on electronic screens.
2. Image auto-detection supports presentation scanning mode.
3. Ergonomic, snappy and stylish design allows for a natural and comfortable integration.
4. Protects your future investment with 2D capability at an affordable price meeting both current and future bar code scanning needs.
5. Omnidirectional scanning
6. Suitable to operate in diverse working environments.
Pecification:
Performance |
Image Sensor |
752*480 CMOS |
||
Illumination |
White LED |
|||
Symbologies |
2D |
PDF417, Data Matrix, QR Code, Chinese Sensible Code. |
||
1D |
EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey. |
|||
Resolution* |
≥ 10 mil |
|||
Scan Mode |
Sense mode, Continuous mode |
|||
Scan Angle** |
Pitch: ±40°, Roll: 360°, Skew: ±40° |
|||
Scan Window |
31.5mm×46.5mm |
|||
Symbol Contrast |
≥25% |
|||
Interface |
RS-232, USB |
|||
FOV |
Horizontal: 75°, Vertical: 50° |
|||
Physical/Electric |
Dimensions (LxWxH) |

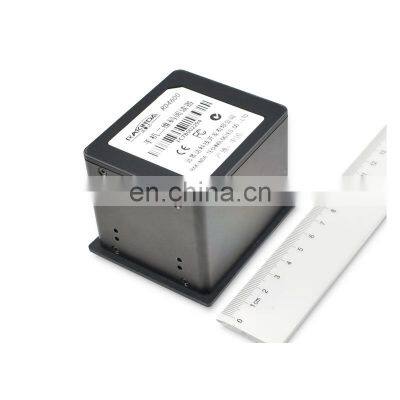

78.7(W)×67.7(D)×53(H)mm (max.) |
||
Weight |
173 g |
|||
Notification |
Beep |
|||
Power consumption |
534mW (typical) |
|||
Operating Voltage |
5VDC±5% |
|||
Current@5VDC |
Operating Current: 108mA (typical), 114mA (max.) |
|||
Environmental |
Operating Temperature |
-20℃~60℃ |
||
Storage Temperature |
-40℃~70℃ |
|||
Humidity |
5%~95% (non-condensing) |
|||
ESD |
±8 KV (air discharge); ±4 KV (direct discharge) |
|||
Certification |
FCC Part15 Class B, CE EMC Class B |
|||
Accessories |

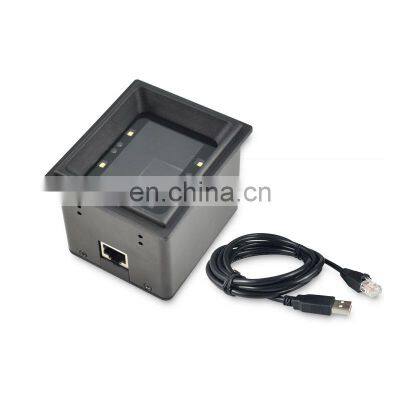

Cable |
USB |
Used to connect the scanner to a host device. |
|
|

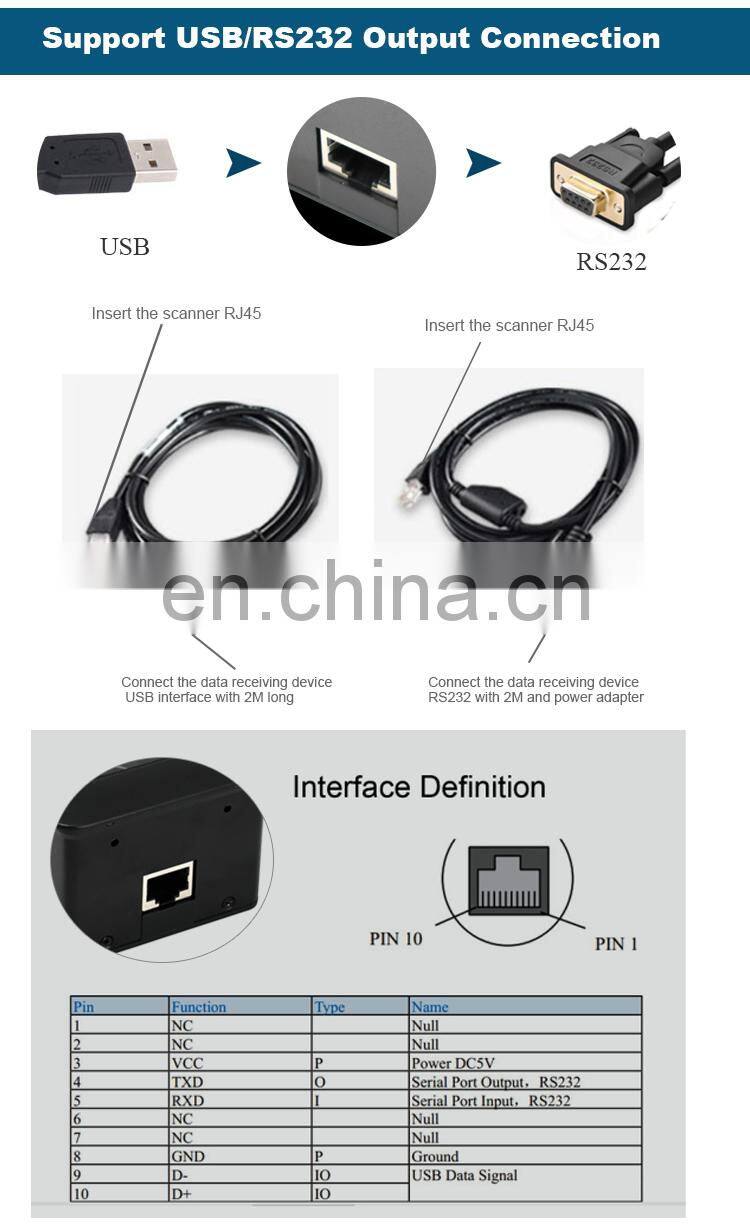

RS-232 |
Used to connect the scanner to a host device. |
Features:

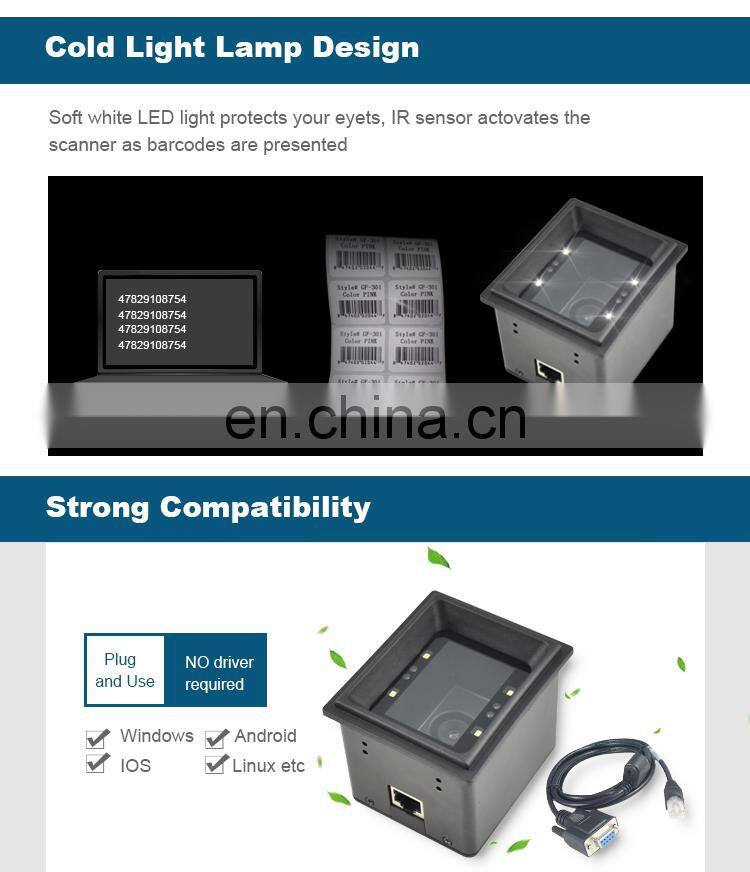

1. Snappy capture of on-screen code and printed code;
Armed with latest Rakinda scan technology, the scanner excels at scanning on-screen code even when the screen is covered with protective film.

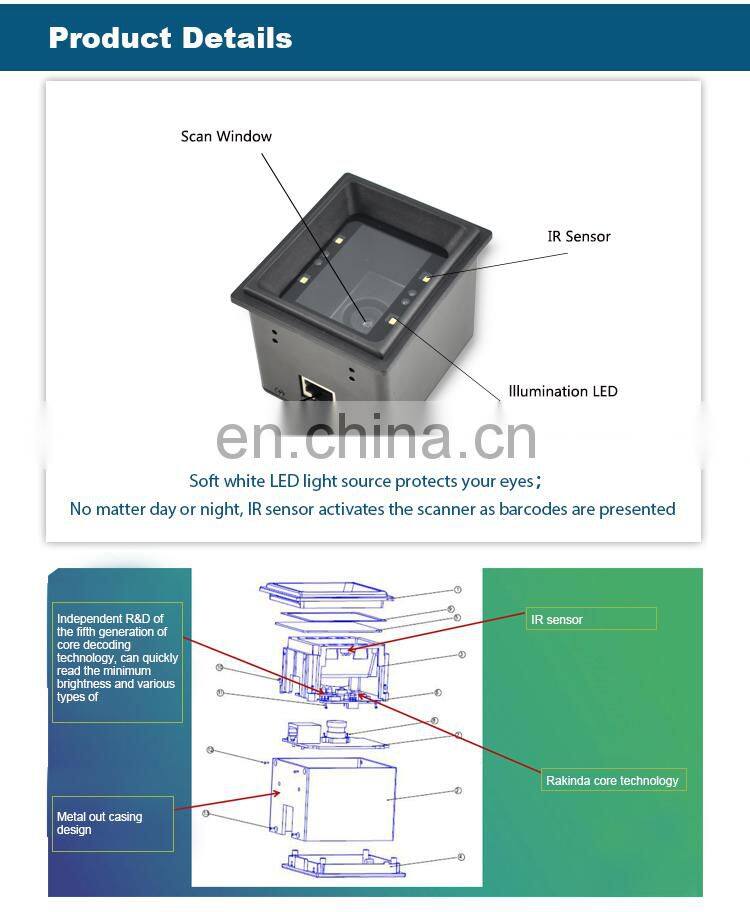

2. Durable Metal Housing
The scanner uses durable metal housing, making it dust and moisture proof.
3. IR Trigger
The IR sensor inside the scanner can sense the object quickly. It will start to scan immediately when a code is passing by.
4. Advantage
Good at Scanning Phone Screen Code.
RD4500R fixed mount barcode scanner is designed primarily for such applications as electronic tickets/coupons, mobile marketing, mobile payment, kiosk, turnstile, and office automation, the series fixed mount barcode scanner is able to read barcodes on paper and mobile phones.
Compatible OS: Android, Windows, Linux
Projects: Turnstile, Kiosk, ATM, Payment Terminal, Ticketing Validator, etc.
5 Series of Fixed Mount 1d 2d Barcode Scanner:
We have scanner models in different size which could be installed flexiblely in various applications, if there is any product you are interested in for your projects, please click it for more details and Contact Us.
Q1: Can I get some samples? Are they free?
A1: We support 1pc sample order. Samples should be paid.
Q2: Can I get extra cables for the scanners?
A2: Yes you can. We will provide according to your request.
Q3: How can I buy?
A3: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q4: What is your payment method?
A4: We accept online credit card, TT, Paypal, Western Union.
Q5: Can I visit your factory:
A5: Yes, you are warmly welcome.
Q6: How long is your warranty time:
A6: 1 Year.
Q7: Where can we download the user manual of the scanners?
A7: We will send by email after you get samples.
Q8: What's the lead time?
A8: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q9: Can you provide OEM service?
A9: Yes. We need further discuss about details.
Q10: How do you ship the scanners usually?
A10: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
