Adamantine Multi-Function Chip Imaging Scanner for Mobile Phone Motherboard Fault Diagnosis

Adamantine Eye X-Ray Chip Imaging Scanner PCB IC Fluoroscopy is designed for mobile phone motherboard CPU FPC cable detection. The X-ray can directly scan and observe chip welding situations without chip removal. With 688×834 pixel resolution, precision radiography, and a high-definition multi-color display, it is suitable for quickly locating internal fault points and performing non-destructive testing on chips, PCBs, and circuit modules, making it highly suitable for mobile phone repair.

Features:

1. Eye X-Ray Chip Imaging Scanner can accurately display the internal structure of electronic components such as chips and circuit boards, effectively identifying hidden defects, microcracks and solder joint problems.

2. High-precision non-destructive testing: Capable of penetrating panels up to 50 mm thick, accurately imaging core electronic components.

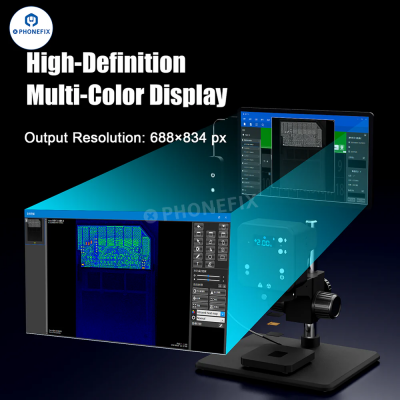

3. High-definition color display: Output resolution up to 688×834 pixels for crystal-clear detail.

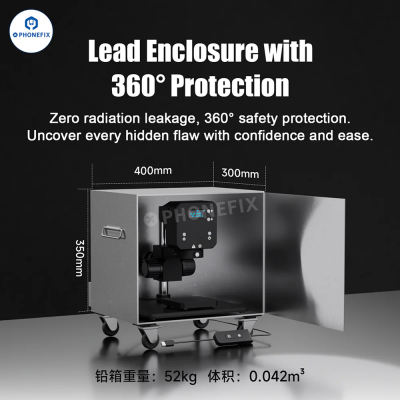

4. 360° protective seal: Zero radiation leakage, comprehensive protection, and safe operation.

5. Portable and user-friendly: Includes a secure hard case with a keyboard for easy transportation and deployment.

6. Compact design: Suitable for a variety of laboratory and industrial testing environments, saving space.

Specifications:

Product Name: Adamantine Eye X-ray Chip Imaging Scanner

Lead Box Weight: 52 kg

Lead Box Volume: 0.042 m3

Focal Height Range: 5mm to 20mm

Battery Capacity: 2500mAh

Maximum Power: 480W

Imaging Capability: 0.6-5.0 LP/mm

Image Pixel Resolution: 688x 834 PX

Product Weight: about 9.0kg (with packaging)

Lead Box Dimensions: 350 × 400 × 300 mm

Security Hard Case Dimensions: 150 × 420 × 320 mm

X-ray Voltage/Current Range: 40-60kV/0.5-2 mA

X-ray Tube Theoretical Lifespan: 10,000 hours

Power Cord Specifications: European, British, and Chinese Standards

Maximum Imaging Field of View (FOV): 45mm ±5mm

Operating Environment Requirements: Temperature:10℃ to 40℃

Humidity: 30% to 75% RH (Relative Humidity)

Electromagnetic Interference (EMI): Compliance with FCC/CE EMI standards (e.g., IEC 61010-1 for industrial equipment)
