Weight 4g Mini Embedded 2D Barcode Scanner Module Laser PDA Handheld Device QR Code Scanner Module
- 1000 per Month
- T/T Credit Card
- Mini NEW Hot Sale Barcode Scanner Module 2D 1D USB TTL232 Interface Embedded Barcode Scanner Module Red LED 3.3VDC A4 Size
- High Quality Fast Scanner Module 2D 1D General QR Barcode Reader Scanner Module Mini Weight 4.6g Red LED Usb,ttl232 3.3VDC
- Barcode Scan Engine Reader Module HOT SALE High Quality Mini Light Weight 4.6g Support Global 1D 2D Red LED A4 Size
- RS232/TTL Embedded QR Code Scanner OEM Fixed Mount 1D 2D Barcode Scanner Module
- OEM High Quality and Light Weight Laser 650nm CMOS Mini 2D OEM Barcode QR Scanner Module
- Mini Light Weight Universal Laser 650nm Scanning Engine 3mil 32bit CMOS 2D Scanner Engine Scanner Module
Product Description
Weight 4g Mini Embedded 2D Barcode Scanner Module Laser PDA Handheld Device QR Code Scanner Module mini barcode scanner laser scanner module
Weight 4g Mini Embedded 2D Barcode Scanner Module Laser PDA Handheld Device QR Code Scanner Module mini barcode scanner laser scanner module
Product Parameters:
Interface |
TTL-232, USB (optional) |
Image Sensor |
752×480 CMOS |

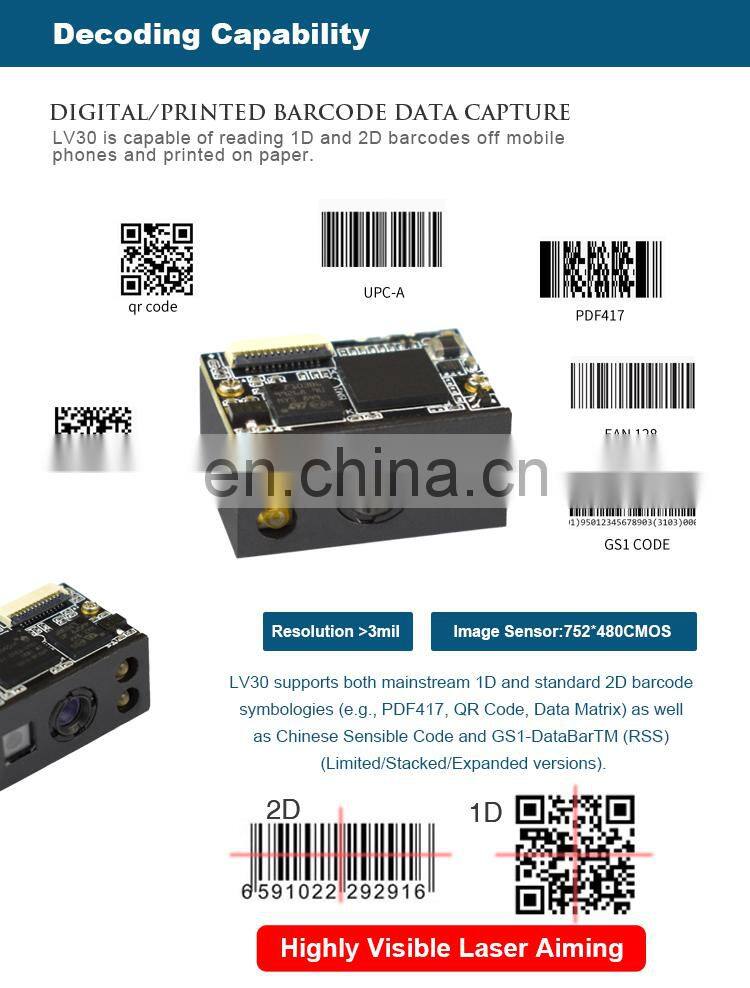

Symbologies |
2D: PDF 417, DataMatrix (ECC200,ECC000,050,080,100,140), QR Code
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. |
Illumination |
Red LED 612nm-624nm, 650nm laser |
Resolution |
> 3mil |
Ambient Light |
0 ~ 100,000 LUX |
Power Consumption |
0.76 W |
Operating Voltage |
3.3±10% VDC |
Current @ 3.3 VDC |
Operating Current 230 mA Standby Current 4mA (USB communication not supported); 7mA (USB communication supported) Sleep Current <5 uA |

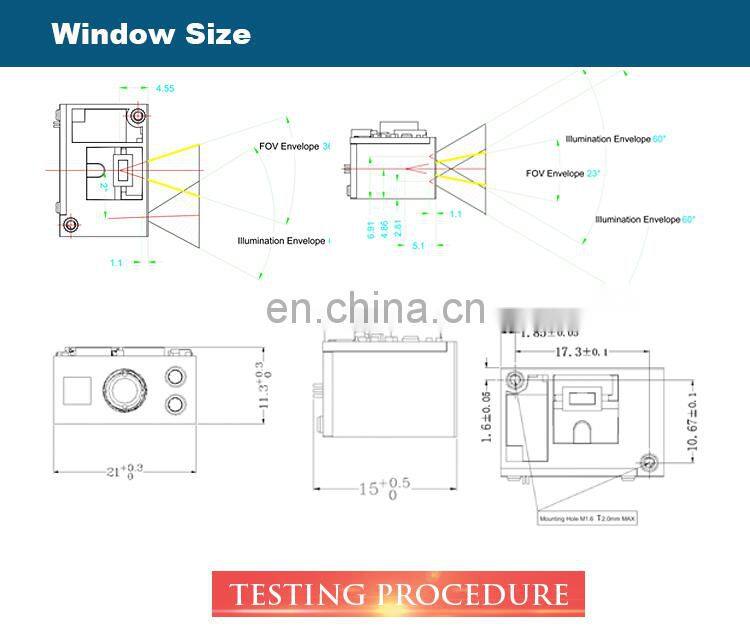

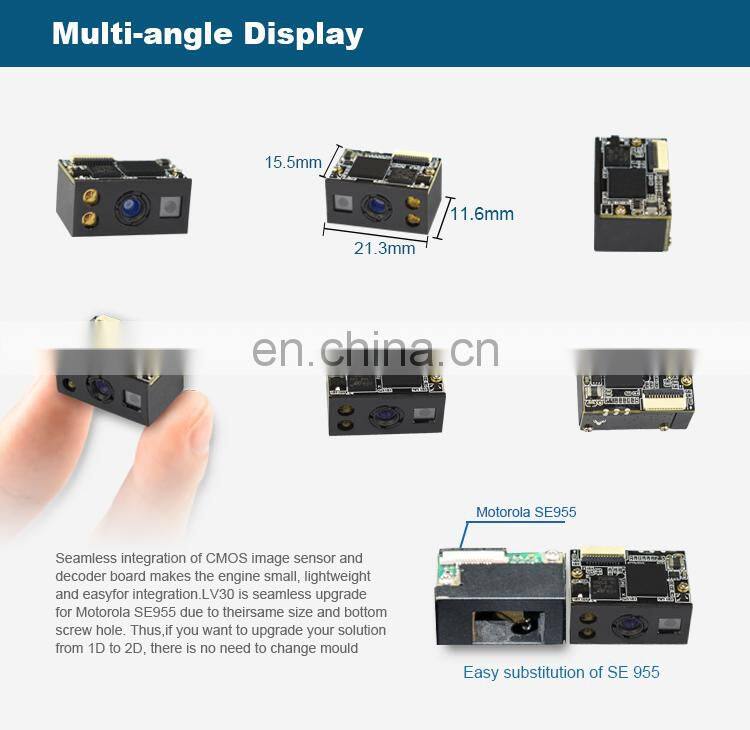

Dimensions |
21.3(W)×11.6(D)×15.5(H)mm |
Weight |
4.6g |
Operating Temperature |
-20℃~ +60℃ |
Q: Can I get some samples? Are they free?
A: We support 1pc sample order. Samples should be paid.
Q: Can I get extra cables for the scanners?
A: Yes you can. We will provide according to your request.
Q: How can I buy?
A: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q: What is your payment method?
A: We accept online credit card, TT, Paypal, Western Union.
Q: Can I visit your factory:
A: Yes, you are warmly welcome.
Q: How long is your warranty time:
A: 1 Year.
Q: Where can we download the user manual of the scanners?
A: We will send by email after you get samples.
Q: What's the lead time?
A: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q: Can you provide OEM service?
A: Yes. We need further discuss about details.
Q: How do you ship the scanners usually?
A: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
