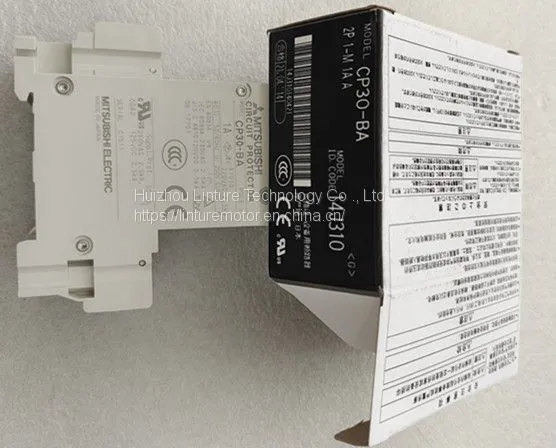

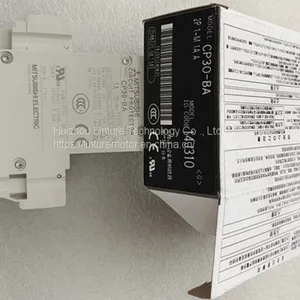

AC/DC Common Mitsubishi Protector CP30-BA For Protection Circurt

AC/DC Common Mitsubishi Protector CP30-BA For Protection Circurt
Include motors, filters, detailed drawings and instructions, all included in
one single shipment.

The rated insulation voltage of CP30 is 250V , Rated impulse withstand voltage
is 2.5 kv，The rated ambient temperature is 40 ℃ ， The action mode is S-
Model .

There are two wiring modes:

Main body: below 20A : screw terminal M4

30A : screw terminal M5

Alarm switch/auxiliary switch：screw terminal M3.5
