200m/Cheap Borehole Drilling Machine /water Well Drilling Rig for Sale

200m/Cheap Borehole Drilling Machine /water Well Drilling Rig for Sale thumbnail-1
200m/Cheap Borehole Drilling Machine /water Well Drilling Rig for Sale thumbnail-2
200m/Cheap Borehole Drilling Machine /water Well Drilling Rig for Sale thumbnail-3
200m/Cheap Borehole Drilling Machine /water Well Drilling Rig for Sale thumbnail-4
200m/Cheap Borehole Drilling Machine /water Well Drilling Rig for Sale thumbnail-5
200m/Cheap Borehole Drilling Machine /water Well Drilling Rig for Sale photo-1
200m/Cheap Borehole Drilling Machine /water Well Drilling Rig for Sale photo-2
200m/Cheap Borehole Drilling Machine /water Well Drilling Rig for Sale photo-3
200m/Cheap Borehole Drilling Machine /water Well Drilling Rig for Sale photo-4
200m/Cheap Borehole Drilling Machine /water Well Drilling Rig for Sale photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Shandong Hengwang Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Paramenters
SPECIFICATIONS FOR HW-230 WATER WELL DRILLING RIG


HW-230 drilling rig main parameters
Max. Drilling depth
230m
Max open hole caliber
300mm
End hole caliber
75mm
Drill rod caliber
50mm
Drilling angle
90°~75°
Drill weight (without power)
975kg
Triangle conveyer belt
B950 x 4 B1700 x 3
The main machine moving distance
300mm
Power
Diesel engine 22HP Electric motor 15kw
Spindle
spindle speed
64, 128, 287, 557r/min
Spindle stroke
450mm


Hoist
Max.lifting capacity
2400kg
Single line lifting speed
0.41, 0.82, 1.64m/s
Wirerope caliber
13mm
Wirerope length
35m
Reel diameter
140mm
Hug floodgate caliber
260mm
Hug folldgate belt width
70mm


Mud pump
Type
Horizontal single-urn twin-action
Max.flow
Diesel engine 170L/min Electric motor 150L/min
Max. presure
3Mpa
Work pressure
1.5Mpa
Inlet pipe caliber
40mm
Outlet pipe caliber
40mm


Hydralic oil pump
Type
CBT-F-314
Triangle conveyer belt
B1100 X 1
Product Description

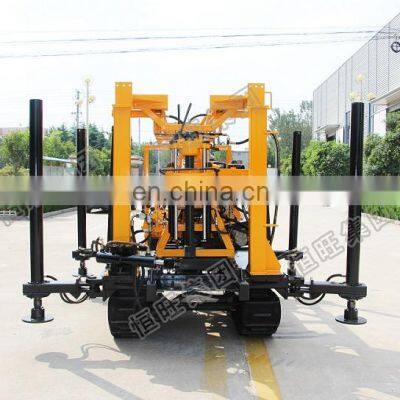

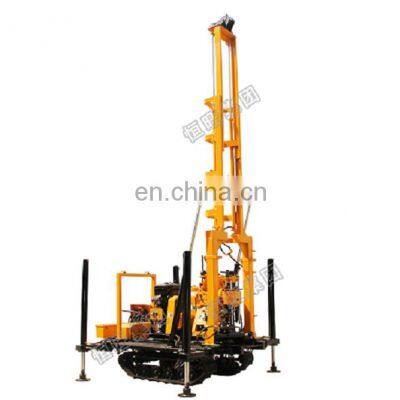

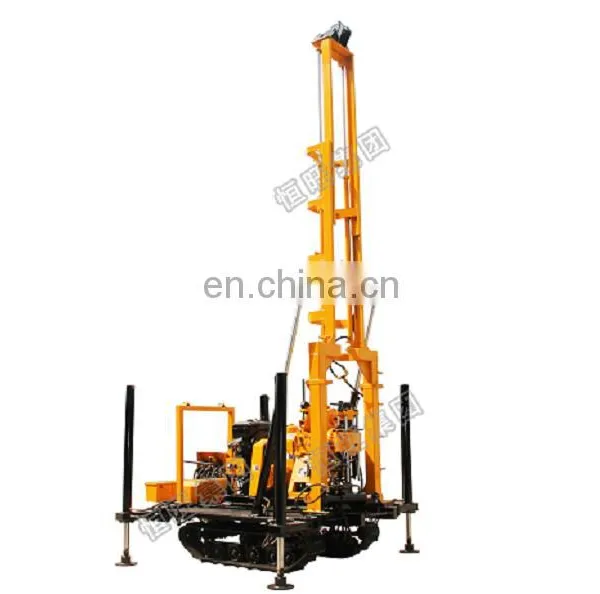

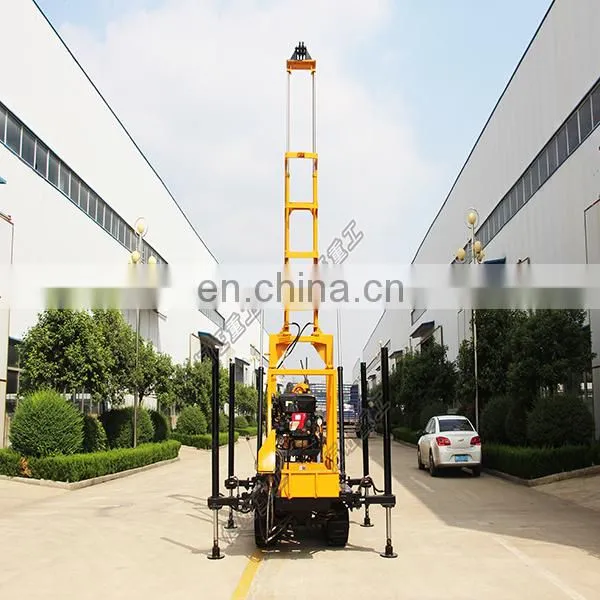

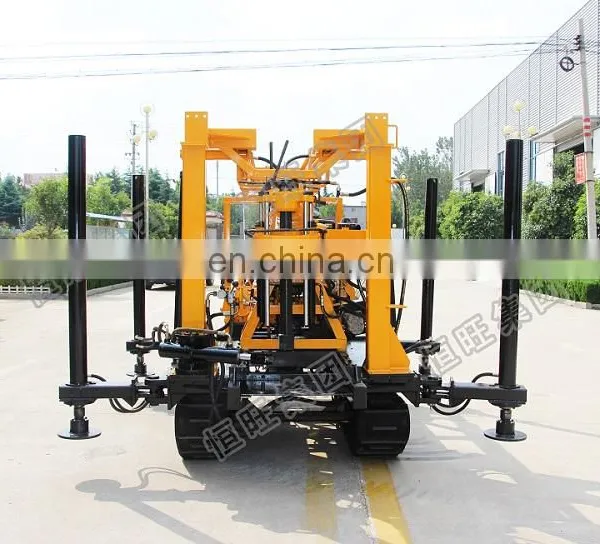

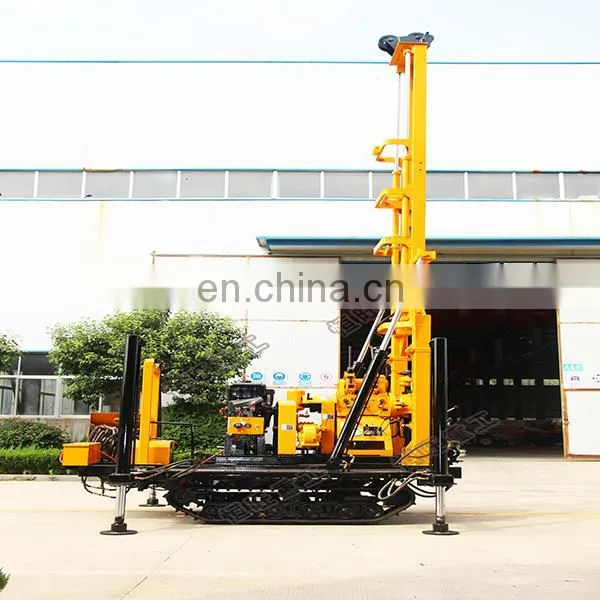

Our product HW-230 portable water well drilling rig equipped with BW-160 mud pump and 22HP diesel engine, Max. drilling depth can be 230m with
the opening diameter of 75-400mm, trailer, crawler, and tractor chassis for choice.
a. the machine is equipped with crawler chassis device, easy to move with fast speed.
b. hydraulic oil pressure feed device, improve drilling efficiency.
c. pressure gauge display the condition of the bottom of the drill hole.
d. drill mast controlled by hydraulic cylinder, improve the efficiency diesel engine adopt the electric starter, to reduce the
labor intensity.
Company Introduction
Shandong Hengwang Group Co., LTD. Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city
,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery ,water well driling machine
and conctruction machinery design, manufacture and installation of an integrated enterprise.
