Hengwang HWL300R Cheap Piling Equipment Hydraulic Mini Sheet Solar Helical Fence Pile Driver Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solar Pile Driver for Tractor Ramming MachineNegotiableMOQ: 1 -
Wheels Guardrail Pile Driver Pile Drilling Machine Steel Sheet Pile KoreaNegotiableMOQ: 1
-
Air DTH Water Well Bore Hole Drilling Rig DTH Portable Borehole Water Well Drilling Machine RigsNegotiableMOQ: 1
-
Borehole Drilling Machine /water Well Drilling Rig PriceNegotiableMOQ: 1
-
DTH Water Well Rotary Drilling Rig for SaleNegotiableMOQ: 1
To Customers
1.We are factory in Construction Machines for more than 20 years with CE,ISO ,BV,TUV;
2.Machine could be equipped with EPA ,Euro 5 Engine ;
3.Specialized After-Sale Service Team for 24h abroad site serving
4. 3 Overseas Spare Parts Center ,guarantee the sufficient spare parts locally.
Contact to Inquire
2.Machine could be equipped with EPA ,Euro 5 Engine ;
3.Specialized After-Sale Service Team for 24h abroad site serving
4. 3 Overseas Spare Parts Center ,guarantee the sufficient spare parts locally.
Contact to Inquire
Product Description
Hengwang HWL300R Cheap Piling Equipment Hydraulic Mini Sheet Solar Helical Fence Pile Driver Machine

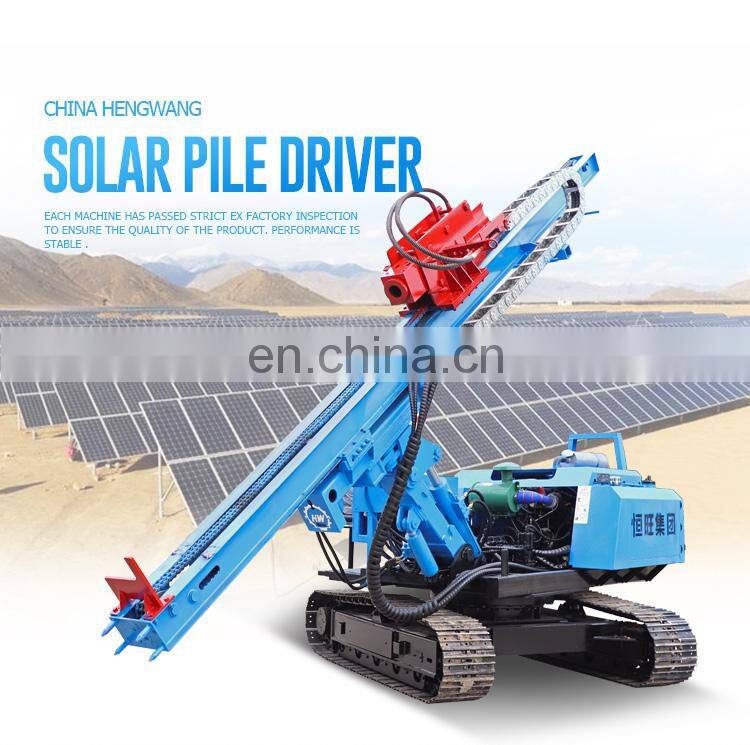

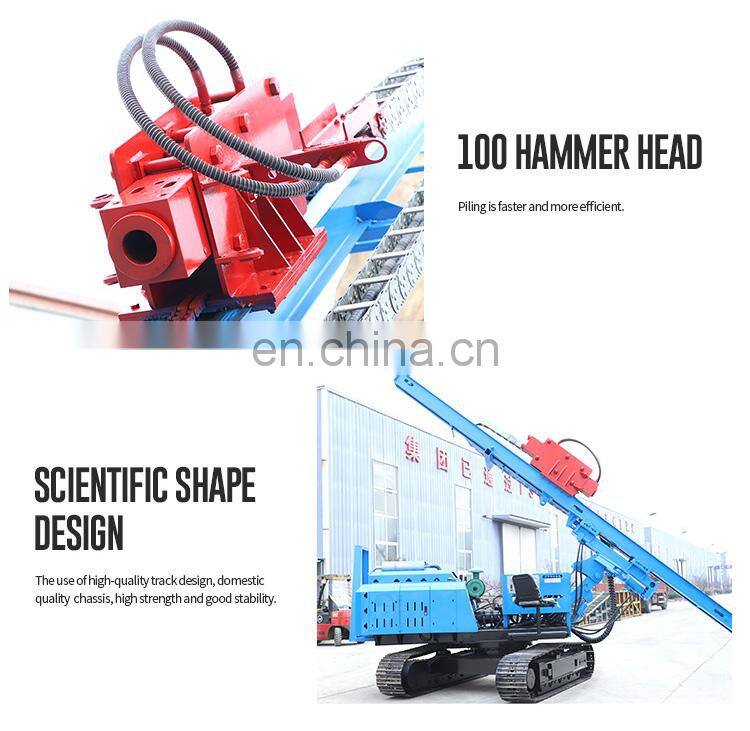

HWL300R Solar Pile Driver

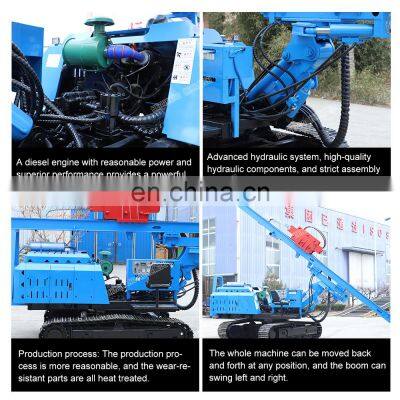

* 3m hydraulic rotary press piling machine is multifunctional pile driving machine for mine, with 360 degrees of freedom to rotate, multi angle pile function. The machine with diesel powered, hydraulic mechanical transmission, with high efficiency, convenient shift, multi angle multi angle pile, high precision, durable, time-saving, labor-saving and, especially for engineering construction in the field.

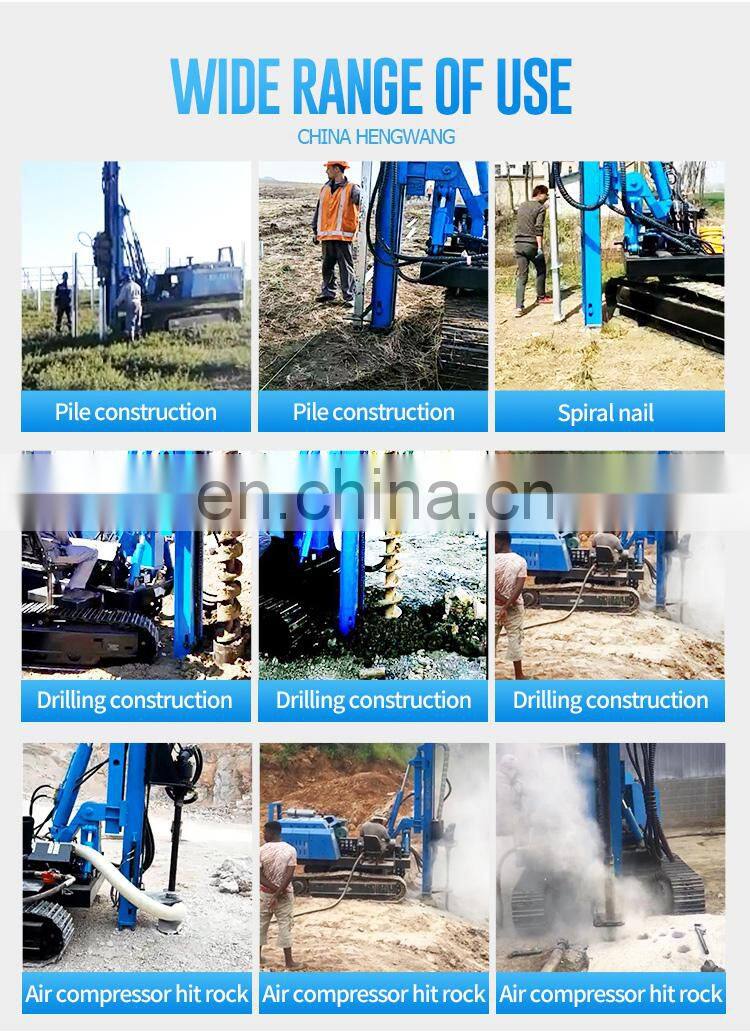

* Full hydraulic rotary press piling machine by R & D engineers and field service member composed of hypercoagulable cohesion,high-quality elite team of engineers, according to the situation of equipment used in various kinds of working conditions of practice, through constant revision and improvement to under various complex site and all kinds of soil in a state of the equipment. Can be adapted to round pile, square pile, rectangular pile and various special-shaped pile.
* QC coupled with strict detection means for the product to provide first-class quality assurance, piling machine is now is the national quality the first, market share rate of the first brand.
* 3m hydraulic rotary press piling machine is multifunctional pile driving machine for mine, with 360 degrees of freedom to rotate, multi angle pile function. The machine with diesel powered, hydraulic mechanical transmission, with high efficiency, convenient shift, multi angle multi angle pile, high precision, durable, time-saving, labor-saving and, especially for engineering construction in the field.
* Full hydraulic rotary press piling machine by R & D engineers and field service member composed of hypercoagulable cohesion,high-quality elite team of engineers, according to the situation of equipment used in various kinds of working conditions of practice, through constant revision and improvement to under various complex site and all kinds of soil in a state of the equipment. Can be adapted to round pile, square pile, rectangular pile and various special-shaped pile.
* QC coupled with strict detection means for the product to provide first-class quality assurance, piling machine is now is the national quality the first, market share rate of the first brand.
Technical Parameters
Product number | HWL300R |
Hydraulic hammer model (mm) | 75/85/100 optional |
Hydraulic hammer flow (L/min) | 50-110 |
Impact frequency (bmp) | 350-800 |
Drill rod diameter (mm) | 75/85/100 |
Walking motor torque (N.m) | <11500 |
Pile height (mm) | According to the slide |
Sliding guide frame inclination angle (°) | (Left) 5(Right) 5 |

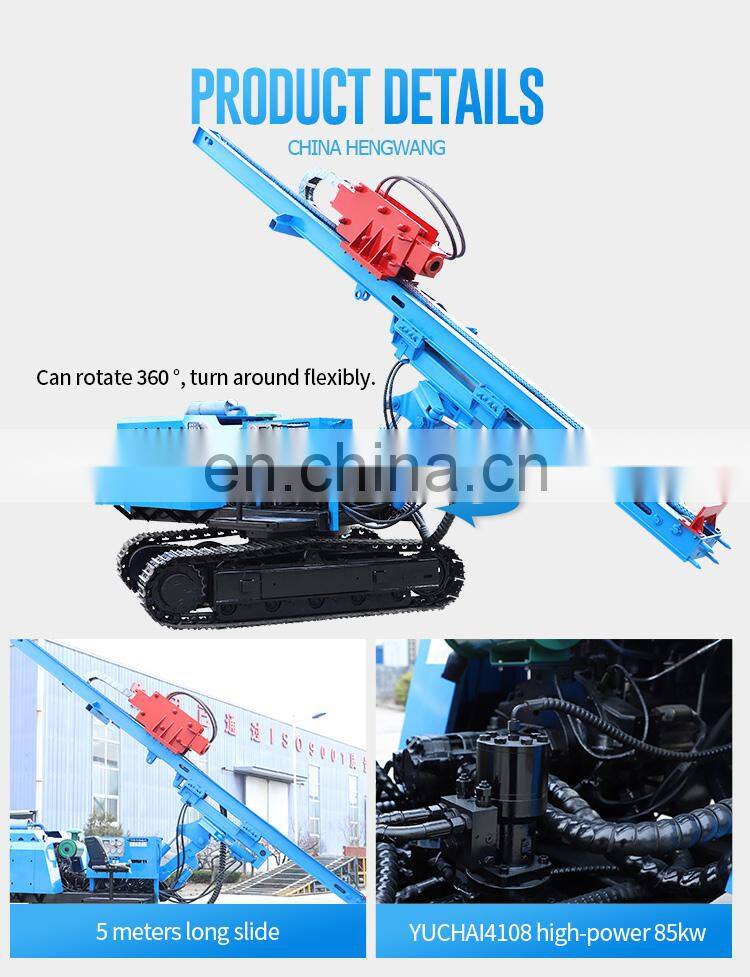

Frame rotation angle (°) | 360 |
Hydraulic system pressure (mpa) | 22 |
Gear pump displacement (ml/r) | 40+40+25 |
Traveling speed (km/h) | 3 |
Vehicle weight (kg) | 6200 |
Engine power (kw) | 85 |
Engine rated speed (r/min) | 2600 |
Track shoe width (mm) | 350 |
Track single (section) | 42 |
Total displacement of walking motor (ml/r) | 53 |
Rated pressure of walking motor (mpa) | 30 |
Travel motor reduction ratio | 1:54.4 |
Dimensions (mm) | 4420*1920*4900-7900(working state) 4500-7500*1920*2800(transportation status) |
