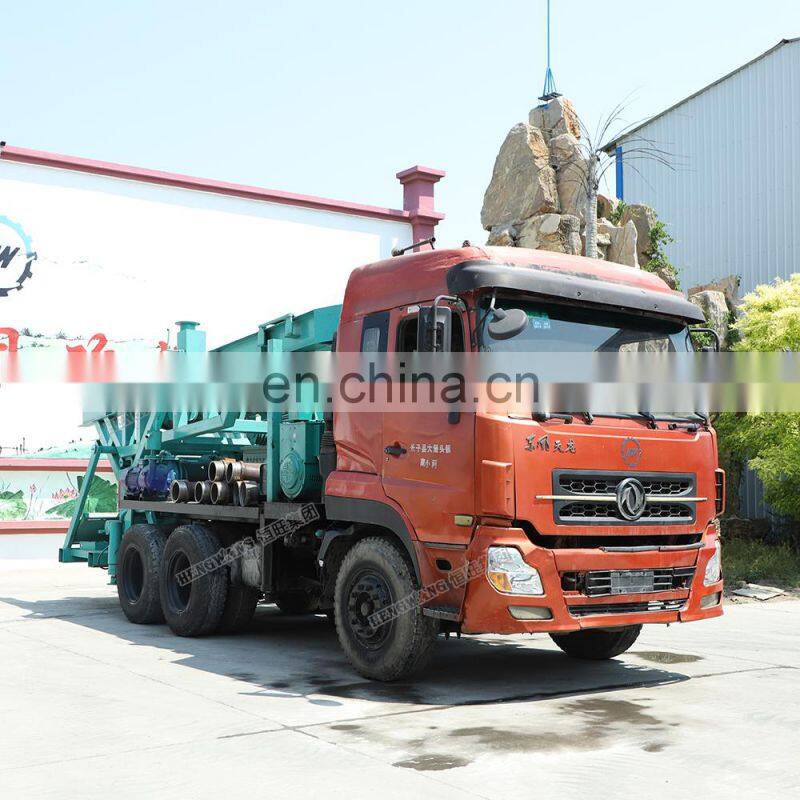

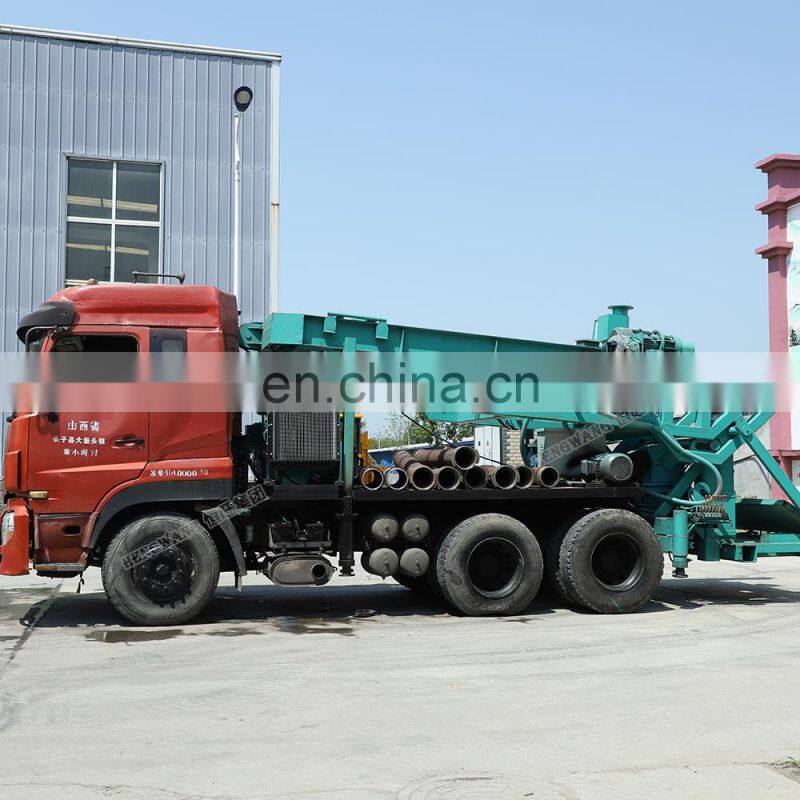

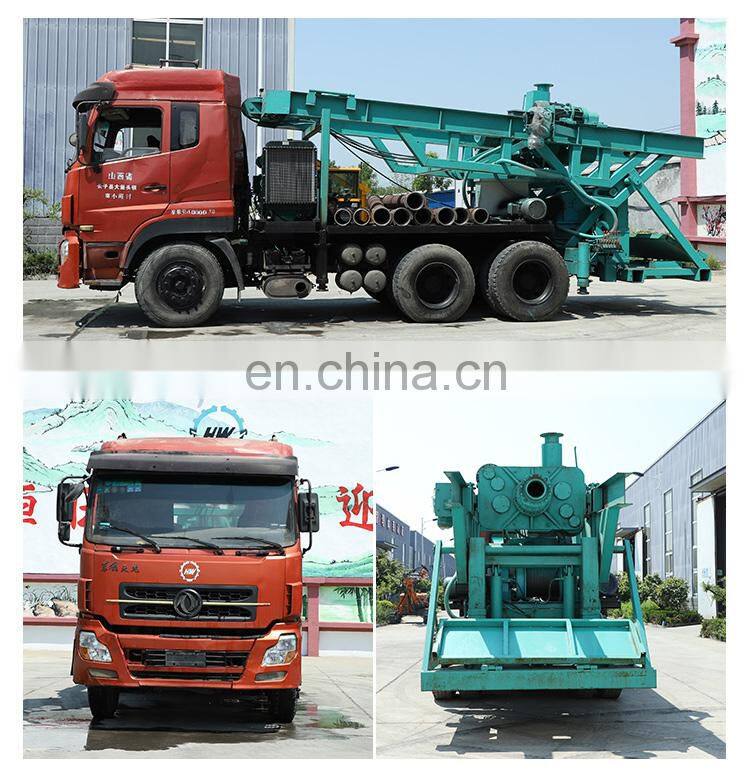

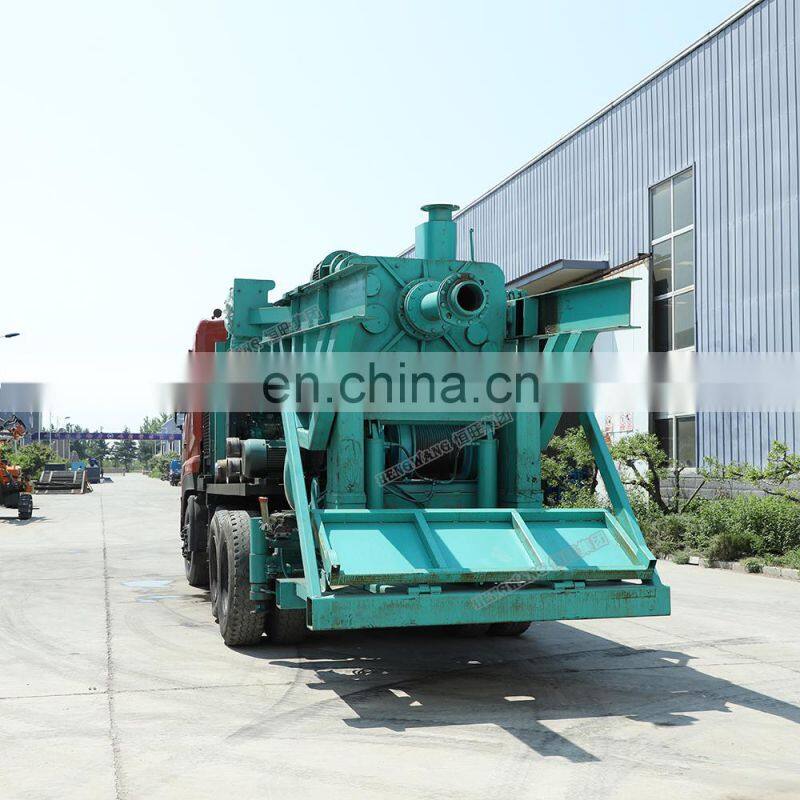

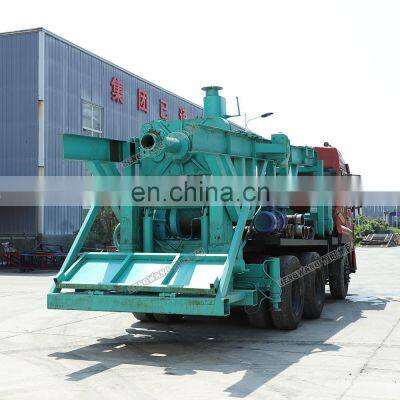

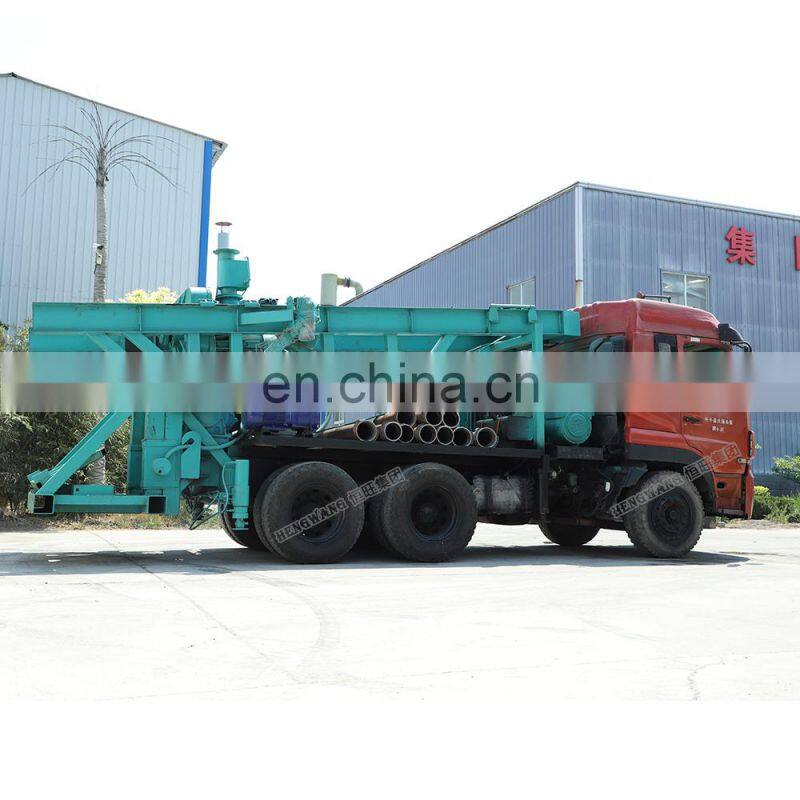

Hengwang HF-200 truck mounted water well drilling rig/geological rig

The impact frequency of reverse circulation rig is 40 times /min, the main and the auxiliary hoisting capacity is 30kN, the motor power is 45kW, not include 6BS pump.

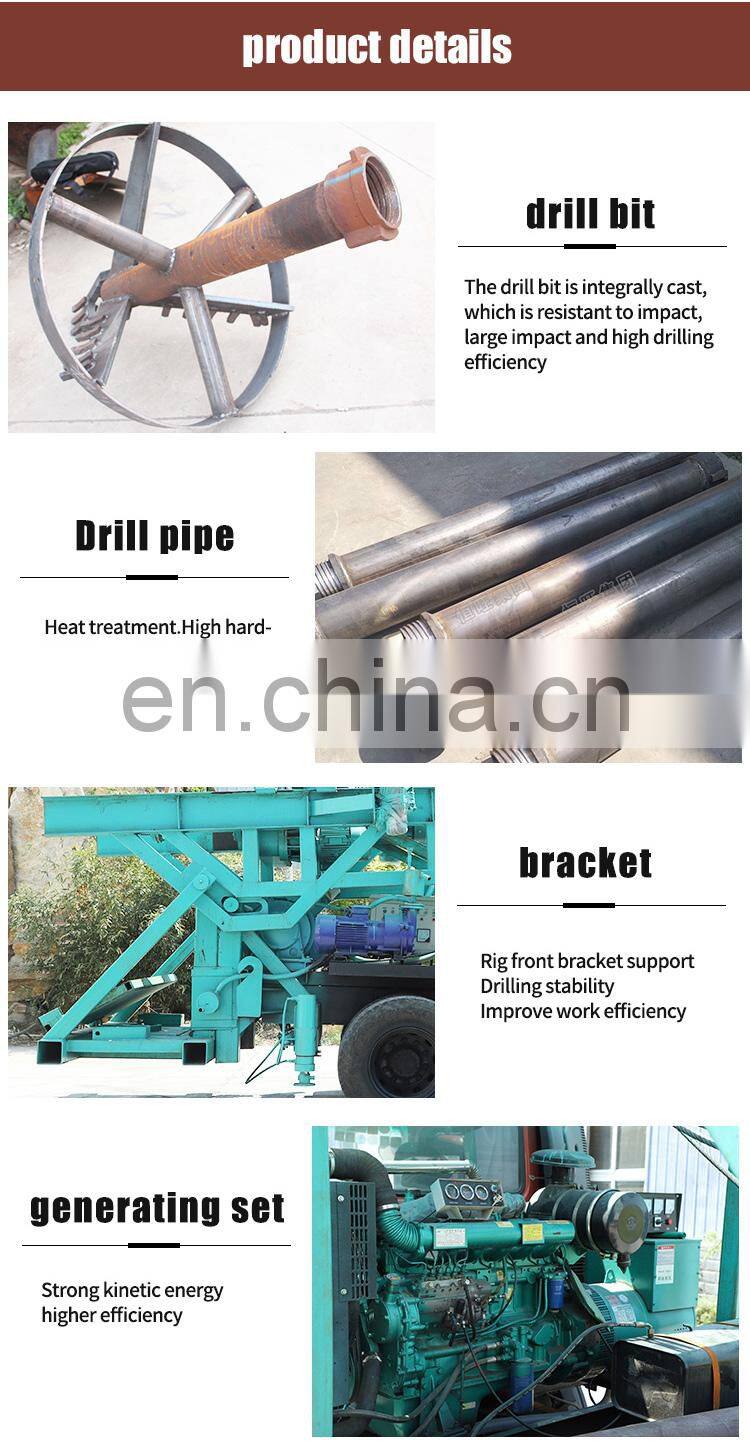

The weight of the shot bit is 4T, and it equipped with overall cast-iron,has impact resistance, stronger impact force, high drilling efficiency, used for drilling hole diameter 800-1500mm.
The main and the auxiliary hoisting capacity of reverse circulation rig is 50kN, maximum drilling hole diameter is 2.0m and drilling hole depth is 80m,lifting stroke of hoist is 1.5-3.0m,main power is 75kW.
The reverse circulation pump unit is 3PNL and 6BS pump, can be equipped with hydraulic step displacement. In addition to the impact of the drill tip wear-resistant materials, the remaining 50mm welded steel plate, can also be equipped with a variety of specifications drill.
The Reverse Circulation Rig is suitable for complex foundation engineering construction, such as soil layer, cemented gravel and rock socketed,and it is widely applied to bridge bored pile and underground diaphragm wall foundation engineering.Hengwang HF-200 Reverse Circulation Rig
Specification
Model
HF-200
Drill hole depth（m）
≤220
The hole diameter（mm）
450-2000
Spindle speed（r/min）
9
Spindle power（kw）
11
The spindle torque(N•m)
12000
Hoist lifting force（kg）
3000×6
Mud pump
Traffic（m³/h）
300
Power（kw）
22
Generating set
The rated voltage（V）
380
Rated current（A）
90
Rated speed（r/min）
1500
Rated power（kw）
50
Main power supporting power
4105-6105 Diesel
Overall dimensions（L x W x H）（mm）
9200×2500×3500
Single weight（kg）
12500
Products Display
Product Detail
Related Products
Company Profile

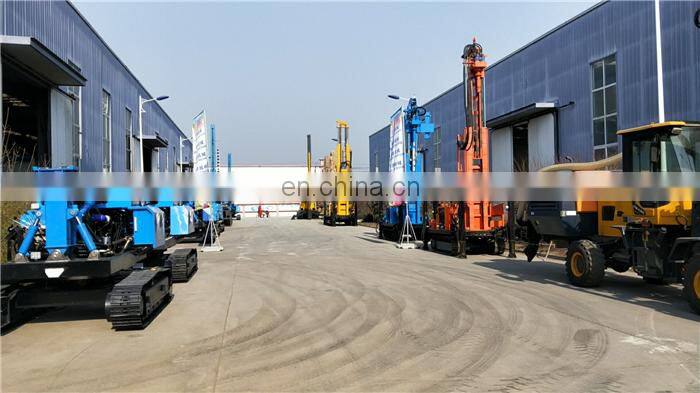

Shandong Hengwang Group Co., LTD. Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery ,water well driling machine and conctruction machinery design, manufacture and installation of an integrated enterprise. Our company produces the piling machinery a total of 10 major series more than 20 varieties, mainly include photovoltaic crawler pile driver, caterpillar screw drivers, HW series, KLB hydraulic pile driver walking long spiral drill, caterpillar diesel pile hammer machine, vibration sinking pipe pile, DZB multi-function rig, water well driling rig machine,concrete pump and other products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.
