1500m Track Mounted the Mine Engineering Geology Drilling Rigs
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hengwang HQZ-220L Pneumatic Drilling Machine Hydraulic Drilling Rig For WaterNegotiableMOQ: 1 -
Hengwang HQZ260L Borehole Water Well Drilling Rig With Hydraulic TowerNegotiableMOQ: 1
-
Hengwang HQZ260L Fast Speed Cheap 200m Air Compressor Drilling Rig for SaleNegotiableMOQ: 1
-
Hengwang HWL-70 Vertical Hole Multifunctional Anchor Drilling Rig Engineering Foundation Piling EquipmentNegotiableMOQ: 1
-
Hengwang HQZ320L 320M Depth Borehole Water Well Drilling Rig Machine With Cheap PriceNegotiableMOQ: 1
Product Description

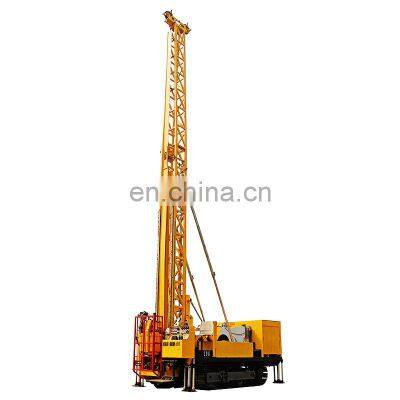

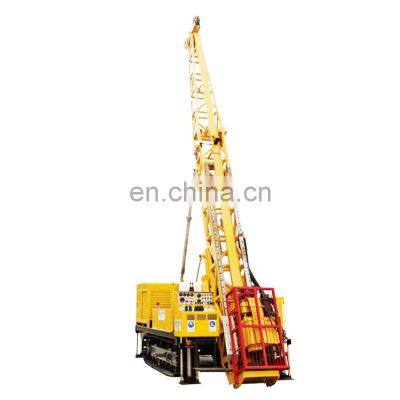

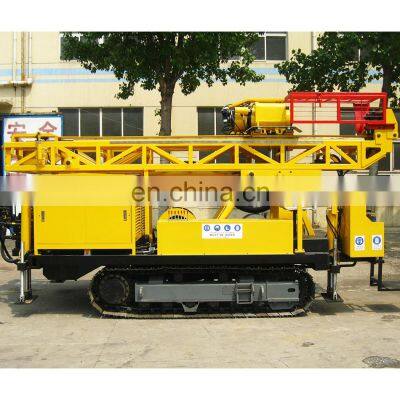

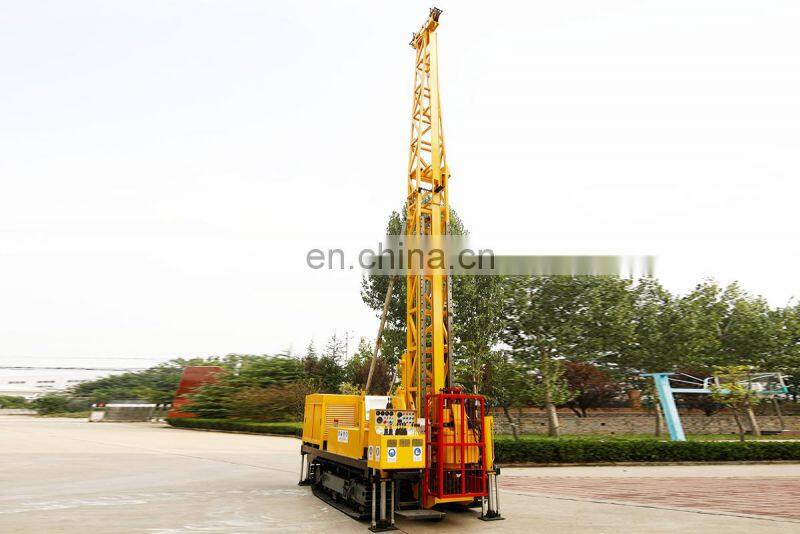

HW-1500 Full Hydraulic Diamond Core Drilling Rig
HW-1500 Full Hydraulic Diamond Core Drilling Rig
* HW-1500 diamond core drill utilizes an advanced load sensing control system within it’s hydraulic system, which is currently being adopted by the major international producers. The rig features quality pedrail tracks that provides the rig with strong climbing capabilities that enhances it’s capabilities even in the toughest terrain.
* This drill rig is suited for the following drilling applications: Diamond core drilling; Directional drilling; Reverse
circulation continuous coring; Percussion rotary ; Geo-tech; Water bores; Anchorage.
Product Features
* 1, The rig offers a smooth hydraulic transmission, operating at low noise levels. Whilst providing convenience to the operation is labor saving and focuses on promoting work safety on site.
* 2, The whole hydraulic system of the drill is adopted international advanced load-sensitive control system, efficient and
sumptuary, main hydraulic elements are all original imported, stable using and reliability.
* 3, The pedrail set has high driving force and powerful climbing ability.
* 4, The rotation head is a step-less speed transmission, offering a wide range of speeds and torque (up to 3 speeds), the
rotation head can be side racked via hydraulic rams for added convenience and efficiency especially during rod trips.
* 5, Hydraulic chuck jaws and foot clamps offers a fast clamping action, designed to be reliable, neutral. The foot clamps are designed to suit various different drill rod sizes via the use of different size slip jaws.
* 6, Feed stroke at 3.5 meters, reduces operation time, improves drilling efficiency and reduces inner tube core blockages.
* 7, Braden main winch (USA) features a stepless speed transmission from Rexroth. Single rope hoist capacity up to 8.1t. Wireline winch is also equipped with a stepless speed transmission, offering a wide speed range.
* 8, The rig benefits from a tall mast, which allows for the operator to pull rods at up to 6m lengths, making rod trips faster
and more efficient.
* 9, The mast could be folded to decrease the transport size and fulfill the civil road transportation statute. The drilling rig
could be transported in container.
* 10, Equipped with all the essential gauges, including, Rotation speed; Feed Pressure; Ammeter; Voltmeter; Main Pump/Torque gauge; Water pressure gauge.
Technical Parameters
Specification for hydraulic HW-1500 core Drilling Rig hydraulic
Model |
HW-1500 |
||
Drilling Capacity (straight hole) |
BQ（Φ55.5mm） |
1500 m |
|
NQ（Φ71mm） |
1300 m |
||
HQ（Φ89mm） |
600 m |
||
PQ（Φ114mm） |
400 m |
||
Rotator Capacity |
RPM |
10-960 rpm |
|
Max Torque |
2880 N·m |
||
Max Feeding Power |
50 kN |
||
Max Lifting Power |
150 kN |
||
Diameter of Chuck |
94 mm |
||
Feed stroke |
3400 mm |
||
Capacity of Main Hoist |
Hoisting Force |
16000 kg |
|
Main hoist speed |
8-46 m/min |
||
Steel Wire Diameter |
19 mm |
||
Steel Wire Length |
26 m |
||
Capacity of Steel Wire Hoist |
Hoisting Force |
1500 kg |
|
Main hoist speed |
30-210 m/min |
||
Steel Wire Diameter |
6 mm |
||
Steel Wire Length |
1500 m |
||
Mast |
Mast Height |
9.5 m |
|
Drilling Angle |
45°- 90° |
||
Mast Mode |
Hydraulic |
||
Motivity |
Mode |
Engine |
|
Power |
132 kW |
||
Main Pump Pressure |
27 MPa |
||
Chuck Mode |
Hydraulic |
||
Clamp |
Hydraulic |
||
Weight |
10600kg |
||
Transport Way |
Pedrail Mode |
||
