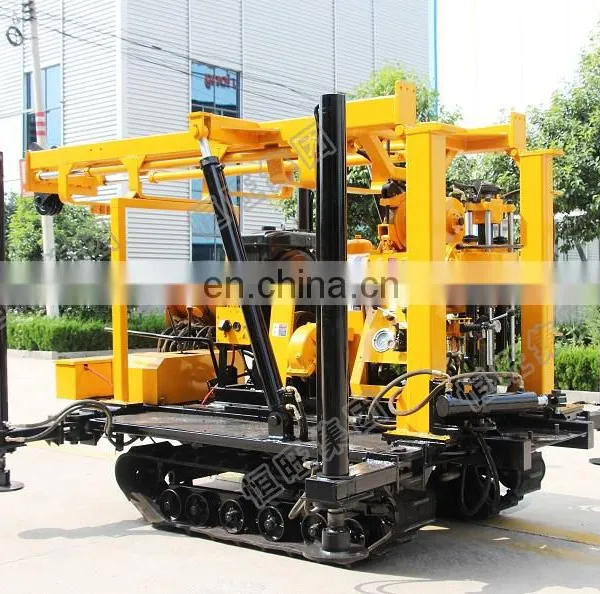

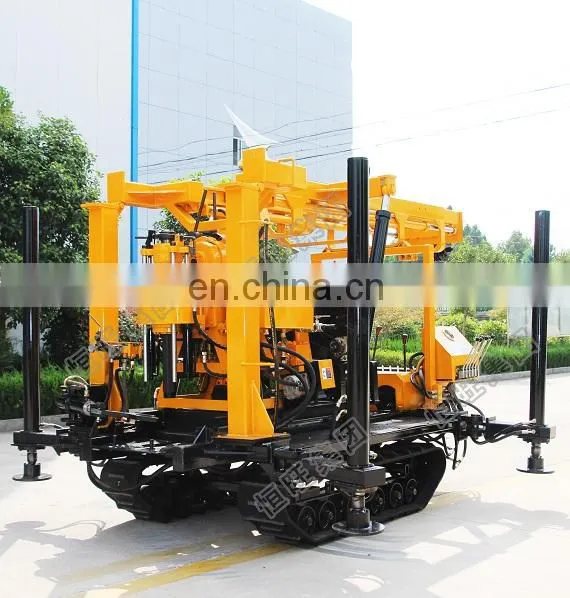

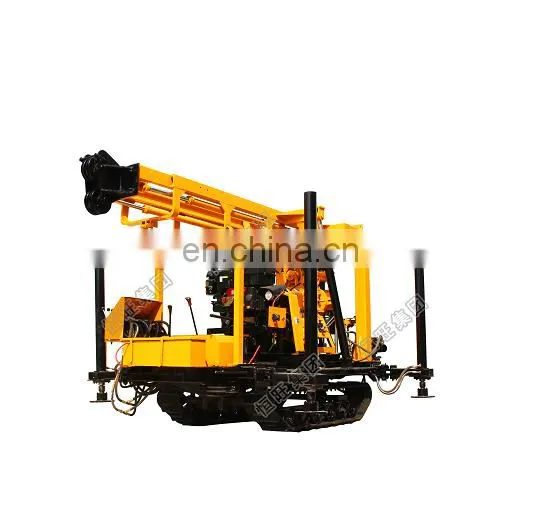

600mm portable water well drilling rig rock bore drilling machine
- 1000 per Month
- T/T Credit Card
- 2020 HengWang Pile Driver Machine/Foundation Construction equipment/ solar pile driver
- 2020 Pile driver for sale solar pile driver
- Medium excavator loader Multi-function loader attachment pile driver drilling machine for sale
- Solar farm highway guardrail post installation safety barrier road fence pile driver machine photovoltaic
- Wheeled Multifunction HWZG Hydraulic Guardrail Post Pile Driver for sale
- Soil nailing anchoring drill machine with anchor bolt hole for HW- MXL150
Product Description
HW-Hydraulic DRILLING RIG!!!!

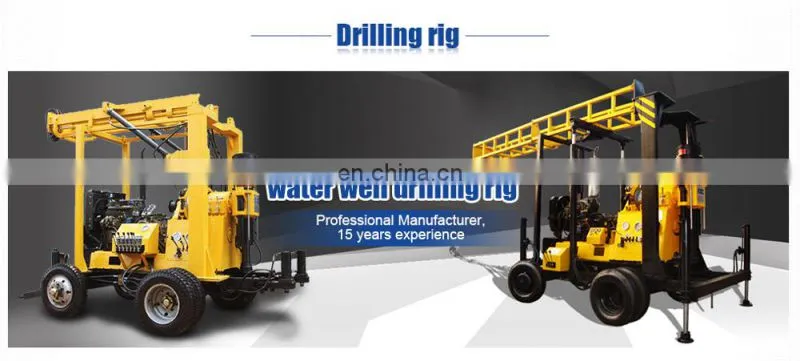

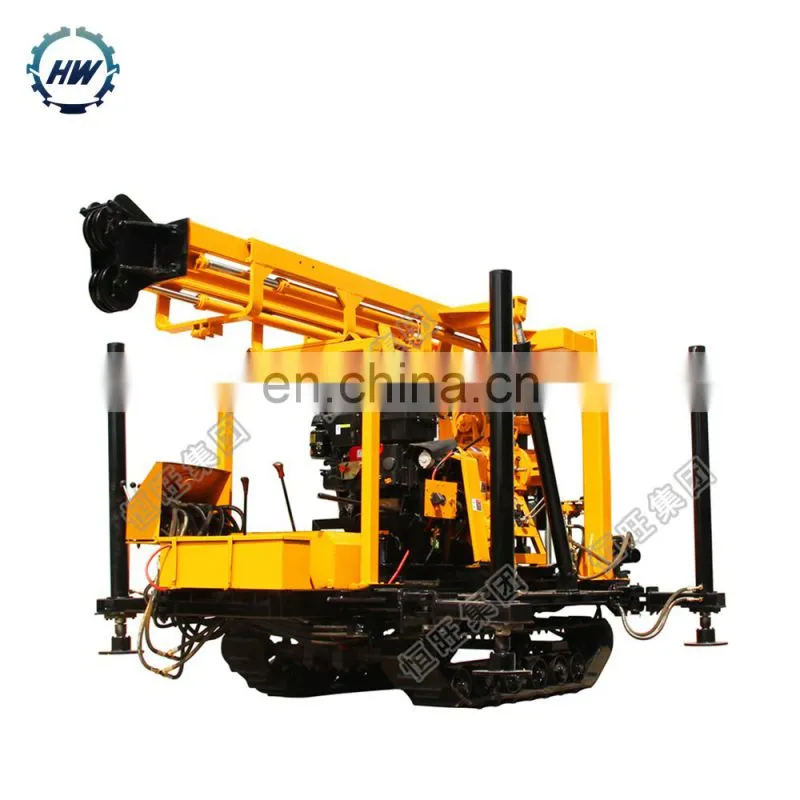

HWseries hydraulic drilling rig is a kid of widely used portable drill machine. It is uitbale for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservanc, bridges, dam foundation and other buildings. According to different strata, it drills by choosing different bits, such as, diamond composite films and alloy.
Main features
1.It improves drilling efficiency and reduces labor intensity with hydraulic automatic feeding mechanism.
2.It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.
3.It has hole bottom pressure gauge to be easy tp master the situation in the hole.
4.It also has advantage of compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move.It can be operated in plains and mountain areas.
Model | HW-160/190/230 | Spindle Speed | 64~1045(r/min) |
Max.Drilling depth | 160m/190m/230m | Spindle Stroke | 450mm |
Soil Open hole dia. | 500mm/500mm/500mm | Winch single rope lift force | 2000kg-2500kg |
Rock Open hole dia. | 220mm/220mm/273mm | Winch single rope lift speed | 0.12-1.64(m/s) |
End hole dia. | 75mm~200mm | Winch Rope dia. | 9.3mm/9.3mm/12..5mm |
Drill rod dia. | 42/50/60 | Winch Rope capacity | 27M/27M/35M |
Drill angle | 90-75° | Drill Mast Rated load | 18T |
Engine Power | 13/14/16KW | Drill Mast Effective height | 6.5M |
Weight | 600KG/650KG/880KG | Mud pump Flow | 95~145L/min |
Dimension | 2.7*0.9*1.5 | Mud pump ure | 1.2~2Mpa |
Mud pump reciprocations time | 93 times/min | ||
Inlet hose dia.(mm) | 51mm | ||
Outlet hose dia.(mm) | 32mm |

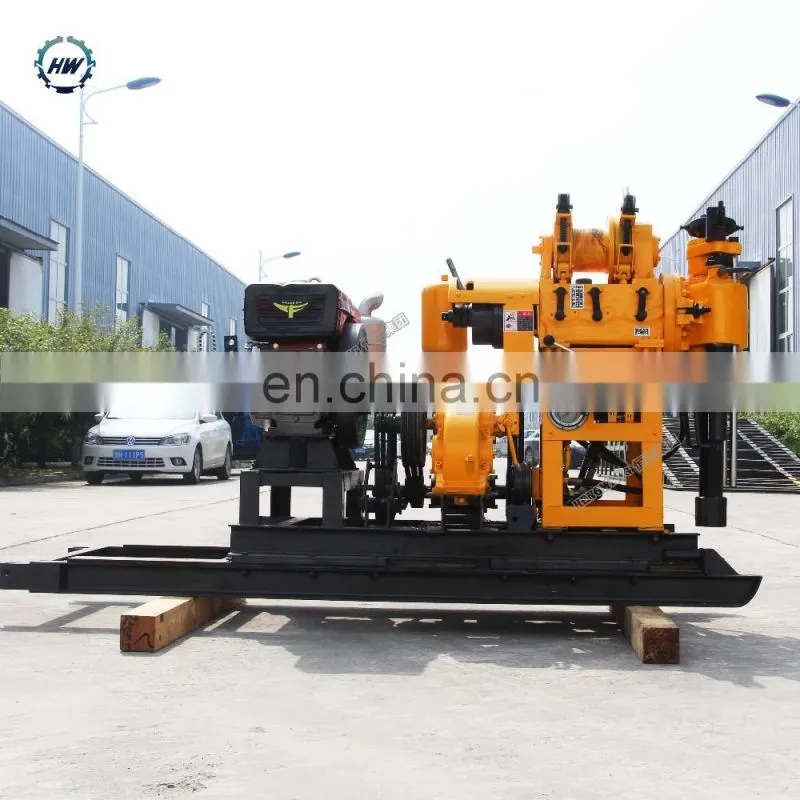

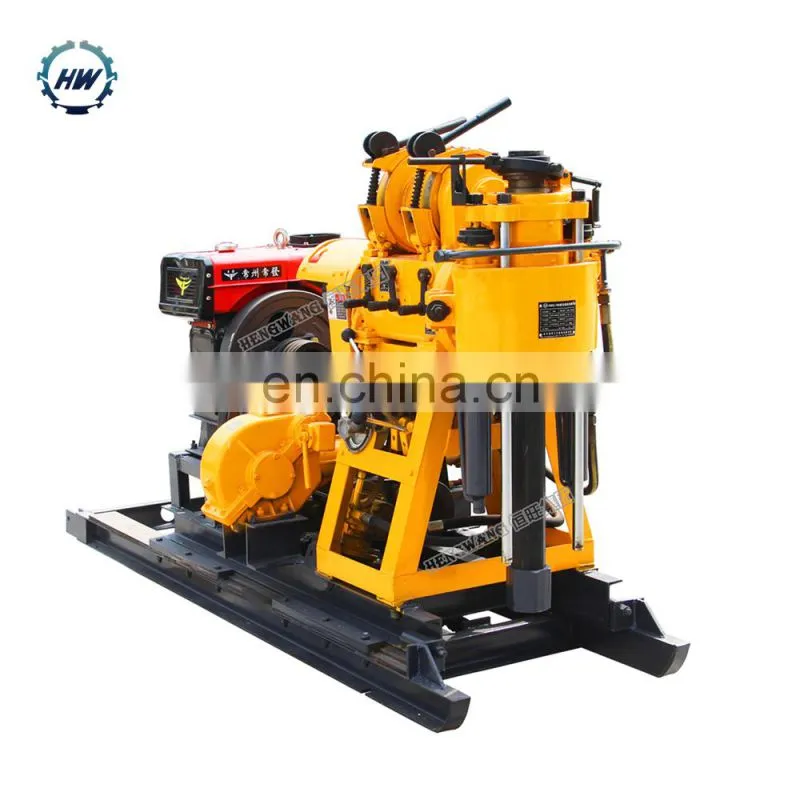

HW-160/190/230
.

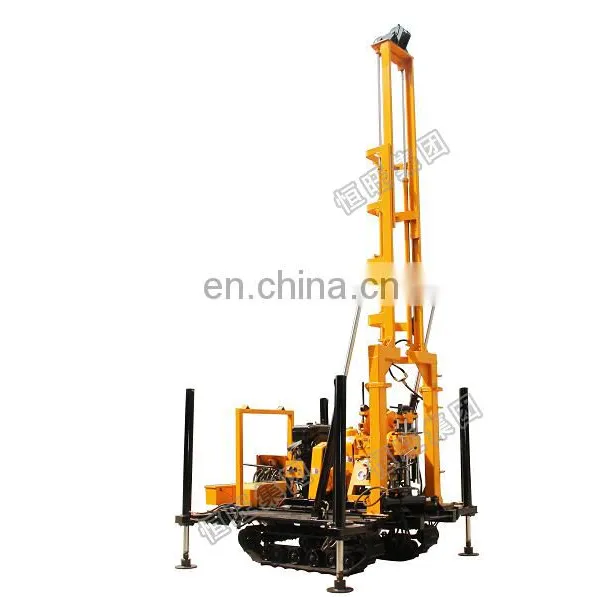

HW-160T/190T/230T
1 set include all accessories will be used.
(Please contact us for list)

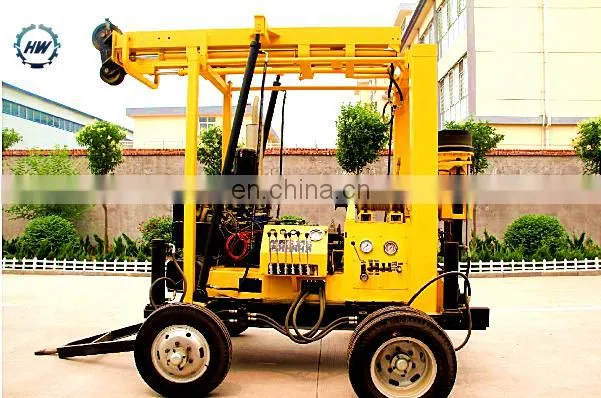

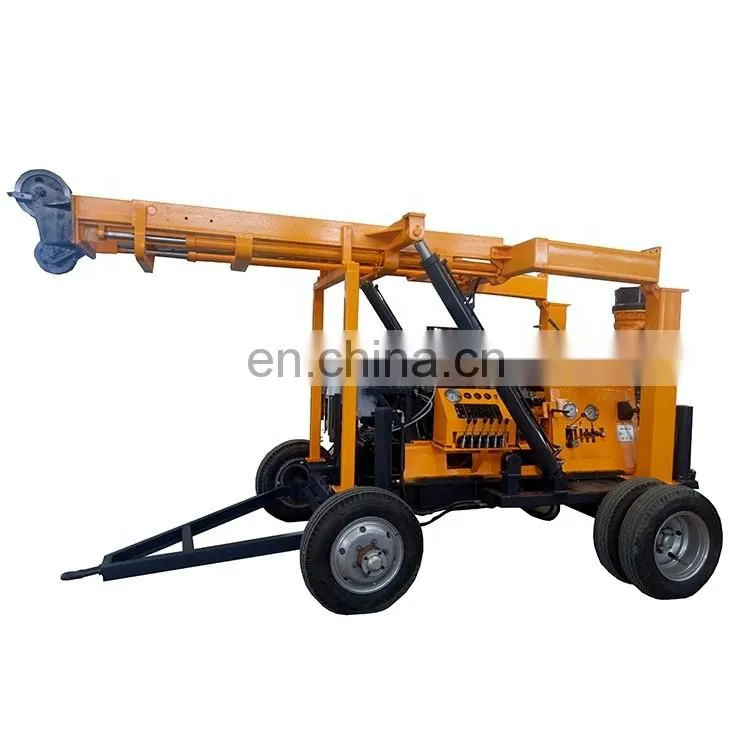

HW-160L/190L/230L
1 set include all accessories will be used.
(Please contact us for Details)

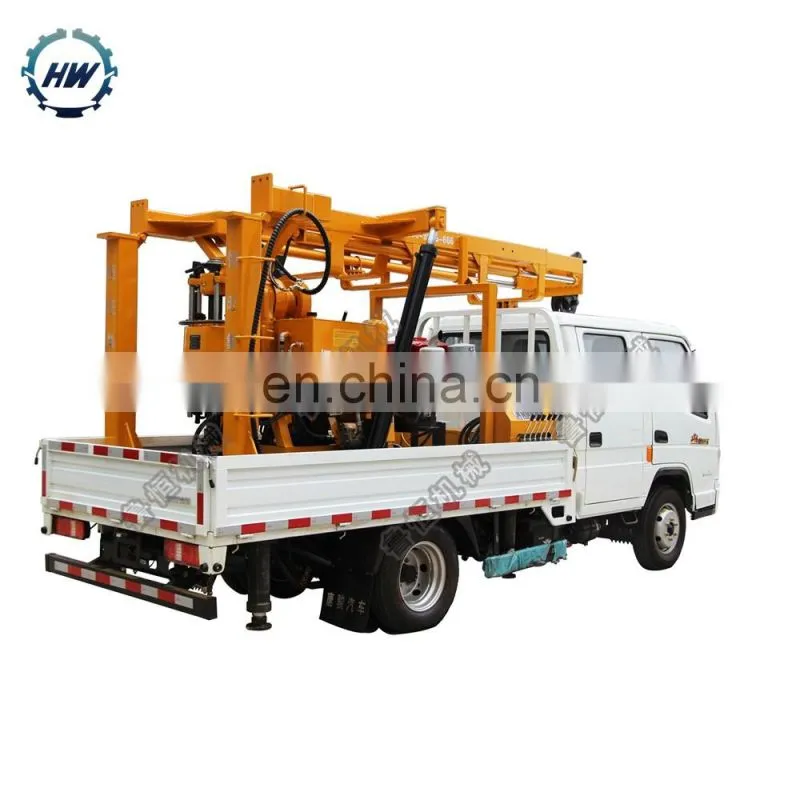

HW-160C/190C/230C
1 set include all accessories will be used.
(Please contact us for Details)

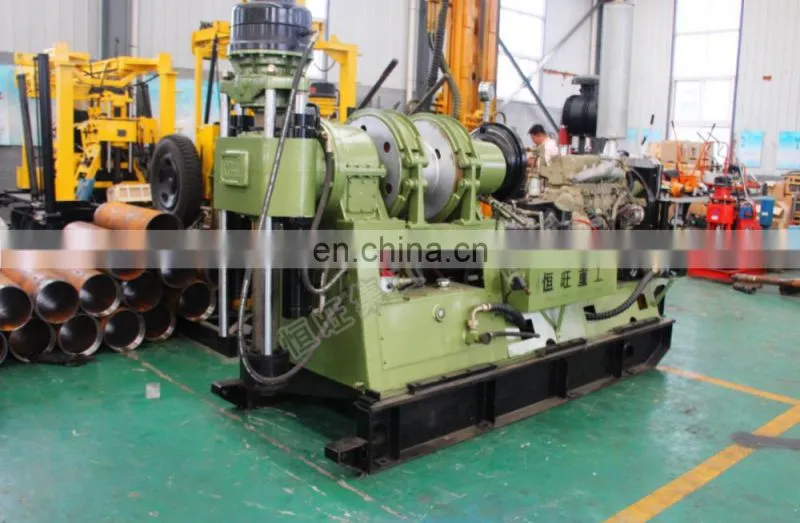

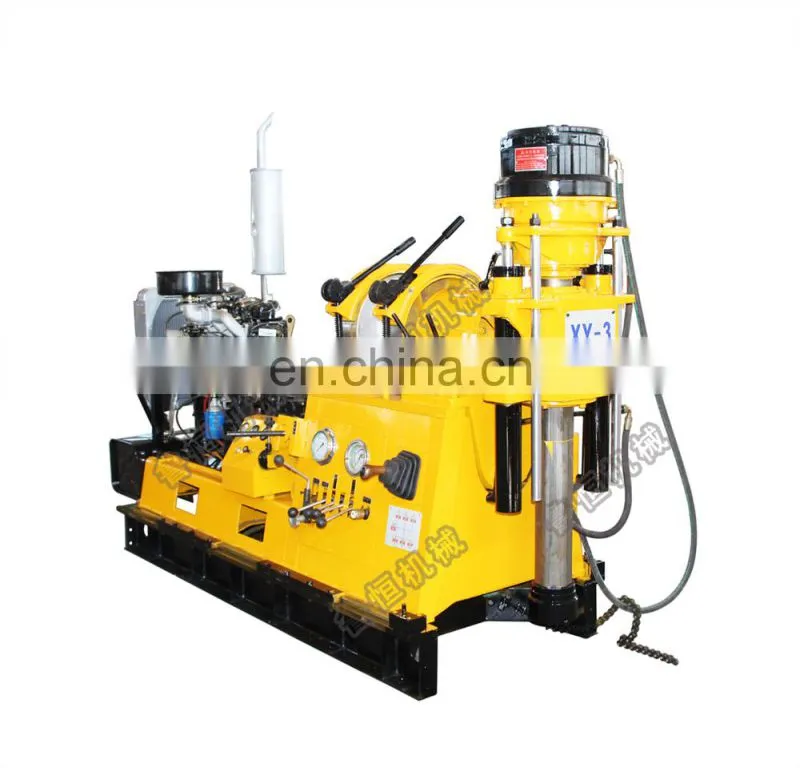

HW XY-3
Hydraulic Drilling rig
Max.drilling depth:600m
HW XY-44A
Hydraulic Drilling rig
Max.drilling depth:1400m

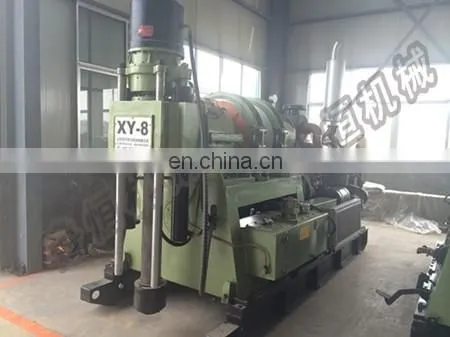

HW XY-8
Hydraulic Drilling rig
Max.drilling depth:3000m
HW-S30
Pneumatic Drilling rig
Max.drilling depth:50m
Including Air Compressor for choice
HQZ150/180/260/300/400/500
Pneumatic Drilling rig
Max.drilling depth:
150M/180M/26M0/300M/400M/500M
Including Air Compressor for choice
HWL-260L/300L/400L Water/air Drilling Rig
Hydraulic/Pneumatic Drilling rig
Max.drilling depth:260m/300m/400m
