Borehole Drilling Machine and Geothermal Perforation for Underground Mining
Product instruction
XY-3 multifunctional hydraulic water well drilling rig for sale.
Features: Borehole Drilling Machine and Geothermal Perforation for Underground Mining
1XY-3 well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency
2.Easy to transport and can learn how to handle the machine in short time.
3.It can drill 600m depth with low consumption and drilling rig all adopts full hydraulic control.Borehole Drilling Machine and Geothermal Perforation for Underground Mining
4.Power head device, gearbox integrated casting, dual motor power, torque, durability, small maintenance costs. Trailer mounted drilling rig for solving water problem
5.Each drill hoist arm is installed limiter, protect the cylinder safety, ensure the safety
of work. Borehole Drilling Machine and Geothermal Perforation for Underground Mining
Technology Parameter
Unity machine parameter | |
Core Drilling depth | 600m |
Max open hole caliber | 300mm |
End hole caliber | 75mm |
Drilling Rod diameter | 60mm |
Drilling angle | 90°~65° |
Dimension | 2500 x 900 x 1800mm |
Drill weight (without power) | 1600kg |
Spindle | |
Spindle speed | Forward 30-1050r/min |
| Reverse 29 137r/min |
Spindle stroke | 600mm |
Spindle inner diameter | 96mm |
Lifting capacity | 6000kg |
Hoist | |
Max.Single line lifting capacity | 4000kg |
Max.Single line lifting speed | 0.5-1.9m/s |
Wirerope caliber | 12.5mm |
Wirerope length | 50m |
Reel diameter | 300mm |
Hug folldgate belt width | 90mm |
Mud pump | |
Type | BW-250 |
Displacement | 250 L/min |
Work pressure | 80kg/cm |
Water inlet pipe diameter | 75 mm |
Water outlet pipe diameter | 50 mm |
Gear Oil pump | |
Duplex gear oil pump | CBF-F63/25 |
Front Displacement, pressure | 63 L/min 20Mpa |
Behind Displacement, pressure | 25 L/min 20Mpa |
Power | |
Duplex gear oil pump | CBF-F63/25 |
Front Displacement, pressure | 63 L/min 20Mpa |

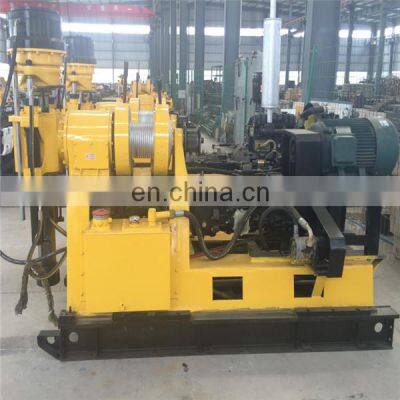

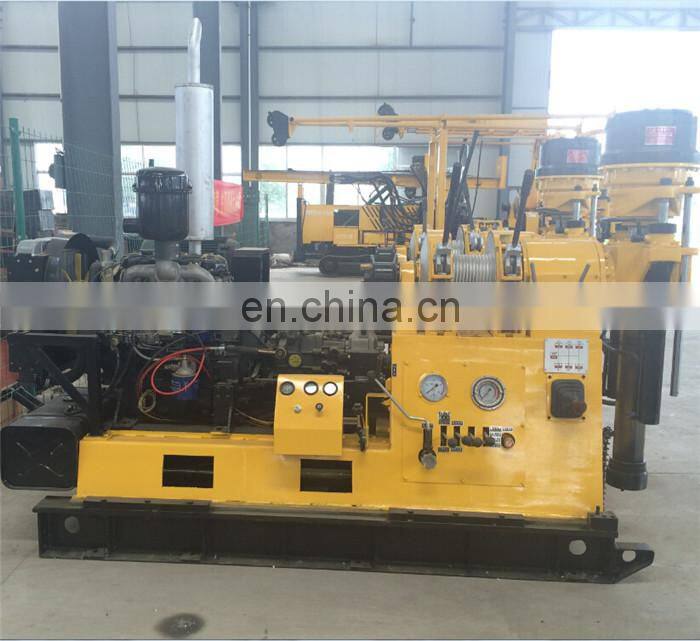

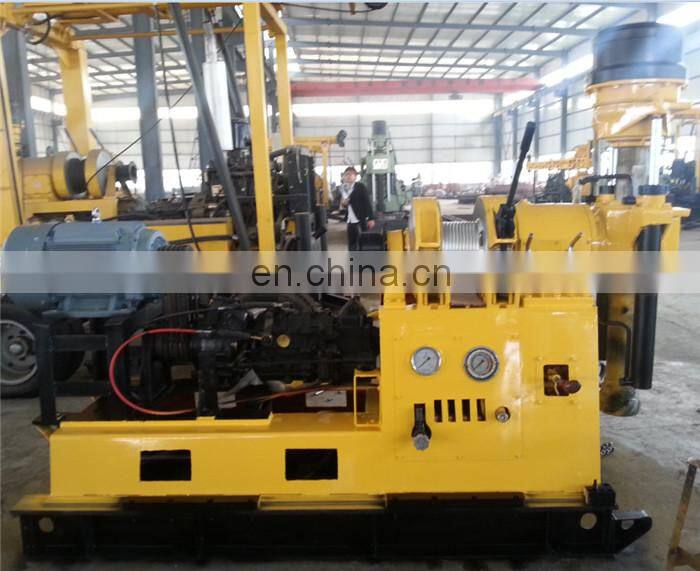

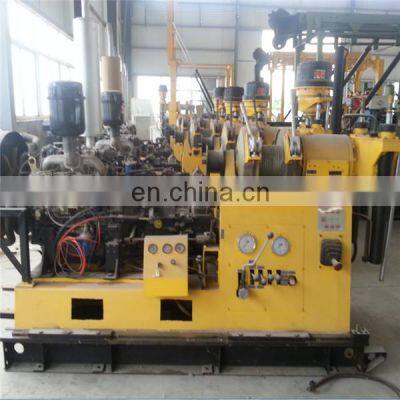

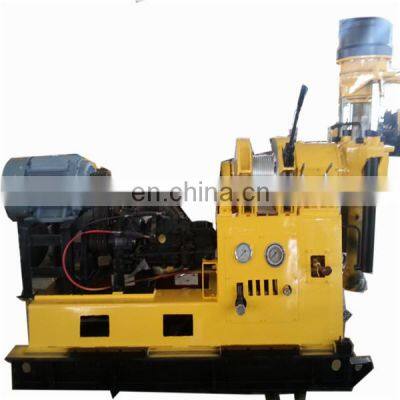

Product Real Photos
