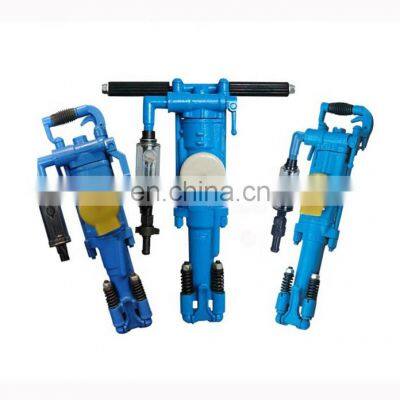

Pusher Leg Hydraulic Hand Rock Drill photo-2
Pusher Leg Hydraulic Hand Rock Drill photo-3

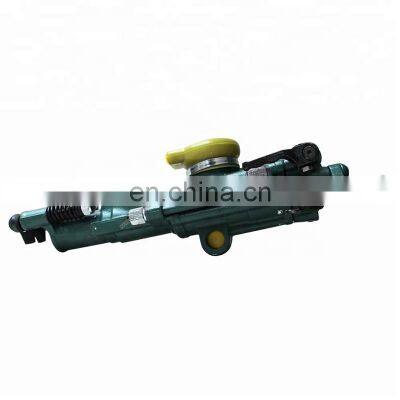

Pusher Leg Hydraulic Hand Rock Drill photo-4

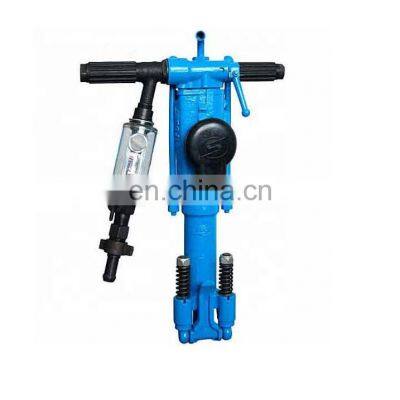

Pusher Leg Hydraulic Hand Rock Drill photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Shandong Hengwang Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

Rock Drill Feathures:

1.The rock drill is a kind of high efficiency air leg rock drill machinery.
2.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
3.It is suitable for drilling and blasting under various of rocks and any direction angles.
4.Blast hole dia is 34-42mm, drill hole depth is 5m.
5.This machine may match with FT160BD short air leg of FT160BC long air leg.

SPECIFICATIONS FOR YT28 ROCK DRILL
Type
YT28
Weight
26 (Kg)
Length
661(mm)
Cylinder dia
φ80 (mm)
Piston stroke
60 (mm)
Working pressure
0.4~0.5 (Mpa)
Impact energy
≥60.2 (J)
Impact frequency
≥37 (Hz)
Air consumption
≤81 (L/s)
Working water pressure
0.2~0.3 (Mpa)
Air pipe inner dia
φ25 (mm)
Water pipe inner dia
φ13 (mm)
Rock drill hole dia
φ34~φ42 (mm)
Rock drill hole depth
5 (m)
Shank size
22×108 (mm)

YT28 Rock Drill Application:

It is mainly used for diging into mine laneway and blasting holes in all drilling works. It is indispensably importance machine tool in metallurgy, coal, railway, traffic, water conservancy construction and national defence stone project.Blast hole dia is 34-42mm,drill hole depth is 5m. This machine may match with Model FT160 air leg.

Our Company
Our Customer
Our Service

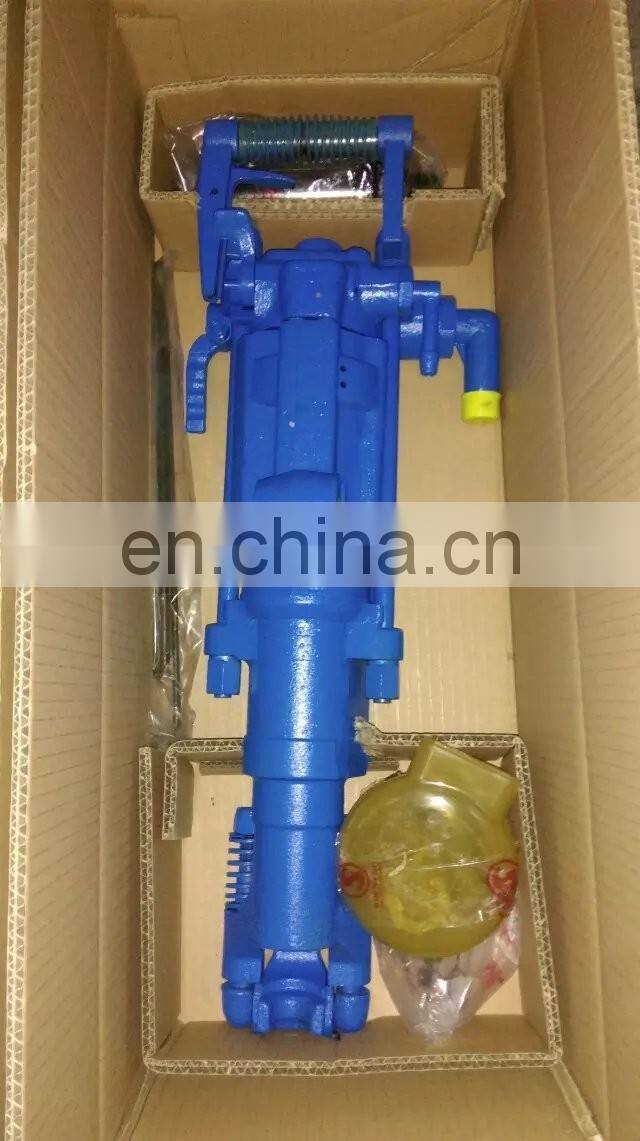

Packing & Delivery
