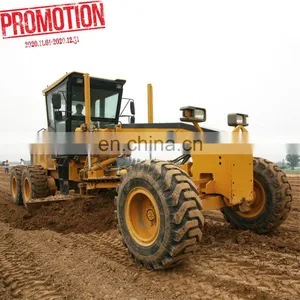

Good Efficient Motor Grader 140H for Sale in Stock, Used Grader
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Official Famous 215hp Motor Grader Road Grader With Ripper and Blade for SaleNegotiableMOQ: 1 -
Brand New Motor Grader 15.4t 118kW SG16-3 Motor Grader With Ripper BladeNegotiableMOQ: 1
-
Big Promotion 210HP SG16- 3 Motor Grader Hot Sale In Turkey Russia Philippines Thailand Indonesia Kenya Algeria AfricaNegotiableMOQ: 1
-
Comfortable Operating Environment Grader Sg16-3NegotiableMOQ: 1
-
SG24-3 Motor GraderNegotiableMOQ: 1
Product Description

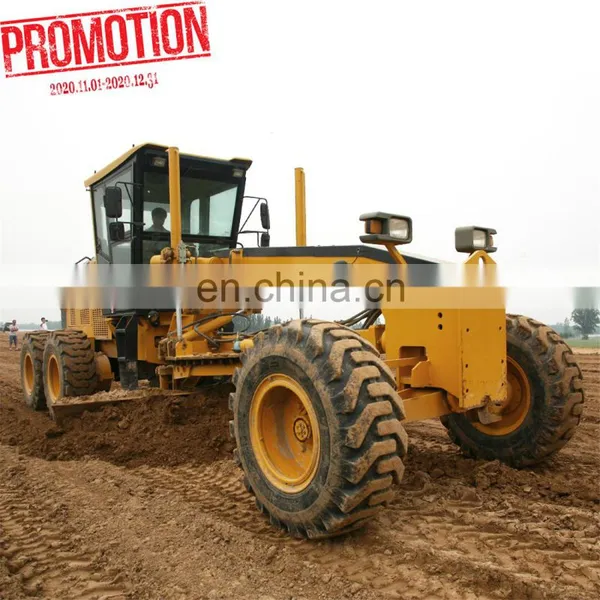

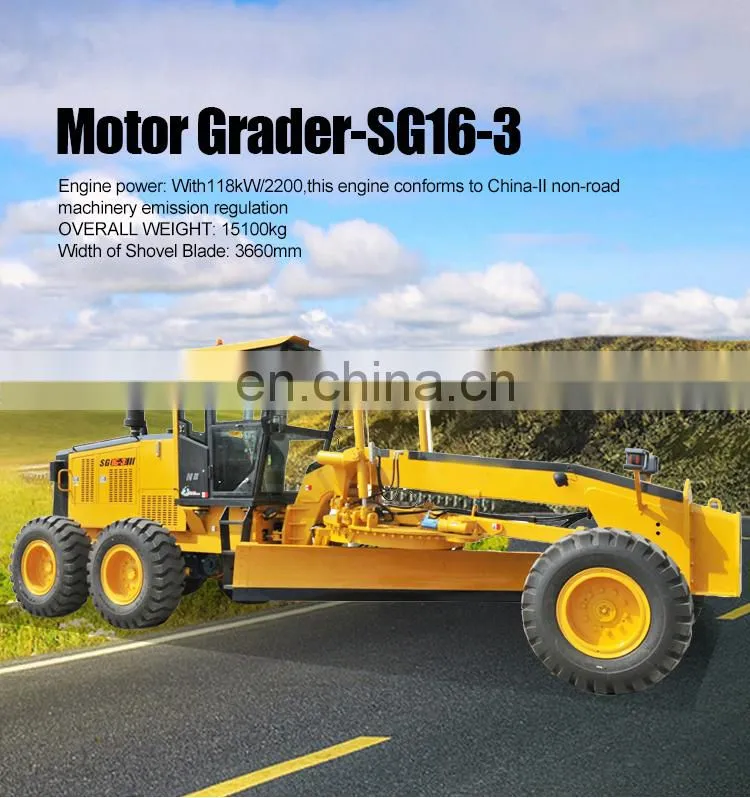

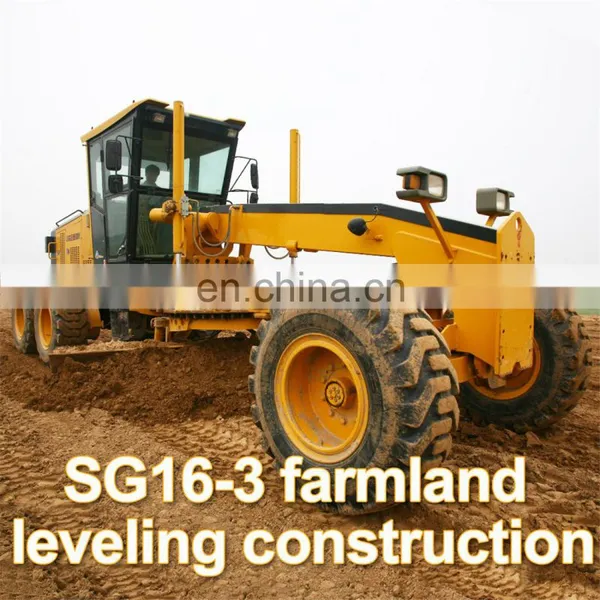

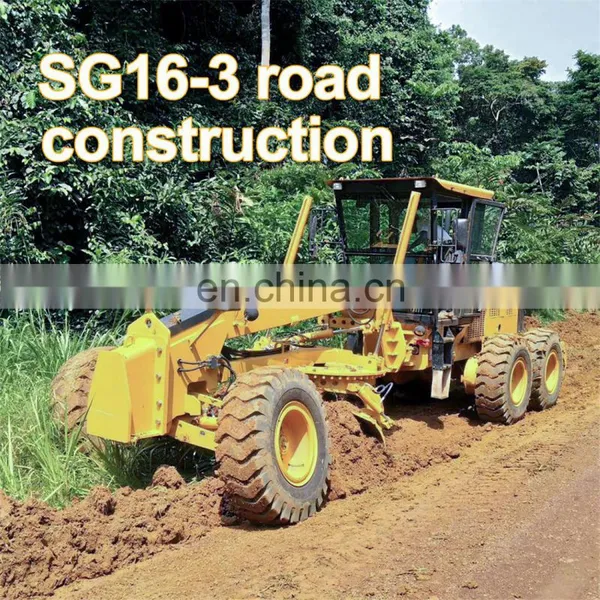

SG16-3 motor grader

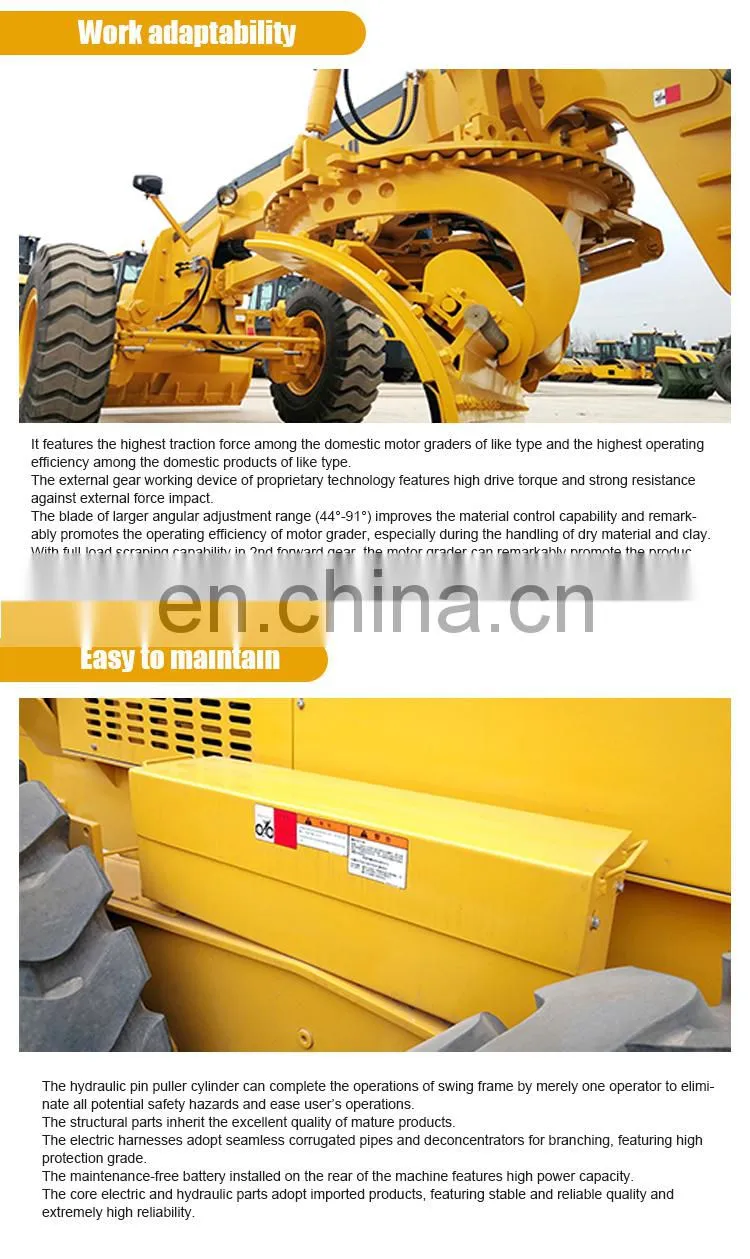

SG16-3 motor grader adopts the external ring gear type working device to achieve higher transmitted torque, larger blade cutting angle, and better material control capability and features the maximum traction force among the domestic like machines. This machine is applicable for large-area leveling, ditching, slope scraping, bulldozing, ripping, land clearing, and snow removing and is an ideally essential machine for large building constructions, water conservancy projects, and farm improvements.

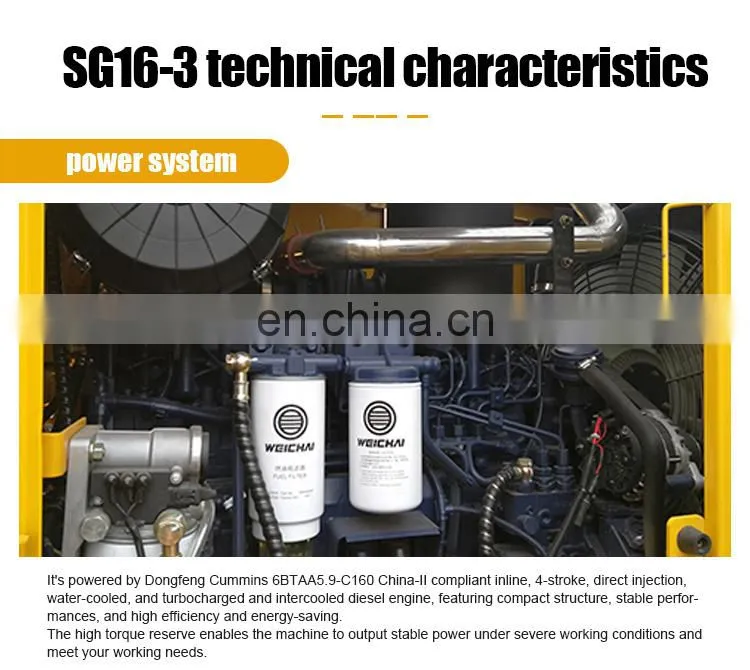

Power System
● It's powered by Dongfeng Cummins 6BTAA5.9-C160 China-II compliant inline, 4-stroke, direct injection, water-cooled, and turbocharged and intercooled diesel engine, featuring compact structure, stable performances, and high efficiency and energy-saving.
● The high torque reserve enables the machine to output stable power under severe working conditions and meet your working needs.
● It's powered by Dongfeng Cummins 6BTAA5.9-C160 China-II compliant inline, 4-stroke, direct injection, water-cooled, and turbocharged and intercooled diesel engine, featuring compact structure, stable performances, and high efficiency and energy-saving.
● The high torque reserve enables the machine to output stable power under severe working conditions and meet your working needs.
Specification
Product name |
SG16-3 |
Performance parameters |
|
Operating weight of machine (kg) |
15100 |
Wheelbase (mm) |
6260 |
Wheel tread (mm) |
2155 |
Minimum ground clearance (mm) |
430 |
Steering angle of front wheels (°) |
±45 |
Articulated steering angle (°) |
±25 |
Maximum traction force (kN) |
79.3（f=0.75） |
Turning radius (mm) |
7,800 (Outer side of front wheel) |
Maximum gradeability (°) |
20 |
Width of shovel blade (mm) |
3660 |
Height of shovel blade (mm) |
635 |
Blade slewing angle (º) |
360 |
Blade cutting angle (º) |
37-83 |
Maximum digging depth of blade (mm) |
500 |
Length (mm) |
8726 |
Width (mm) |
2600 |
Heigh (mm) |
3400 |
Engine |
|
Engine model |
6BTAA5.9-C160 |
Emission |
China-II |
Type |
Mechanical direct injection |
Rated power/rated speed (kw/rpm) |
118kW/2200 |
Drive system |
|
Torque converter |
Single-stage single-phase three-element |
Transmission |
Countershaft power shift |
Gears |
Six forward and three reverse |
Speed for forward gear I (km/h) |
5.4 |
Speed for forward gear II (km/h) |
8.4 |
Speed for forward gear III (km/h) |
13.4 |
Speed for forward gear IV (km/h) |
20.3 |
Speed for forward gear V (km/h) |
29.8 |
Speed for forward gear VI (km/h) |
39.6 |
Speed for reverse gear I (km/h) |
5.4 |
Speed for reverse gear II (km/h) |
13.4 |
Speed for reverse gear III (km/h) |
29.8 |
Brake system |
|
Service brake type |
Hydraulic brake |
Parking brake type |
Mechanical brake |
Brake oil pressure (MPa) |
10 |
Hydraulic system |
|
Working pump |
Constant displacement gear pump, with flow at 28ml/r |
Operating valve |
Integral multi-way valve |
Pressure setting of safety valve (MPa) |
16 |
Pressure setting of safety valve (MPa) |
12.5 |
Filling of fuel/oils/fluids |
|
Fuel tank (L) |
340 |
Working hydraulic fuel tank (L) |
110 |
Transmission (L) |
28 |
Drive axle (L) |
25 |
Balance box (L) |
2X38 |
Product Details

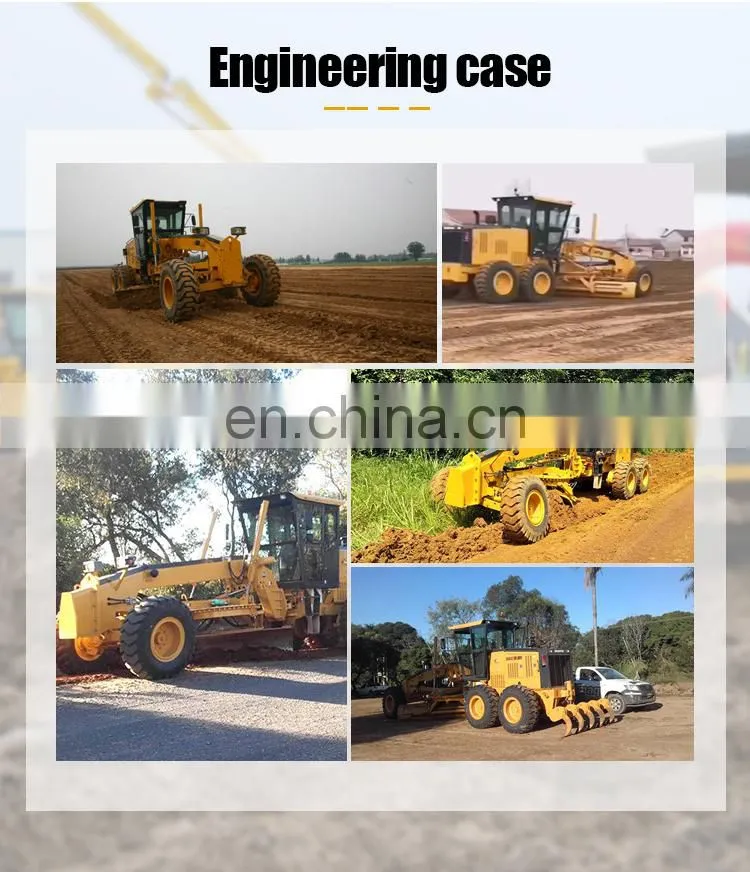

Application
Customer feedback
Related Products

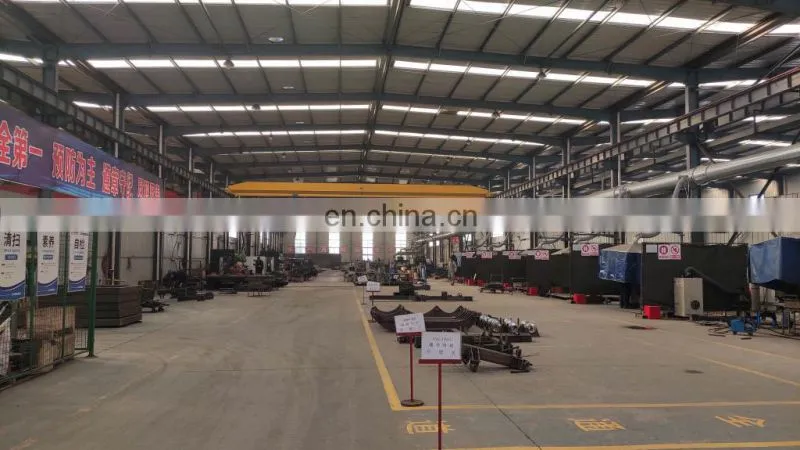

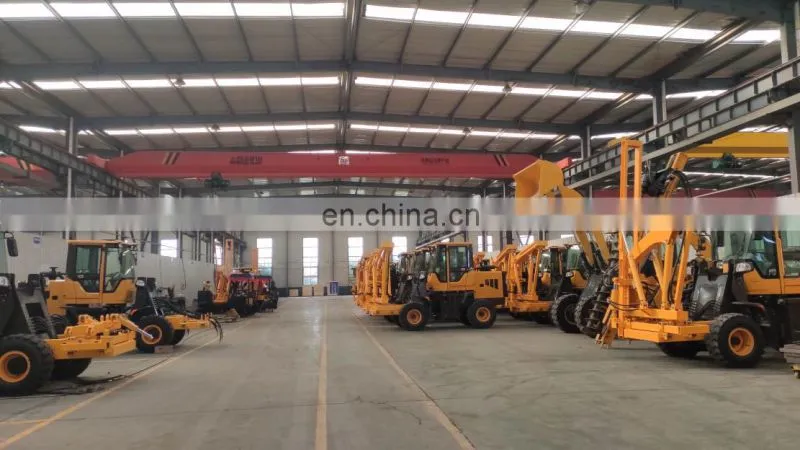

Company Profile

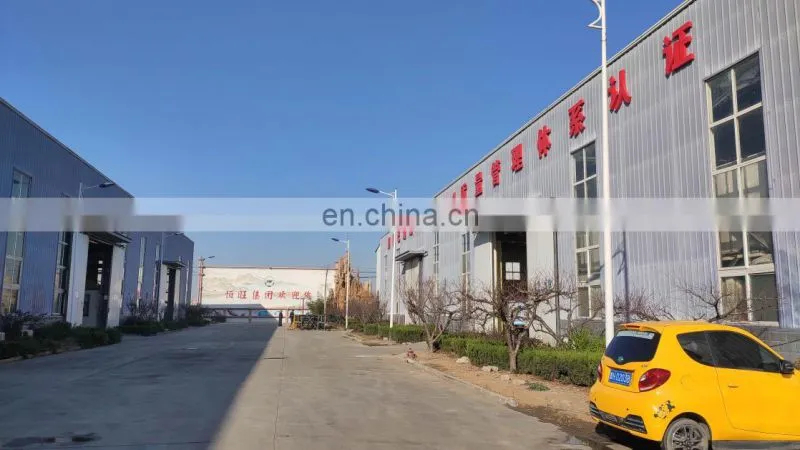

Shandong Hengwang Group Co., LTD. Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery ,water well driling machine and conctruction machinery design, manufacture and installation of an integrated enterprise.
Our company produces the piling machinery a total of 10 major series more than 20 varieties, mainly include photovoltaic crawler pile driver, caterpillar screw drivers, HW series, KLB hydraulic pile driver walking long spiral drill, caterpillar diesel pile hammer machine, vibration sinking pipe pile, DZB multi-function rig, water well driling rig machine,concrete pump and other products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.
