Concrete Paving Machine Patching Equipment Asphalt Paver for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Selling Small Double Drum Walking Behind Road Roller Compactor for AsphaltNegotiableMOQ: 1 -
Gasoline Concrete Polishing Machine Concrete Power Trowel Ride On Concrete TrowelNegotiableMOQ: 1
-
Low Price Concrete Finishing Power Trowel MachineNegotiableMOQ: 1
-
Concrete Tools Hand Held Power Trowel GasolineNegotiableMOQ: 1
-
Concrete 36\" 900mm Superior Propane Power Trowel MachineNegotiableMOQ: 1
Product description

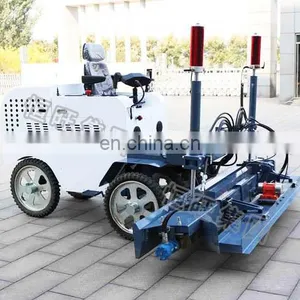

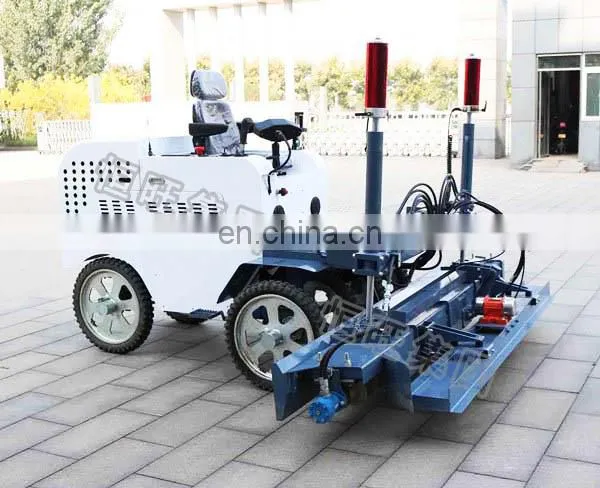

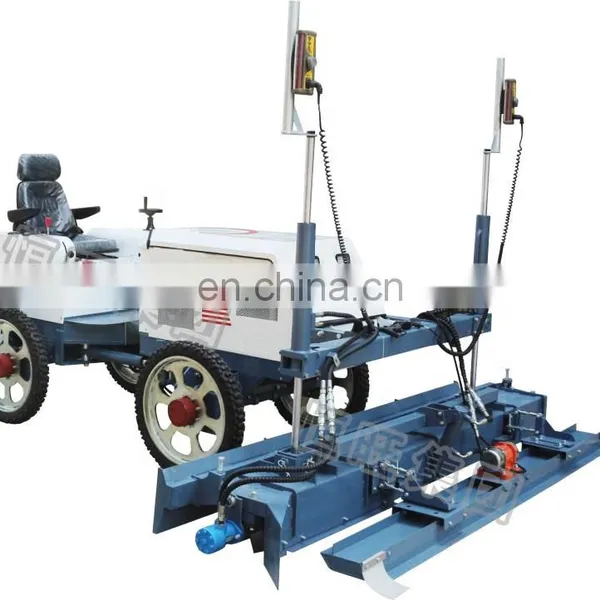

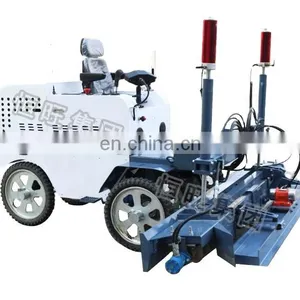

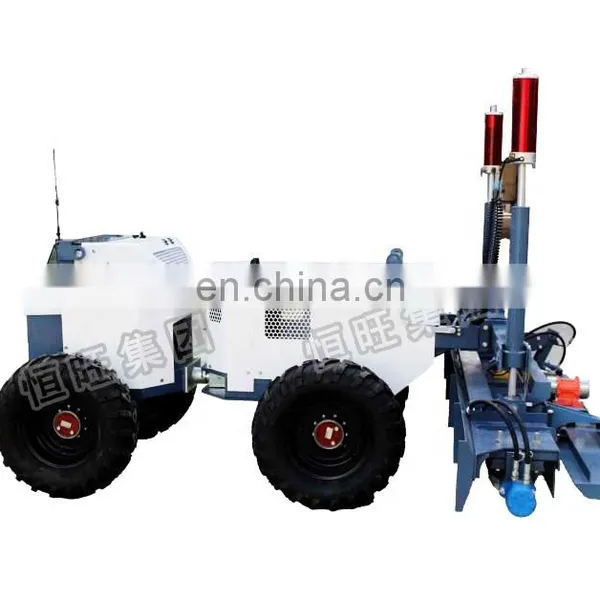

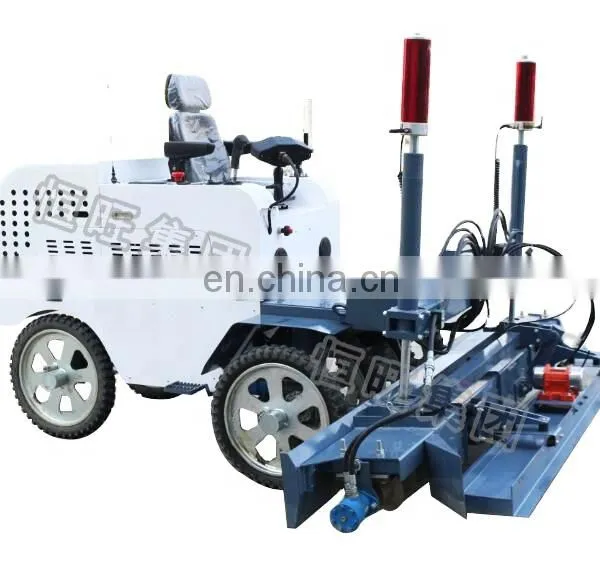

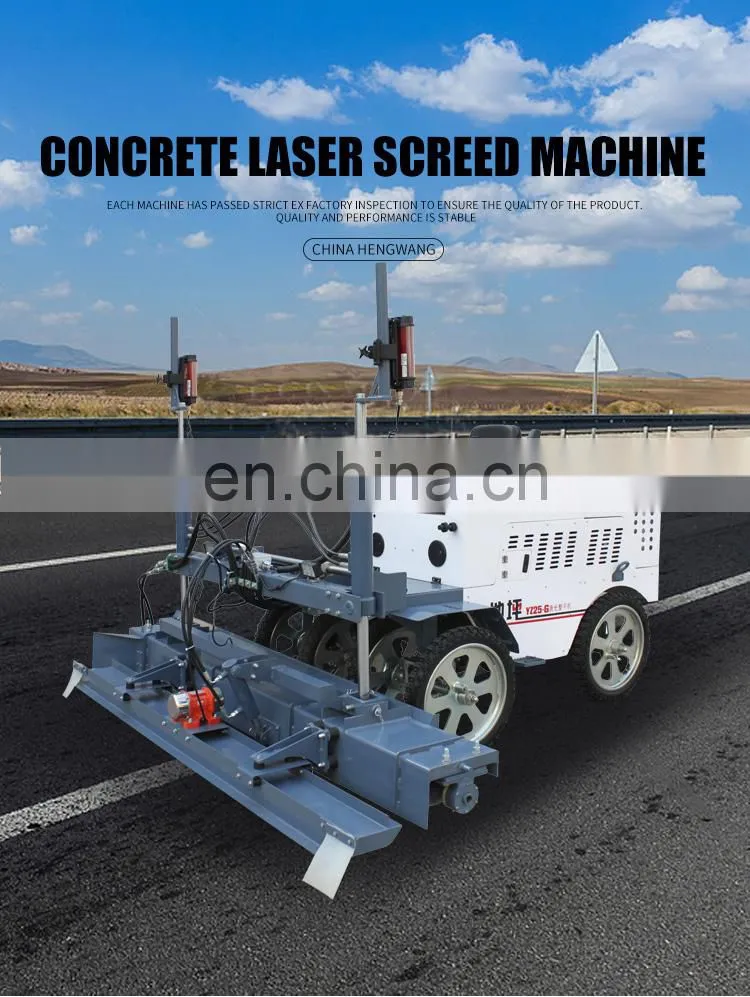

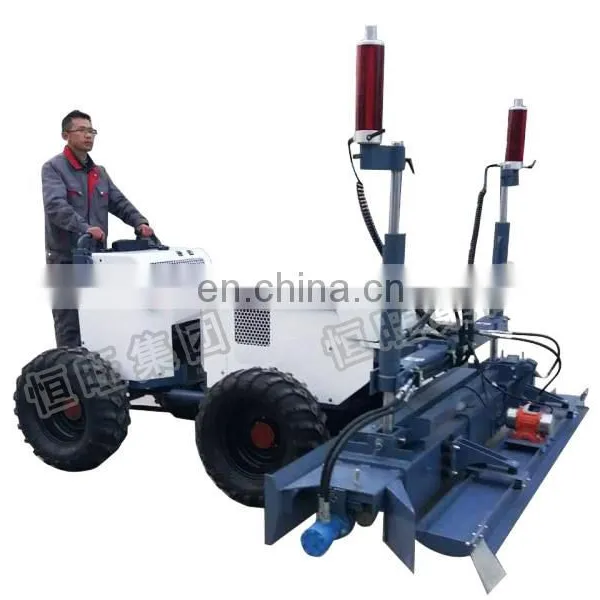

New four wheel seat type laser screed leveling machine best price

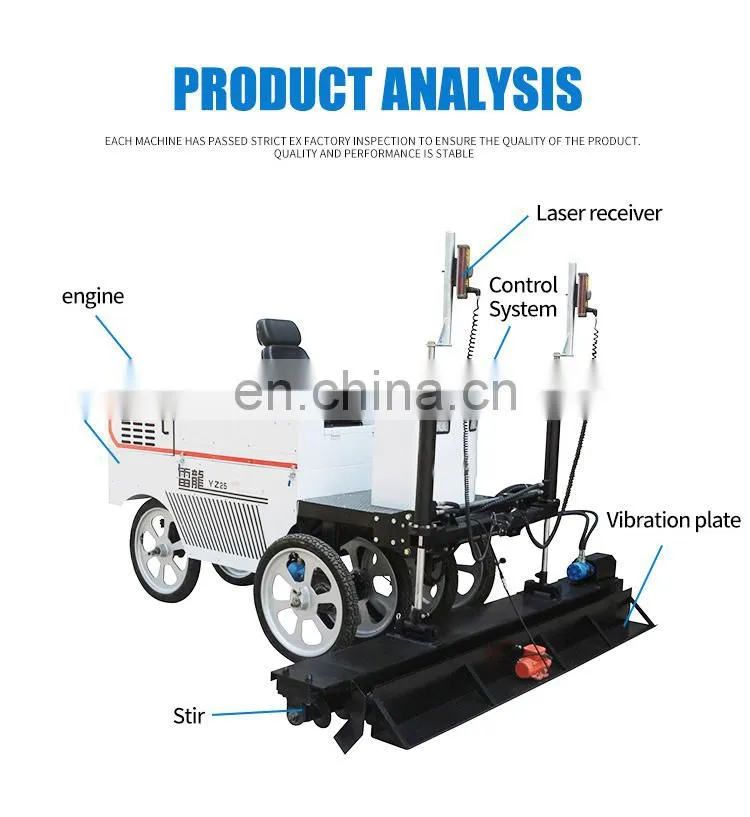

Shandong Hengwang Machinery Laser Concrete Leveler Manufacturer-HW25-4 Ride-on Laser Leveler uses laser system and computer control system to complete leveling at the same time as automatic leveling. The leveling head of the laser leveler is equipped with an integrated design of scraper, vibrator and leveling plate, which can complete all the tasks of leveling, leveling, vibrating and compacting at one time.
New four wheel seat type laser screed leveling machine best price
1. Vehicle-driven operation mode, flexible control, built-in Jiaolong body, single person can operate construction.
2. The laser emitters are arranged independently to ensure consistent ground elevation and no errors.
3. Integrated leveling head, multiple processes are integrated together to improve efficiency and save labor.

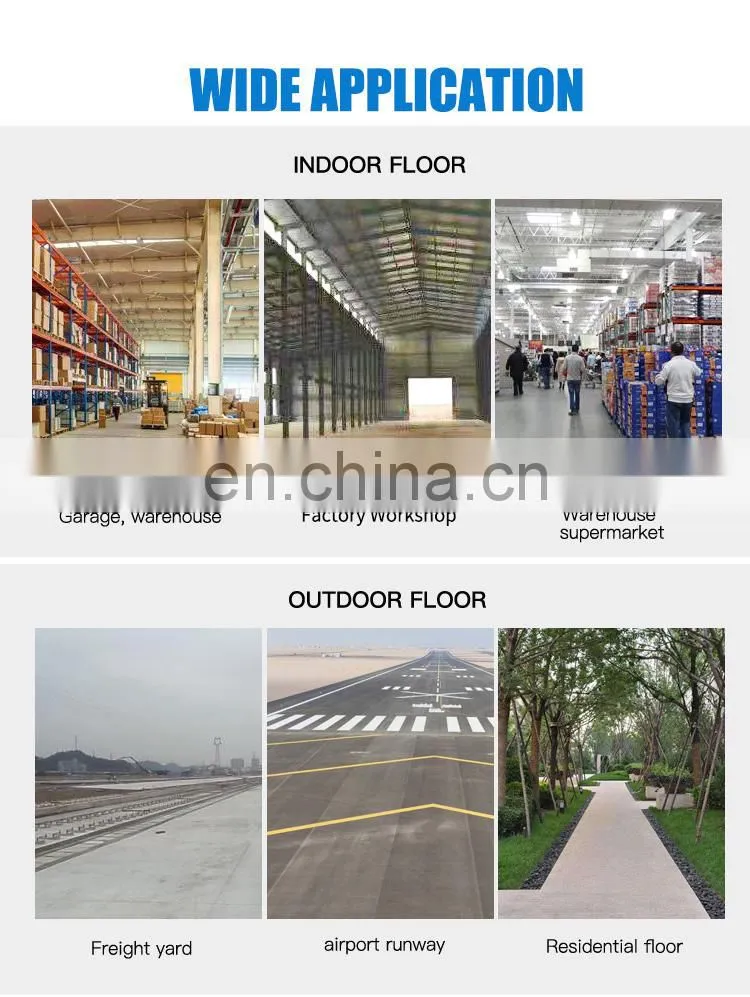

4. It is suitable for large-area paving with a construction area of more than 300 square meters per hour, and can complete the workload of more than 3000 square meters per day.
Specification
Technical parameters |
HW25-4 |
L*W*H |
2880*2600*1041mm |
Engine |
Briggs&stratton 27hp |
Laser control system |
Danfoss |
Engine power |
27HP |
Laser control range |
plane,slope |
Hydraulic system |
Atos |
Horizontal adjustment |
Computer fine tuning section |
Capacity of tank |
17L gasoline |
Vibrational frequency |
5000 times/min |
Fuel consumption |
3.9-6L |
Length of vibrating plate |
2500mm |
System pressure |
15mpa |
Balance control |
Danfoss system control, USA |
Oil Capacity |
1.4L |
Weight |
910KG |

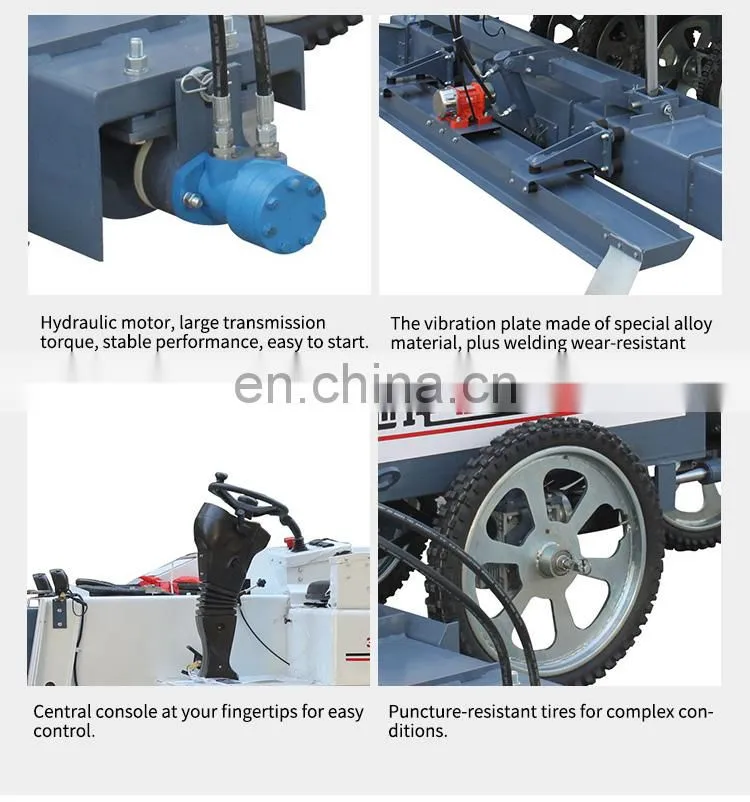

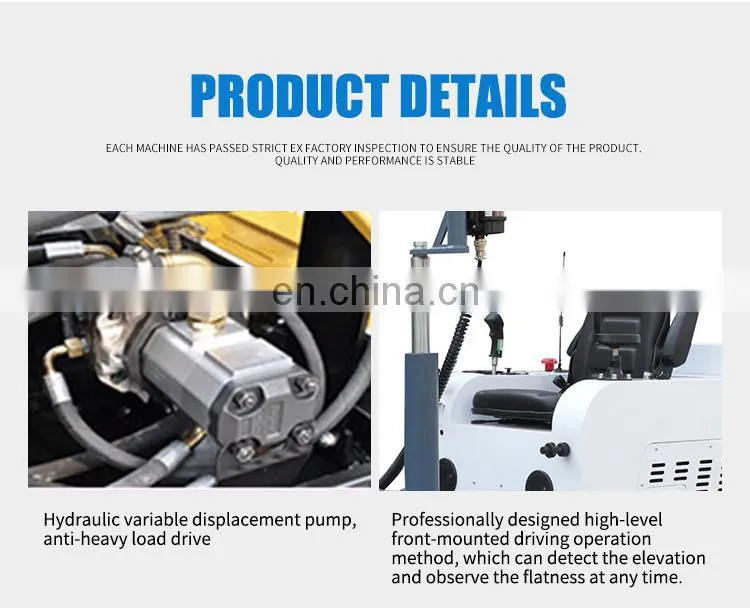

Product Details
New four wheel seat type laser screed leveling machine best price
Related Products
Packing and Shipping
New four wheel seat type laser screed leveling machine best price
About Us
New four wheel seat type laser screed leveling machine best price
Please add my WhatsApp or WeChat +0086 17686192616 for more details of our products and convenient contact, thanks!
