Chinese Factory Supplier Ride-on Power Trowels
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Products HWH-650 Double Drum Road Roller for Asphalt Road Roller CompactorNegotiableMOQ: 1 -
32 Inch Handheld Cement Concrete Helicopter Walk Behind Power Trowel Machine Petrol ce RoadNegotiableMOQ: 1
-
Concrete Paving Machine Patching Equipment Asphalt Paver for SaleNegotiableMOQ: 1
-
Hot Selling Small Double Drum Walking Behind Road Roller Compactor for AsphaltNegotiableMOQ: 1
-
Gasoline Concrete Polishing Machine Concrete Power Trowel Ride On Concrete TrowelNegotiableMOQ: 1
Product description

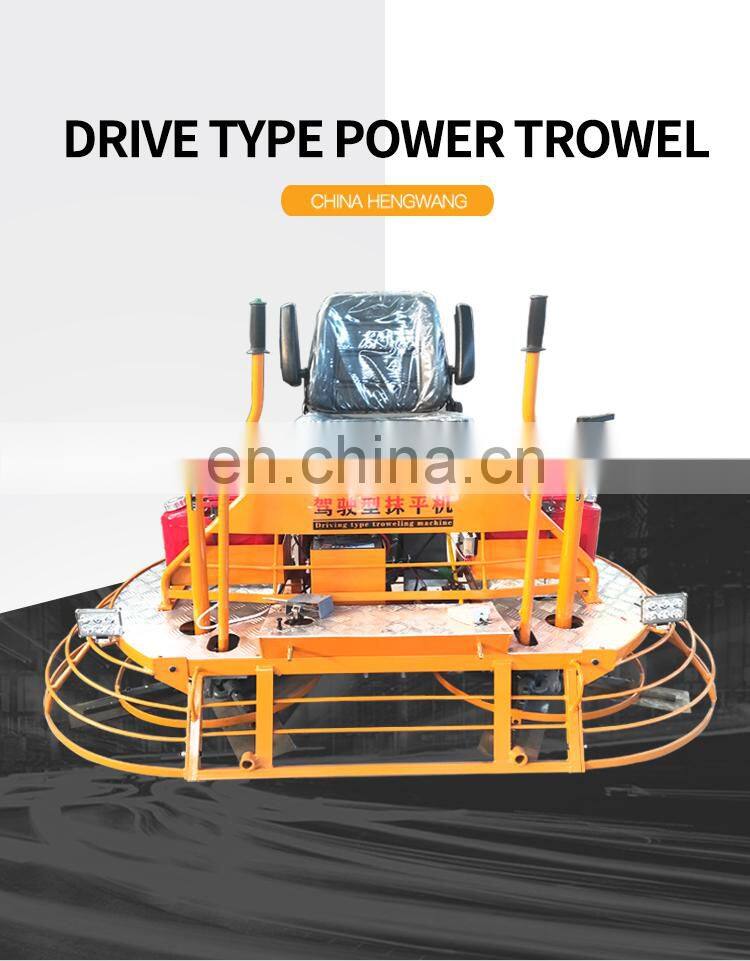

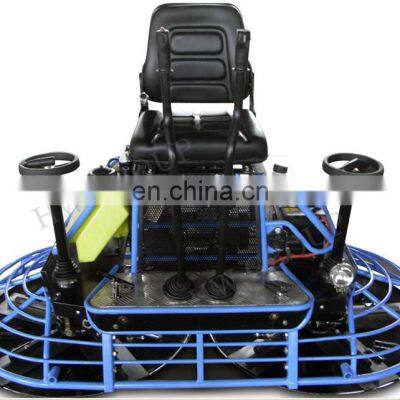

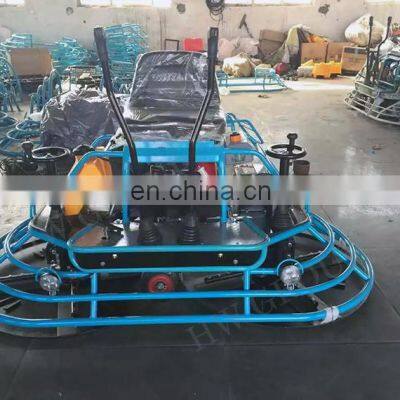

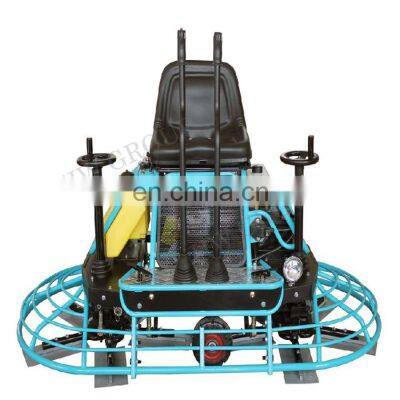

Chinese Factory Supplier Ride-on Power Trowels

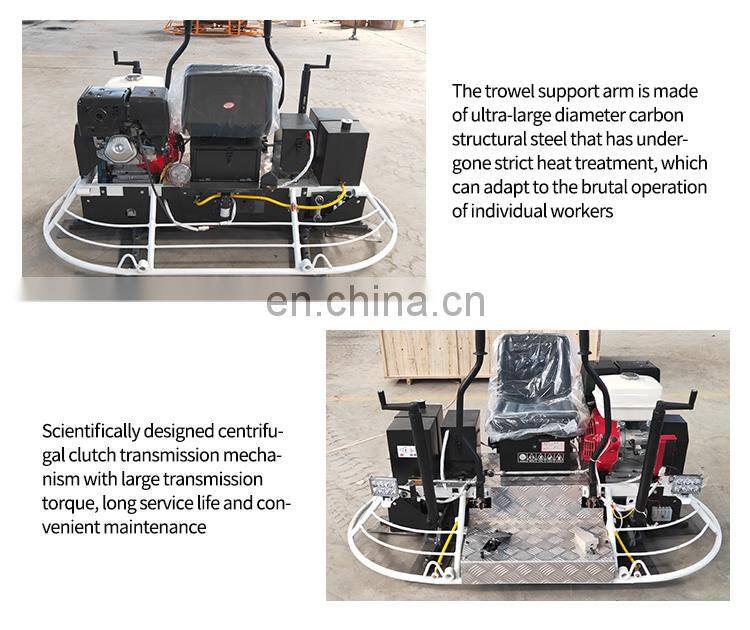

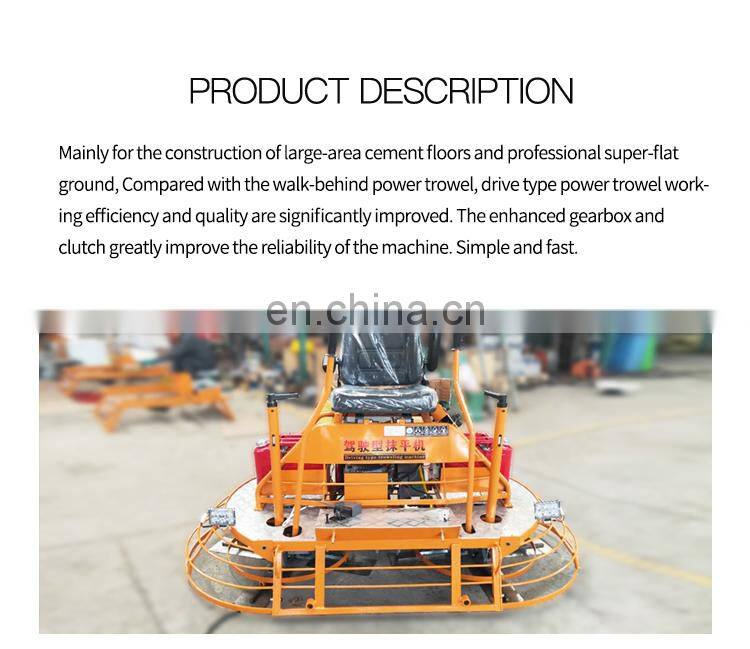

The Advantages of Ride on Trowel Machine for Sale

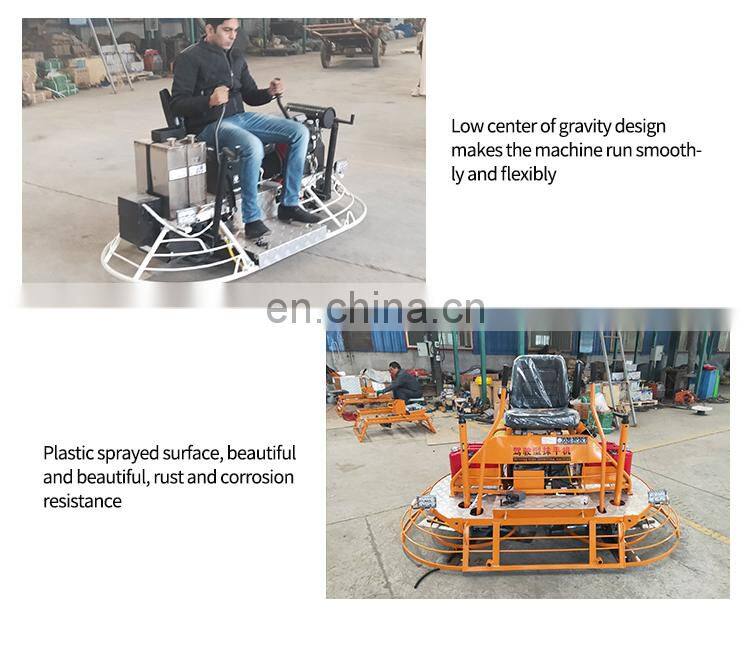

1.The driving operation can greatly reduce the labor intensity and improve work efficiency.
2.Two trowelling plates can be installed at the same time for rapid slurry extraction.
3.Double-sided ten blades, with a dead weight of 430kg makes it have better compaction effect on the ground.
4.Mechanical steering, the operating system is responsive which makes it easy and comfortable to operate. Meanwhile, it has
variable gear.
5.High-grade trowelling plates that the speed can be up to 180 revolutions per minute, which makes the finish faster and the
effect better. In addition, low speed can make the troweeling plates more powerful.

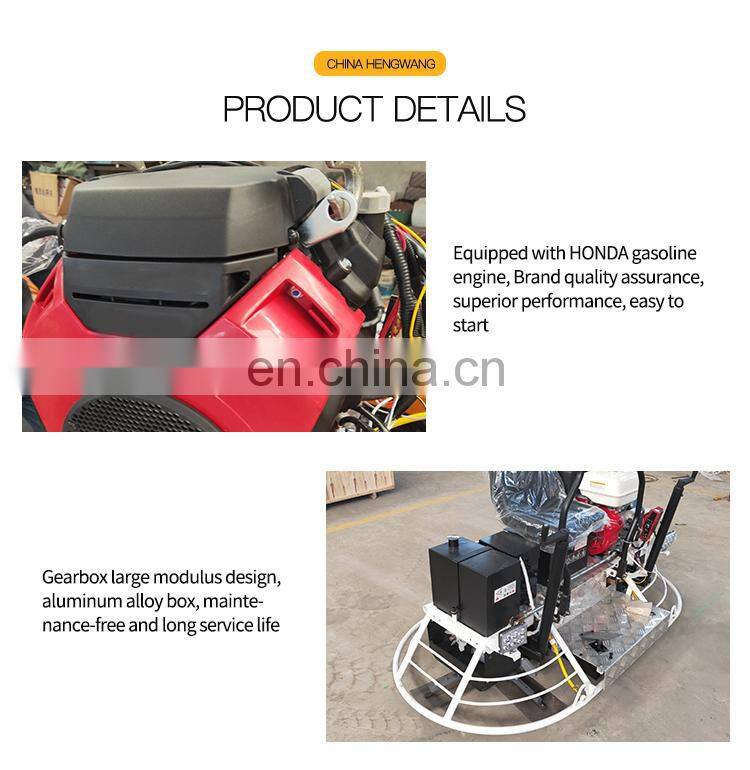

6.Be equipped with high-horsepower electric start engine that can provide strong and reliable power.
7.There is a safety cut-off switch which can shut down the engine quickly to ensure safety.
8.The control screw can adjust blade Angle.
9.Water spray projector system and lighting design can make construction more convenient.
10.The wheels can be lifted up and down, which makes it easy to walk.
Walk Behind Trowel Machine for Sale
Compared with the ride on trowel machine, walk behind trowel machine may be a little laborious, but it’s still a very popular model. The machine is compact, flexible and easy to operate. The most important is that its work efficiency is dozens of times as much as the artificial finishing. In addition, the price is lower. So the walk behind trowel machine for sale is a good choice for some small projects.
How to Use A Power Trowel to Finish Concrete
1.First, clean the floor and ensure there is no standing water. Then brush approximately 2mm thick plain cement for bonding layer.
2.Second, pour the fine stone concrete onto the ground base of the well-brushed plain water mud. Spread it with a small square spatula, the spreading thickness should be limited to 15 to 20mm.
3.After scaling the fine stone concrete coating, the dry sand dust will be uniformly spread on the surface which is about 2mmthick. When the dry sand absorbs water in a humid state, operators can use the concrete finishing trowel machine to polish the ground.
4.In general, we need to use the trowel machine twice. In the process of the first polish, if there is no slurry or dry crack in some places, please sprinkle dry sand ash or a little water immediately. At the same time, the interior corner position should be assisted with artificial dressing corner. The second time, operators should move the machine from the room to the door slowly.
2.Second, pour the fine stone concrete onto the ground base of the well-brushed plain water mud. Spread it with a small square spatula, the spreading thickness should be limited to 15 to 20mm.
3.After scaling the fine stone concrete coating, the dry sand dust will be uniformly spread on the surface which is about 2mmthick. When the dry sand absorbs water in a humid state, operators can use the concrete finishing trowel machine to polish the ground.
4.In general, we need to use the trowel machine twice. In the process of the first polish, if there is no slurry or dry crack in some places, please sprinkle dry sand ash or a little water immediately. At the same time, the interior corner position should be assisted with artificial dressing corner. The second time, operators should move the machine from the room to the door slowly.
The Structures and Working Principle of Trowel Machine
This machine is mainly composed of moving handle, screw lifting, motor, worm gear box and smear assembly. It uses a unique startup method. The motor is decelerated by the three-stage gear, through two relatively rotating output shafts, respectively driving the relatively rotating double trowel. Under the action of mechanical gravity, the float is pressed to the ground to complete the compaction and polishing process.
Things Need to Pay Attention in Operation:
1.Please check whether the motor, switch and cable meet the safety requirements before operation. And connect the cable zero line to the small box cover of the speed reducer box to prevent leakage of electricity.
2.After connecting the cable line, please turn over the power trowel machine to make the trowelling plate suspended. Then turn on the switch to check if the float is rotating in the right direction.
3.Check whether the bolts on the trowelling plate, safety cover and other parts are loose.
4.In order to ensure the flatness of the ground, operators should wear flat shoes.
5.After finishing the work, the residual mortar on the machine should be removed in time, and the connecting screw of the trowelling plate and the trowelling device should be wiped clean and coated with butter for protection.
HW-100A |
HW-100B |
HW-200 |
|
Engine (HP) |
GX160 |
GX160 |
GX630 |
Power |
5.5 |
5.5 |
24 |
Blade Qty (Pcs) |
4 |
4 |
8 |
Blade size (MM) |
350*150 |
350*150 |
350*150 |
Oil Tank volume (L) |
3.6 |
3.6 |
20 |
Lube oil volume (L) |
0.6 |
0.6 |
1.8 |
Speed (RPM/Min) |
0-180 |
0-180 |
0-135 |
Weight (KG) |
102 |
98 |
440 |
Details
About Us
FAQ
1. Are you original manufacturer?
A: Yes, we are Shandong HengWang Grfoup,the original factory for manufacturing excavators ,pile drivers ,drilling rigs etc.,
2. What kind of payment terms can be accepted?
A: We can accept payment by T/T,Western Union ,L/C or as requirement.
3. Which incoterms 2010 terms can we work?
A: Normally we can workd on FOB (QINGDAO), CFR, CIF or as requirement.
4. What about the delivery time?
A: Within 5-7 days adter receiving your deposit.
5. What about the warranty time?
A: 1 year
6. What about the Minimum Oorder Quantity?
A: The MOQ is 1 set.
A: Yes, we are Shandong HengWang Grfoup,the original factory for manufacturing excavators ,pile drivers ,drilling rigs etc.,
2. What kind of payment terms can be accepted?
A: We can accept payment by T/T,Western Union ,L/C or as requirement.
3. Which incoterms 2010 terms can we work?
A: Normally we can workd on FOB (QINGDAO), CFR, CIF or as requirement.
4. What about the delivery time?
A: Within 5-7 days adter receiving your deposit.
5. What about the warranty time?
A: 1 year
6. What about the Minimum Oorder Quantity?
A: The MOQ is 1 set.
