Hydraulic 1.8ton operating capacity HW8018 small crawler excavator

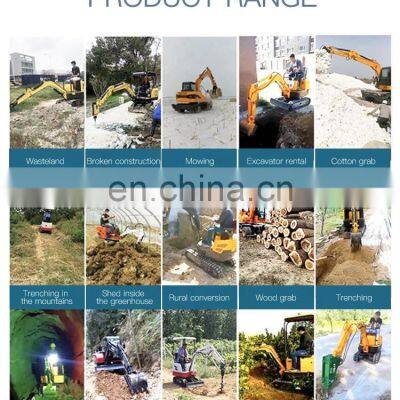

Mini hydraulic excavator is with compact design, and with low oil consumption, it is suitable to be used for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.
Hengwang small excavators enjoy full range from 0.8ton to 3.5 ton capacity. We are looking for agents around the world.
Main Features
2. South Korean imports of pilot operating mechanism, operating more light and soft.
3. The preciseness of the comprehensive monitoring system, real-time monitoring equipment various performance parameter is stable.
4. Adopt German Rexroth technology load sensitive multi-way valve, make the various movements more synchronicity.

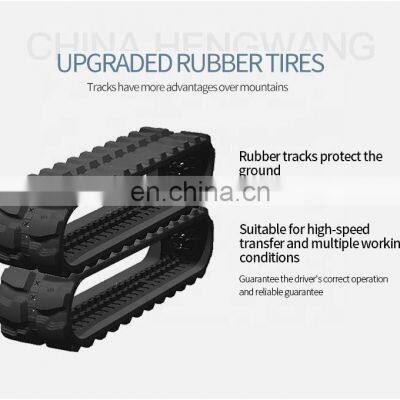

5. Adopt strengthen rubber tracks, effectively enhance wear resistance of the track, real-time protection while walking on the road.
6. Using hydraulic controlled double foot valve action triple valve pipe, can match the broken hammer, hydraulic pilers and
other auxiliary.
7.The standard movable arm side steering mechanism, the normal work of the narrow space.

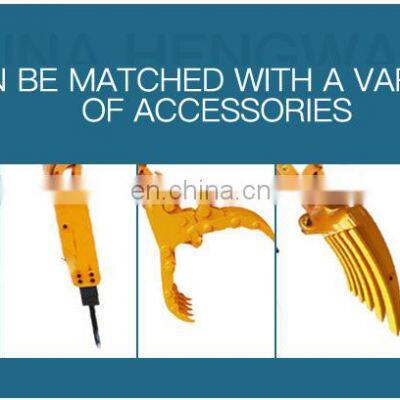

Can be attached with Break hammer, screw drill, rake, wood grad, mini bucket etc.
Technical Paramaters for Hengwang hydraulic small excavators |
||||||||
Model |
HW8018 |
HW8022 |
||||||
Dimensions |
Overall length |
3725mm |
4090mm |
|||||
Overall width |
990mm |
1200mm |
||||||
Overall height |
2300mm |
2310mm |
||||||
Mini ground clearance |
160mm |
190mm |
||||||
Total weight |
1800kg |
2200kg |
||||||
Ground pressure |
34kpa |
34kpa |
||||||
Track |
Center distance |
740mm |
950mm |
|||||
Track width |
230mm |
230mm |
||||||
Track Ground contact length |
1250mm |
1250mm |
||||||
Performance |
Max.digging height |
3330mm |
3800mm |
|||||
Max. digging depth |
2140mm |
2150mm |
||||||
Ma.dumping height |
2440mm |
2660mm |
||||||
Rotate |
360° |
360° |
||||||
Gradeability |
25° |
25° |
||||||
Travel speed |
2.2KM/H |
2.5KM/H |
||||||
Bucket capacity |
0.06CBM |
0.08CBM |
||||||
Bucket height |
450mm |
490mm |
||||||
Hydraulic parameters |
Main pump |
Double pump |
Double pump |
|||||
Pressure |
160/4Mpa |
160/4Mpa |
||||||
Max. rotating speed |
2200r/min |
2200r/min |
||||||
Displacement |
20ml/r |
25ml/r |
||||||

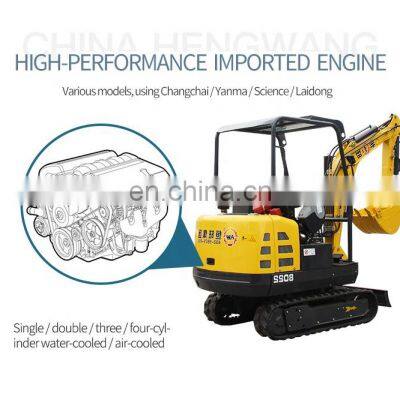

Engine |
Model |
Laidong380 |
||||||
Power |
18.1KW |
20KW |
||||||
Send Inquiry to This Supplier
