2022 Evangel 2022 Evangel SHANTUI Construction Road Motor Grader SG16-3
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2004
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2022 Evangel 2022 Evangel SHANTUI Large Motor Grader SG16-3 With Good PriceNegotiableMOQ: 1 -
2022 Evangel 2022 Evangel SHANTUI Motor Grader 160HP SG16-3 With RipperNegotiableMOQ: 1
-
2022 Evangel 2022 Evangel 160HP New Road Equipment Gr165 Motor Grader SHANTUI SG16-3NegotiableMOQ: 1
-
2022 Evangel 2022 Evangel Competitive Price SHANTUI Motor Grader SG16-3NegotiableMOQ: 1
-
2022 Evangel 2022 Evangel Hydraulic Components SHANTUI Motor Grader SG16-3NegotiableMOQ: 1
SHANTUI Construction Road Motor Grader SG16-3
Contact way:
Contact Way
Annie Li
Mobile / Whatsapp / Wechat: +86138 1769 0558
Evangel(shanghai)Industrial Co,Ltd
Evangel International Machinery Ltd
Add: Suite 2806, Super Ocean Finance Center,
No. 2067 West Yan'an Road, Shanghai, China
Web:
Product Description
ENGINE POWER
With118kW/2200,this engine conforms to China-II non-road machinery emission regulation
OVERALL WEIGHT
15100kg
WIDTH OF SHOVEL BLADE
3660mm
Power System
- It's powered by Dongfeng Cumins 6BTAA5.9-C160 China-II compliant inline, 4-stroke, direct injection, water-cooled, and turbocharged and intercooled diesel engine, featuring compact structure, stable performances, and high efficiency and energy-saving.
- The high torque reserve enables the machine to output stable power under severe working conditions and meet your working needs.
Operating performance
- It features the highest traction force among the domestic motor graders of like type and the highest operating efficiency among the domestic products of like type.
- The external gear working device of proprietary technology features high drive torque and strong resistance against external force impact.
- The blade of larger angular adjustment range (37°-83°) improves the material control capability and remarkably promotes the operating efficiency of motor grader, especially during the handling of dry material and clay.
- With full-load scraping capability in 2nd forward gear, the motor grader can remarkably promote the production efficiency compared with domestic products of like type.
- With high resistance against external force impact, the link type swing frame is applicable for the working conditions with high operating volume and severe operating environment.
Working adaptability
- With 6 forward gears and 3 reverse gears, the electro-hydraulically controlled power shift transmission can select the optimal gear based on the working road condition to realize the best match between traveling and operation.
- The integral three-segment drive axle is built internally with imported no-spin automatic limited slip differential to guarantee stable and reliable drive.
- The balance box is capable of 15° angular swing in vertical direction and the heavy-duty roller chain drive guarantees better terrain adaptability of the machine. It can meet the normal operations under special road conditions, featuring stable power output and strong drive force.
| Product name | SG16-3 |
| Performance parameters | |
| Operating weight of machine (kg) | 15100 |
| Wheelbase (mm) | 6260 |
| Wheel tread (mm) | 2155 |
| Minimum ground clearance (mm) | 430 |
| Steering angle of front wheels (°) | ±45 |
| Articulated steering angle (°) | ±25 |
| Maximum traction force (kN) | 79.3(f=0.75) |
| Turning radius (mm) | 7,800 (Outer side of front wheel) |
| Maximum gradeability (°) | 20 |
| Width of shovel blade (mm) | 3660 |
| Height of shovel blade (mm) | 635 |
| Blade slewing angle (º) | 360 |
| Blade cutting angle (º) | 37-83 |
| Maximum digging depth of blade (mm) | 500 |
| Length (mm) | 8726 |
| Width (mm) | 2600 |
| Heigh (mm) | 3400 |
| Engine | |
| Engine model | 6BTAA5.9-C160 |
| Emission | China-II |
| Type | Mechanical direct injection |
| Rated power/rated speed (kw/rpm) | 118kW/2200 |
| Drive system | |
| Torque converter | Single-stage single-phase three-element |
| Transmission | Countershaft power shift |
| Gears | Six forward and three reverse |
| Speed for forward gear I (km/h) | 5.4 |
| Speed for forward gear II (km/h) | 8.4 |
| Speed for forward gear III (km/h) | 13.4 |
| Speed for forward gear IV (km/h) | 20.3 |
| Speed for forward gear V (km/h) | 29.8 |
| Speed for forward gear VI (km/h) | 39.6 |
| Speed for reverse gear I (km/h) | 5.4 |
| Speed for reverse gear II (km/h) | 13.4 |
| Speed for reverse gear III (km/h) | 29.8 |
| Brake system | |
| Service brake type | Hydraulic brake |
| Parking brake type | Mechanical brake |
| Brake oil pressure (MPa) | 10 |
| Hydraulic system | |
| Working pump | Constant displacement gear pump, with flow at 28ml/r |
| Operating valve | Integral multi-way valve |
| Pressure setting of safety valve (MPa) | 16 |
| Pressure setting of safety valve (MPa) | 12.5 |
| Filling of fuel/oils/fluids | |
| Fuel tank (L) | 340 |
| Working hydraulic fuel tank (L) | 110 |
| Transmission (L) | 28 |
| Drive axle (L) | 25 |
| Balance box (L) | 2X38 |

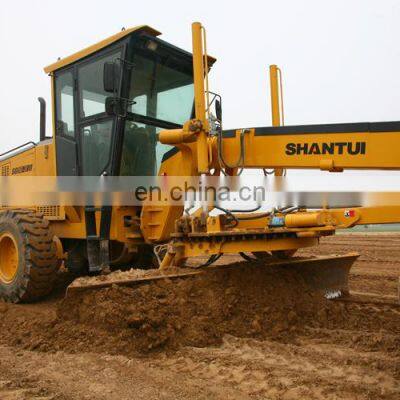

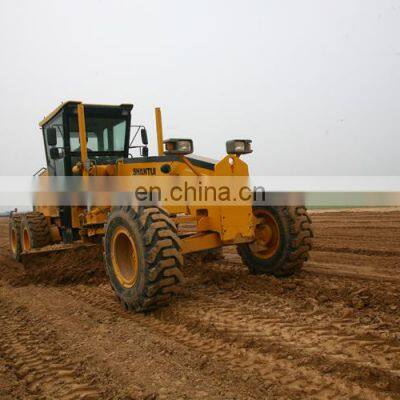

Detailed Images:
