Popular 215HP New Motor Grader CLG4215D for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2004
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
30 Ton Pneumatic Tyres Road Roller XP303KNegotiableMOQ: 1 -
16t/18t/20t Pneumatic Tyre Road Roller LTP2030/LTP1826/LTP1016NegotiableMOQ: 1
-
Full Hydraulic 14t Double-wheel Drive Single Drum Road Roller XS143NegotiableMOQ: 1
-
Small 8 Ton Double Drum Vibratory Roller XD83NegotiableMOQ: 1
-
Full Hydraulic Single Drum Vibratory Road Roller XS203/XS203J With A/CNegotiableMOQ: 1
Popular 215HP New Motor Grader CLG4215D for sale
The GR Series Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or
snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense
engineering ,mine construction, town and country roads building ,and farmland improvement..
Performance and characteristic
New appearance design.
The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.
The electro-hydraulic controls the power shift gearbox,with 6ahead gears and 3 back gears.
The international matching hydraulic parts are adopted,with reliable operation.
The motions of the blade are fully hydraulically controlled.
The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.
The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
The cab is grand and nice,with wide eyeshot and good sealing.
The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added
snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense
engineering ,mine construction, town and country roads building ,and farmland improvement..
Performance and characteristic
New appearance design.
The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.
The electro-hydraulic controls the power shift gearbox,with 6ahead gears and 3 back gears.
The international matching hydraulic parts are adopted,with reliable operation.
The motions of the blade are fully hydraulically controlled.
The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.
The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
The cab is grand and nice,with wide eyeshot and good sealing.
The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added
Specification
Item |
GR215 |
||||
Basic parameters |
Engine model |
6CTA8.3-C215 |
|||
Rated power/speed |
160kW/2200rpm |
||||
Overall dimension (standard) |
8970*2625*3420mm |
||||
Total weight (standard) |
16500 kg |
||||
Tire specification |
17.5-25 |
||||
Ground clearance (front axle) |
430mm |
||||
Space of front and rear axles |
6219 mm |
||||
Space of middle and rear wheels |
1538 mm |
||||
Performance parameters |
Forward velocity |
5,8,11,19,23,38km/h |
|||
Reverse speed |
5,11,23km/h |
||||
Tractive effort f=0.75 |
87 kN |
||||
Maximum gradeability |
20% |
||||
Tire inflation pressure |
260kPa |
||||
Working system pressure |
16MPa |
||||
Transmission pressure |
1.3—1.8Mpa |
||||
Working parameters |
Maximum steering angle of front wheel |
±50° |
|||
Maximum slant angle of front wheel |
±17° |
||||
Maximum oscillating angle of front axle |
±15° |
||||
Maximum oscillating angle of equilibrium box |
forwards15°, Reverse15° |
||||
Maximum steering angle of frame |
±27° |
||||
Minimum turning radius |
7.3m |
||||
Scrape knife |
Maximum lift height |
450mm |
|||
Maximum cutting depth |
500mm |
||||
Maximum tilt angle |
90° |
||||
Cutting angle |
28°—70° |
||||
Angle of revolution |
360° |
||||
Length & chord height |
4270*610mm |
||||
Oil filling amount |
Coolant |
50L |
|||
Fuel tank |
280L |
||||
Engine |
24L |
||||
Transmission |
38L |
||||
Equilibrium box |
46L |
||||
Coolant |
28L |
||||
Hydraulic oil |
110L |
||||

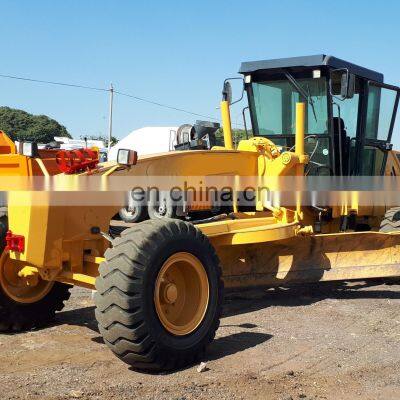

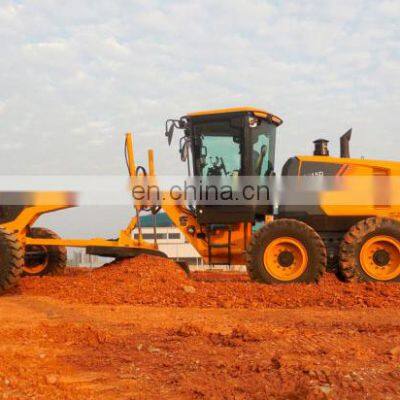

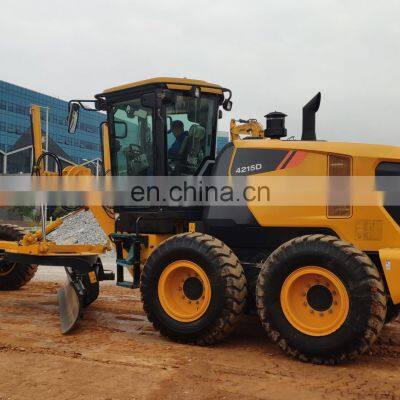

Details Images
