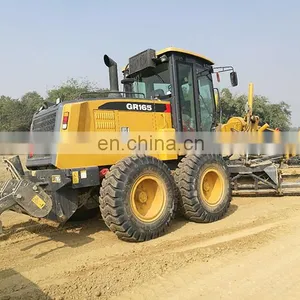

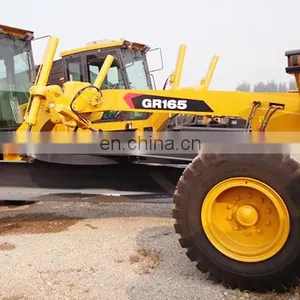

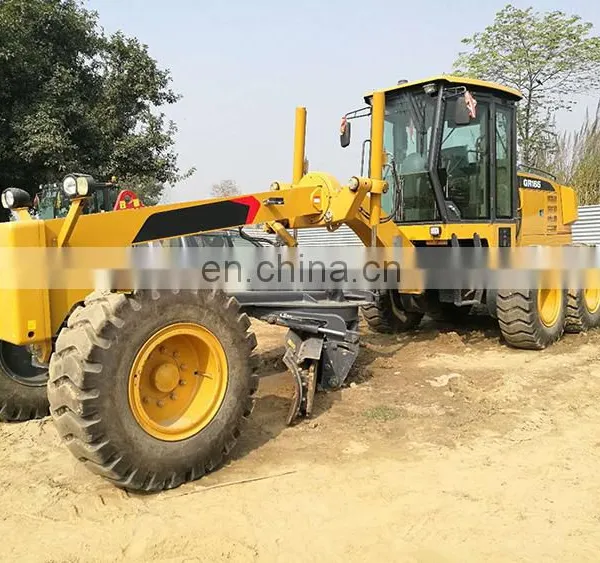

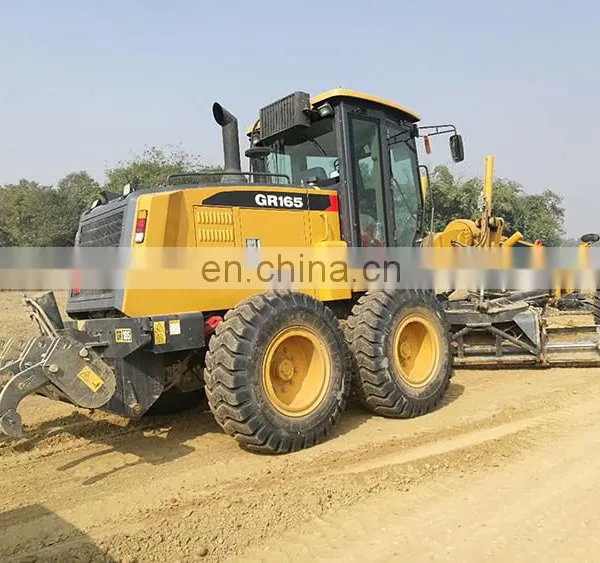

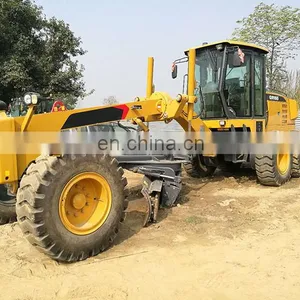

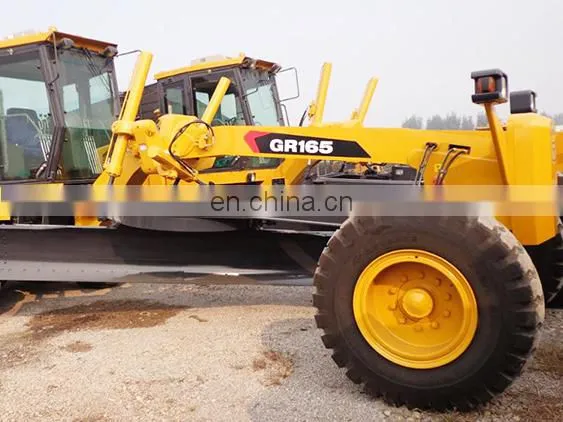

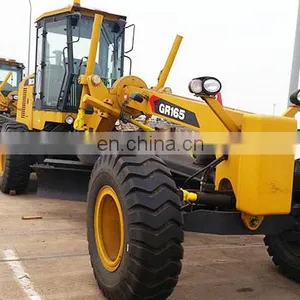

Motor Grader 170HP GR165 Motor Grader New Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2004
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Manufacturer Gr135 Motor Grader ScarifierNegotiableMOQ: 1 -
Official Gr100 China 100hp Small Mini Road Motor Grader PriceNegotiableMOQ: 1
-
2022 New Motor Grader 100 hp Road Grader GR100 on SaleNegotiableMOQ: 1
-
Brand New 220hp Motor Grader SEM921 Motor Graders 140gNegotiableMOQ: 1
-
135hp Small Motor Grader GR135 Mini Road Grader for SaleNegotiableMOQ: 1
Products Description

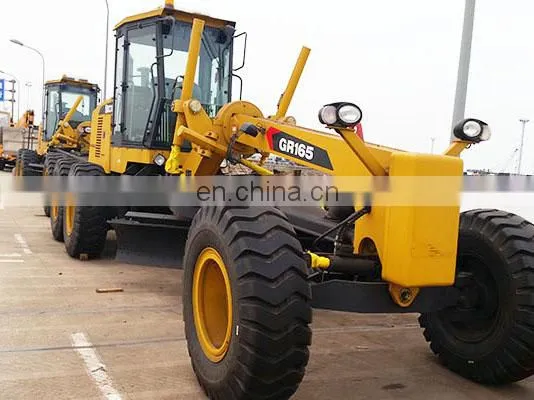

Motor grader 170HP GR165 motor grader new price
New appearance design.
The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.
The electro-hydraulic controls the power shift gearbox,with 6ahead gears and 3 back gears.
The international matching hydraulic parts are adopted,with reliable operation.
The motions of the blade are fully hydraulically controlled.
The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.
The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
The cab is grand and nice,with wide eyeshot and good sealing .
The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added
The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.
The electro-hydraulic controls the power shift gearbox,with 6ahead gears and 3 back gears.
The international matching hydraulic parts are adopted,with reliable operation.
The motions of the blade are fully hydraulically controlled.
The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.
The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
The cab is grand and nice,with wide eyeshot and good sealing .
The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added
Specification
Basic specification |
||
Engine model |
D6114 |
|
Rated power/speed |
125kW/2300rpm |
|
Dimension(LxWxH) |
8900×2625×3470mm |
|
Operating weight(Standard) |
15000kg |
|
Performance specification |
||
Travelling speed ,forward |
5,8,11,19,23,38 km/h |
|
Travelling speed ,reverse |
5,11,23 km/h |
|
Tractive force(f=0.75) |
77KN |
|
Max. gradeability |
20% |
|
Tire inflation pressure |
260 kPa |
|
Working hydraulic pressure |
16 MPa |
|
Transmission pressure |
1.3~1.8MPa |
|
Operating specification |
||
Max. steering angle of front wheels |
±50° |
|
Max. lean angle of front wheels |
±17° |
|
Max. oscillation angle of front axle |
±15° |
|
Max. oscillation angle of balance box |
15 |
|
Frame articulation angle |
±27° |
|
Min. turning radius using articulation |
7.3m |
|
Biade |
||
Maximum lift above ground |
450mm |
|
Maximum depth of cutting |
500mm |
|
Maximum blade position angle |
90° |
|
Blade cutting angle |
28°—70° |
|
Circle reversing rotation |
360° |
|
Moldboard width X height |
3965×610mm |
|
