Home > Manufacturing & Processing Machinery > Crane > Other Cranes > ZOOMLION Indoor White Mini Crane Needles For Sale ZCC5000
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2004
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZOOMLION Crane 50 Ton Crawler Manufacturer ZCC5000NegotiableMOQ: 1 -
ZOOMLION Hydraulic Spider Crawler Crane Gantry ZCC5000NegotiableMOQ: 1
-
ZOOMLION Safe Small Truck Crane For Narrow Working ZCC5000NegotiableMOQ: 1
-
ZOOMLION Best Chinese Quality 180Ton Crawler Mobile Crane ZCC5000NegotiableMOQ: 1
-
ZOOMLION New Crawler Hydraulic Folding Crane With Ce Certificate Lifting Height 9.5M/31 Feet ZCC5000NegotiableMOQ: 1
ZOOMLION 510ton mobile truck crane for sale
Product Description
-
-
-
-
New generation 4.0 series platform 55T with 5 section main boom(11.2m-44m).
-
Max. lifting moment reaches to 1568kN.m, max. lifting height with jib up to 60m.
-
Standard tiltable operator's cab.
-
High ROI.
-
-
-
Parameter
| Item | Unit | Value | Remarks | ||
|---|---|---|---|---|---|
| Max. lifting capacity on heavy duty boom(S)/Radius | Without D and B t × m | 450 × 6 | |||
| With D and B m | 500 × 12 | ||||
| Length of heavy duth boom(S) | Without D and B m | 24-90 | |||
| With D and B m | 36-96 | ||||
| Length of light duty boom(SL) | Without D and B m | 48-108 | |||
| With D and B m | 78-126 | ||||
| Dead weight of crane with basis boom | m | 370 | |||
| Length of luffing jib(W) | m | 28-84 | |||
| Max.lifting capacity on luffing jib | Without D and B t × m | 190 × 13 | |||
| With D and B t × m | 235 × 16 | ||||
| Boom angle when luffing jib is | . | 65,75,85 | |||
| Max. length of heavy duty boom with | Without D and B m | 60+72 | |||
| With D and B m | 84+84 | ||||
| SLHS boom | Main boom m | 84-108 | |||
| Wind plant jib m | 7 | ||||
| Max.lifting capacity t×m | 126×16 | ||||
| Single rope speed of winches | Hoisting winch 1 | m/min | 0-137 | ||
| Hoisting winch 2 | 0-137 | ||||
| Main boom derricking winch | 0-50 | ||||
| Luffing jib derricking winch | 0-123 | ||||
| Superlift derricking winch | 0-143 | ||||
| Hoisting winch 3 | 0-109 | ||||
| Slewing speed | rpm |
0-1.0 |
|||
| Traveling speed | km/h | 0-1.0 | |||
| Gradeability | % | 30 | |||
| Ground pressure | Mpa | 0.139 | |||
| Transport dimensions of basic machine | mm | 12180×3345×3205 | Without A-frame | ||
| Max.transport weight of single piece | 48.6 | ||||
| Engine | Rated power / rotational speed | kW/r/min | 360/1800 | ||
| Output torque /rotational speed | Nm/r/min | 2200/1300 | |||
| Exhaust emission | EU Stufe 3A | ||||
| Distance between track center × crawler contact length × crawler width | mm | 8000 ×9800×1350 | |||

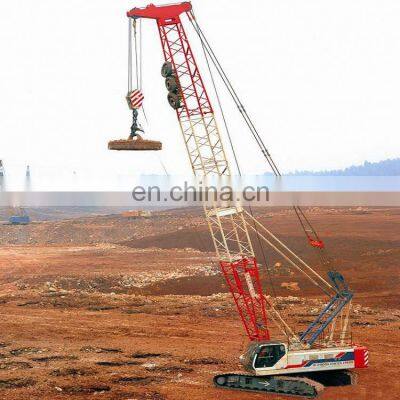

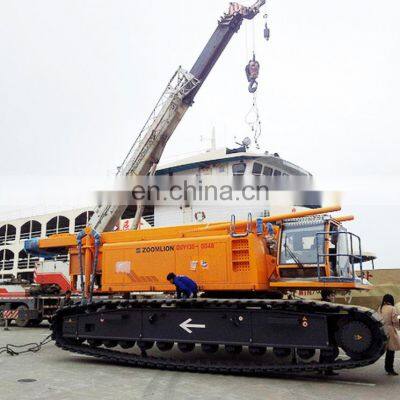

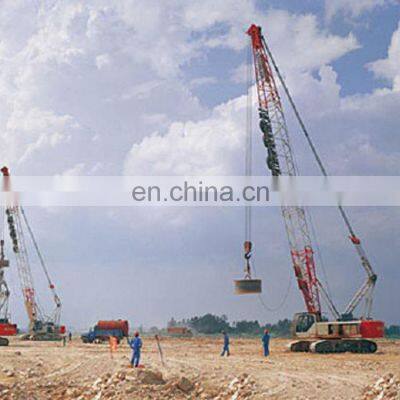

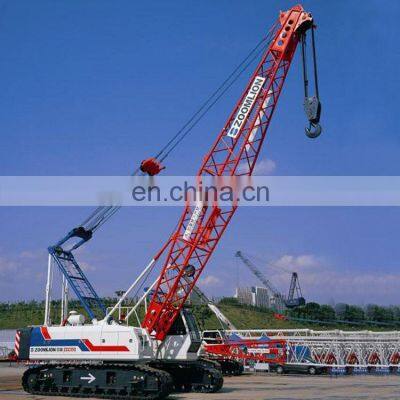

Photo for reference
