SINOMACH 21ton Medium-size Crawler Excavator ZG3210-9C Suitable for Mining

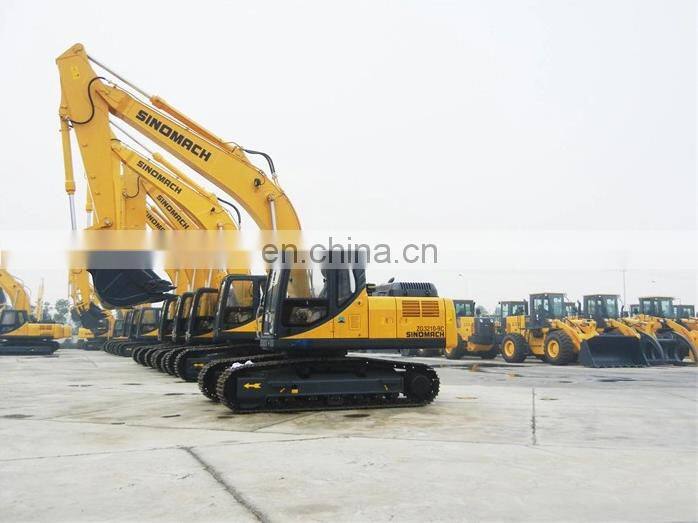

SINOMACH 21ton Medium-size Crawler Excavator ZG3210-9C Suitable for Mining photo-1

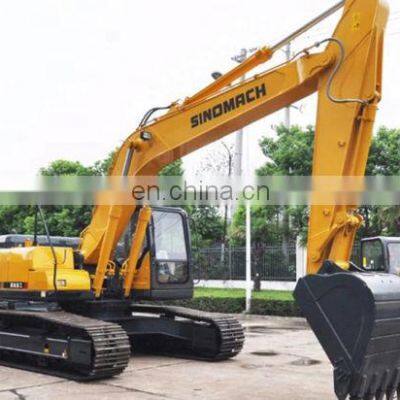

SINOMACH 21ton Medium-size Crawler Excavator ZG3210-9C Suitable for Mining photo-2

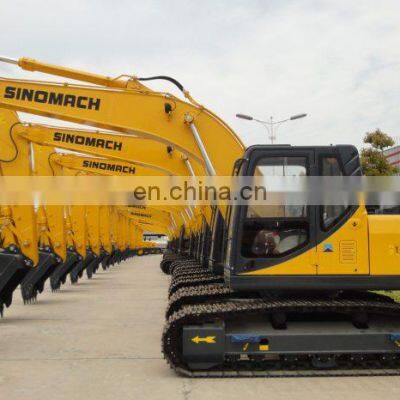

SINOMACH 21ton Medium-size Crawler Excavator ZG3210-9C Suitable for Mining photo-3

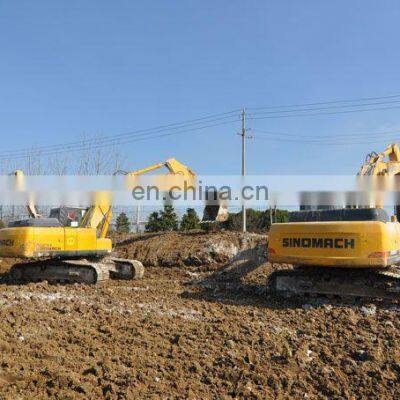

SINOMACH 21ton Medium-size Crawler Excavator ZG3210-9C Suitable for Mining photo-4

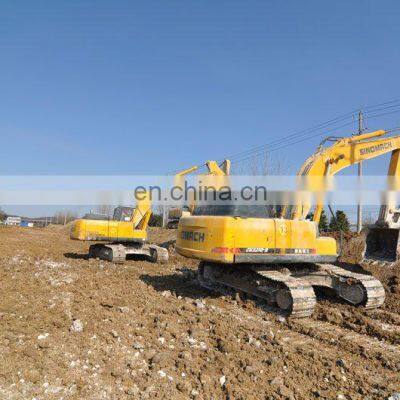

SINOMACH 21ton Medium-size Crawler Excavator ZG3210-9C Suitable for Mining photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2004
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

SINOMACH 21ton medium-size crawler excavator ZG3210-9C suitable for mining

Product Description

(1) Equipped with Cum-mins engine imported from the United States, suitable for high-strength, heavy-duty operation, high reliability, low fuel consumption, and meeting Euro II emission standards.
(2) A full set of Japanese Kawa-saki negative flow hydraulic system is adopted, which has better system stability and reliability, faster compound action speed and higher operating efficiency.
(3) The standard enhanced working device, a variety of buckets and breakers are optional, and can be widely used in municipal, road, pipe network, factory and mine construction sites.
(4) High-strength reinforced box-type side beams and X-shaped middle frame, high-reliability supporting chain wheels and rollers, the bearing capacity is stronger and more stable.
(5) Oil-containing resin gaskets are used, and high-density copper bases are used to lubricate the bushing at specific locations, which is low-friction and wear-resistant.
(6) Intelligent electronic monitoring system, real-time monitoring, self-diagnosing fault alarm and maintenance information prompt.
(7) The new cab is equipped with fully automatic control air-conditioning, spacious and comfortable, beautiful appearance, and can be equipped with a variety of cab protection to meet different working conditions and safety requirements.

Model ZG3210-9C
Length×Width×Height(mm) 9520×2800×3030
Operating weight (Kg) 21000
Rated bucket capacity(m3) 0.91
Max.digging depth(mm) 6690
Max.digging radius(mm) 9953
Max.digging height(mm) 9642
Max.dumping height(mm) 6813
Bucket digging force(KN) 137
Stick digging force(KN) 102
Gradient capacity(%) 70
Diesel engine Cum-mins 6BTAA5.9-C150
Rated output(KW) 112



Below detailed specification of ZG3210-9C:

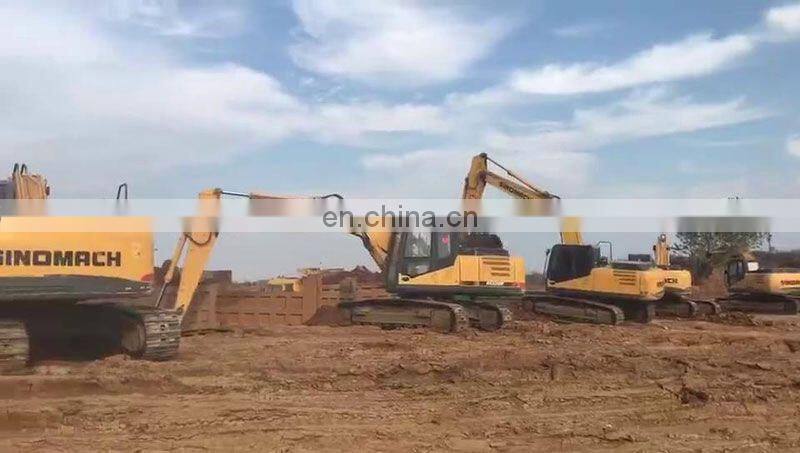

SINOMACH 21ton medium-size crawler excavator ZG3210-9C suitable for miningSINOMACH 21ton medium-size crawler excavator ZG3210-9C suitable for miningSINOMACH 21ton medium-size crawler excavator ZG3210-9C suitable for miningSINOMACH 21ton medium-size crawler excavator ZG3210-9C suitable for mining

SINOMACH 21ton medium-size crawler excavator ZG3210-9C suitable for miningSINOMACH 21ton medium-size crawler excavator ZG3210-9C suitable for miningSINOMACH 21ton medium-size crawler excavator ZG3210-9C suitable for mining

SINOMACH 21ton medium-size crawler excavator ZG3210-9C suitable for mining
