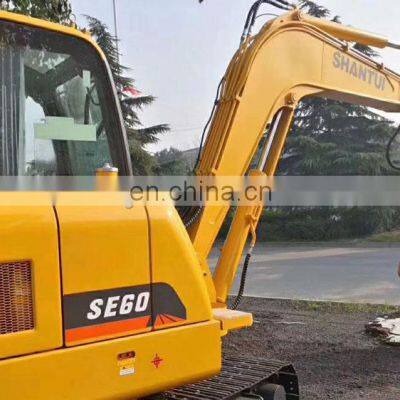

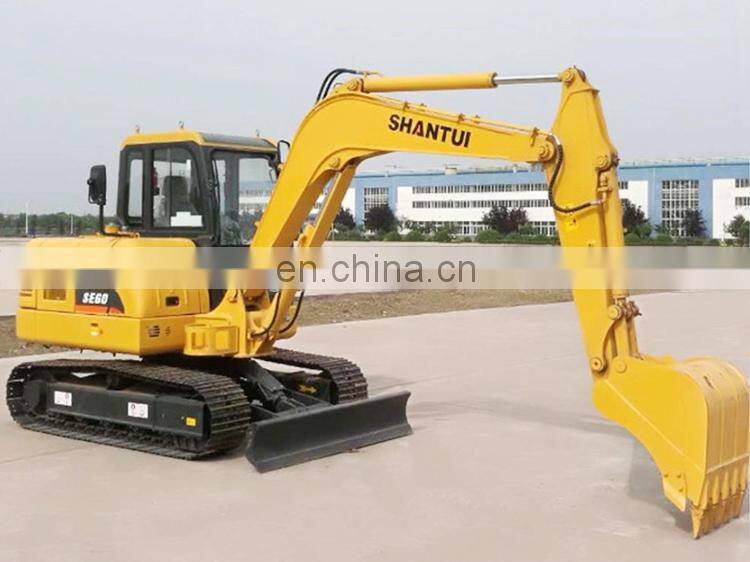

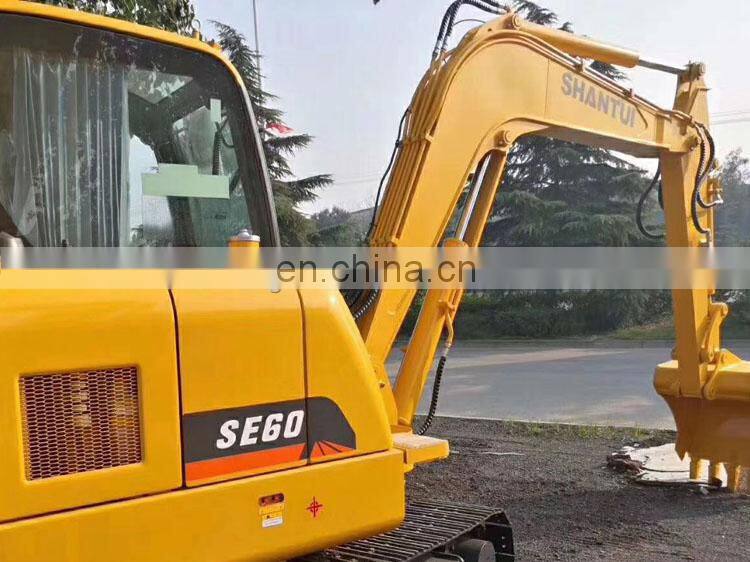

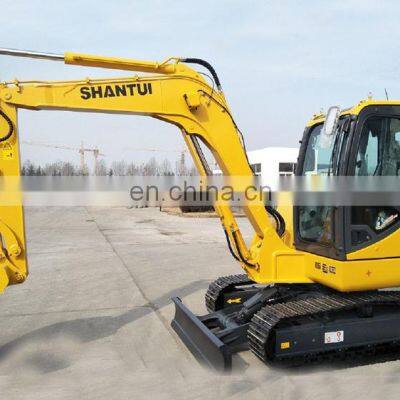

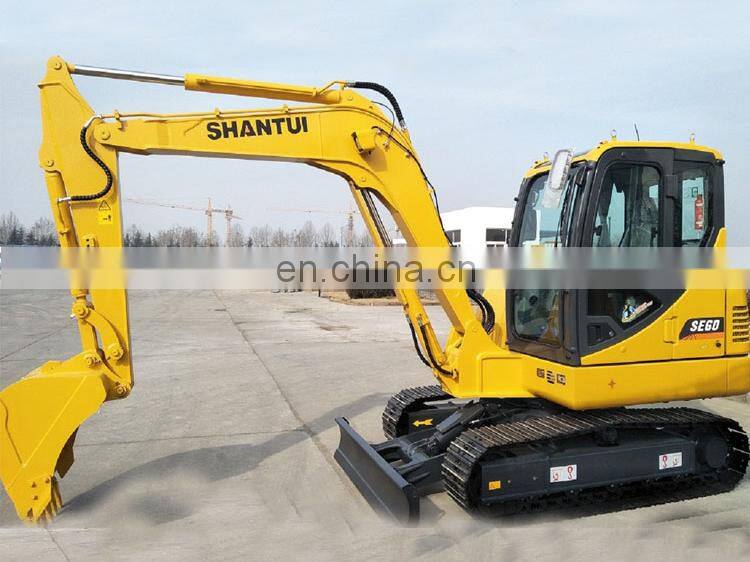

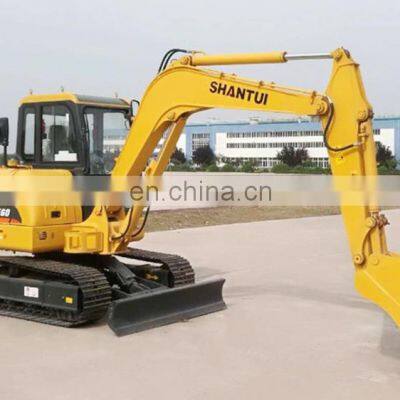

SHANTUI small hydraulic excavator SE60 with bucket capacity 0.22CBM
SE60 excavator:
Minimum ground clearance: 300 mm
Overall length: 5855 mm
Operating weight: 5.96 t
Overall height: 2585 mm
Ground pressure: 34 kPa
Technical Features:
Originally imported Kubo-ta engine. The engine conforms to China-III emission regulation and features strong power, low fuel consumption, and prominent performance and the aluminum
paralleling radiator features good heat dissipation performance.
Originally imported hydraulic system. The four-pump constant power control mode is adopted to realize the perfect matching between hydraulic system and engine, reduce the fuel
consumption, and improve the efficiency and the double-pump confluence technology is applied for the boom and arm to realize high motion speeds and stable and efficient operations.
Electro-mechanically integrated intelligent electronic control system with proprietary intellectual property rights. The multi-functional LCD display can realize the data acquisition and
transmission, orientation, control, protection, and remote firmware upgrade and achieve high intelligent control.

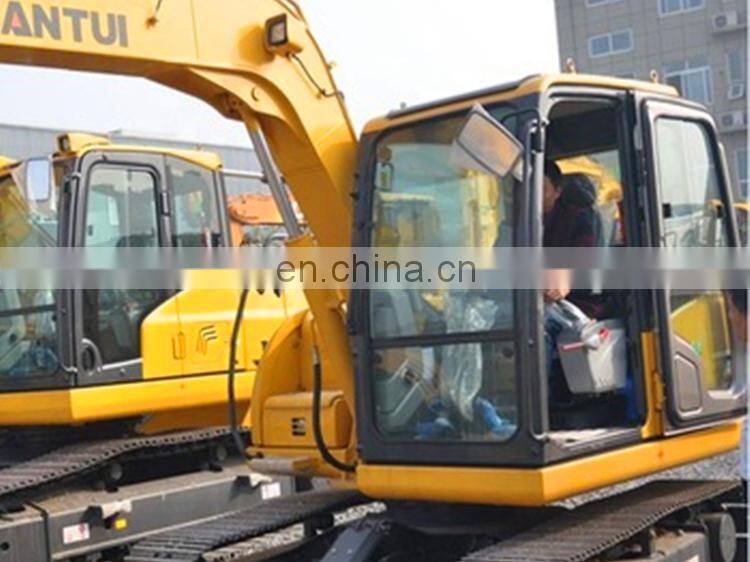

All-new cab with broader vision field and more reasonable space layout. The air-cushioned seats and the ergonomic control system realize simpler and more comfortable operations and
minimize the driver’s fatigue.
High reliability traveling mechanism and working device. The application of strength calculation, finite element analysis, and new structures and new materials for the structural parts
improves the reliability of the structural parts.
Convenient repairs and maintenances. The application of full-opening front and rear hoods and side gates and the central lubrication system for slewing system realizes convenient and
efficient maintenances and reduces the maintenance costs.
| ENGINE | Model | Kubo-ta V2607T |
| Type | 4-cylinder in line, turbocharging | |
| Quantity of cylinders | 4 | |
| Bore x stroke | 87 x 110 mm | |
| Displacement | 2.615 L | |
| Power output | 36 kW/2000 rpm | |
| Maximum torque | - | |
| HYDRAULIC SYSTEM | Pump | Imported |
| Type | Variable piston pump | |
| Maximum discharge flow | 144 L/min | |
| Control circuit | 3.5 MPa | |
| Travel circuit | 24.5 MPa | |
| Swing circuit | 21.6 MPa | |
| TRAVEL SYSTEM | Travel motor | Variable axial piston |
| Travel brakes | Lubricated double-disc | |
| Parking brake | Pressure release | |
| Travel shoes | 2 x 40 | |
| Travel speed | 2.7/4.5 km/h | |
| Drawbar pulling force | 50 kN | |
| Gradeability | 70% | |
| Minimum ground clearance | 300 mm | |
| OIL CAPACITY | Fuel tank | 95 L |
| Cooling system | 8.5 L | |
| Engine oil | 9 L | |
| Hydraulic oil tank | 74 L | |
| System capacity | 120 L | |
| SWING SYSTEM OIL CAPACITY | Brake |
Pressure Release Mechanical Braking |
| Swing speed | 11 rpm | |
| Tail swing radius | 1655 mm | |
| Arm digging force | 32.3 KN | |
| Bucket digging force | 48 KN | |
| BUCKET | Bucket capacity |
Backhoe bucket 0.22 m3 (SAE) |
| Number of bucket teeth | 5 | |
| Bucket width | 760 mm | |
| Arm length | 1.60 m | |
|
Maximum digging reach/ Maximum digging reach at ground level |
6.2 m/6.06 m | |
| Maximum digging depth/height | 3.85 m/5.785 m | |
| Maximum dumping height | 4.075 m | |
| Minimum swing radius | 2.395 m |
Optional configuration of the whole machine
Fuel filling pump
Cab warning lights
Cab top light
Cab roof protection net
Protective net on the front of the cab
Lower protective net in front of the cab
Rubber track
Optional accessories
Breaker, ripper, wood grab, stone grab, quick change device, hydraulic rammer
