Amphibious Excavator 16 Ton Excavator Bucket Digger
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2004
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Amphibious Excavator 20 Ton Swamp Excavator HK260SD for SaleNegotiableMOQ: 1 -
China Front End Wheel Loader CLG835H 3TON Small Tractor Loader SaleNegotiableMOQ: 1
-
New Heavy Mining Crawler Excavator FR480E With Hydraulic BreakerNegotiableMOQ: 1
-
LOVOL 37ton Heavy Duty Mining Crawler Excavator FR370E With Standard 1.7m3 Bucket PriceNegotiableMOQ: 1
-
LOVOL Heavy Duty Mining Crawler Excavator FR330D Factory Sale PriceNegotiableMOQ: 1
China Amphibious Excavator 20 ton Swamp Excavator HK260SD for Sale
Product Description
Product Description
Specification:
1) Higher efficiency,
2) Lower fuel consumption
3) Operation comfort,
4) With wide applications in various narrow environments such as forest, farm & indoors.
Parameter:
| Specification | |
| Operating weight | 26000kg |
| Standard bucket capacity | 0.9m³ |
| Boom length | 5680 |
| Arm length | 2912 |
| Chains | 2 |
| Engine: | |
| Model | 6BG1 |
| Type | inter-cooled turbo |
| Power | 114kW/2100rpm |
| Max.torque | 629N m / 1600rpm |
| No.of cylindar | 6 |
| Displacement | 6.494L |
| Hydraulic system | |
| Main pump | |
| Type | Variable plunger pump |
| Max.displacement | 2X107cm3/r |
| Max.flow | 20L/min |
| Working pressure | 32Mpa |
| Hydraulic motor | |
| Slew motor | fixed plunger |
| Travel motor | variable plunger |
| Performance | |
| Slew speed | 11rpm |
| Min.slew radius | 3554mm |
| Max.travel speed high/low | 5.4/3.2km/h |
| Gradeability | 70% |
| Tracktive effort | 279.8kN |
| Max.digging force of bucket | 98.3kN |
| Max.digging force of arm | 63.5kN |
| Ground pressure | 0.14kg/cm2 |
| Oil tank capacity | |
| Fuel tank capacity | 376L |
| Hydraulic tank capacity | 219L |
| Item | |
| Length of pontoon | 8083 |
| Ground clearance of platform | 2002 |
| Overall height | 3826 |
| Boom transport height | 3390 |
| Overall length | 10502 |
| Rear swing radius | 2800 |
| Track gauge | 3643 |
| Overall width | 5133 |
| Width of pontoon | 1490 |
| Min.ground clearance | 1192 |
| Height of pontoon | 1718 |
| Width of upper structure | 2867 |
| Ground length | 4787 |
| Item | |
| Max.digging reach | 9925 |
| Max.digging reach on ground | 9540 |
| Max.digging depth | 5704 |
| Max.vertical digging depth | 5125 |
| Max.digging height | 10577 |
| Max.dumping height | 7810 |
| Min.front slewing radius | 3554 |

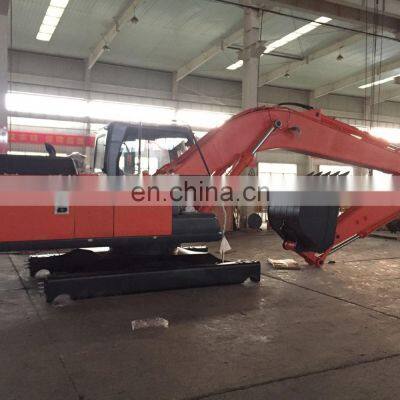

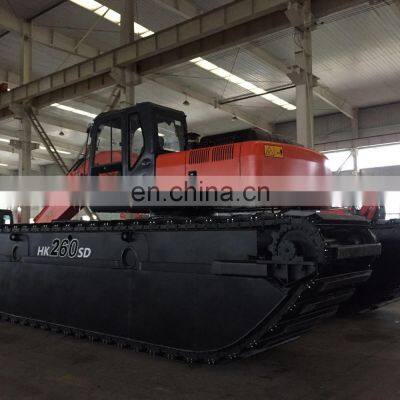

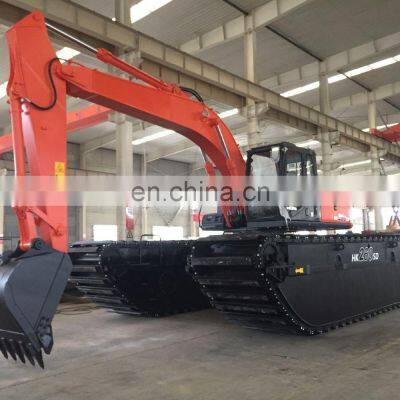

Pictures of product:
