Tractor rear side mower slasher grass cutting machine

Name: Tractor rear side mower slasher grass cutting machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

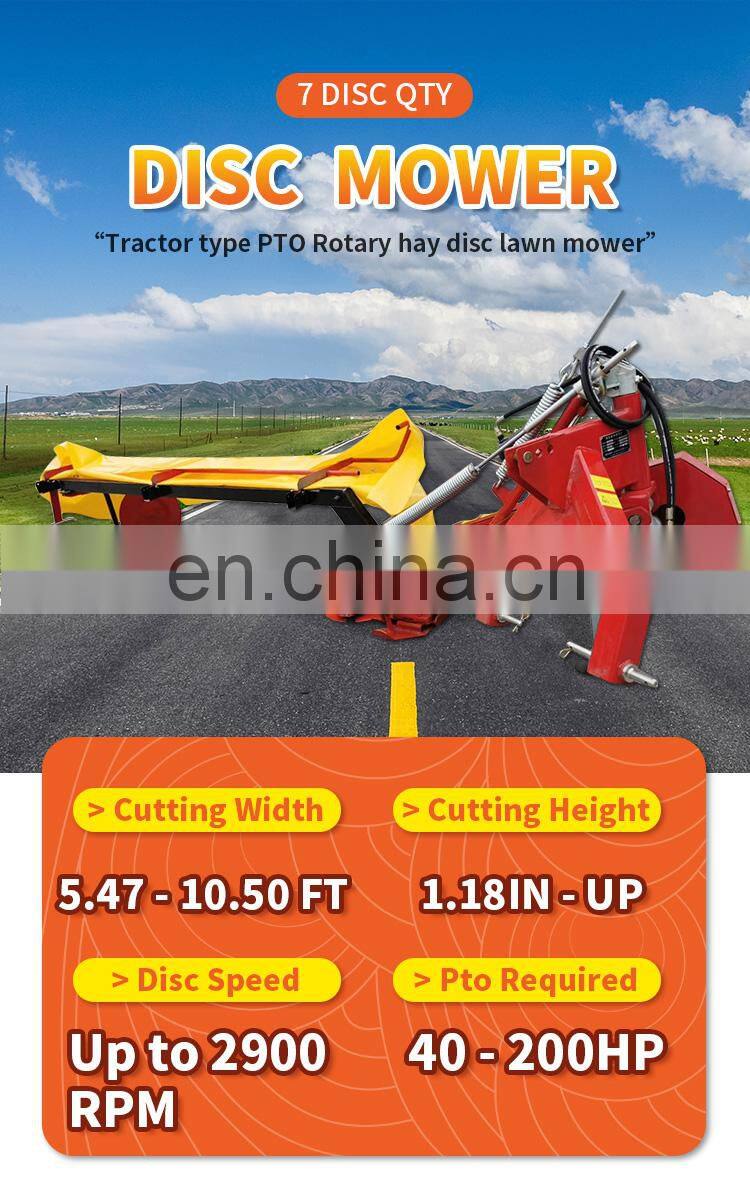

Tractor Rotary Disc mower

Product Description

It is mainly used for harvesting all kinds of forage.

The mower is connected to the tractor rear suspension frame, and the power output shaft is used for operation. The machine has 4-8 high-speed rotating Cutterheads. Each cutterhead is equipped with two blades. It can work at high speed up to 1-2 hectares per hour with high productivity.

The rotation of 4-8 cutter heads of this machine is driven by gear instead of traditional belt drive, which makes the work stable, the failure rate low and the maintenance cost low.

Because of spring suspension and belt rotation, the knife beam is low, easy to rise and fall, it can cut close to the ground, with low cutting stubble, and has a good imitation ability to the ground.

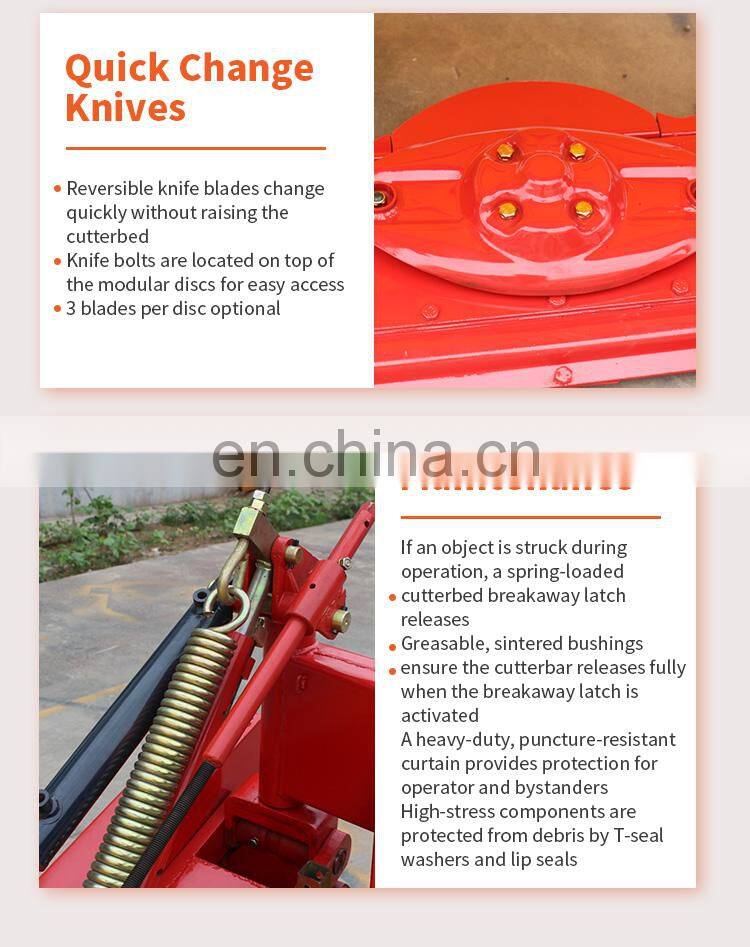

When the cutting blade encounters a big obstacle, it can be knocked back to avoid damage to the blade. The mower relies on the rotating force of the turntable to concentrate the grass in the middle position for easy collection. Tractor rear side mower slasher grass cutting machine

Specifications and data
Model	Cutting width	Disc Qty	Disc Speed	Disc Dia.	Speed	Matched power	PTO	Weight
Model	Cutting width	Disc Qty	Disc Speed	Disc Dia.	(km/hour)	Matched power	PTO	Weight

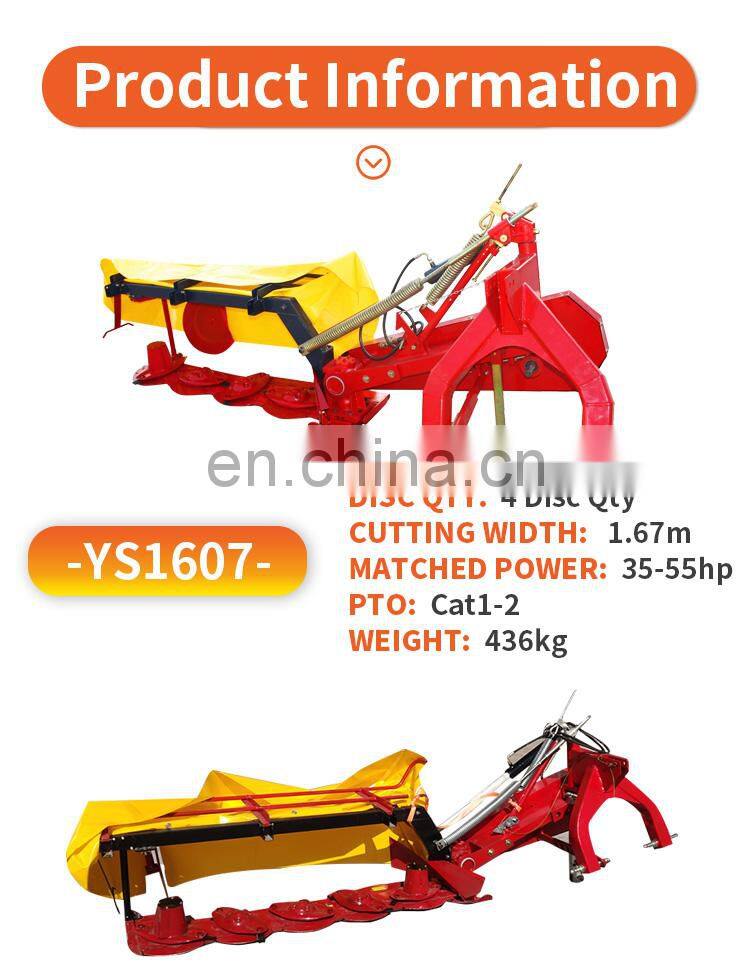

MAP1670	1.67m	4	2900	500mm	4-12KM	35-55hp	Cat1-2	436kg

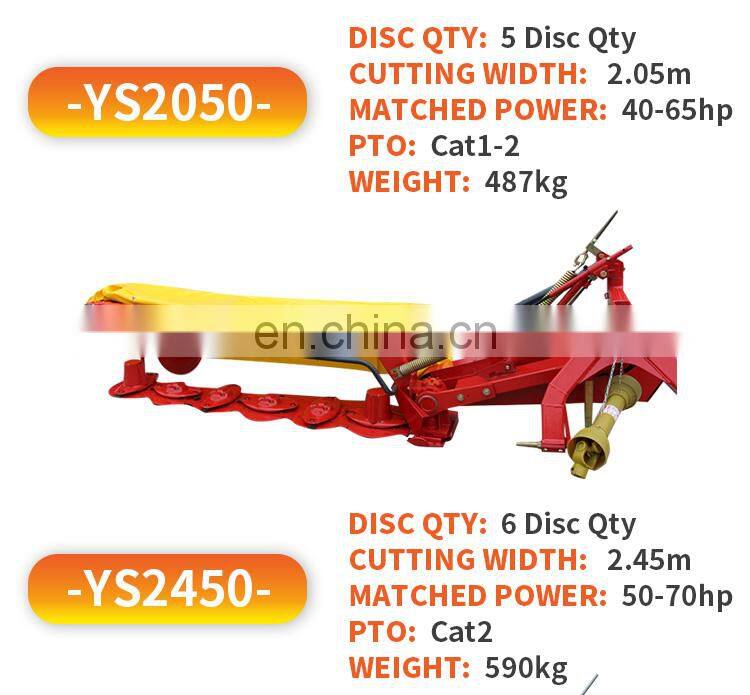

MAP2050	2.05m	5	2900	500mm	4-12KM	40-65hp	Cat1-2	487kg
MAP2450	2.45m	6	2900	500mm	4-12KM	50-70hp	Cat2	590kg

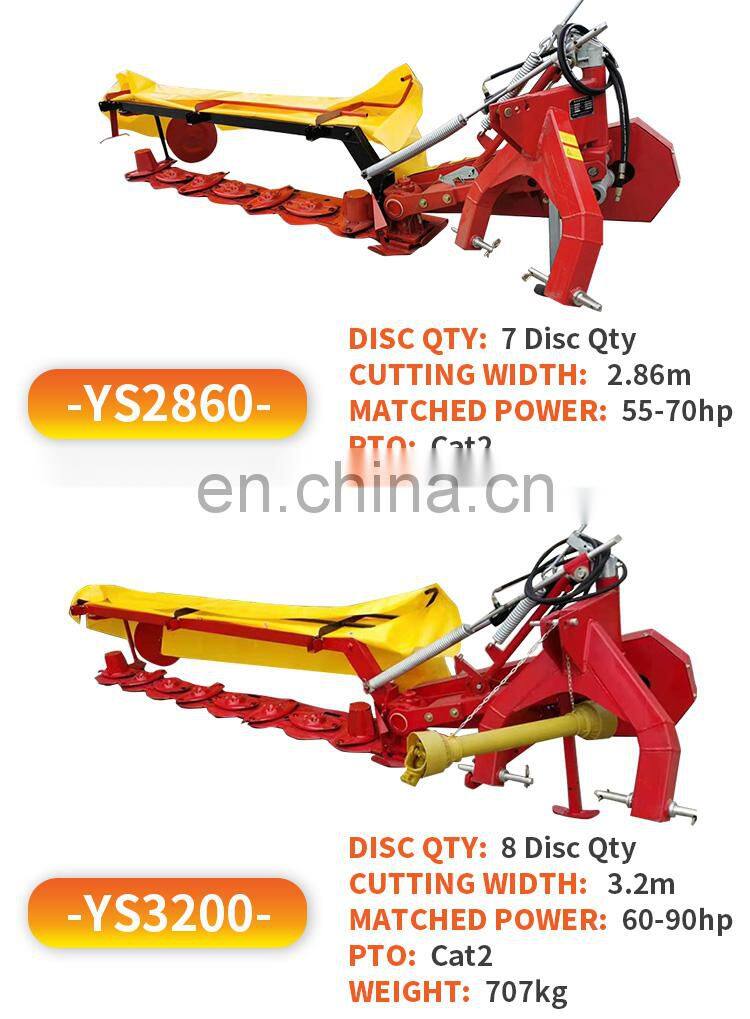

MAP2860	2.86m	7	2900	500mm	4-12KM	55-70hp	Cat2	629kg
MAP3200	3.2m	8	2900	500mm	4-12KM	60-90hp	Cat2	707kg

Main features

1. It is mainly used for the harvesting of all kinds of herbage.

2. The hay mower is attached to the rear suspension of the tractor and use the PTO to work.

3. The machine has 2 – 8 pieces high-speed rotating knife plates, with two blades on each blade, and the high-speed operation reaches 1-2 hectares per hour, the productivity is very high.

4. The rotation of knife plates is driven by the gear drive instead of the traditional belt transmission,which makes the job more stable, the failure rate is low and the maintenance cost is low.

5. use of spring suspension and the rotation of the belt, the knife beam is low, easy to rise and fall, which can be cut with the ground, the cutting stubble is low, and the surface has good imitation ability.

6. The blades can be punched back to avoid damage

7. The lawn mower relies on the rotating force of the turntable to concentrate the grass in the middle position for easy collection.

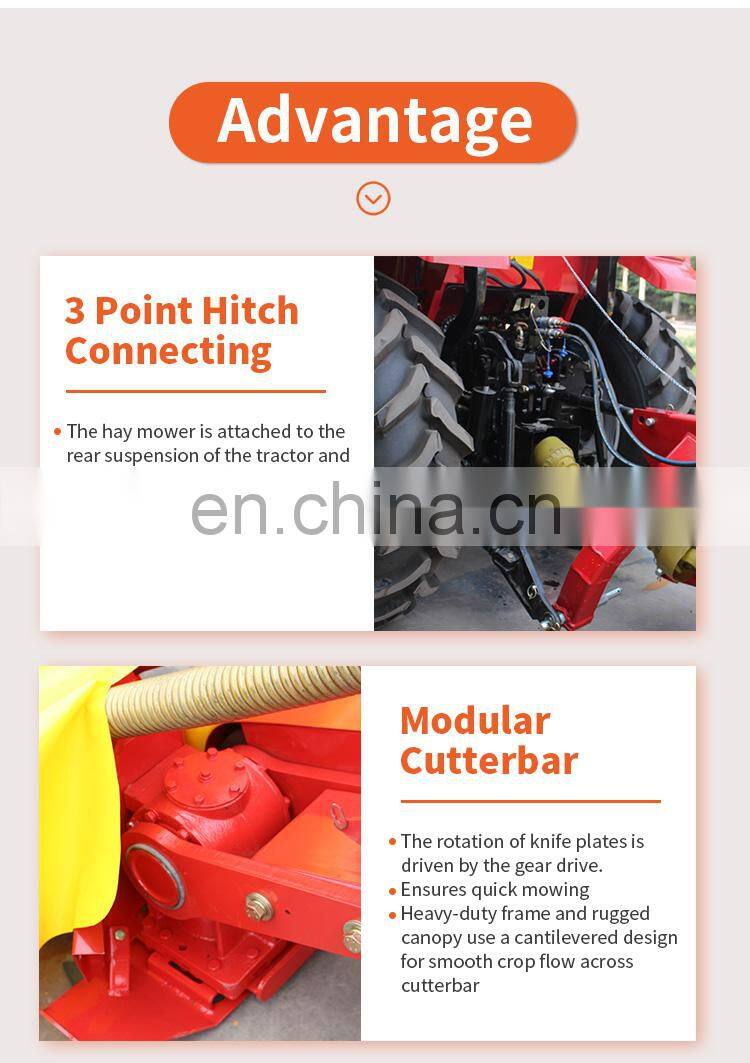

Advantage

1. Disc mower with different discs, also with various of cutting width, from 1.67m-2.55m, cutting grasses into 2-6 lines.

2. Disc mower widely used in large pastures, usually cut grass, hay, alfalfa, corn stalk, etc.

3. Disc mower cuts through heavy, high crops without wrapping or plugging, as well as for light thin grass.

4. Disc mower can be raised quickly for turning or transport without adjusting the 3 point hitch.

5.Disc mower suitable for wide range terrins and contours, even uneven and rochy ground.

Details Pictures

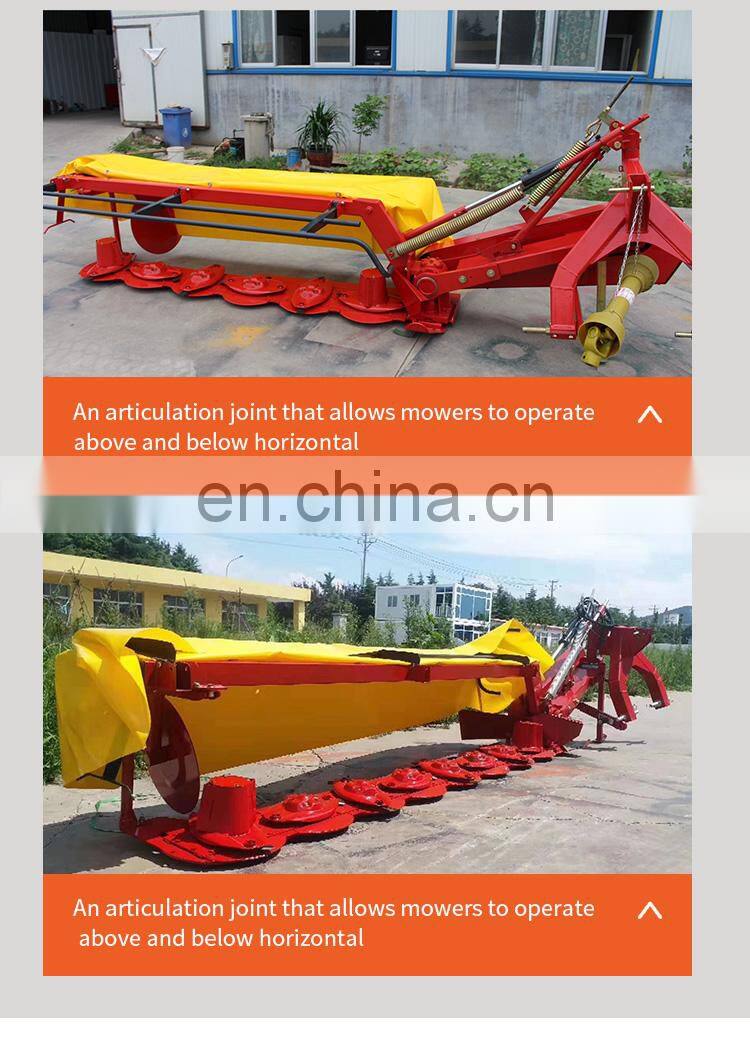

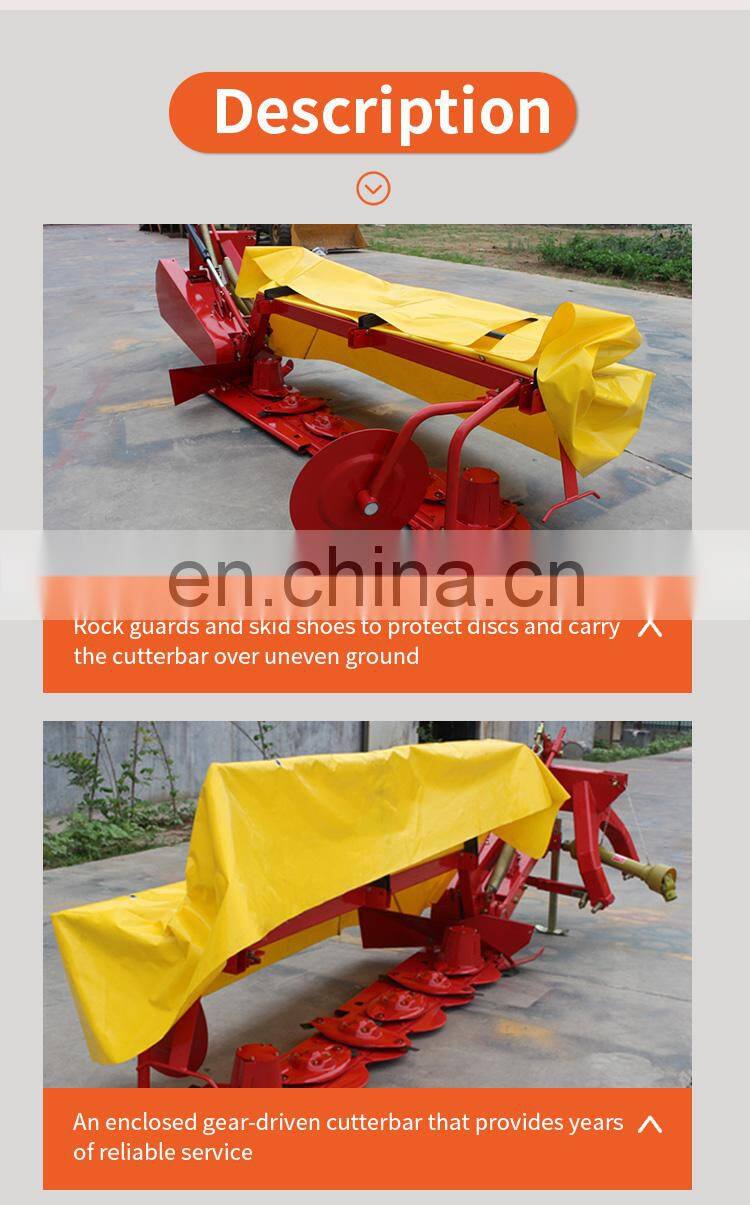

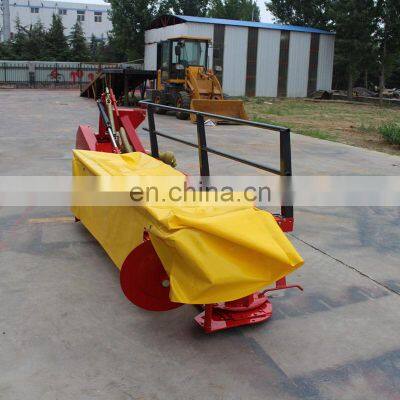

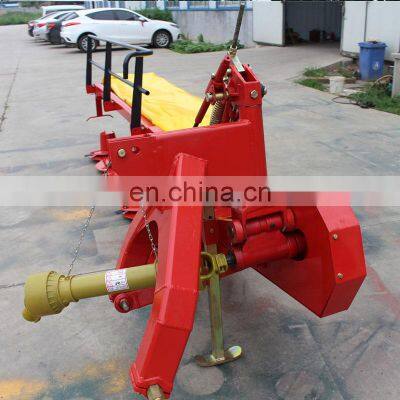

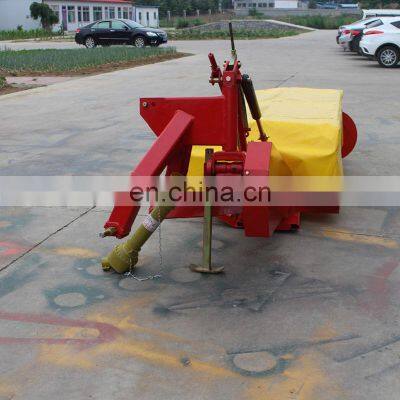

Tractor rear side mower slasher grass cutting machine

FAQ

1.How can I place order?1.How can I place order?

A: You can contact us by email about your order details, or place order on line.

2.How can I pay you?

A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance

3. Are you factory supplier?

A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers

4. How do you take care when your clients received defective products?
A: replacement. If there are some defective items,

we usually credit to our customer or replace in next shipment.

5.How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection.

We check the goods when they go into next step production procedure.

6. What's the order procedure?

A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you.

More details please ask us online or send inquiry to us,we will answer first time.
