Product Description
ZL30 3ton front end loader zl-30 farm equipment for sale
(**** For the ZL30F Wheel loader,we offer you 1 year warranty time and whole life technical support****)
Features:
1. With the high-reliability engine, the wheel loader can lower the oil consumption, noise and emissions
.
2. The wheel loader uses the hard structural parts and powering working device to strengthen the excavating force.
3. The wheel loader employs the advanced hydraulic system and rigid steel structure.
4. Adjusting the swing angle of high and rear axle, the wheel loader can smooth the operations in narrow spaces or on rugged sites and so on.
Cab:
The cab has the advantages of large space, low noise, comfort and safety, easy operation, dustproof, sound insulation, vibration reduction, UV protection and so on. It is equipped with a full rear-view mirror. It has the molding and high-quality seats made of professional manufacturing technology and featured damping suspension.
Rated loading weight: 3, 000kg
Rated capacity: 1.7cbm
Operating weight: 9600kg
Max. Breakout force: 66kN
Max. Drawing force: 120.6kN
Lifting, lowering, dumping time: 10s (full load)
Overall dimensions: 6909 x 2400 x 3190mm
Engine model: R6105G20
Engine type: Inline, water cooled, direct injection
Max. Torque: 432nm
Rated power: 92kW
Nos of gear shift: 4 forward and 2 reverse
Max. Travel speed: 36km/h
Tire size: 17.5-25
Front tire pressure: 343KPa
Rear tire pressure: 304KPa
Service brake system: Air assisted oil disc tire four wheel brake.

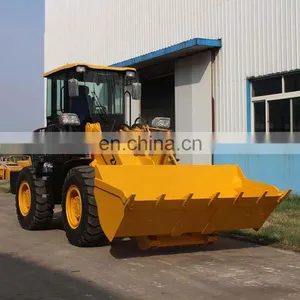

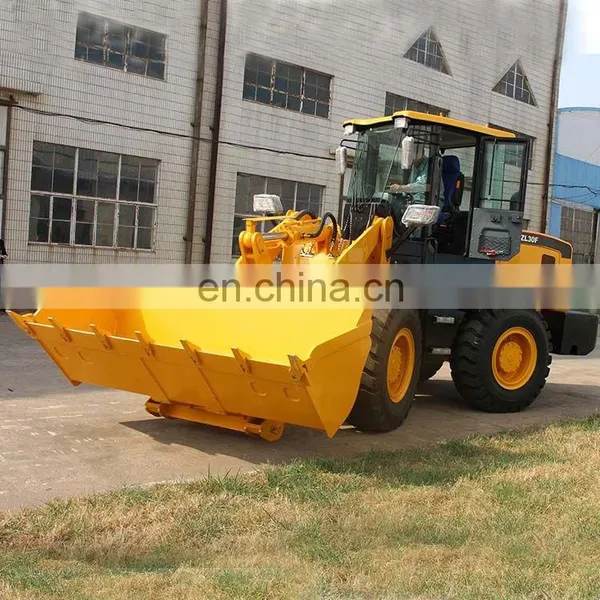

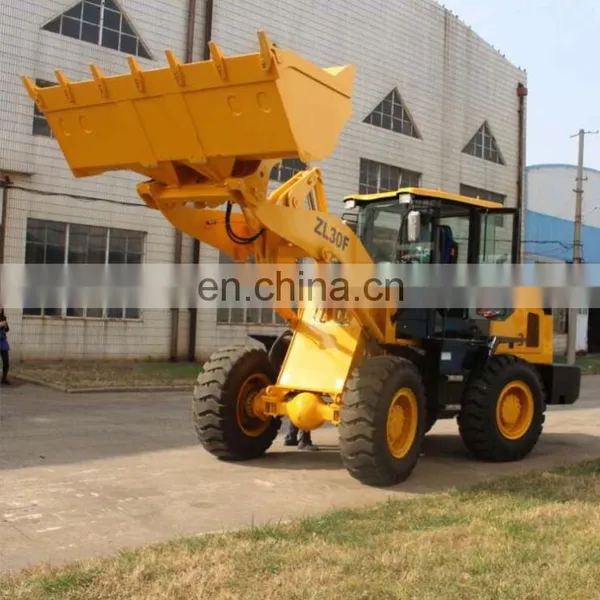

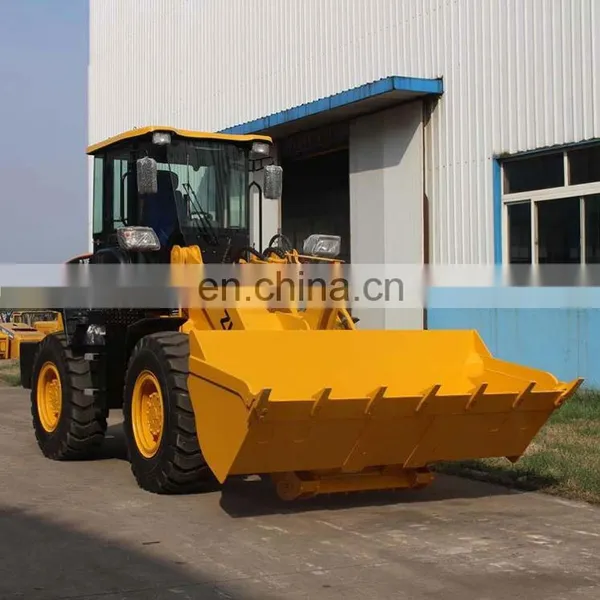

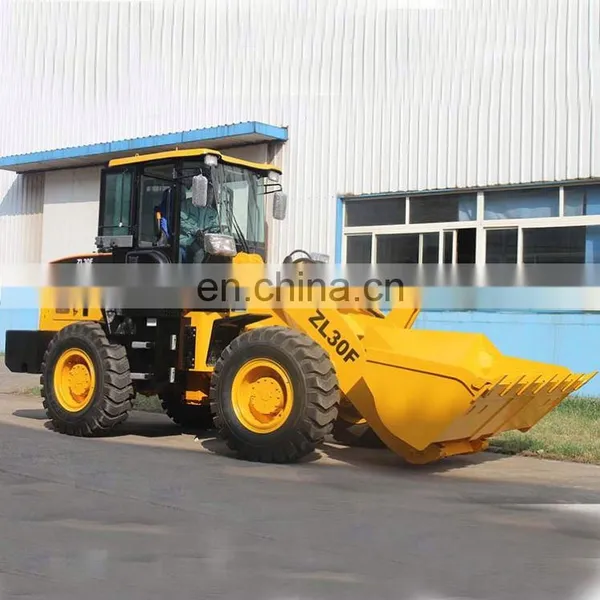

Detailed Pictures of ZL30F:
Company Information:

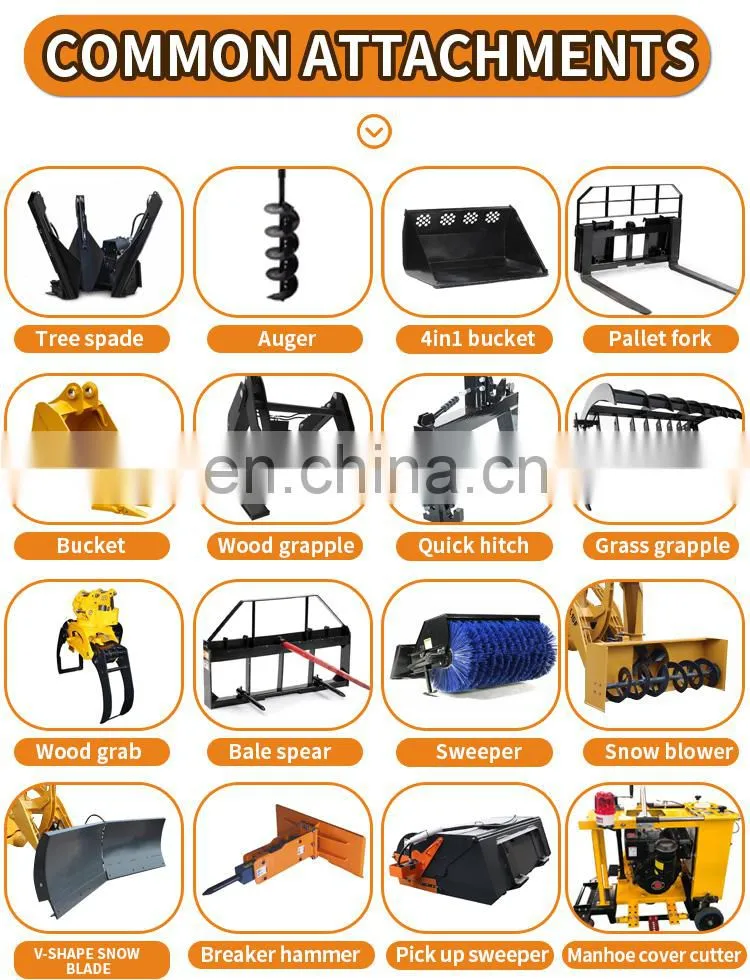

Weifang Map Power is real factory to produce all kinds of wheel loaders CE, such as: 915, Multi-function Wheel Loader 1.6Ton can be with Snow Blade, Snow bucket, Pallet fork, Grapple fork, 4 in 1 Bucket, Baler, Grader, road sweeping machine, snow blower, light bucket, auger and etc. D25, ZL10, ZL12, ZL16, ZL20, ZL30, ZL16 Long-armed Loader, ZL50G Loader, Big Ore Loader, Coal Loader, Long-armed Loader, High-efficiency Loader. Multi-function Wheel Loader 0.8Ton can be with Snow Blade, Snow bucket, Pallet fork, Grapple fork, 4 in 1 Bucket, Baler, Grader, road sweeping machine, snow blower, light bucket, auger and etc.
Parameters:
wheel loader ZL-30 specifications
|
||
Engine Details
|
Model
|
Weichai 6105/DEUTZ 226B
|
Engine type
|
In-line arrangement, water-cooled, 6 cylinders, diesel Engine
|
|
Rated Power
|
92kw
|
|
Rated Speed
|
2600 r/min
|
|
Min.ful consumption
|
221 g/kw.h
|
|
Bucket
|
Bucket Capacity
|
1.7 m3
|
Bucket type
|
Heavy-duty bolt on teeth
|
|
Rated Loading weight
|
3000 kg
|
|
Total Weight
|
9800 kg
|
|
Overall Dimensions
|
Overall Length
|
6990 mm
|
Overall Height
|
3190 mm
|
|
Overall Width
|
2500 mm
|
|

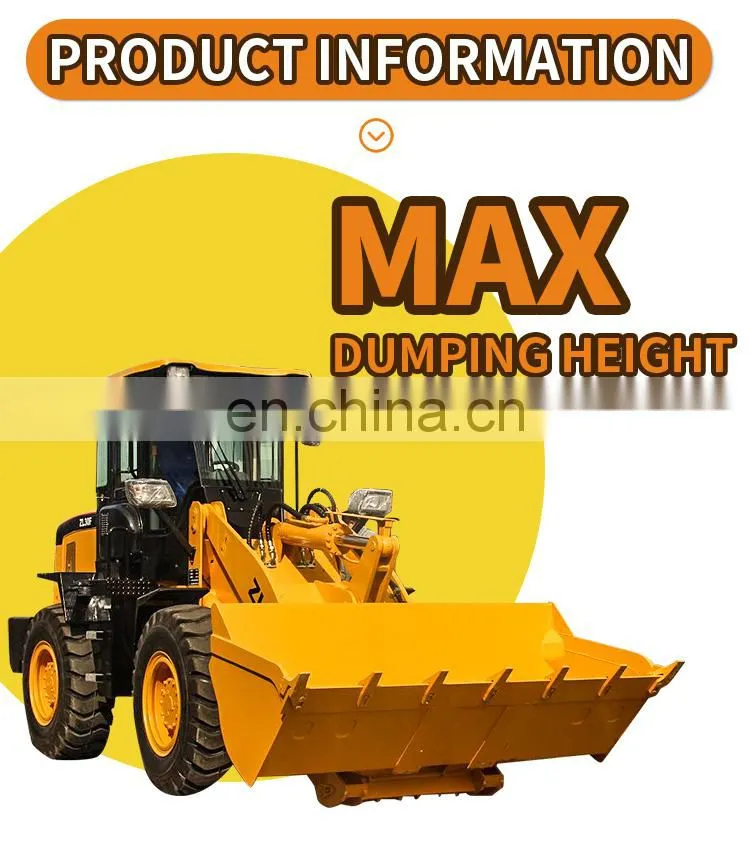

Max. discharge height
|
3100 mm
|
|
Wheel base
|
2750 mm
|
|
Tread
|
1800 mm
|
|
Operating Specifications
|
Steering System
|
Articulated Frame with hydraulic power steering
|
Min Turning Radius
|
5700 mm
|
|
Driving System
|
Hydraulic converter
|
|
Brake System
|
Service Brake
|
Four Wheel Hydraulic spread-shoed brake
|
Parking Brake
|
Hand operated
|
|
Tyre
|
17.5-25
|
