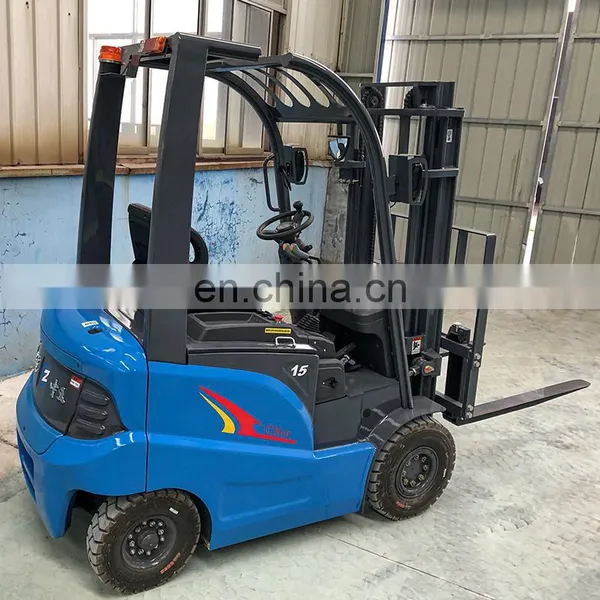

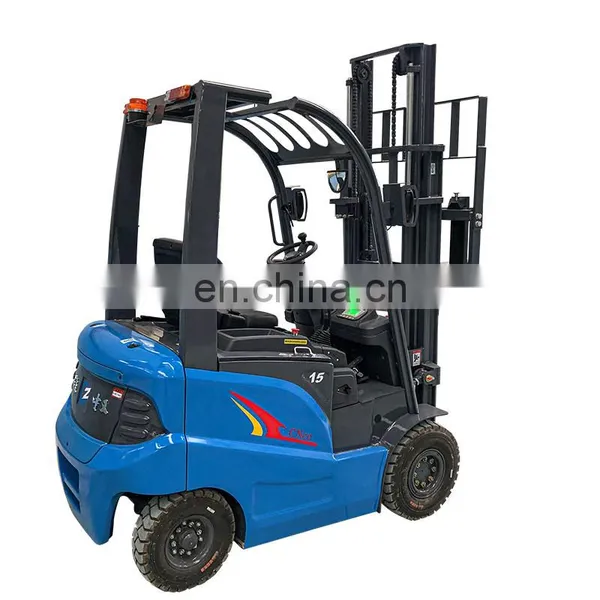

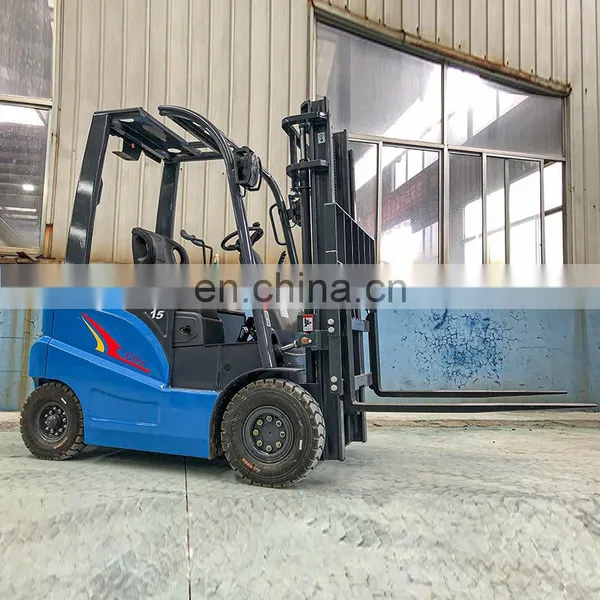

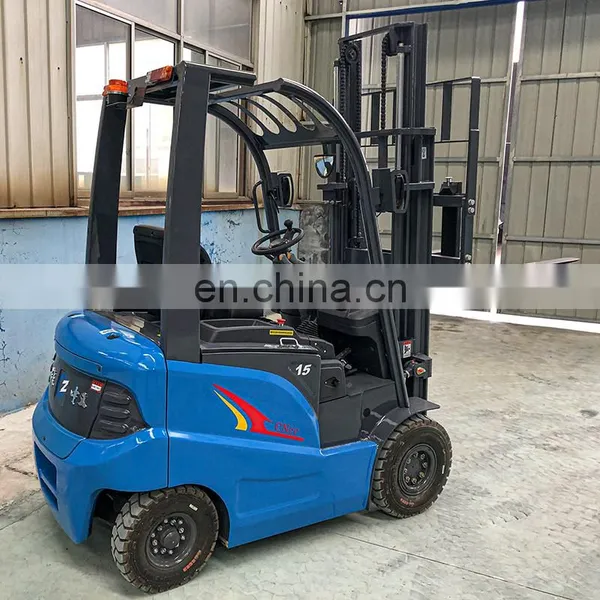

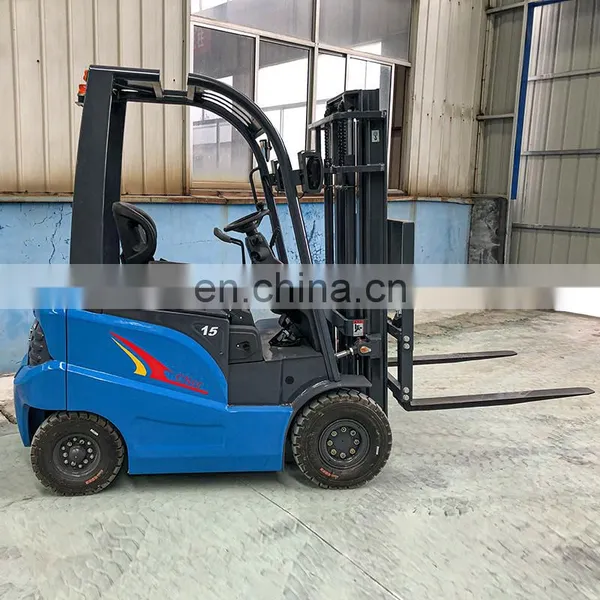

1 Ton 1.6 Ton 2 Ton 2.5 Ton 3 Ton 5 Ton Power Mini Electric Forklift Truck Small Battery Electric Forklift
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- High efficiency New Shantui Civil Road construction SD22 Crawler bulldozer with ROPS cabin
- Big chipping capacity high efficiency BX62R BX92R, pto Log Timber Wood Branch Chipper Shredder
- Big chipping capacity high efficiency 4\" 100MM BX42S, pto wood chipper chopper
- BX62R TRACTOR PTO DRIVEN WOOD CHIPPER WITH HYDRAULIC FEEDING CE APPROVED
- Big chipping capacity high efficiency auto feed BX62R BX92R, pto wood chipper chopper
- farm tractor with deep loosening and soil preparation combined cultivator machines for sale
Product Description
1 Ton 1.5 Ton 2 Ton 2.5 Ton 3 Ton 5 Ton Power Mini Electric Forklift Truck Small Battery Electric Forklift
Model | KG | CPD16F | ||
Power type | mm | Battery | ||
Rated load | 1500 | |||
Driving type | mm | 500 | ||
Load center distance | Seat | |||
Length | With fork L1 | 3040 | ||
Without fork L2 | 1970 | |||
Whole Width B | 1000 | |||
Height no lifting frame H1 | 1960 | |||
Top frame height H2 | 2010 | |||
Max Height working H3 | 4050 | |||
Distance from seat to top light L3 | 1000 | |||
Wheel base L4 | 1260 | |||
Front overhang Y | 385 | |||
Back overhang L5 | 300 | |||
Front wheel tread R | 820 | |||
Back wheel tread P | 800 | |||
Min Floor clearance F | 130 | |||
Max lifting height H | 3000 | |||
Free lifting height H4 | 40 | |||
Fork changing S | 1040/200 | |||
Min Turning radius WA | mm | 2100 | ||
Min Right angle aisle width RA | mm | 3850 | ||
Frame angle a/β | (°) | 6/12 | ||
Max lifting speed without goods | mm/s | 300 | ||
Max lifting speed with full goods | 260 | |||
Max speed without goods | Km/h | 14 | ||
Max speed with full goods | 13 | |||
Max climbing angle | % | ≤15 | ||
Whole weight | Kg | 2650 | ||
Driving Wheel | 2/2 | |||
Tyre model | Solid tyre | |||
Front Tyre | 18×7-10 | |||
Rear Tyre | 16×6-8 | |||
Hand Brake | Hydraulic Pedal | |||
Brake type | M-Hand | |||
Battery Volt/ capacity | V/Ah | 48V/230 | ||
Driving motor power | Kw | 6.5AC | ||
pump power | 5.5DC |
