Cucharon chino de 1cbm del cargador de la excavadora de 8 toneladas de servicio pesado retroexcavadora
- 1000 per Month
- T/T Credit Card
- Hot sale Multifunctional WZ28-20 Backhoe loader with air condition cabin and attachments
- Logistic equipment 1.0 TON 3.0 TON Small mini Electric battery Forklift truck for sale
- 40/50hp selfpropelled 8 self powered tree branch strong knife diesel engine wood chipper machine whole tree chippers for sale
- Long life Diesel Wood branches shredder crusher for organic fertilizer of landscaping job
- Forest wood log wood branch use 40hp 50hp diesel engine hydraulic feeding roller wood chipper crusher
- Forest wood log wood branch use Self powered 40hp hydraulic feeding mobile wood chipper
Product Description

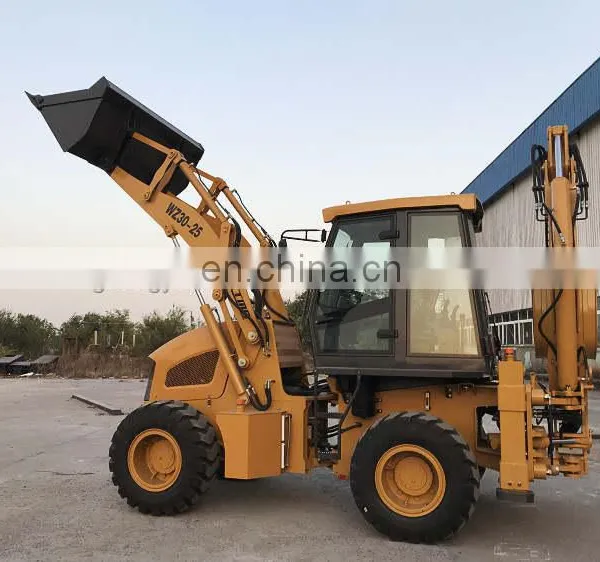

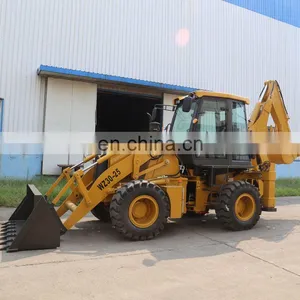

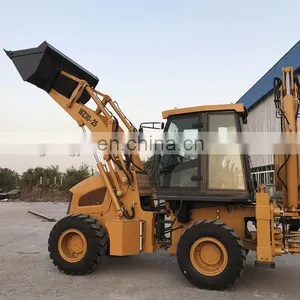

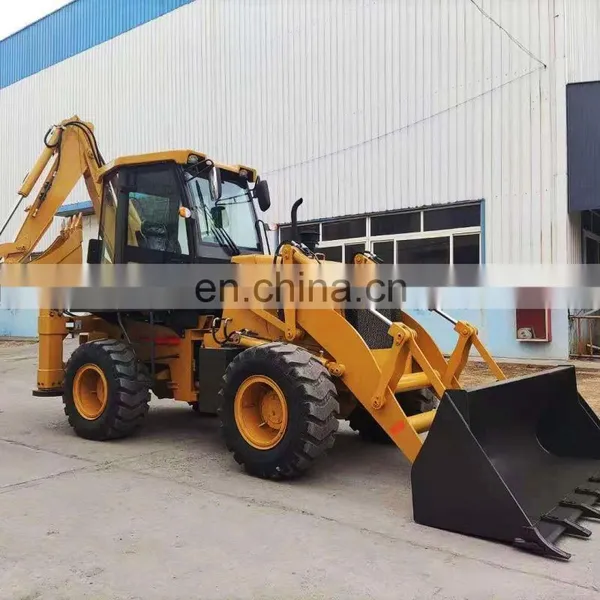

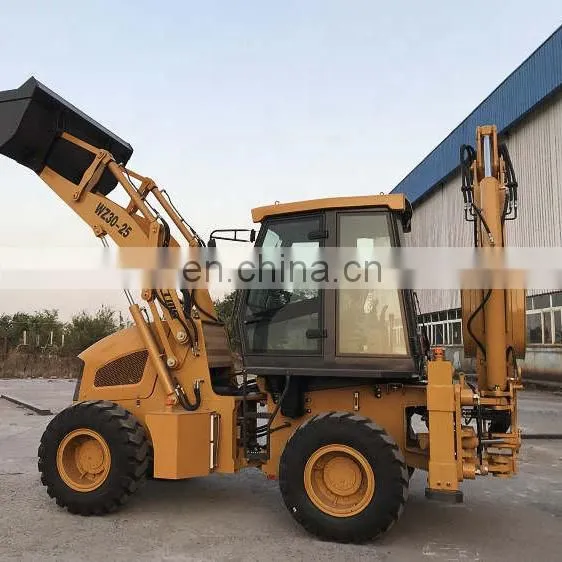

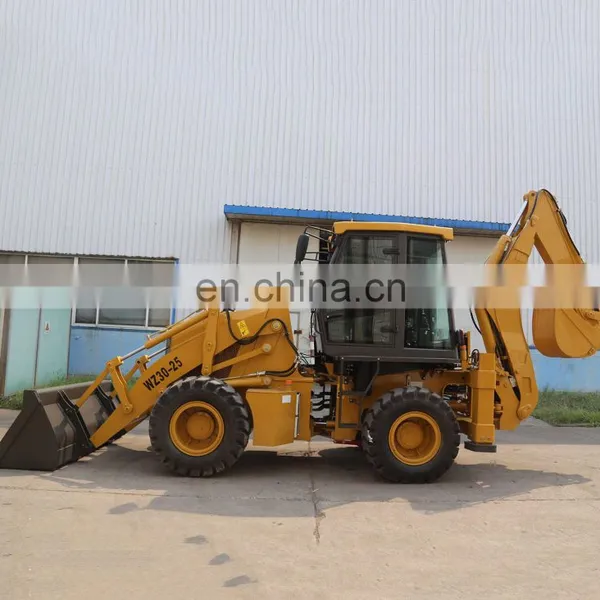

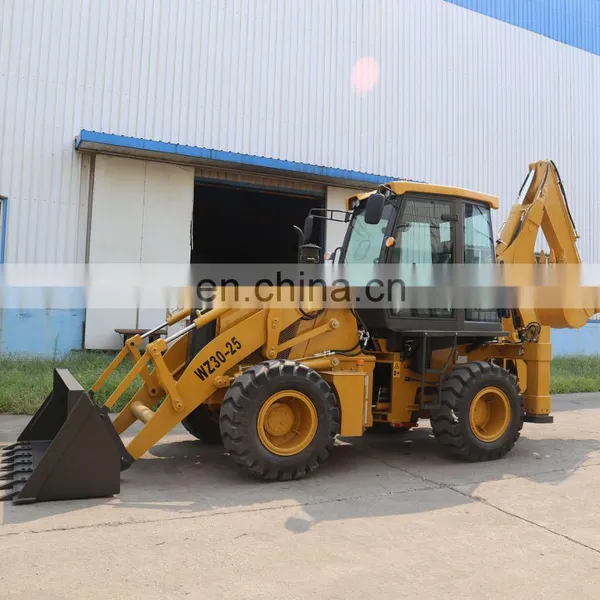

WZ30-25 Backhoe Loader
Product Description
1.0 DIMENSION |
|
1) Rated loader bucket capacity |
1.0m3 |
2) Rated excavator bucket capacity |
0.3 m3 |
3) Operating weight |
7600KG |
4) Dimensions (L x W x H) |
5900X2340X3750mm |
5) Wheel base |
2250mm |
6) Cab roof height |
2790mm |
7) Minimum ground clearance |
310mm |
8) Bucket indicator |
Yes |
2.0 ENGINE |
|
1) Engine model |
R4105G |
2) Type |
Diesel Engine(4-Cylinder engine, water cooled 105x125MM) |
3) Rated power |
55KW |
4)Total displacement |
4.33L |
5) Min fuel consumption |
239g/Km.h |
6) torque |
600N.m |
7) Rated revolving speed |
2200r/min |
3.0 TRANSMISSION SYSTEM |
|
1) Model |
CBGJ2040 |
2)Type |
power shift, electrical controlled |
3)Torque converter type |
Single Stage or Dual Phase |
4) Max. travel speed |
25km/h |
4.0 HYDRAULIC SYSTEM |
|
1) System pressure(backhoe) |
25000Kpa |
2) System pressure(loader) |
2070Kpa |
3) Flow rate of excavator system |
136L/min |
4) Flow rate of loading system |
106L/min |
5) Digging force, crowed cylinder |
36.0KN |
6) Hydraulic pump |
Gear Pump Tandem |
7) Bucket self-leveling ability |
yes |
8) Elec. clutch-cut-off switch |
yes |
9) Raising time of full height |
4.9s |
10) Bucket lowering time |
1.9s |
11)Bucket dumping time |
1.1s |
5.0 BRAKES |
|
1)Service brake |
Fully sealed wet disc, free adjust type |
2) Parking Brake |
Electronic control |
Spring applied, hydraulically released |
|
3) Emergency Brake |
Electric control |
Spring applied, hydraulically released |
|
6.0 SERVICE REFILLING CAPACITIES |
|
1) Engine Coolant |
16L |
2) Engine Oil |
8.5L |
3) Transmission |
15L |
4) Rear Axle |
16L |
5) Front Axle |
85L |
6) Model of Front Axle |
MS-2025 |
7) Model of Rear Axle |
MT-2075 |
8) Front Axle |
Mechanical front wheel drive, limited slip |
9) Rear |
with differential lock elec. Controlled |
10) Front Type |
19.5-24,8PR R4 |
11) Rear Type |
12.5/80,10PR |
7.0 STEERING SYSTEM |
|
1) Type |
Power Steering |
2) Min Turning Radius |
5682mm |
Certifications

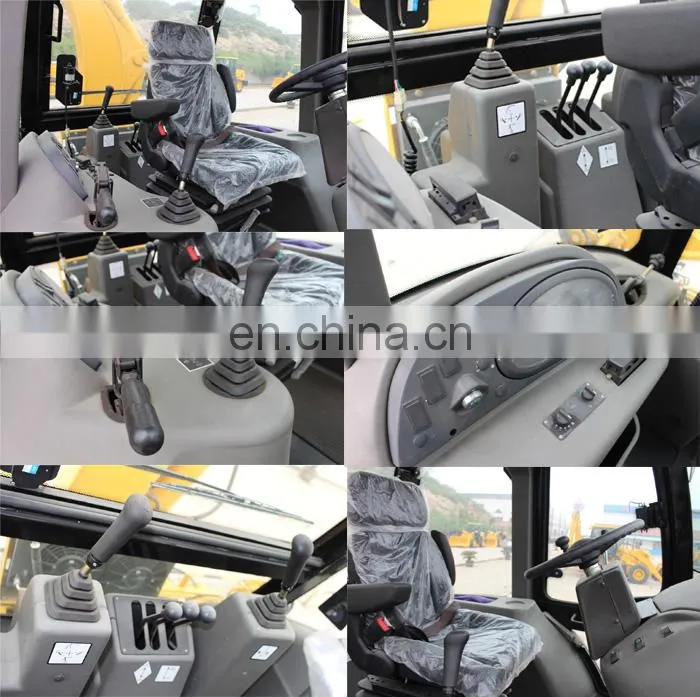

Details Pictures
Related Products
3 Ton Mini Dumper 5 Ton 180° Dumper 10Ton Heavy Duty Dumper
0.8 Ton Mini Wheel Loader 1.6 Ton Wheel Loader 2.0 Ton Wheel Loader
50HP tractor with front loader 70HP Tractor With Backhoe 90HP Tractor With disc mover
FAQ
1.How can I place order?1.How can I place order?
A: You can contact us by email about your order details, or place order on line.
2.How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance
3. Are you factory supplier?
A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers
4. How do you take care when your clients received defective products?
A: replacement. If there are some defective items,
we usually credit to our customer or replace in next shipment.
5.How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection.
We check the goods when they go into next step production procedure.
6. What's the order procedure?
A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you.
More details please ask us online or send inquiry to us,we will answer first time.
