Hot Sale Multifunctional WZ28-20 Backhoe Loader With Air Condition Cabin and Attachments
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2022 Multipurpose WZ28-20 4x4 Backhoe Loader MAP China Wheel Excavator Backhoe Loader With AttachmentsNegotiableMOQ: 1 -
China Mini Backhoe Loader 4x4 Wheel Loader Backhoe 3 Ton 5 Ton 4 Wheel Drive New Backhoe Loader for SaleNegotiableMOQ: 1
-
Chinese MAP Wz28-20 2ton Pump Hydraulic Small Compact Construction Machinery Green Farm Mini Crawler Loader Backhoe DiggerNegotiableMOQ: 1
-
WZ28-20 Construction Machinery Cheap Price CE Certificate 2Ton Load Capacity Wheel Front End Loader Mini Small Backhoe LoaderNegotiableMOQ: 1
-
Construction Machinery MAP Wz28-20 China Small Backhoe Towable 4 Wheel Drive New Mini Backhoe Excavator Loader With PriceNegotiableMOQ: 1
Hot sale Multifunctional WZ28-20 Backhoe loader with air condition cabin and attachments
Product Description
Performance and characteristic:
WZ28-20 The Performance Parameter of Backhoe Loader WZ28-20 |
||
Overall Operating Weight |
5500KG |
|
Transport Dimension |
||
mm L*W*H |
6950x2200x3100mm |
|
Min. Ground Clearance |
300mm |
|
Bucket Capacity |
1m3 |
|
Loading Lifting Capacity |
2000KG |
|
Bucket Dumping Height |
3300mm |
|
Backhoe Capacity（Width） |
0.2m3 |
|
Max. Digging Depth |
2700mm |
|
Engine |
||
Model |
YUNNEI YN33GBZ Turbo |
|
Type |
In Line，Direct injection，Four-Stroke，Water Cooling |
|
Rated Power |
65KW |
|
Rated Speed |
2400r/min |
|
Optional engine |
XINCHAI EURO3 or 5/YANMAR EPA3/CUMMINS EPA4 |
|
Steering System |
||
Steering Angle |
±36 o |
|
Min. turning radius |
4800mm |
|
Pressure of the system |
12Mpa |
|
Axle |
||
Model |
Wheel hub reducer drive axle |
|
Drive type |
Four wheel drive |
|
Transmission System |
||
Torque Converter |
||
Model |
YJ265 |
|
Cooling Method |
Oil-cooling Pressure Circulation |
|
Gearbox |
||
Type |
Power Transmission |
|
Gears |
Two Gears Ahead, Two Gears Astern |
|
Max.Speed |
28Km/h |
|
Optional Gears |
Four Gears Ahead, Four Gears Astern |
|
Max.Speed |
38Km/h |
|
Tyre |
||
Model |
16/70-20 |
|
Pressure of Front wheel |
0.22 Mpa |
|
Pressure of Back Wheel |
0.22 Mpa |
|
Brake System |
||
Service Brake |
Air Over Oil Caliper Brake |
|
External Type |
||
Self-regulation |
||
Self-balance |
||
Emergency Brake |
Operation Power Implementing brake |
|
Manual Operation Power Terminating Brake |
||
Hydraulic System |
||
Pressure of Hydraulic System |
22Mpa |
|
The parameters or configuration are subject to change without notice. |
||
*Chinese name " both ends is busy "
The advanced fashion front-end loading and back-end excavation structure,
* you only need to rotate the seat to change the role from loader to the excavator.
* you only need to rotate the seat to change the role from loader to the excavator.
*Applications:
It is a multi-use machine
Backhoe Loaders are mainly used for urban and rural road construction and maintenance, cable casting , power and airport projects,
municipal construction, water conservancy construction, rural housing construction.etc
Cabin
Cab can be replaced independently, it connects with excavator frame by four damping devices, backhoe side turned to the big window
structure is conducive to broadening their horizons and ventilation.
It is a multi-use machine
Backhoe Loaders are mainly used for urban and rural road construction and maintenance, cable casting , power and airport projects,
municipal construction, water conservancy construction, rural housing construction.etc
Cabin
Cab can be replaced independently, it connects with excavator frame by four damping devices, backhoe side turned to the big window
structure is conducive to broadening their horizons and ventilation.

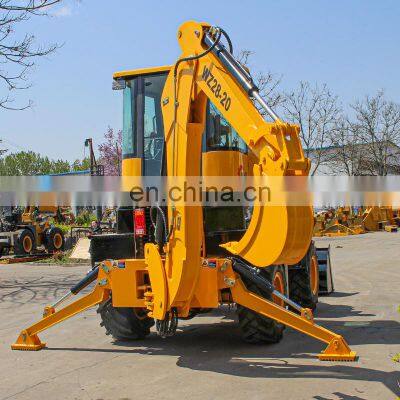

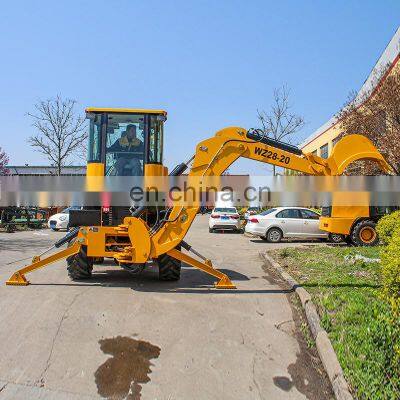

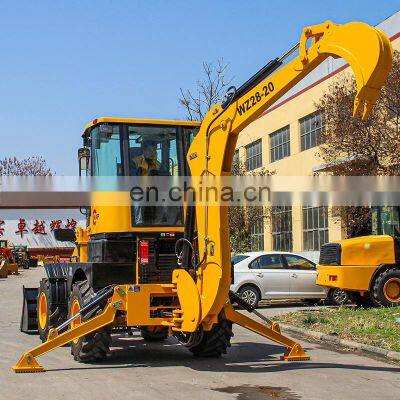

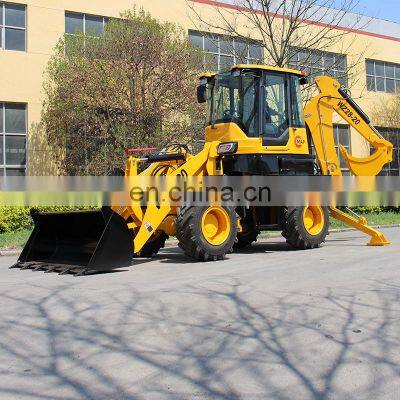

Details Images
Similar Products
Company profile and development
Weifang Map Import & Export Co., Ltd. focuses on quality construction machinery, agricultural equipment, has been in Weifang,China for 14 years.
We are Verified Supplier.Now it has become one of the main suppliers of construction machinery.
We produce field tippers, tractor front-end loaders, disc mowers, backhoe loaders, concrete mixers, etc.All the machines are guaranteed for one year.
We can supply you with dump wheel loaders and construction machinery accessories.
We produce field tippers, tractor front-end loaders, disc mowers, backhoe loaders, concrete mixers, etc.All the machines are guaranteed for one year.
We can supply you with dump wheel loaders and construction machinery accessories.
The production time is 25-30 days after receiving your deposit. We accept OEM customization.
For some new customers, please do not worry about the problem of cooperation, we willguide you to correctly cooperate with us. That's easy.
We can arrange sea freight for you. You can pick up the machines at the local port in your country.
We accept online business guaranteed by Alibaba transactions. You can pay us by credit card online.
We accept online business guaranteed by Alibaba transactions. You can pay us by credit card online.
