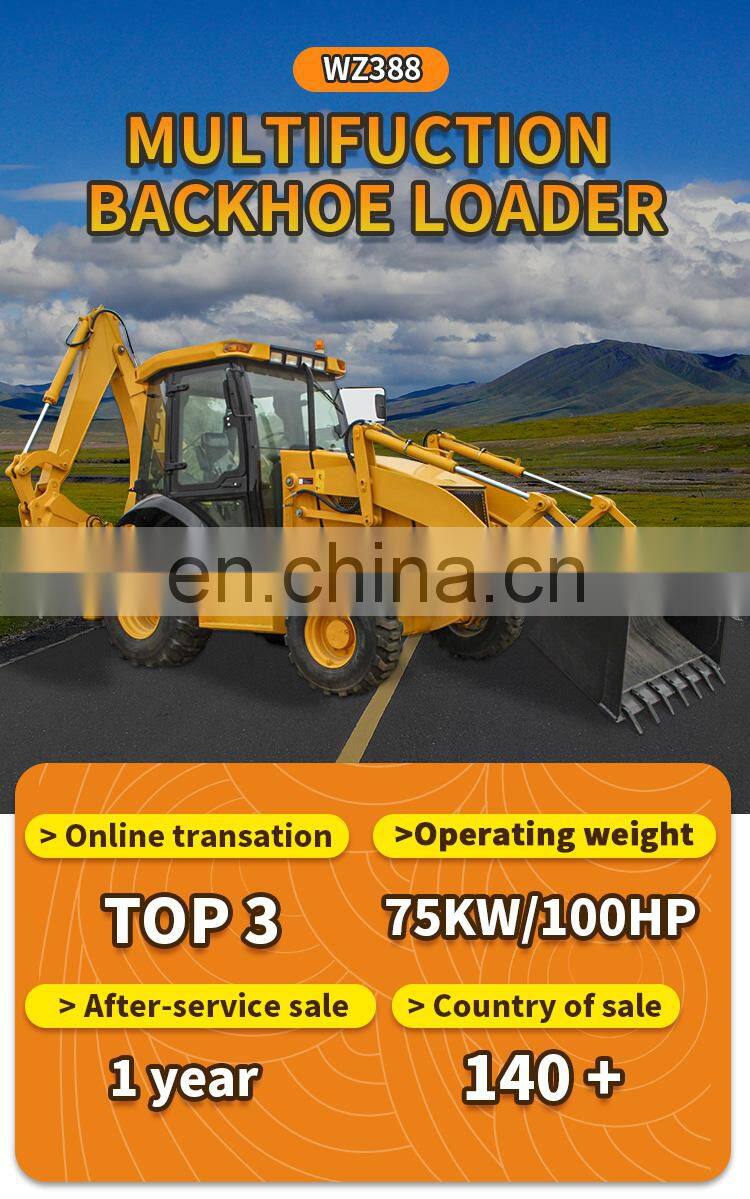

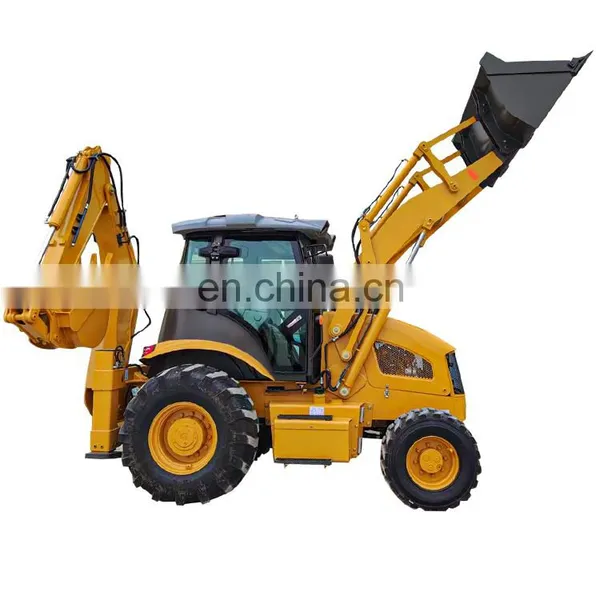

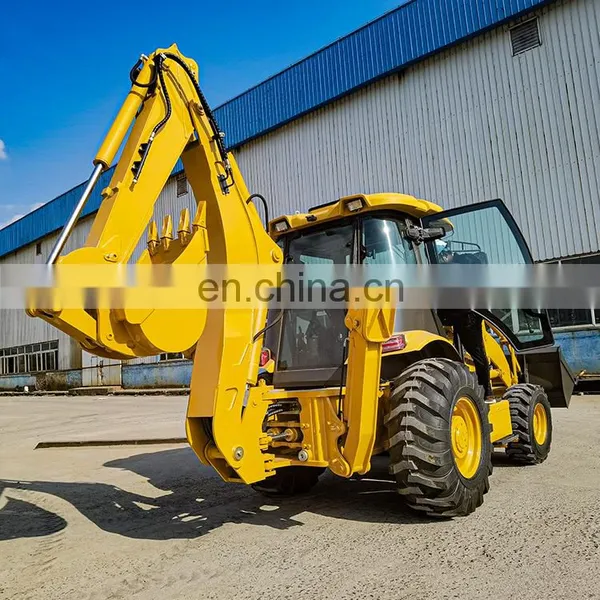

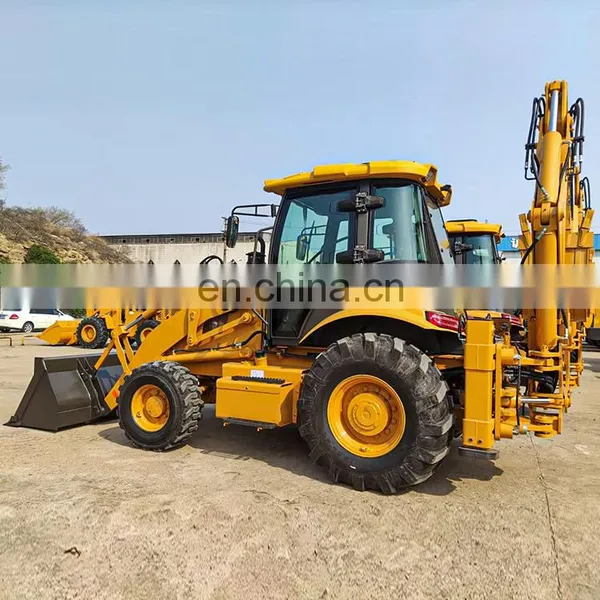

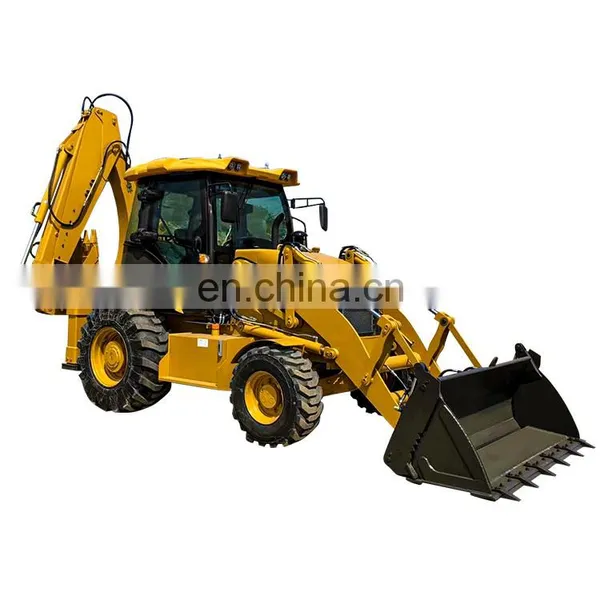

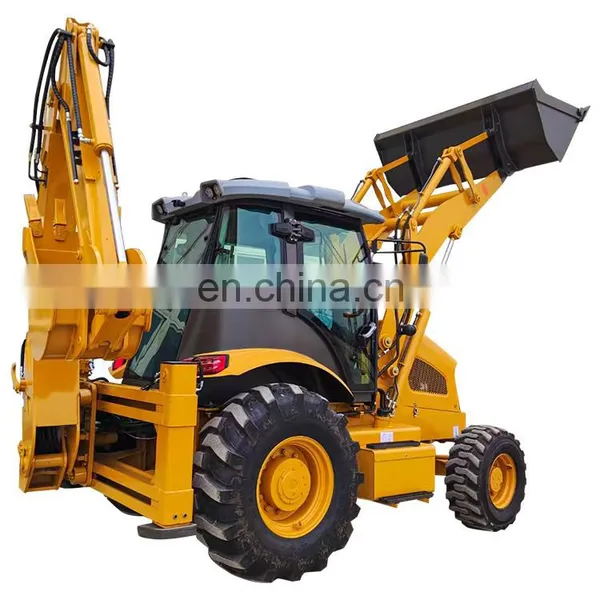

Multifunction all terrain Backhoe Loader 388

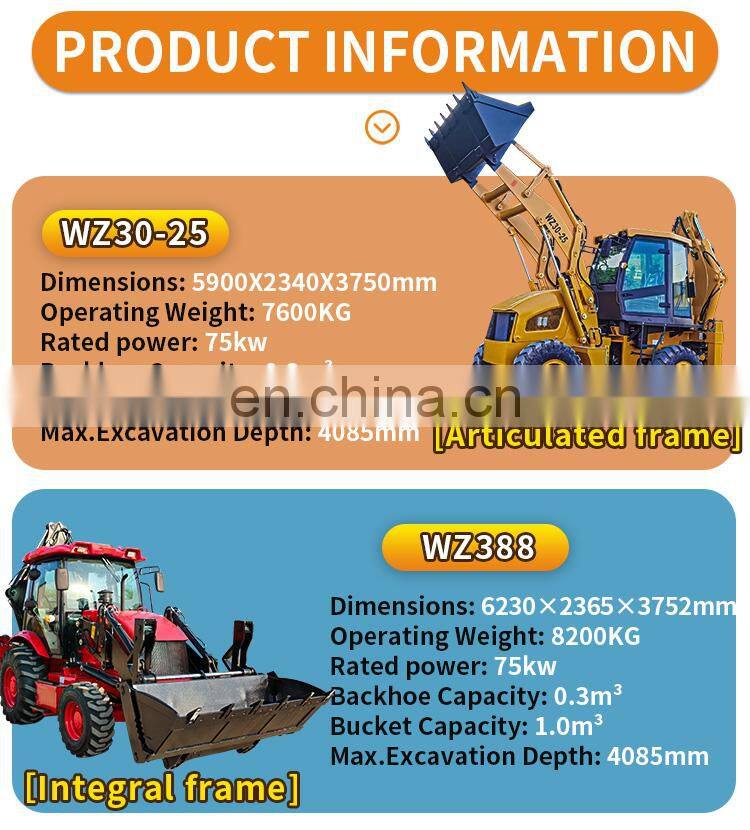

Product Description
| Overall Operating Weight | 8200KG | Final Reducer | Single Stage Final Reducer | |||
| Transport Dimension | Rated Loader of Axle | 8/18.5t | ||||
| L*W*H mm | 5920×2250×3770 | Transmission System | ||||
| Wheel base | 2200mm | Torque Converter | ||||
| Min. Ground Clearance | 300mm | Model | YJ280 | |||
| Bucket Capacity | 1.0m3 | Type | Single-stage Three Elements | |||
| Breakout Force | 38KN | Max. Efficiency | 84.40% | |||
| Loading Lifting Capacity | 2500KG | Inlet Pressure | 0.5Mpa | |||
| Bucket Dumping Height | 2742mm | Outlet Pressure | 1.1Mpa—1.3 Mpa | |||
| Bucket Dumping Distance | 925mm | Cooling Method | Oil-cooling Pressure Circulation | |||
| Digging Depth | 52mm | Gearbox | ||||
| Backhoe Capacity | 0.3 m3 | Type | Fixed Shaft Power Transmission | |||
| Max. Digging Depth | 4082/4500mm | Oil Pressure of Clutch | 1373Kpa—1569 Kpa | |||
| Swing Angle of Excavator Grab | 190° | Gears | Two Gears Ahead, Two Gears Astern | |||
| Max. Pulling Force | 39KN | Max.Speed | 28Km/h | |||
| Engine | Tyre | |||||
| Model | CYD YC4A105Z-T20 | Model | 14-17.5/19.5L-24 | |||
| Type | In Line Direct injection Four-Stroke and Injection Combustion Chamber | Pressure of Front wheel | ||||
| 0.55Mpa | ||||||
| Cylinder-Inside Diameter*Stroke | 4-102×120 | Pressure of Back Wheel | 0.223Mpa | |||
| Rated Power | 75KW | Brake System | ||||
| Rated Speed | 2400r/min | Service Brake | Air Over Oil Caliper Brake | |||
| Min. Fuel Consumption | ≤242g/km.h | External Type | ||||
| Max.Torque | ≥252N.M | Self-regulation | ||||
| Displacement | 4.4L | Self-balance | ||||
| Steering System | Emergency Brake | Operation Power Implementing brake | ||||
| Model of Steering Device | BZZ5-250 | Manual Operation Power Terminating Brake | ||||
| Steering Angle | ±36° | Hydraulic System | ||||
| Min. turning radius | 6581mm | Digging Power of Excavator Grab | 46.5KN | |||
| Pressure of the system | 16Mpa | Digging Power of Dipper | 31KN | |||
| Axle | Bucket Lifting Time | 6.8S | ||||
| Manufacturer | Feicheng Axle Factory | Bucket Lowering Time | 3.1S | |||
| Main Transmission Type | Double Reduction | Bucket Discharge Time | 2.0S | |||

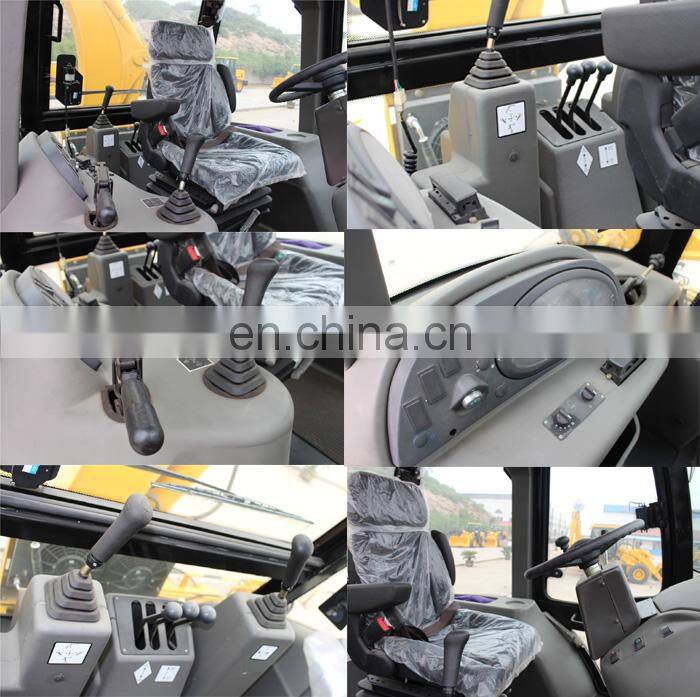

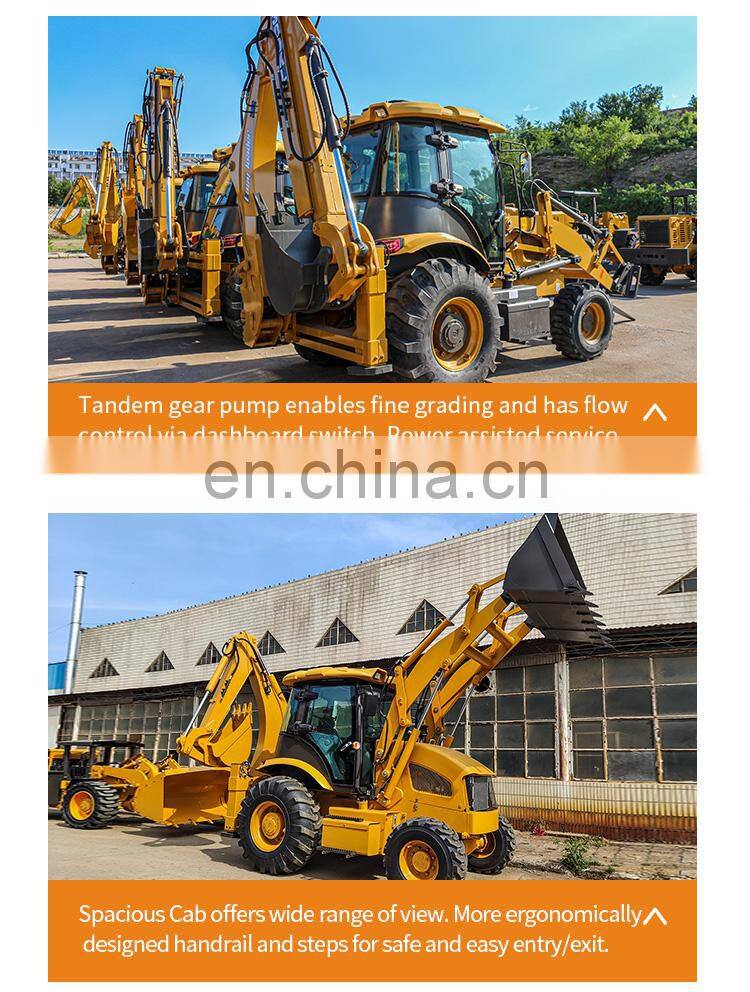

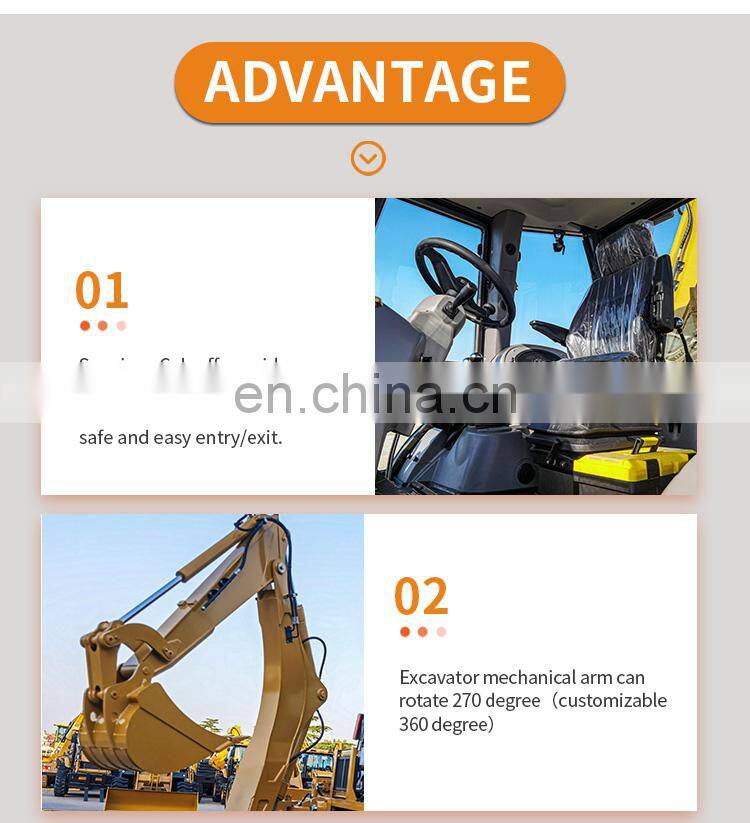

Details Pictures
Related Products
3 Ton Mini Dumper 5 Ton 180° Dumper 10Ton Heavy Duty Dumper
0.8 Ton Mini Wheel Loader 1.6 Ton Wheel Loader 2.0 Ton Wheel Loader
50HP tractor with front loader 70HP Tractor With Backhoe 90HP Tractor With disc mover
FAQ
1.How can I place order?1.How can I place order?
A: You can contact us by email about your order details, or place order on line.
2.How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance
3. Are you factory supplier?
A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers
4. How do you take care when your clients received defective products?
A: replacement. If there are some defective items,
we usually credit to our customer or replace in next shipment.
5.How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection.
We check the goods when they go into next step production procedure.
6. What's the order procedure?
A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you.
More details please ask us online or send inquiry to us,we will answer first time.
Company information Weifang Map Power Co., Ltd., was founded in 2006. We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export. We keep diverse products according to customer and market demand. We produce and supply site dumpers, wheel loaders, tractors, implements, wheel excavators, crawler excavators, backhoe loaders, forklifts road rollers, light towers, concrete mixers, plate compactor, impact tampers, road cutters, concrete vibrators, and so on.
