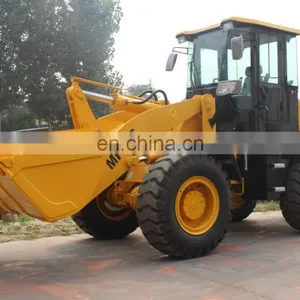

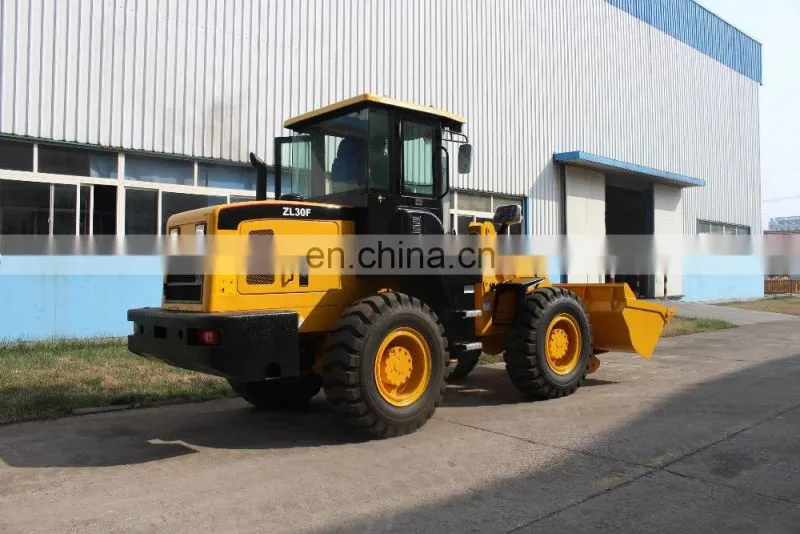

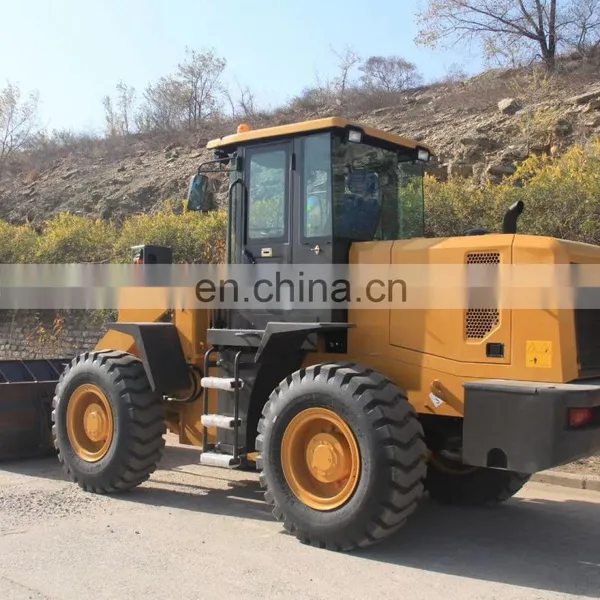

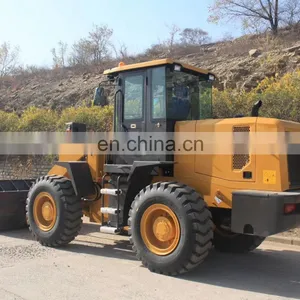

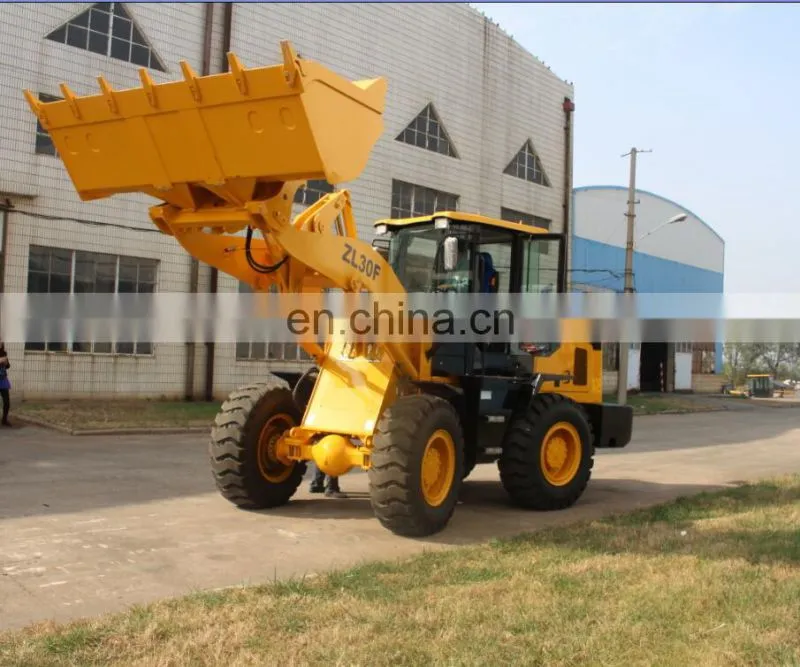

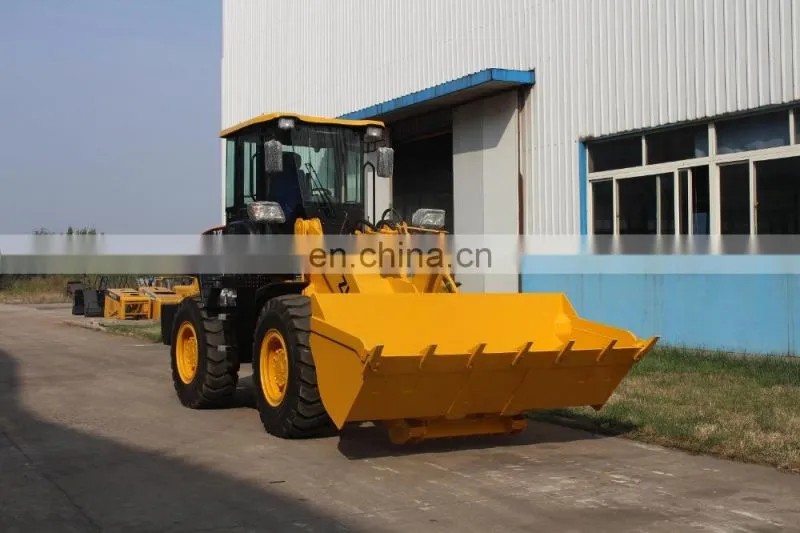

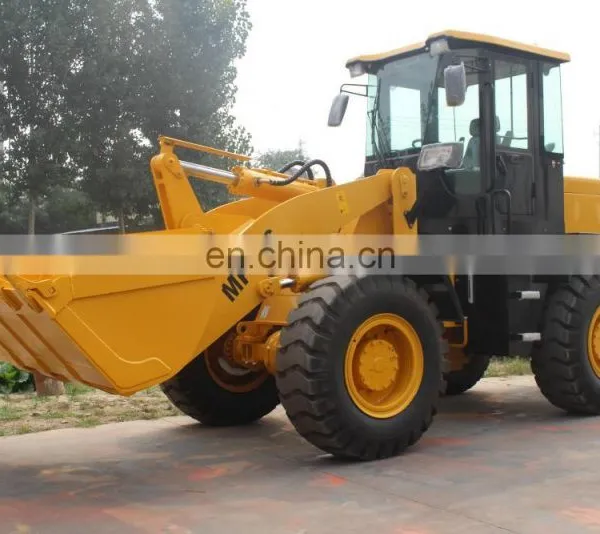

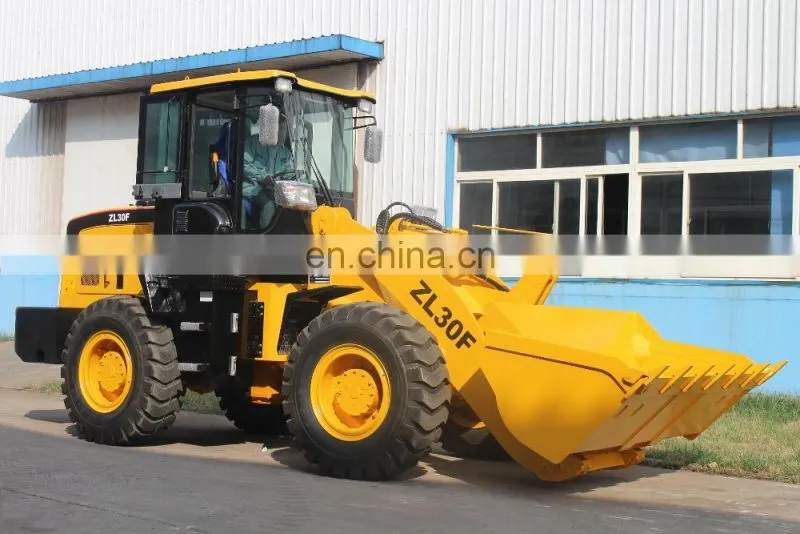

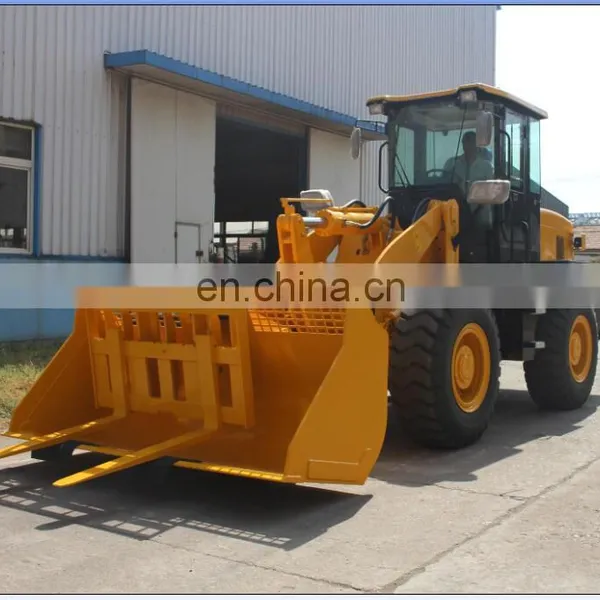

Promotion Wheel Loader Moving Type 3ton ZL30 front loadel-936 wheel loader
ZL30F Equipped with reliable Weichai Detuz engine
Features OF ZL30 wheel loader:
1. ZL30F wheel loader:streamlined appearance design, elegant and generous.
2. ZL30F wheel loader: bucket of working device can be set level automatically, computer is adopted to optimize design, high working efficiency
3. ZL30F wheel loader: sealed drivers cabin of new type, which may allocate conditioner, more comfortable operating environment
4. ZL30F wheel loader: torque device of single three components, gearbox of fixed axle type, more reliable performance
5. ZL30F wheel loader: Deutz (92kw) diesel engine, powerful motive force, reliable performance, high efficiency and economizing on fuel
6. ZL30F wheel loader: can allocate many kinds of selectable assembly such as wooden forks, pipe forks, grass forks, stone bucket, enlarged bucket.ect to meet the needs of various working states.
|
Overall Dimension |
||
|
1 |
Length(with bucket on ground) |
7050(mm) |
|
2. |
Width(to outside of wheels) |
2430(mm) |
|
3 |
Height(To the top of the cab) |
3120(mm) |
|
4 |
Wheel base |
2760(mm) |
|
5 |
Tread |
1800(mm) |
|
Main Technical Specification |
||
|
1 |
Rated load |
3000(Kg) |
|
2 |
Operating weight |
10000KG |
|
3 |
Rated bucket capacity |
1.7(CBM) |
|
4 |
Bucket type |
Heavy-duty bolt teeth |
|
5 |
Max. breakout force |
135kN |
|
6 |
Max. dump clearance |
3020(mm) |
|
7 |
Min. turning radius |
5700mm |
|
8 |
Driving system |
Hydraulic converter |
|
9 |
Traveling speed(Km/h) |
4 forward and 2 reverse |
|
Diesel engine |
||
|
1 |
Model |
Deutz WP6G126E22I |
|
2 |
Type |
In-line arrangement. Water cooling |
|
3 |
Rated output |
92(kW) |
|
4 |
Inter-bore of cylinder/stroke |
105 (mm) |
|
5 |
Rated speed |
2300(r/min) |
|
6 |
Max. Torque |
860(N.M) |
|
7 |
Starting type |
Electric |
|
8 |
Min. specific fuel consumption |
162(g/Kw.h) |
|
Transmission System |
||
|
Torque Converter |
||
|
1 |
Model |
YJ320B-1 |
|
2 |
Type |
Full-powershift,countershaft type |
|
3 |
Cooling type |
Pressure oil circulating |
|
Transmission case |
||
|
1 |
Model |
MAP |
|
2 |
Type |
Power shift, spur gear constantly in mesh |
|
3 |
Gear shift position |
4Forward and 2 reverse gears |
|
Axle and Tire |
||
|
1 |
Axle |
Laiyang(China famous brand) |
|
2 |
Main reducer pattern |
Arc taper gear,modelration of first grade |
|
3 |
Pattern of wheel side moderation |
Single stage planetary |
|
4 |
Size of tire |
17.5-25 |
|
Hydraulic system |
||
|
1 |
Implement pump |
CBGV2100 |
|
2 |
Displacement |
100ml/r |
|
3 |
System working pressure |
27.5MPa |
|
4 |
Distribution device model |
DF25.2C |
|
Brake system |
||
|
1 |
Service brake |
Air assisted oil on four wheel |
|
2 |
Parking brake |
Soft axle control, outside bunch drum type |
|
Steering System |
||
|
1 |
Pattern |
Articulated and hydraulic steering |
|
2 |
Min turning radius(outside of bucket) |
5700mm |
|
3 |
Max turning angle |
37+/-1 |
Quality assurance:
Have established and implemented a standard procedure for quality management system and product certification.
QA/QC inspectors work independently form the production lines
Keep its supplier assessment reports and be traced by lot identification to the appropriate raw material test reports
A procedure to conducting random inspection after final packaging.
A clear procedure for handling customer feedback. “7 Days Guarantee” for customer renewing the consumable accessories.
Tool case and partly consumable accessories attached with shipment meanwhile.
After-sales and Quality Warrant Contact for every purchase order.
