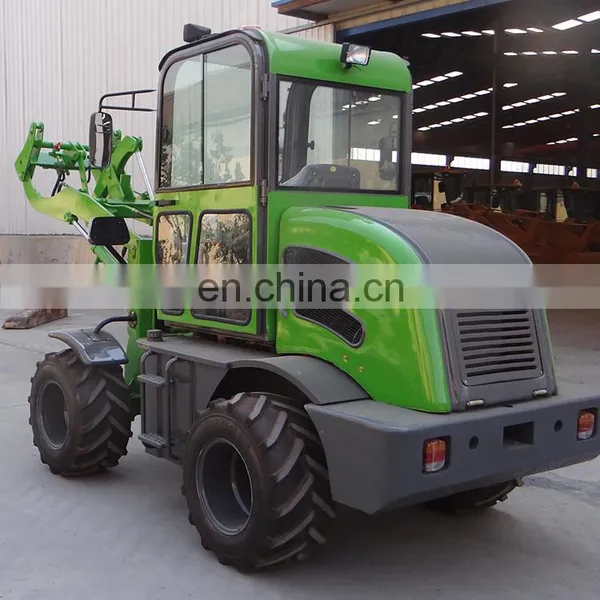

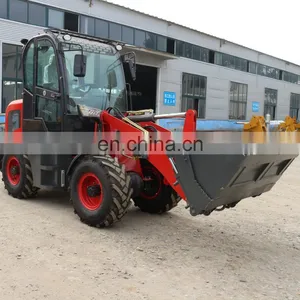

Help CenterWheel Loader ZL08F, Hydraulic Power Steering Mini Wheel Loader
Related Products
-
Stable Function Wheel Loader 3Ton ZL30 930 With Log GrabberNegotiableMOQ: 1 -
Low Price Factory Export Garden Loader Euro 5 Engine 1.5 Ton 915 Frontal Loader Shovel LoaderNegotiableMOQ: 1
-
Promotion Heavy Duty 5 TON 655D Sugar Cane Grapple Front Loader Log Wood Grapple Loader With CENegotiableMOQ: 1
-
2019 Mini Wheel Loader ZL08F for ConstructionNegotiableMOQ: 1
-
Weifang ZL08F 800KG 0.8 Ton CE China Mini Wheel LoaderNegotiableMOQ: 1

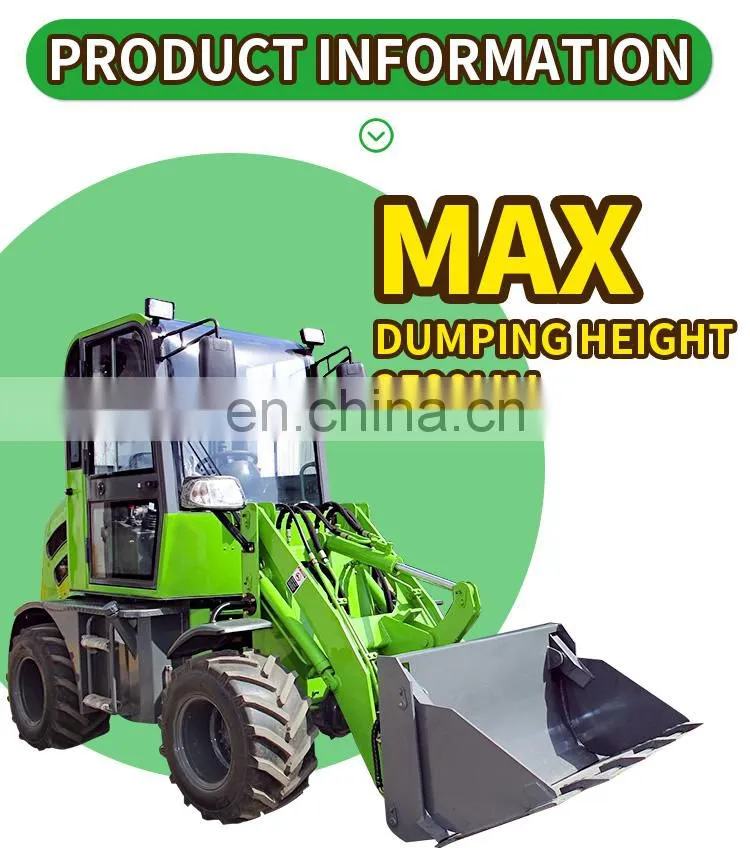

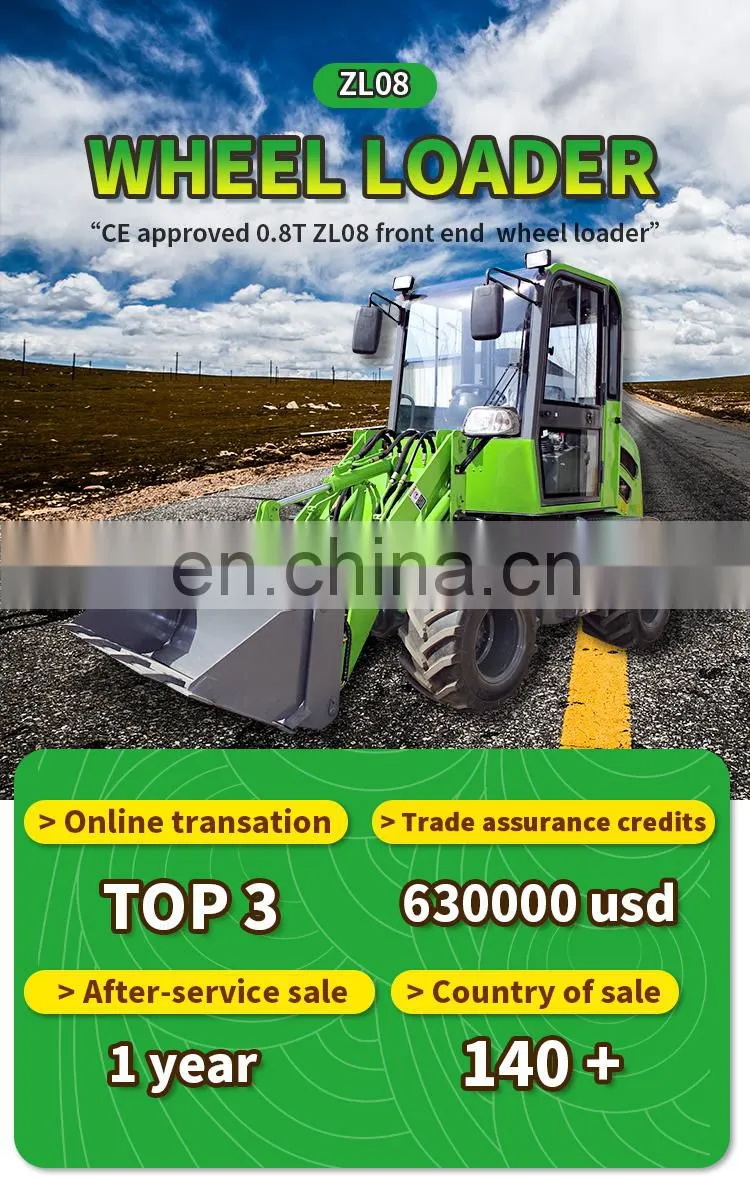

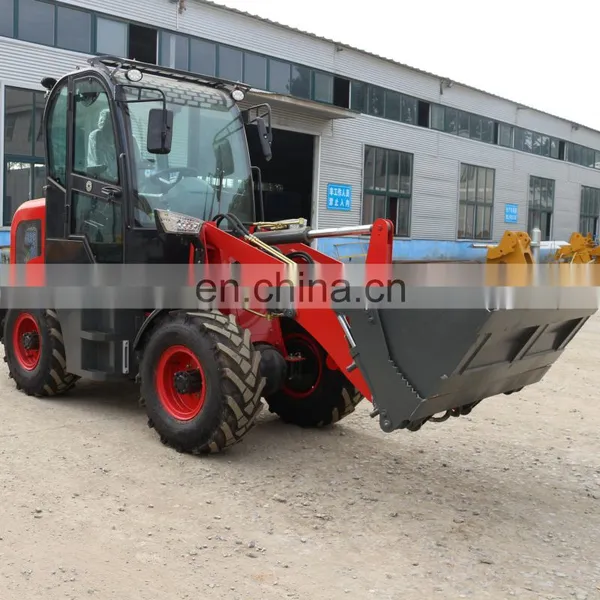

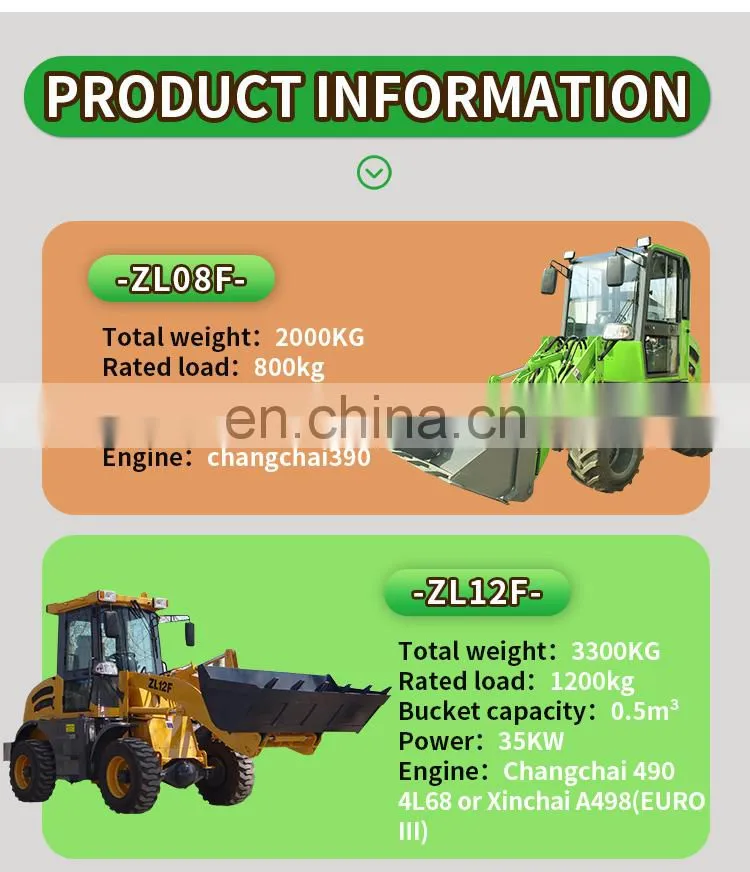

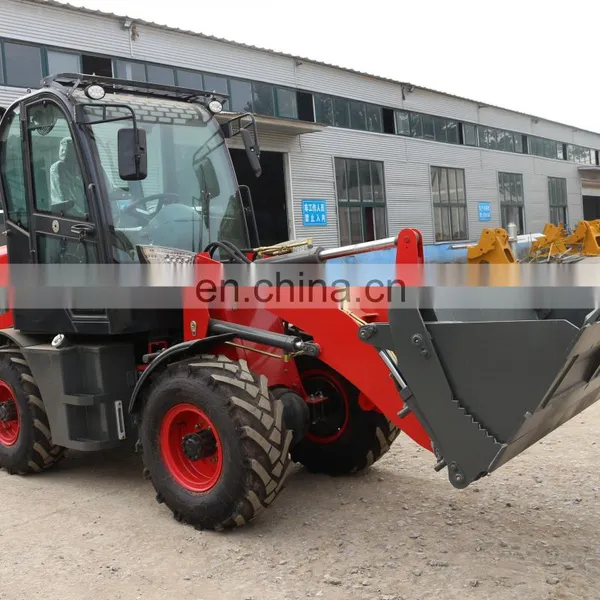

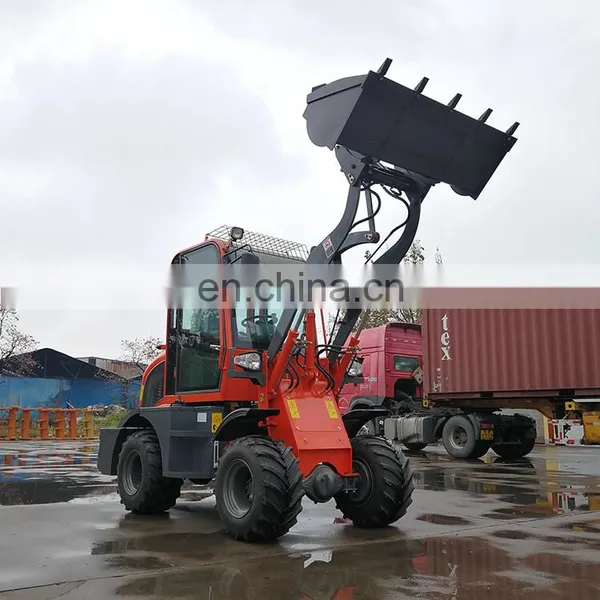

Main Features of ZL08F wheel loader:
1. ZL08F wheel loader, rated load 800kg, bucket capacity 0.3cbm

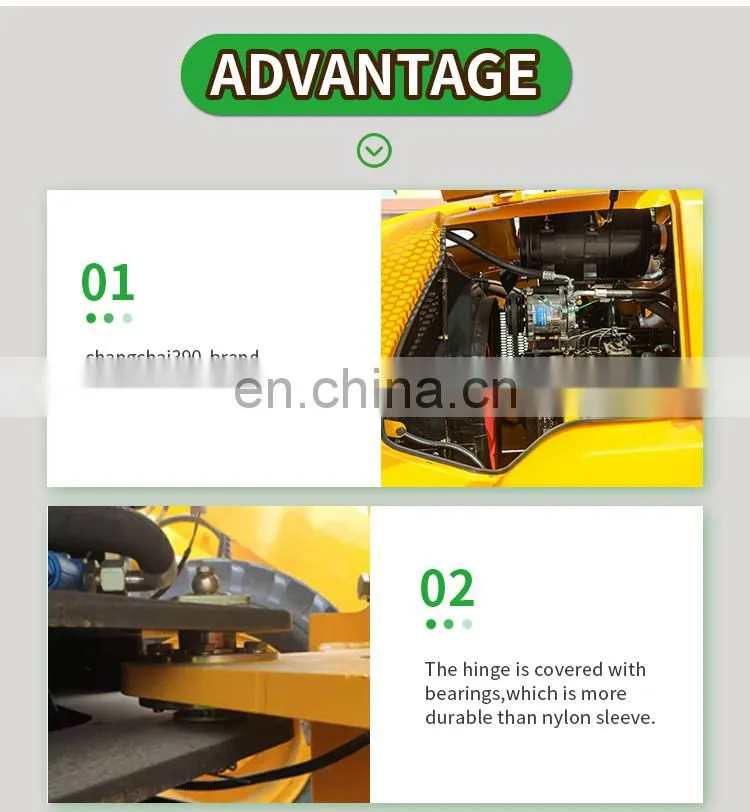

2. wheel loader engine: Changchai L28, 28HP water cooled diesel engine
3. wheel loader tire size: 7.50-16
4. Max. clearance of wheel loader: 2300mm
5. wheel loader steering: hydraulic power steering

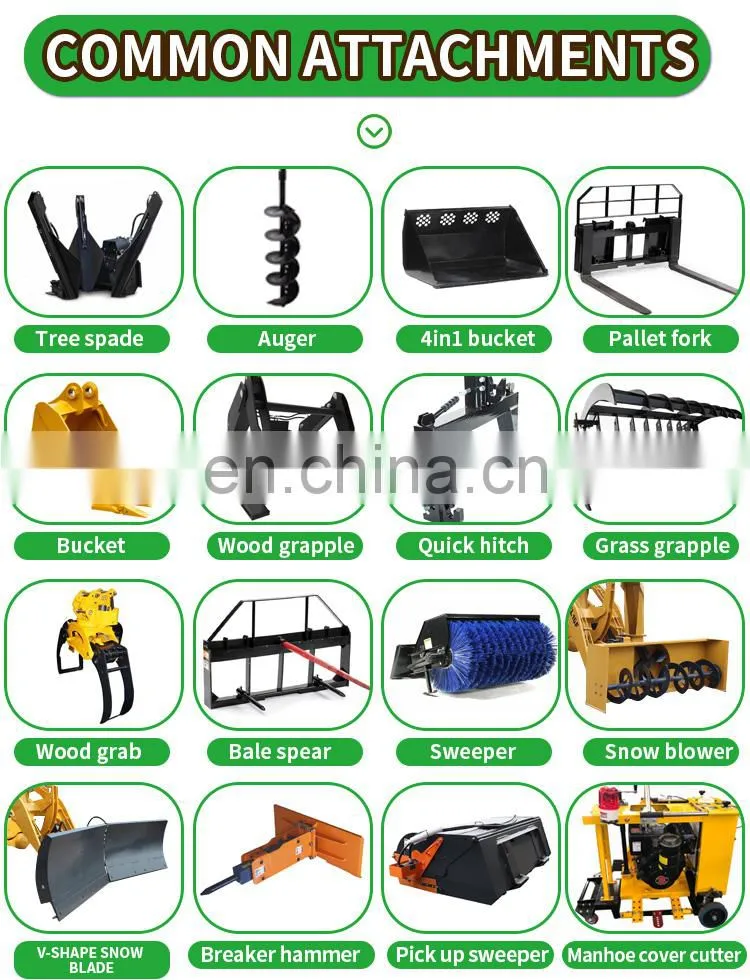

6. wheel loader accessories: available, forks, 4 in 1 bucket, snow blade, snow blower.ect
7. wheel loader certification: CE approved
|
Wheel loader ZL08 Detailed Specification: |
|
|
Item |
ZL08 |
|
Rated load(kg) |
800 KG |
|
Bucket capacity(m3) |
0.3 |
|
Wheel distance(mm) |
1620 |
|
Axle-base(mm) |
1160 |
|
Loader clearance radius(mm) |
3000 |
|
Mini base to the ground(mm) |
220 |
|
Dump clearance(mm) |
2300 |
|
Distance acc.to the height(mm) |
900 |
|
Time of raise(s) |
4.5 |
|
Hydraulic cycle time(s) |
8.5 |
|
Turns to pick the strength mose greatly(kn) |
22 |
|
Drive ways |
Rear wheel drive |
|
Tire model |
7.50-16 |
|
Tire width |
18cm |
|
Tire diameter |
78cm |
|
Operating weight(kg) |
2000 |
|
Overall dimensions(mm) |
4480*1400*2200 |
|
Engine model |
Changchai L28 |
|
Engine rated power(kw) |
20KW (28HP) |
|
Engine rated output(rpm) |
2200 |
|
Engine Rated speed |
2200 r/min(rpm) |
|
Engine type |
In-line arrangement, water-cooled, one-cylinder diesel engine |
|
Fuel consumption ratio in standard working condition |
269g/kw.h |
|
Service brake |
Mechanical brake |
|
Parking brake |
Hand operated |
