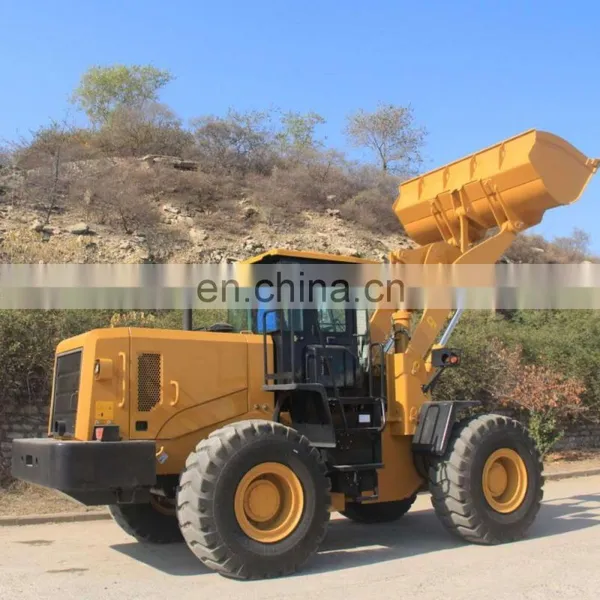

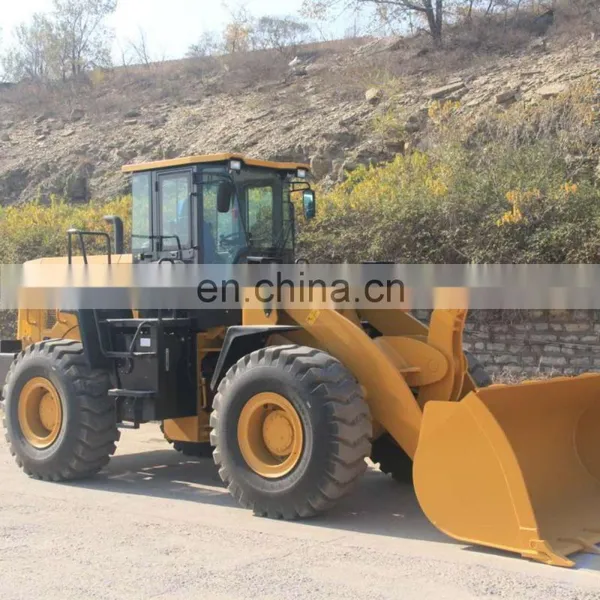

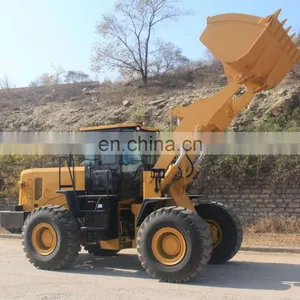

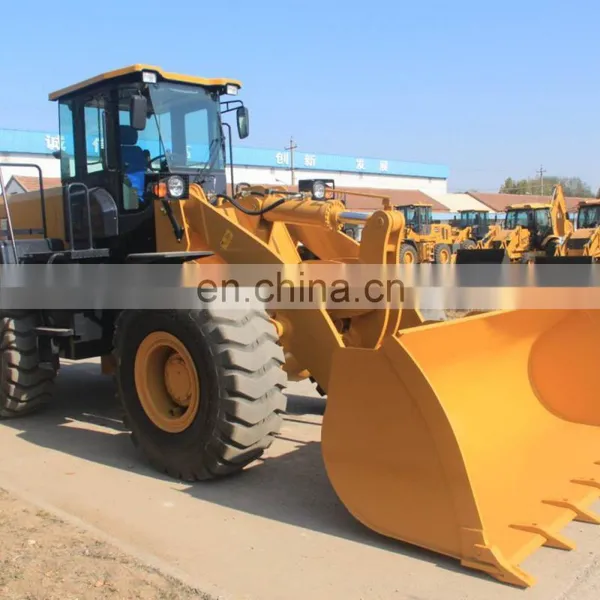

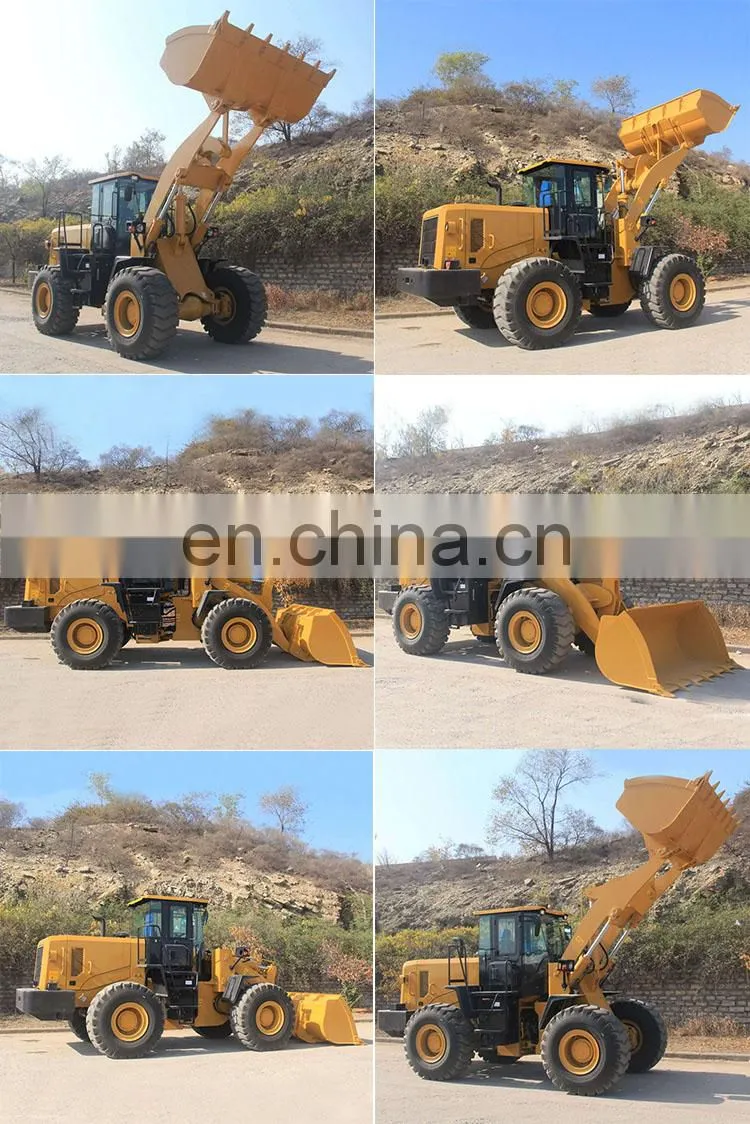

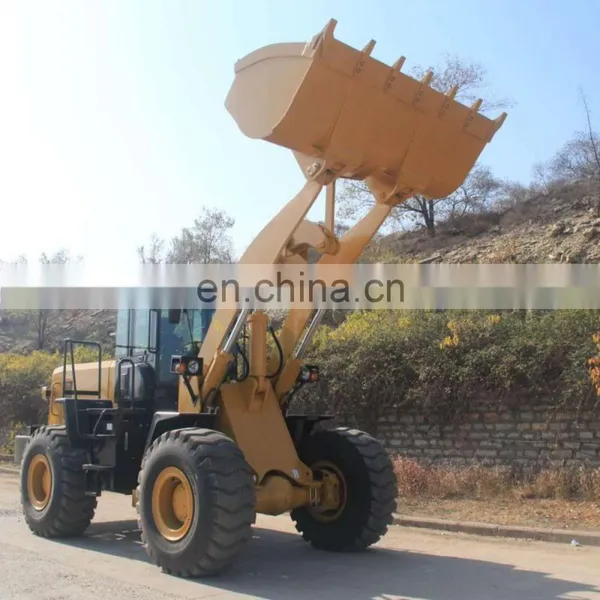

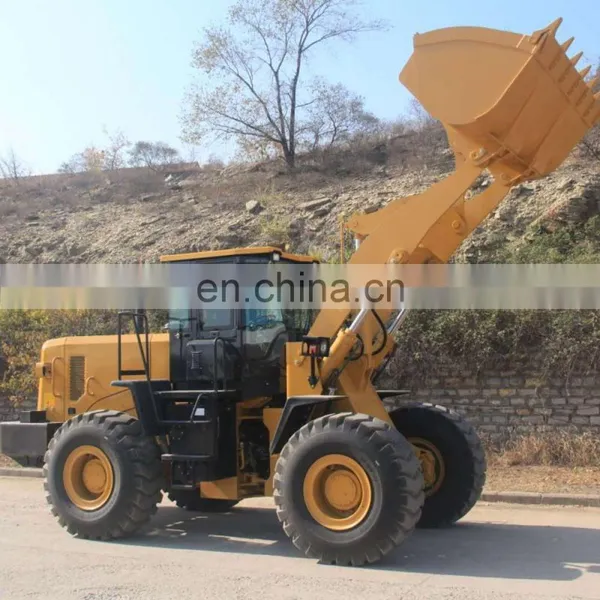

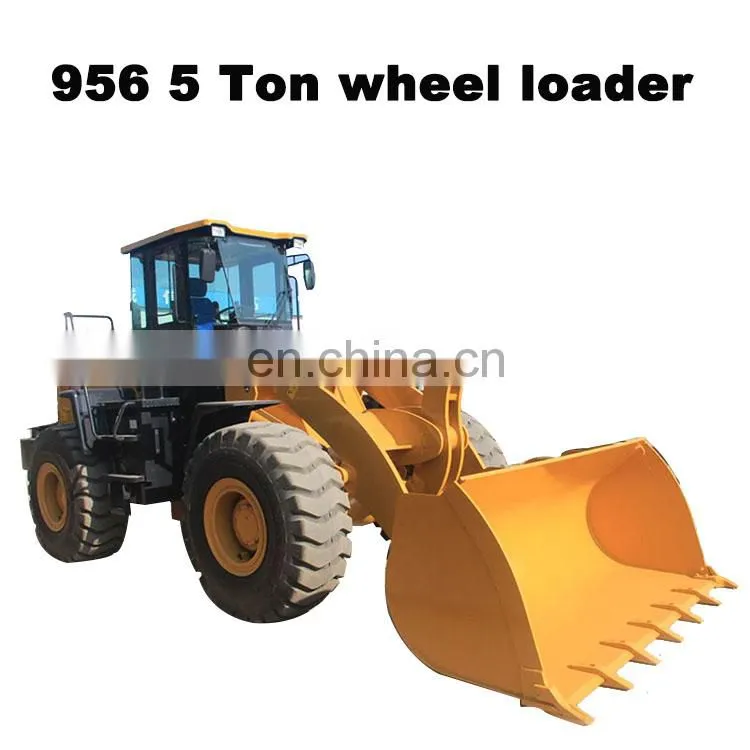

wheel loader 956 zl50 , Wheel loader with coal bucket 4.5 m3
5.0ton wheel loader with Weichai or cat engine ,CE and chine
Product Advantages
1. Reliable and durable: Heavy load frame, reliable planetary drive system, long overhaul period.
2. High efficiency of operation: strong power, rising power, automatic leveling, linkage operation, high efficiency of forklift.
3. Energy saving economy: low speed Weichai Steyr engine, large displacement double pump confluence, efficient energy saving.

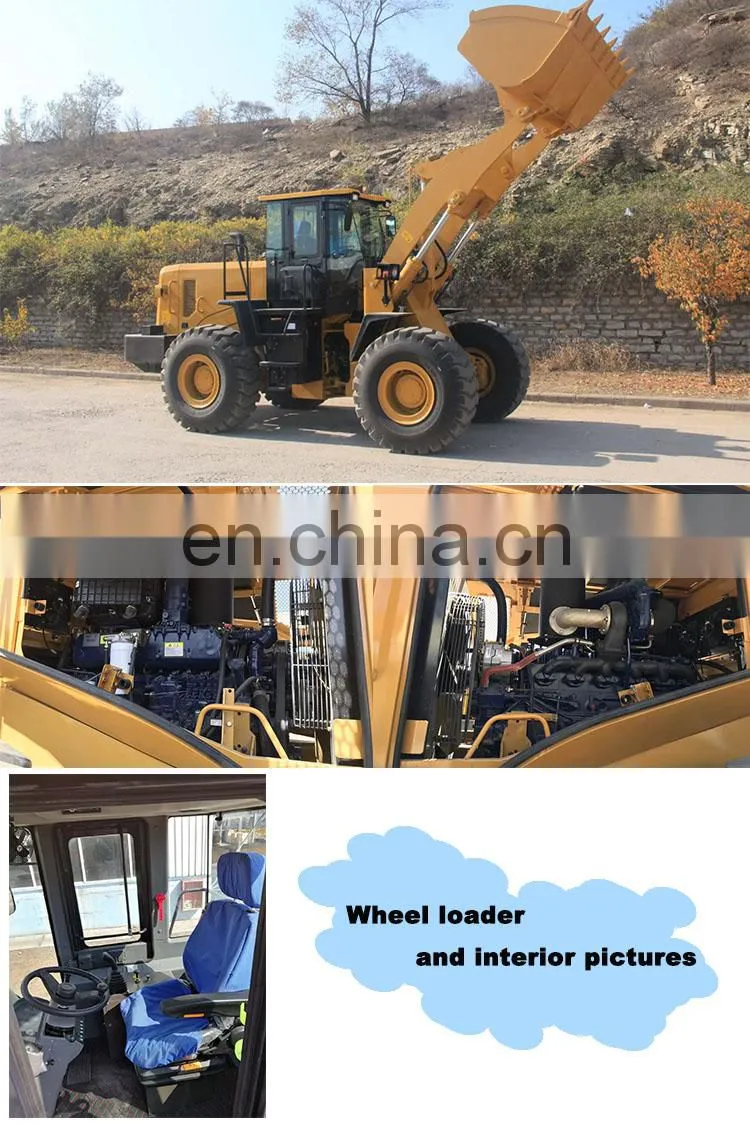

4. Comfortable operation: panoramic cab, ergonomic design, pilot handle, large seat.
5. Advanced cooling system: water temperature, oil temperature to achieve the best thermal balance, improve the life of components and oil products, extend the service life of the entire machine.
Wheel loader specification
1. Using direct injection diesel engine as power, with easy startup and low oil consumption
2. Using special drive axle, with strong ability to overcome obstacle
3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4. Widely applying to the construcction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
| Performance | 1 | rated load | 5000kg |
| 2 | overall weight | 16500kg | |
| 3 | rated bucket capacity | 3m3 | |
| 4 | maximum tractive force | 145KN | |
| 5 | maximum breakout force | ≥175KN | |
| 6 | maximum grade ability | 30℃ | |
| 7 | maximum dump height | 3142mm | |
| 8 | maximum dump reach | 1250mm | |
| 9 | overall dimension (L×W×H) | 8085×2965×3450mm | |
| 10 | minimum turning radius | 6732mm | |
| Engine | 11 | model | Weichai Steyr WD10G220E23 |
| 12 | type | lnline water cooling dry cylinder injection | |
| 13 | No. of cylinder-bore/stroke | 6-126×130mm | |
| 14 | rated power | 162kw--2000r/min | |
| 15 | maximum torque | 980N.m | |
| 16 | min fuel-consume ratio | ≤212.7g/kw.h | |
| Transmission system | 17 | Torque converter | Single stage two phase four components |
| 18 | Gearbox mode | Power shift planetary structure | |
| 19 | Gear shift | ||
| 2 forward shift 1 reverse shift | |||
| 20 | Maximum speed | 38km/h | |
| Drive axles | 21 | Main reducing spiral | |
| bevel gear grade 1reduction | |||
| 22 | Decelerating mode | planetary reduction,grade 1 | |
| 23 | Wheel base (mm) | 3250mm | |
| 24 | Wheel tread(mm) | 2250mm | |
| 25 | Minimum ground clearance | 450mm | |
| Hydraulic system | 26 | System working pressure | 18MPa |
| 27 | Boom lifting time | 5.1s | |
| 28 | Total time | 9.3s | |
| 29 | Fuel tank capacity | 292L | |
| 30 | Ffunction of leveling automatically | yes | |
| Brake system | 31 | Service brake | Fair over hydraulic disc brake on 4 wheels |
| 32 | Parking brake | Break air brake | |
| Tyre | 33 | Type specification | 23.5-25 |
| 34 | Front wheel air pressure | 0.4Mpa | |
| 35 | Rear wheel pressure | 0.35Mpa | |
Related Products
0.6 ton wheel loader 2.0 ton wheel loader 3.0 ton wheel loader

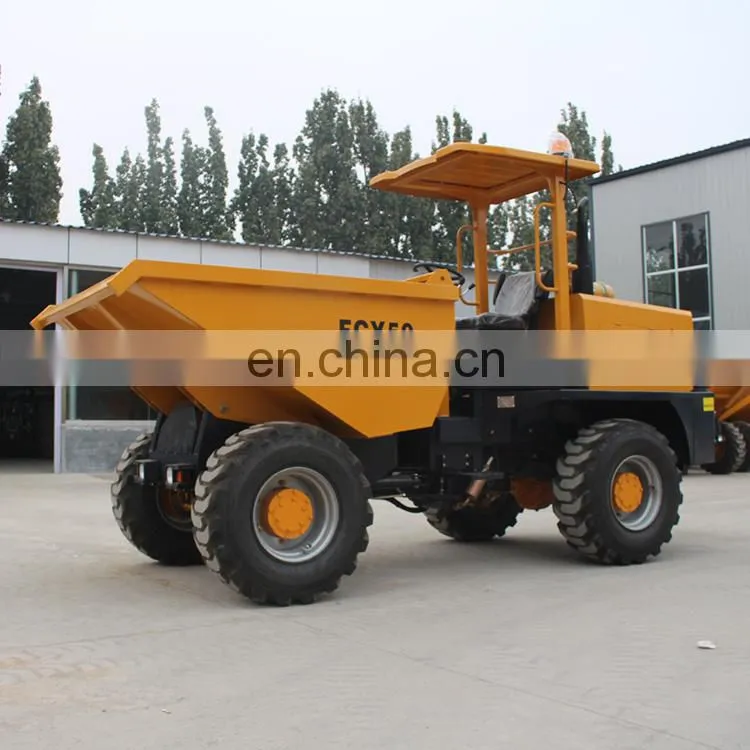

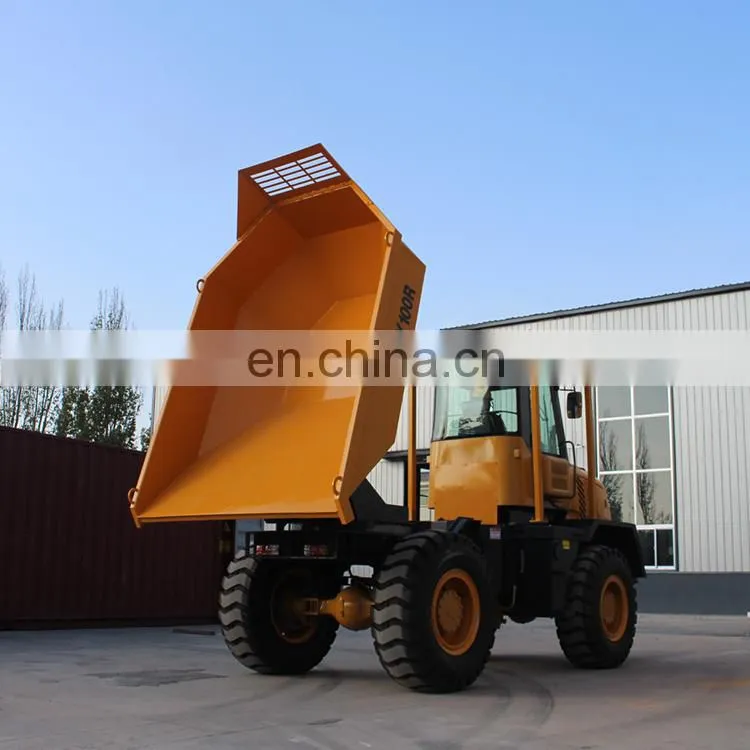

5 ton dumper truck 7 ton dumper truck 10 ton dumper truck
