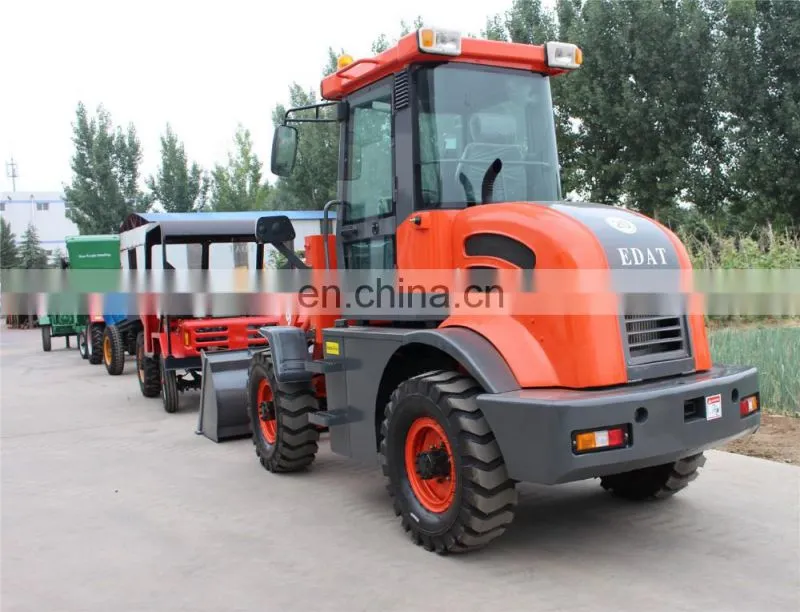

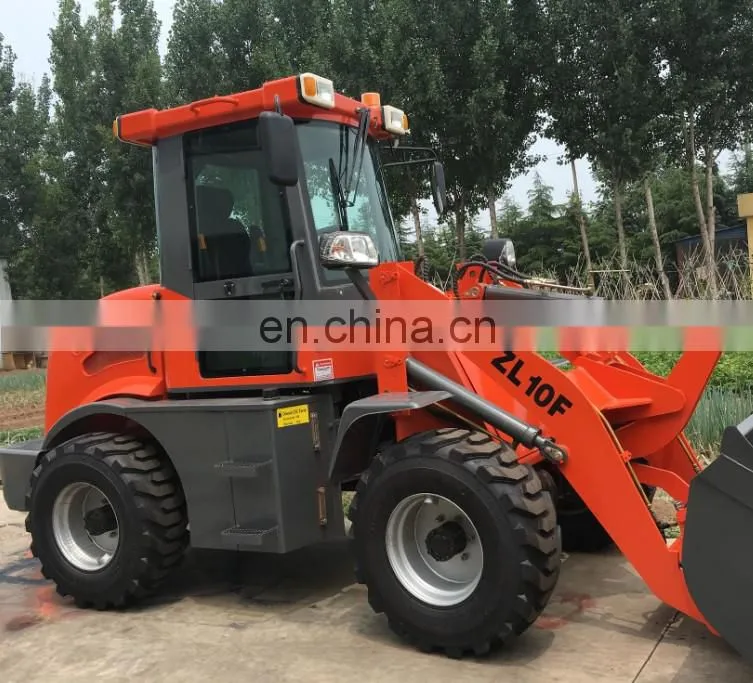

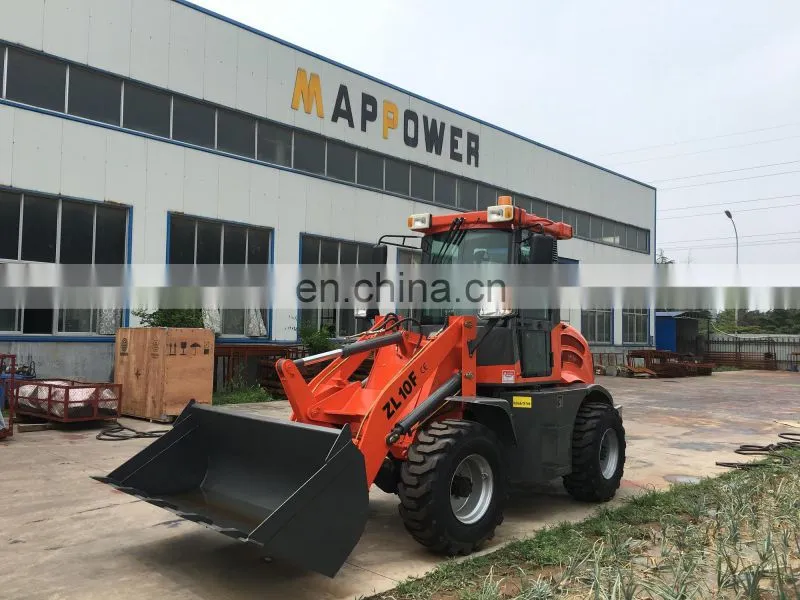

1 T CE Chinese Productive hydraulic gear pump ZL10F Small front loader
ZL10F Compact Wheel loader Compact Loader CE EURO 3 Engine'
Weifang Map Power Company,
supply all kinds of construction machines like loaders, tractors, concrete mixer, forklifts, excavators and so on. We keep diverse products according to customer and market demand, and supply adjustable designed machine to adapt the using environment and
the market better.
Equip with :3-valve pilot control,Euro III engine,adjustable steering
wheel,quick hitch,luxury seat,new cabin with heating and new engine
hood,wider tire 12-16.5
- Fully hydraulic steering,power shift hydraulic operated working device.The full hydraulic steering
- system is smooth in operation, stable and reliable in performance
- Optional attachments like pallet fork,grass fork,snow blade and snow buckets available to allmaterials.The bucket is equipped with automatic leveling device, so that the operation is easier.
- Big tractive force and traction device at the rear end, which meet more needs.
|
Wheel loader ZL10F |
||
|
Overall Dimensions |
Overall Length |
4450mm |
|
Overall Width |
1850mm |
|
|
Overall Height |
2650mm |
|
|
Max.Discharge Height |
2750mm |
|
|
Dump distance |
1020mm |
|
|
Wheel Base |
1400mm |
|
|
Tread(Alex-base) |
2050mm |
|
|
Mini Distance to the ground |
260mm |
|
|
Time of lifting |
5.0s |
|
|
Engine Details |
Model |
Changchai 4L68 or Xinchai A498(III) |
|
Engine Type |
In-line arrangement,Water cooled |
|
|
|
4 cylinders diesel engine |
|
|
Rated Power |
37KW |
|
|
Rated Speed |
2400rpm |
|
|
Transmission System |
Torque converter Model |
YJ240 |
|
Gear box |
2 forward+2 backward |
|
|
Alex |
50 Drive Axle |
|
|
Hydraulic system |
Working Pump |
CBGJ1045 |
|
|
Hydraulic working pressure |
16MPA |
|
Steering System |
Type |
Articulated hydraulic steering |
|
Turning angle |
30°+/- 1° |
|
|
Turning Radius(mm) |
3000mm |
|
|
Brake system |
Brake Type |
Oil break (Vacuum booster) |
|
Tyres |
Standard tyre |
14/90-16 |
|
Option wider tyre |
12-16.5 |
|
|
Bucket |
Bucket Capacity |
0.60m ³ |
|
|
Bucket Type |
Heavy-duty bolt on teeth |
|
|
Rated Load |
1200kg |
|
|
Total Weight |
3200kg |
|
Drive |
Drive type |
4x4 wheel drive |
