Product Description
MINI Wheel Loader 915
Mini Wheel loader 915 specifications
Overall Dimension |
||
1 |
Length(with bucket on ground) |
4900(mm) |
2. |
Width(to outside of wheels) |
1830(mm) |
3 |
Bucket width |
1700(mm) |
4 |
Height(To the top of the cab) |
26500(mm) |
5 |
Wheel base |
2060(mm) |
6 |
Tread |
1400(mm) |
7 |
Min. ground clearance |
210(mm) |
Main Technical Specification |
||
1 |
Rated load |
1500(Kg) |
2 |
Operating weight |
3200KG |
3 |
Rated bucket capacity |
0.5 (CBM) |
4 |
Bucket type |
Heavy-duty bolt teeth |
5 |
Max. breakout force |
36kN |
6 |
Max. dump clearance |
2650(mm) |
7 |
Min. turning radius |
4500mm |
8 |
Driving system |
Hydraulic converter |
9 |
Traveling speed(Km/h) |
2 forward and 2 reverse |
|
(1) 1st gear forward |
5.75 |
|
(2) 2nd gear forward |
23.86 |
|
(3) 1st gear reverse 5.85 |
5.85 |
|
(3) 2nd gear reverse |
24 |
Diesel engine |
||
1 |
Model |
4DW91 |
2 |
Type |
In-line arrangement. Water cooling |
3 |
Rated output |
33 (kW) |
4 |
Inter-bore of cylinder/stroke |
95 (mm) |
5 |
Rated speed |
2300(r/min) |
6 |
Max. Torque |
275(N.M) |
7 |
Starting type |
Electric |
8 |
Min. fuel consumption |
230(g/Kw.h) |
9 |
Net weight |
240(kg) |
Transmission System |
||
Torque Converter |
||
1 |
Model |
YJ240 |
2 |
Type |
Fixed-spindle power shift |
3 |
Cooling type |
Pressure oil circulating |
Transmission case |
||
1 |
Model |
MAP915 |
2 |
Type |
Power shift, spur gear constantly in mesh |
3 |
Gear shift position |
2 Forward and 2 reverse gears |
Axle and Tire |
||
1 |
Type of main reducer |
spiral bevel gear, single stage |
2 |
Size of tire |
12-16.5 |
Brake system |
||
1 |
Service brake |
4 wheel hydraulic brake |
2 |
Parking brake |
Hand operated |
Steering System |
||
1 |
Type |
Middle articulated frame with hydraulic power steering |

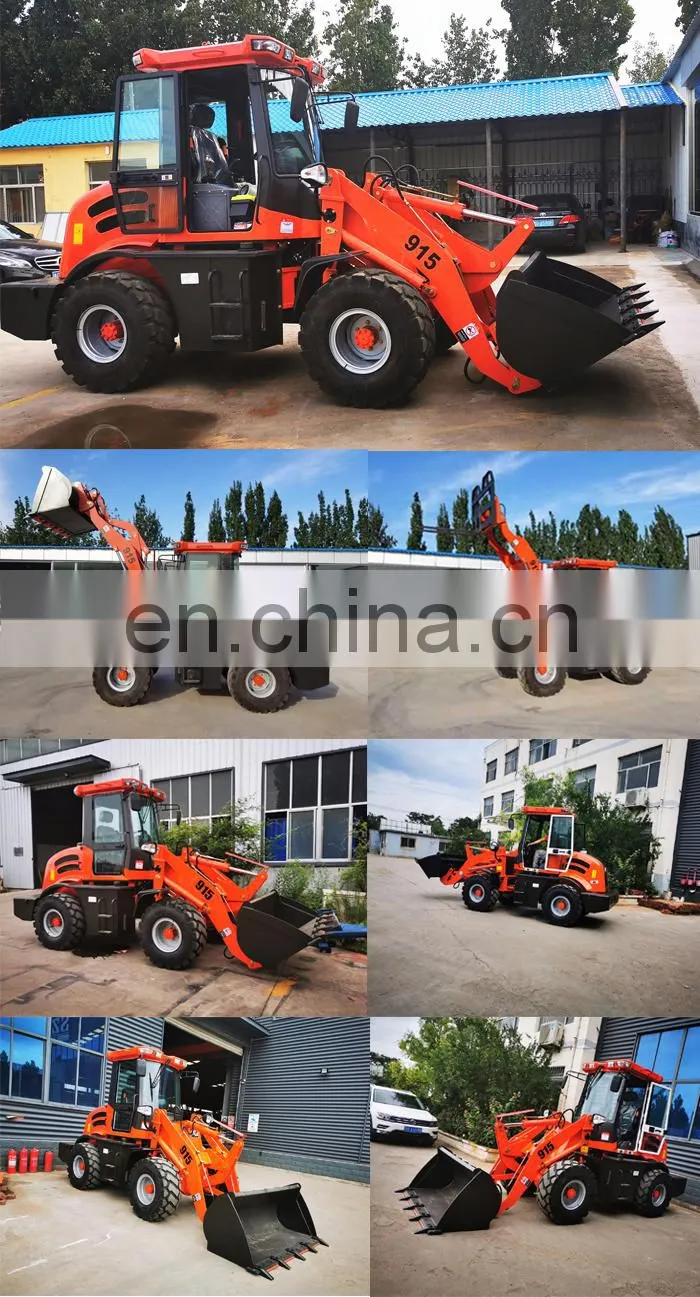

Details Pictures of mini wheel loader
Packaging & Shipping
Related Products
3 Ton Mini Dumper 5 Ton 180° Dumper 10Ton Heavy Duty Dumper
0.8 Ton Mini Wheel Loader 1.6 Ton Wheel Loader 2.0 Ton Wheel Loader
50HP tractor with front loader 70HP Tractor With Backhoe 90HP Tractor With disc mover
Company Information
Weifang MAP Import and Export Co,Ltd . was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export.We keep diverse products according to customer and market demand.We produce and supply truck crane, site dumpers,wheel loaders, tractors,implements, wheel excavators, crawler excavators,backhoe loaders,forklifts,road rollers,light towers,concrete mixers,plate compactor,impact tampers, road cutters,concrete vibrators,and so on.
