Product Description

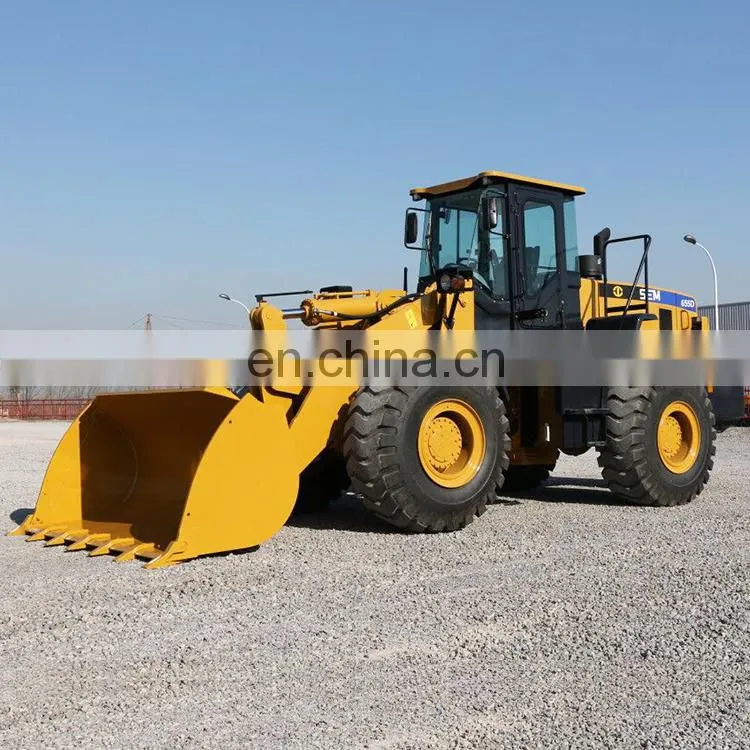

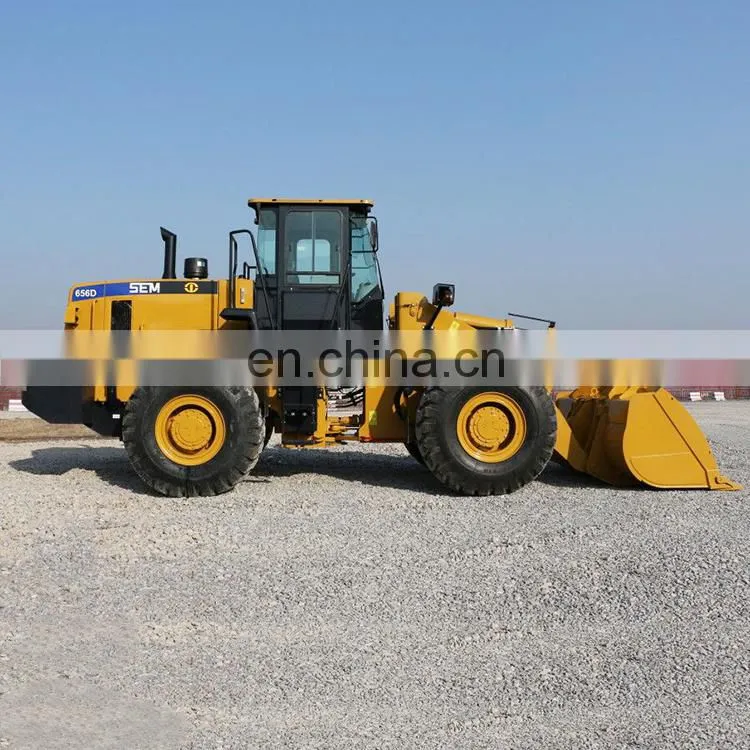

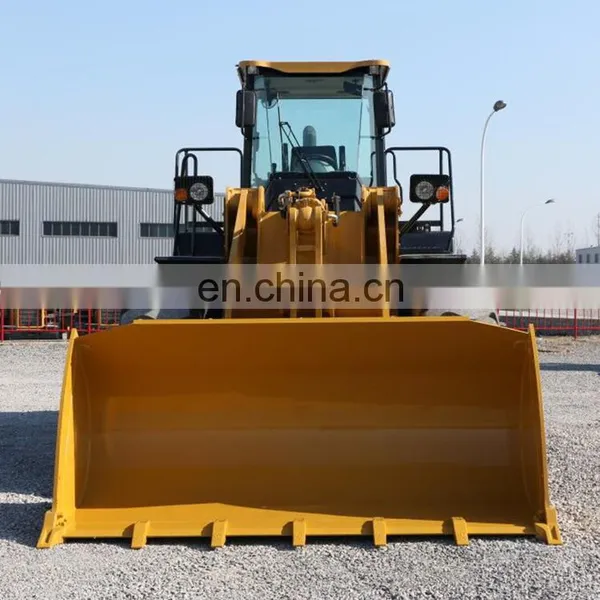

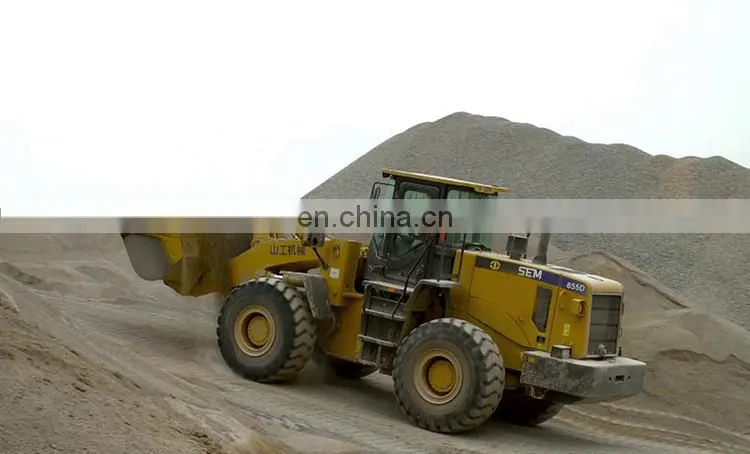

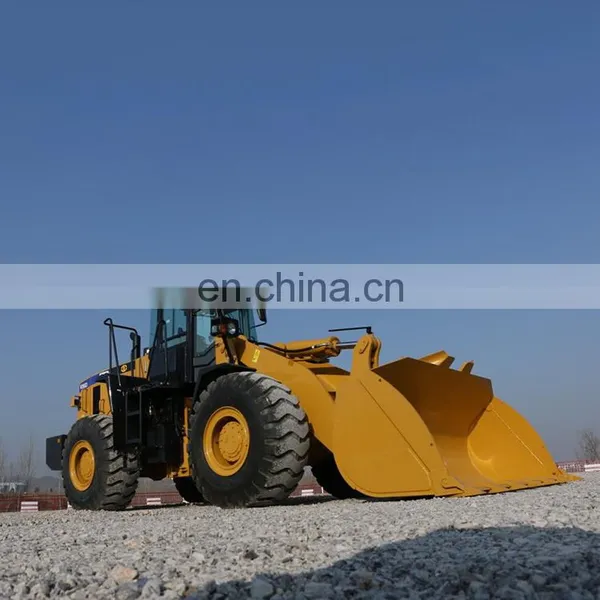

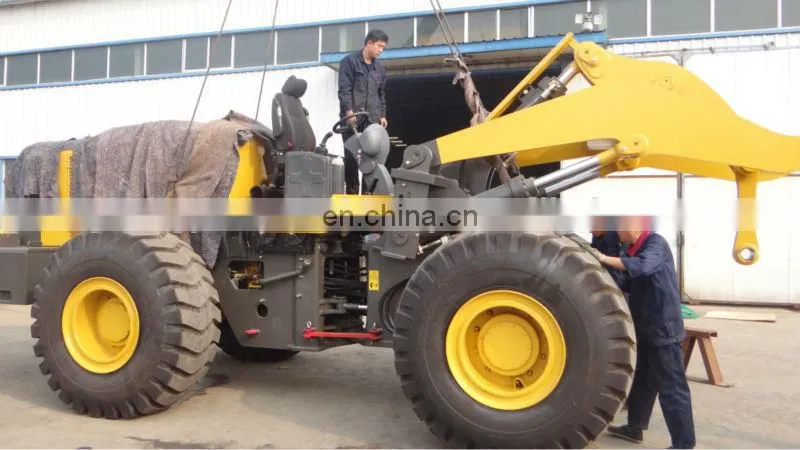

Heavy 4WD New condition SEM 655D 5 ton front wheel loader
Main Descriptions for Middle-sized Wheel Loader Series
- Streamlined appearance, beautiful and elegant, and can attach different tools such as: wooden fork, pipe fork, grass fork, stone bucket, and to realize multifunction.
- Bucket that can be set level automatically, computer is adopted to optimize design, single tipping bucket cylinder,"Z" type turning bucket structure, to realize the enormous shovel digging forces.
- Cabin made by double-layer1.4mm steel plate with strong steel frames inside.
- Fully hydraulic steering system, 4 x 4 wheeled drive. Hydraulic Joystick optional, makes flexibility, smooth, and comfortable operation.
- Central articulated frame and load sensing hydraulic steering gear, short turning radius, so it has sound off-road performance, good traffic ability and larger traction.
- A fully enclosed cabin and the seats have the functions of vibration reduction and easy adjustment from 4-6 directions, offers the driver a comfortable and wide view.
SEM 655D Wheel loader Specifications |
|
Rated Load |
5000 kg |
Operating Weight with Standard Bucket |
16700 kg |
Bucket Capacity |
2.7-4.5 m³ |
Wheel Base |
3200 mm |
Overall Dimension (mm) |
8085*2963*3463 |
Engine |
|
Model |
WD10G |
Rated Power |
162 kW |
Rated Speed |
2000 r/min |
Displacement |
9.726 L |
Operating Specifications |
|
Breakout Force |
168 kN |
Dump Clearance |
3058 mm |
Articulated Angle |
38±1 ° |
Implement Hydraulic |
|
Implement System Type |
Twin pump flow merging hydraulic system |
Boom Raise Time |
5.13 s |
Hydraulic Cycle Time |
9.5 s |
System Presure Setting |
17 Mpa |
Transmission |
|
Transmission Type |
Countershaft, power shift |
Transmission Gears |
F4/R4 |
Torque Converter Type |
Sigle stage 3 elements |
Maker & Type |
SEM TR200 |
Forward I/ Reverse I |
7.8/7.8 km/h |
Forward II/ Reverse II |
15/15 km/h |
Forward III/ Reverse III |
22/22 km/h |
Forward IV/ Reverse IV |
39/39 km/h |
Brake System |
|
Service Brake |
Dry & caliper, air to oil control |
Parking Brake |
Drum type shoe brake, |
Steering System |
|
System Type |
Flow amplifying |
Steering Pump Type |
Gear pump |
System Presure Setting |
16 Mpa |
Steering Angle (L/R) |
38±1 ° |

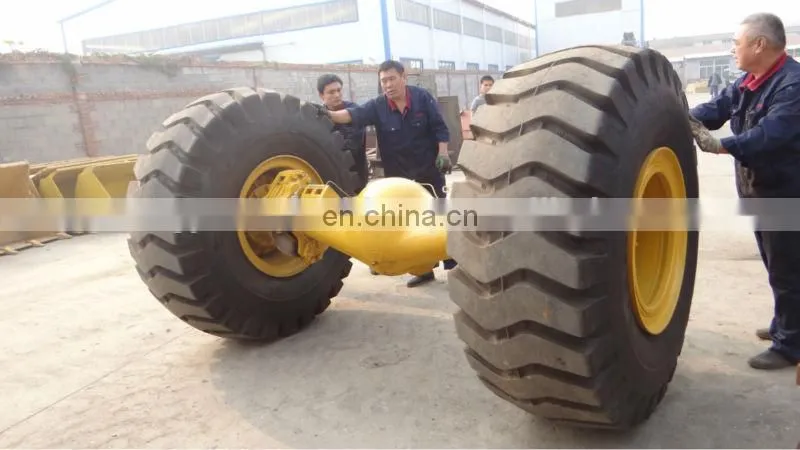

Axle |
|
Main Drive Type |
Spiral bevel gear, single stage |
Final Drive Reduction Type |
Planetary type, singe stage |
Rear - Oscillating +/- |
±11 ° |
Tires |
|
Size |
23.5-25 |
Type |
Bias |
Layer |
16 |
Textured Type |
L3/E3 |

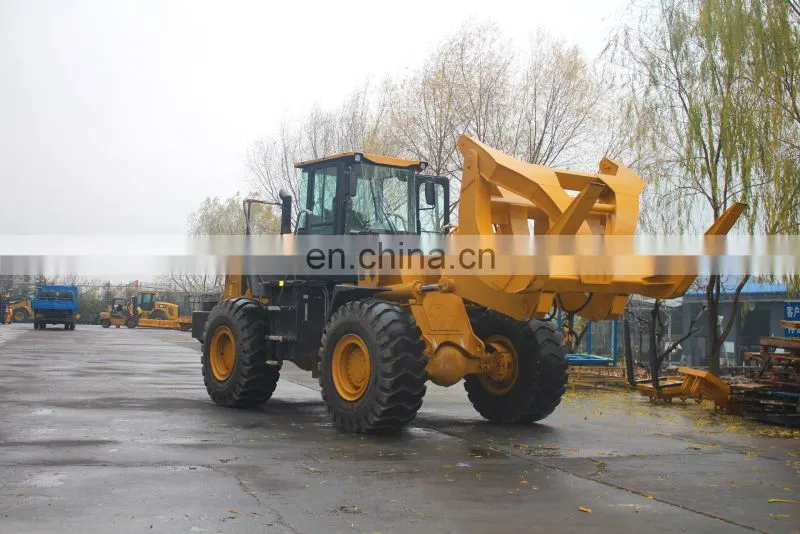

can attach different tools
1.Why chose you?

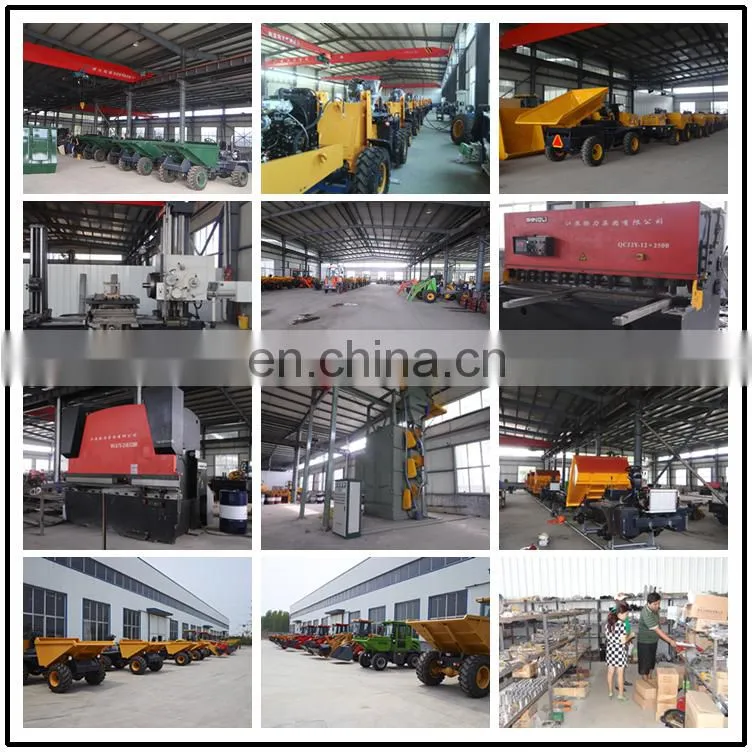

1. About our Company: Weifang Map Import&Export Co., Ltd.(Weifang Yishan Heavy Machinery Co., Ltd),was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural machinery,such as wheel loaders,site dumpers, farm tractors and implements. We have been exporting more than 10 years.
2. About our Products: Our products are specially for global export market, with advanced configuration, good quality spare parts, streamlined and beauty appearance. The engine brand, transmission systems, electrical systems, axle, seals and many others are all choose in good quality famous brand supplier. In addition, our machine have very good finshing quality, because of our experienced engineers and workers, you can visit our factory to check all the details.
3. About our Delivery time: Our normally delivery time is within 15 working days, while most of the time, we could finish them in advance. In addition, some products are in storage of our factory, so urgent order will also be accepted.

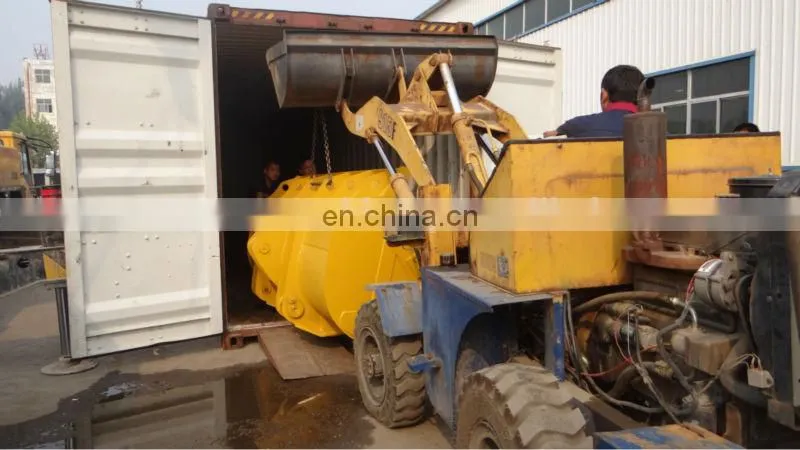

4. About our Shippment: Factory direct delivery :Very careful preshipment inspection, then packing, then shipping. Our goal is solving the problems in factory, then you can trustworthy use.
5. About our after-sales service: Our factory provide 1 year warranty for our machines, and will take responsibility for the whole life. For maintenance spare parts, we promise to send to you replacement parts within 7 work days.
