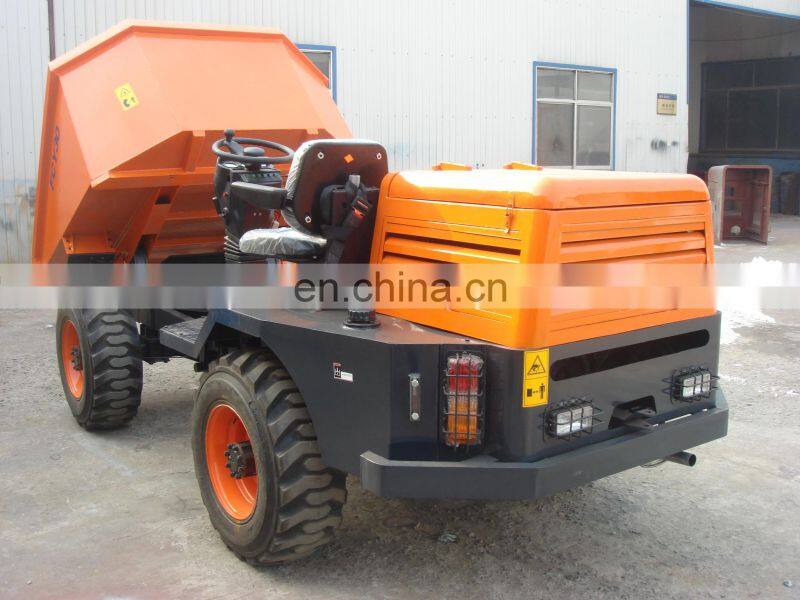

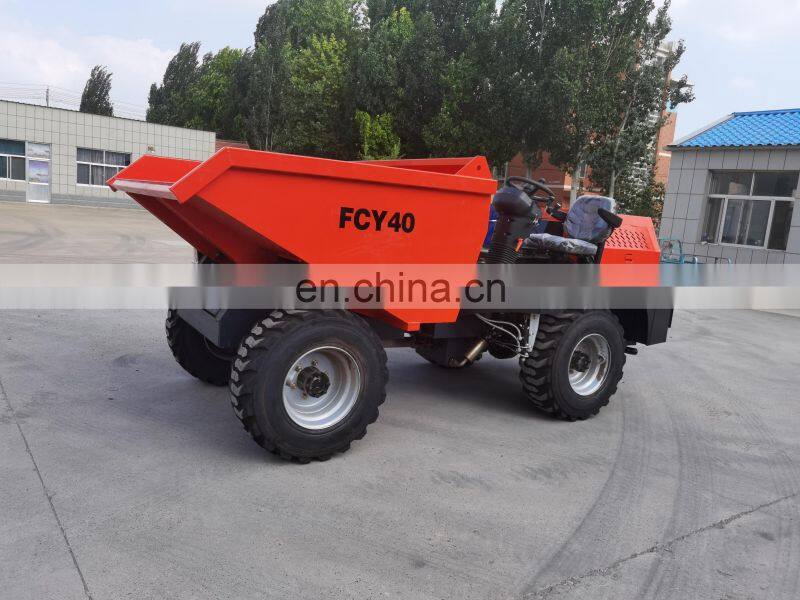

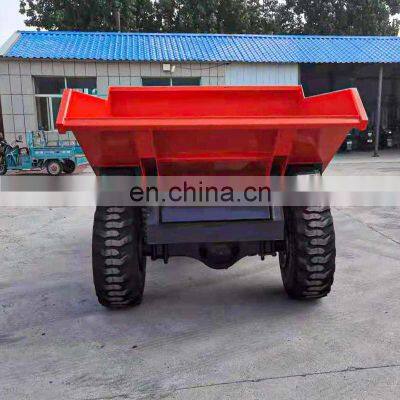

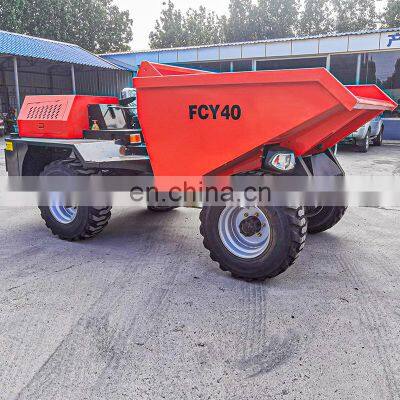

Wholesale Low Height Underground Mini Dumpe FCY40 Hydraulic Operation CE 4 Ton 4x4 Mining Dumper Truck Tunnel Dumper
4Ton Mini Truck Dumper low height
Dumper 4Ton 4WD site dumper FCY40
Mini dumper 4 ton
Dumper Site dumper FCY40
Dumper *Loading weight:4000kgs
Dumper *Bucket capacity:1.5m3
Brief introduction
As a low-volume, short-distance transport of bulk materials for small site dumpers, because of its easy operation, small turning radius can be used in a narrow environment, etc
Main applications
Dumpers are widely used in many different occasions, such as the construction industry, the factory floor, battlefield ,protecting road section, the municipal engineering, underground mines and so on.
*power tip for bulk materials movement
*excellent visibility for improved productivity
*hydraulic steering with low effort for reducing operator fatigue
*excellent service access for reduced downtime
*heavy duty chassis fabrications and centre articulation for high strength and reliability on the toughest work sites
*hydrostatic drive delivering smooth, uninterrupted power for max. productivity.
Main features
1. rated load: 4000kg, bucket capacity 1.50cbm
2.Min. turn radius: 5000mm
3. site dumper truck engineL NB485 4 cylinder diesel engine
4. overall dimension: 3900*1800*2200mm
5. tyre size: 12-16.5
6. Package: nude packed, 3 units/40'HQ, well fixed
7.optional equipment: cabin, Deutz power engine, turning bucket, seld-loading.ect3TON site dumper
Parameters
| Site Dumper Rated Loading Weight: | 4000KG |
| Bucket Capacity: | 1.50 CBM |
| Wheel base: | 2000MM |
| Thread: | 1500MM |
| Max grade ability: | 36% |
| Min.ground clearance: | 248MM |
| Working pressure of hydraulic system: | 16MPA |
| Walking speed: | |
| Forward 1 gear: | 9KM/H |
| Forward 2 gear: | 16KM/H |
| Forward 3 gear: | 20KM/H |
| Forward 4 gear: | 25KM/H |
| Backward gear: | 9KM/H |
| Minimum turn radius: | 5000MM |
| Gradeablity: | 21 |
| Overall dimensions: | 3900×1800×2200MM |
| Engine Model: | NB 485 |
| Type | 4 cylinders ,AIR cooled,diesel engine |
| Rated power: | 30KW/2400RPM |
| Tyre size: | 12-16.5 |
| Shipment: | 3units in 40ft container |
3 tons site dump truck with cabin (it canbe with ROPS&Canopy optional):
MAP POWER company is a real factory supply site dumpers cover FC10, FC15, FCY15S, FCY20, FCY30, FCY50 and so on. Adjustable design are available from us, if you have any questions or request, pls contact Sandy as free, i will reply you as soon.
