FCD40 4ton ce Mini Site Dumper Mine Dumpers Constructed Machinery
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4ton Articulated Chassis Concrete Dumper Diesel Mini Site Dumper Truck for SaleNegotiableMOQ: 1 -
Full Hydraulic FCY40 4 Ton Small Mining Use Underground Truck Dumper With 1.6 Cbm for SaleNegotiableMOQ: 1
-
Low Height Underground Mini Dumpe FCY40 Hydraulic Operation CE 4 Ton 4x4 Site Dumper for SaleNegotiableMOQ: 1
-
Customer Logo Standard 3 TON Cheap Construction Mini Dumper 3 Ton Fcy-30 With Self LoaderNegotiableMOQ: 1
-
Multifunctional FCY3OS Articulated 4x4 Wheel Mini Site Dumper Small Dump TruckNegotiableMOQ: 1
FCD40 4ton ce mini site dumper mine dumpers constructed machinery
Site Dumper FCY40 Technical Specifications | ||||
Item | Specifications | |||
Bucket capacity | 1.6m3 | |||
Rated load | 4000kg | |||
Operating weight | 2850kg | |||
Grade ability | 25º | |||
Min turning radius | 4000mm | |||
wheel tread/wheel base | 2050mm/1360mm | |||
Overall dimension | "4250*1700*2650mm with canopy | |||
Engine | Model | 490 | ||
Type | in linedirect injectionwater cooler4 cylinders | |||
Rated power | 38kw | |||
Max torque | 2400r/min | |||
Transmission System | Gearbox | Gear transmission | ||
system | Clutch | dry friction | ||
Nos of shifts | 2 Forward+2 backward shift | |||
Max speed | 24km/hr | |||
Rear and front axle | 4×4,front axle fixed, rear axle swing（+/-110） | |||
Steering | Type | hydraulic steering | ||
Steering angle | 35 degrees on both sides | |||
Hydraulic system | Pressure | 16MPA | ||
Brake type | Drum brake | |||
Tyre | Size | 20.5/70-16 | ||
Fuel capacity | Fuel tank | 60L | ||
Hydraulic oil tank | 60L | |||
Optional work device | Self-load | |||
Cab | Optional | |||
Products Description
Wildly used in short-distance transport of bulk material, such as the construction industry, the building site, battlefield, protecting road section, the municipal engineering, underground mines and so on.
4 *4 Drive, Hydraulic steering, can unload materials smoothly by strong hydraulic pressure unloading system.
Low walking speed, short-distance transport of bulk materials.
Easy operation, small turning radius can be used in a narrow site.
With self lading bucket can realize the multifunction tools.
Deutz Engine as optional makes the performance more reliable
Off road wider tyres as optional can work in muddy and bumpy roads.
Bucket 180°rotating as optional can realize side dumping and dumping in each direction, which can get higher working efficiency.

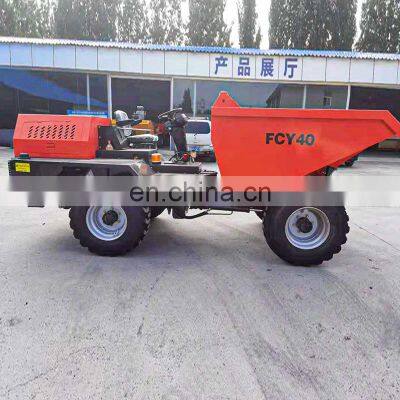

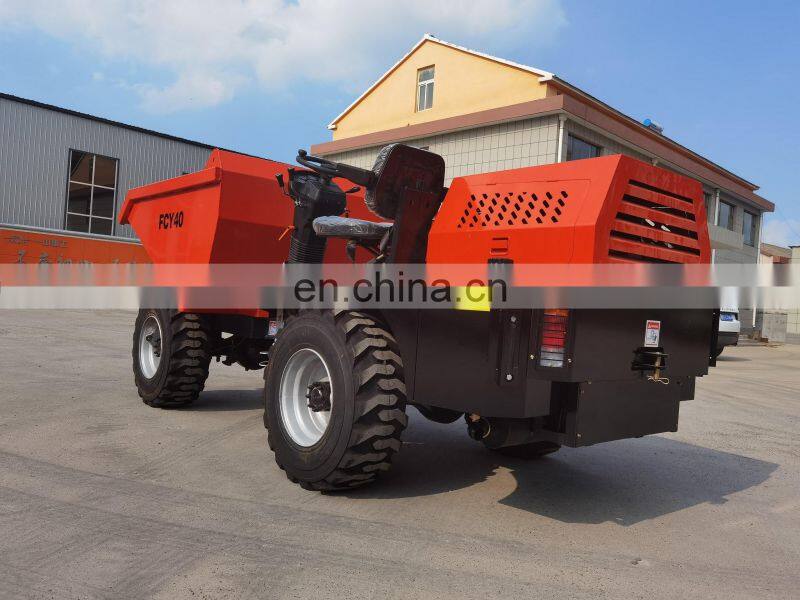

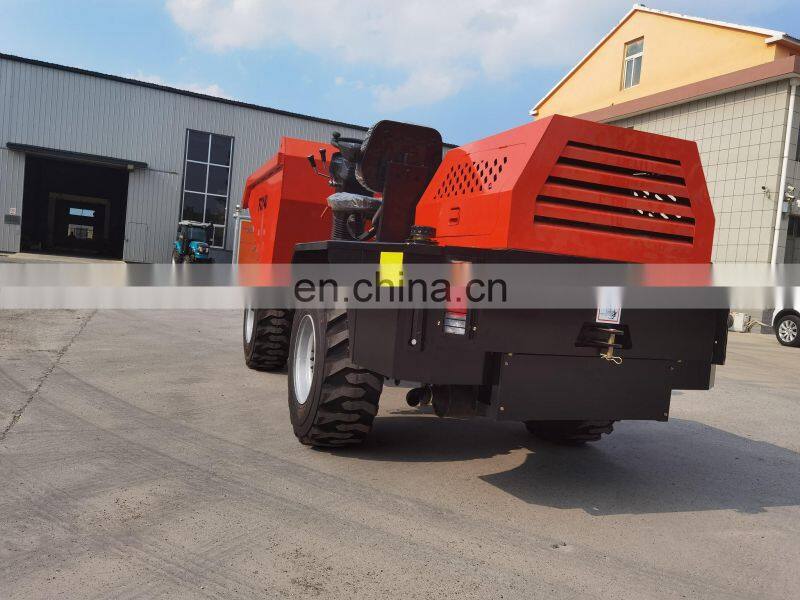

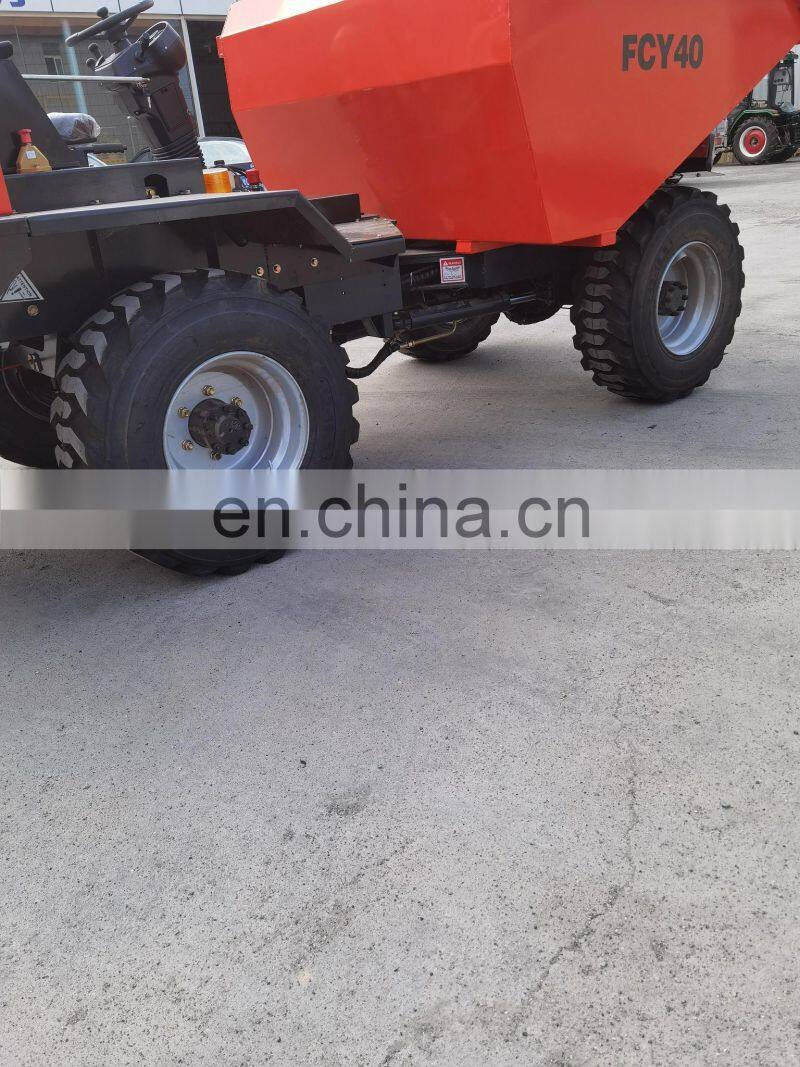

Details Images
Optional:
1.180 degree rotating bucket 2. air condition 3. Deutz or Cummins engine 4. 31 * 15.5-15 tyres 5.Front turn style can be added to level the floor 6.Electronically controlled gearbox
Similar Products
Company Profile
Weifang Map Import & Export Co., Ltd. focuses on quality construction machinery, agricultural equipment, has been in Weifang, China for 14 years. We are Verified Supplier.Now it has become one of the main suppliers of construction machinery.
We produce field tippers, tractor front-end loaders, disc mowers, backhoe loaders, concrete mixers, etc.
We have professional engineers and careful quality check before shipment.All the machines are guaranteed for one year.
We can supply you with dump wheel loaders and construction machinery accessories.The production time is 25-30 days after receiving your deposit. We accept OEM customization.
We produce field tippers, tractor front-end loaders, disc mowers, backhoe loaders, concrete mixers, etc.
We have professional engineers and careful quality check before shipment.All the machines are guaranteed for one year.
We can supply you with dump wheel loaders and construction machinery accessories.The production time is 25-30 days after receiving your deposit. We accept OEM customization.
For some new customers, please do not worry about the problem of cooperation, we will guide you to correctly cooperate with us. That's easy. That's easy. We can arrange sea freight for you. You can pick up the machines at the local port in your country.
We accept online business guaranteed by Alibaba transactions. You can pay us by credit card online.
