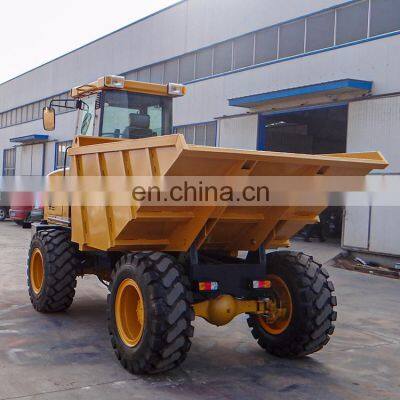

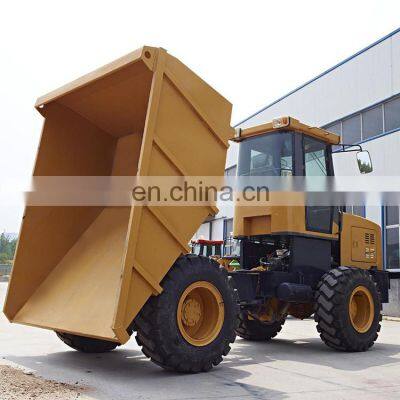

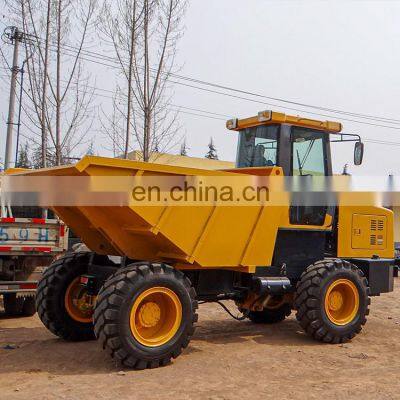

7 Tonne off Road Terrain Ride on Driving FCY70 Mini Hydraulic Site Dumper Truck for Sale in Ecuador
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ride on Driving Model Mini Hydraulic 3ton Dump Truck Fcy30 Site Dumper for Sale in Ecuador PERUNegotiableMOQ: 1 -
WEIFANG Wholesale 2.0m3 Ride on Driving Model Mini Hydraulic 5ton Dump Truck Fcy50 Site Dumper for Sale in EcuadorNegotiableMOQ: 1
-
Hot Sale Diesel Engine FCY40 4 Ton Underground Mini Dumper With CENegotiableMOQ: 1
-
Hydraulic Constructed Site Dumper 6 Ton Dumper Mini Tractor Dumper TruckNegotiableMOQ: 1
-
Chinese Cheap Price Hydraulic Mini Fcd 60 6 Ton Site Dumper Agricultural Site DumperNegotiableMOQ: 1
Construction stone sand transporter dumper 7 ton site dumper truck
A dumper is a vehicle designed for carrying bulk material, often on building sites. Dumpers are distinguished from dump trucks by configuration: a dumper is usually an open 4-wheeled vehicle with the load skip in front of the driver, while a dump truck has its cab in front of the load.
SPECIFICATIONS OF MINI DUMPER FCY-70 |
||||
General |
||||
NO. |
Item |
Specifications |
||
1. |
Payload |
7000kg |
||
2. |
Operating weight |
4550 kg |
||
3. |
Hopper capacity |
3.5m3 |
||
4. |
Maximum speed |
25 km/h |
||
5. |
Handbrake available on grade |
18% |
||
6. |
Max grade ability |
251% |
||
7. |
Distance of road after brake |
≤2.5m with load and speed 10km/h |
||
8. |
Minimum turn radius |
4 m |
||
9. |
Ground clearance |
248 mm |
||
10. |
Noise level |
≤102 db(A) |
||
11. |
Loading discharge angle |
48.40 |
||
12. |
Time of discharge |
6s |
||
13. |
Hydraulic pressure |
16 Mpa |
||
14. |
Wheel base |
2200 mm |
||
15. |
Wheel tread |
1580 mm |
||
16. |
Engine power |
60KW |
||
17. |
Dimensions (LxWxH) |
5250x2250x2700 mm |
||
B. Engine |
||||
1. |
Model/Maker |
4108 – YC |
||
2. |
Type |
Diesel 4 stroke engine, 4-cylinder incline, direct fuel injection, water cooled |
||
3. |
Bore x stroke piston |
100 x 102 mm |
||
4. |
Power |
60KW |
||
5. |
Speed |
2400 R/Min |
||
6. |
Max t |
120@2100v/p |
||
7. |
Weight |
350 kg |
||
8. |
Fuel consumption |
248 g/kWh |
||
C. Drive System |
||||
1. |
Clutch |
Single disc, dry type, constant. |
||
Diameter |
254 mm |
|||
2. |
Transmission: |
Hydraulic type |
||
3. |
Drive shaft: |
Tubular-type, open-type, rigid needle-bearing universal joint |
||
4. |
Driving axle: |
Main drive type: single-stage hyperbolical bevel gear dive |
||
5. |
Final driving |
full floating |
||
Different: |
hyperbolical bevel gear dive |
|||
D. Frame |
||||
1. |
Frame: |
Channel steel welding type, two-section articulated connection |
||
2. |
Tire: |
20.5/70-16 |
||
3. |
wheel ring: |
9.75H |
||
E. Steering system 1. Type Control by wheel, full hydraulic system, two cylinders double acting. 2. Angle steering each direction ± 300 F. Bake system |
||||
1. |
Type |
Control by wheel, full hydraulic system, two cylinders double acting. |
||
2. |
Angle steering each direction |
± 300 |
||
1. |
Operating brake |
Hydraulic shoe system, four wheel mounted. |
||
2. |
Handbrake |
mechanically-pirated central sport-type disc |
||
G. Hydraulic system |
||||
1. |
Hydraulic pump: |
Gear pump |
||
