Hot Sale Diesel Engine FCY40 4 Ton Underground Mini Dumper With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Constructed Site Dumper 6 Ton Dumper Mini Tractor Dumper TruckNegotiableMOQ: 1 -
Chinese Cheap Price Hydraulic Mini Fcd 60 6 Ton Site Dumper Agricultural Site DumperNegotiableMOQ: 1
-
FCD60 Easy to Operate Site Dumper Truck Small Concrete Dumper Truck MachineNegotiableMOQ: 1
-
6ton Map Low Price Tipper 4x4 Front Tip Lorry Loader Site Dumper Machine for SaleNegotiableMOQ: 1
-
New Designed FCD60 Chinese 6Ton Mine Used 4X4 Wheeler Mini Dumpers Dump TruckNegotiableMOQ: 1

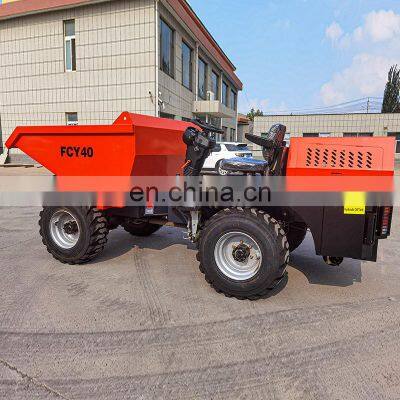

Hot sale diesel engine FCY40 4 ton underground dumper truck with 180 degree rotating bucket
Site Dumper FCY40 Technical Specifications |
||||
Item |
Specifications |
|||
Bucket capacity |
1.6m3 |
|||
Rated load |
4000kg |
|||
Operating weight |
2850kg |
|||
Grade ability |
25º |
|||
Min turning radius |
4000mm |
|||
wheel tread/wheel base |
2050mm/1360mm |
|||
Overall dimension |
"4250*1700*2650mm with canopy |
|||
Engine |
Model |
490 |
||
Type |
in linedirect injectionwater cooler4 cylinders |
|||
Rated power |
38kw |
|||
Max torque |
2400r/min |
|||
Transmission System |
Gearbox |
Gear transmission |
||
system |
Clutch |
dry friction |
||
Nos of shifts |
2 Forward+2 backward shift |
|||
Max speed |
24km/hr |
|||
Rear and front axle |
4×4,front axle fixed, rear axle swing（+/-110） |
|||
Steering |
Type |
hydraulic steering |
||
Steering angle |
35 degrees on both sides |
|||
Hydraulic system |
Pressure |
16MPA |
||
Brake type |
Drum brake |
|||
Tyre |
Size |
20.5/70-16 |
||
Fuel capacity |
Fuel tank |
60L |
||
Hydraulic oil tank |
60L |
|||
Optional work device |
Self-load |
|||
Cab |
Optional |
|||
Products Description
Wildly used in short-distance transport of bulk material, such as the construction industry, the building site, battlefield, protecting road section, the municipal engineering, underground mines and so on.
4 *4 Drive, Hydraulic steering, can unload materials smoothly by strong hydraulic pressure unloading system.
Low walking speed, short-distance transport of bulk materials.
Easy operation, small turning radius can be used in a narrow site.
With self lading bucket can realize the multifunction tools.
Deutz Engine as optional makes the performance more reliable
Off road wider tyres as optional can work in muddy and bumpy roads.
Bucket 180°rotating as optional can realize side dumping and dumping in each direction, which can get higher working efficiency.
Details Images
Optional:
1.180 degree rotating bucket 2. air condition 3. Deutz or Cummins engine 4. 31 * 15.5-15 tyres 5.Front turn style can be added to level the floor 6.Electronically controlled gearbox
