Fcy50S 5ton Off Load Site Dumper Truck Rubber Track Dumper Truck With Low Price

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

FCY50S 5ton Self Loading Dumper

Products Description

MAIN TECHNICAL SPECIFICATIONS
MODEL	FCY50S
BUCKET CAPCITY	2.0M3
RATED LOAD	5000KG
OPREATING WEIGHT	2850KG
MAX TRACTION	45KN
GRADBILITY	30°
MINI TURNING RADICUS	4000MM
GROUND CLEARANCE	248MM
NOISE LEVEL	≤102db(A)
LOADING DISCHARGE ANGLE	48.40°
TIME OF DISCHARGE	8S
TREAD	1580MM
WHEEL BASE	2000MM
OVERALL DIMENSION	L4250W1950H2300
ENGINE
MODEL	WEICHAI HUAFENG4102
TYPE	UP-RIGHT,WATERCOOLED,4 STOKES,4CYLINDERIN-LINE,DIRECT FUEL INJECTION
FUEL CONSUMPTION	248g.kw/h
SPEED	2400R/MIN
BORE*STROKE PISTON	100*102
WEIGHT	350KG
RATED POWER	47KW
MAX TORQUE	270N.M
DRIVE SYSTEM
GeraBOX	GEAR TRANSMISSION BOX
CLUTCH	DRY FRICTION CLUTCH,SINGLE DISC,
DRIVE SHAFT	TUBULAR-TYPE,OPEN-TYPE,RIGIDLE-BEARING UNIVERSAL JIONT
NOS OF SHIFTS	FOUR FRONT/BACKWARD SPEEDS
MAX SPEED	25KM/H
REAR AND FRONT ALEX	FOUR-WHEEL DRIVE,Front axle fixed,Rear axle moved(+/-11°)
STEERING TYPE	FULL-HYDRUALIC STEERING SYSTEM,CONTROL BY WHEEL,TWO CYLINDERS DOUBLE ACTING
STEERING ANGLES	35°
HYDRAULIC SYSTEM
WORKING PRESS	160(kgf/c m2),16MPA
HYDRAULIC PUMP	GEAR PUMP
DISTANCE AFTER BRAKE	≤2.5M with load and speed 10km/h
OPREATING BRAKE	Hydraulic shoe system,four wheel mounted
Handbrake	mechanically-pirated central sport-type disc
BRAKE TYPE	OIL BREAKE
TYRE SIZE	20.5/70-16
FRAME	Channel steel welding type,two-section articulated connection
wheel rim	9.75H
FUEL TANK	50L
HYDRAULIC TANK	30L
BATTERY	24V lead storage battery

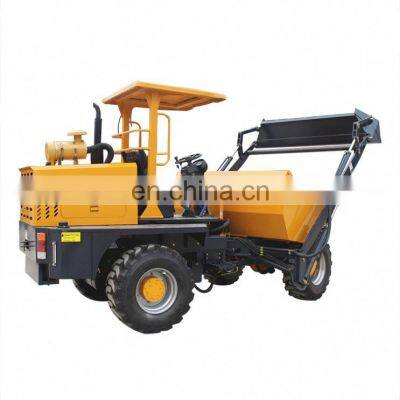

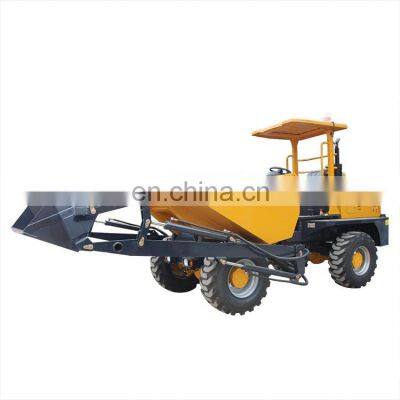

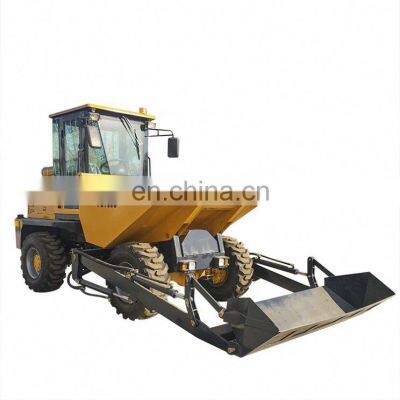

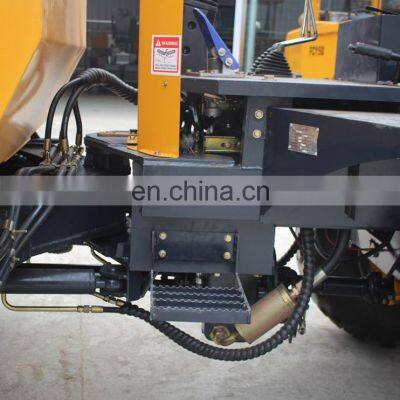

Details Images

Company Profile

FAQ

1.How can I place order?1.How can I place order? A: You can contact us by email about your order details, or place order on line. 2.How can I pay you? A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance 3. Are you factory supplier? A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers 4.How many tons site dumper do you produce ? A:We are specilized in producing site dumper cover 1ton to 10tons. Model:FCY10, FCY20, FCY30, FCY50, FCY70, FCY100. 5. Which brand engine do you have for site dumpers? A:We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine/ Deutz diesel engine and so on optional. 6. What's the order procedure? A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you. More details please ask us online or send inquiry to us,we will answer first time.
