Dumper 5 Ton Mini Construction Site Dumper Truck Mini Dumper Precio

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

FCY50 4x4 off road tipper 5 ton 6 ton mining dump trucks hydraulic hopper mini dumper cingolato

Products Description

Payload	5000kg
Operating weight	3250 kg/ FCY50S is 3750 kgs
Hopper capacity	2.0m3
Maximum speed	25.2 km/h
Handbrake available on grade	18%
Max grade ability	25%
Distance of road after brake	≤2.5m with load and speed 10km/h
Minimum turn radius	4 m
Ground clearance	248 mm
Noise level	≤108 db(A)
Loading discharge angle	48.4
Time of discharge	6s
Hydraulic pressure	16 Mpa
Wheel base	2200 mm
Engine power	47KW
Wheel tread	1580 mm
Dimensions (LxWxH)	4400x2100x2700 mm
Engine
Model/Maker	4102
Type	Diesel 4 stroke engine, 4-cylinder incline, direct fuel injection, water cooled
Bore x stroke piston	100 x 102 mm
Power	47KW
Speed	2400 R/Min
Max t	120@2100v/p
Weight	350 kg
Transmission system
Hydraulic Torque Converter	2 Forward and 2 reverse gears
Type	power shift, spur gear constantly in mesh
Model	265
Type	3-elements.single stage
Torque ratio	3.06
System pressure	160(kgf/c㎡)

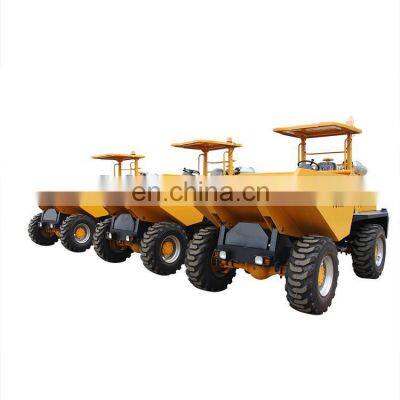

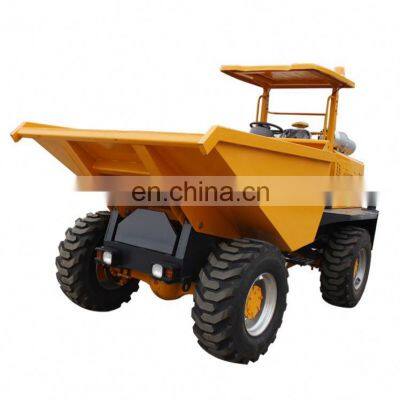

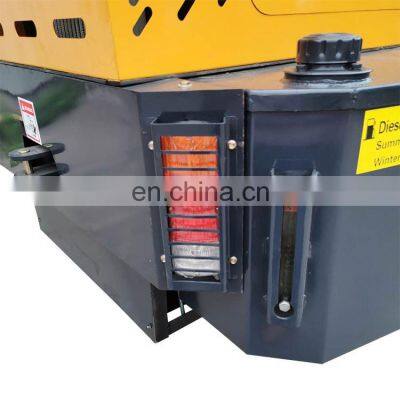

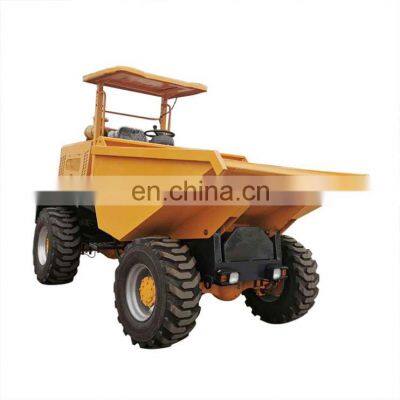

Details Images

Company Profile

FAQ

1.How can I place order?1.How can I place order? A: You can contact us by email about your order details, or place order on line. 2.How can I pay you? A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance 3. Are you factory supplier? A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers 4.How many tons site dumper do you produce ? A:We are specilized in producing site dumper cover 1ton to 10tons. Model:FCY10, FCY20, FCY30, FCY50, FCY70, FCY100. 5. Which brand engine do you have for site dumpers? A:We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine/ Deutz diesel engine and so on optional. 6. What's the order procedure? A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you. More details please ask us online or send inquiry to us,we will answer first time.
