Circle Magnet N52 Magnet 1/2 inch x1/16 inch Round Magnets For Sale

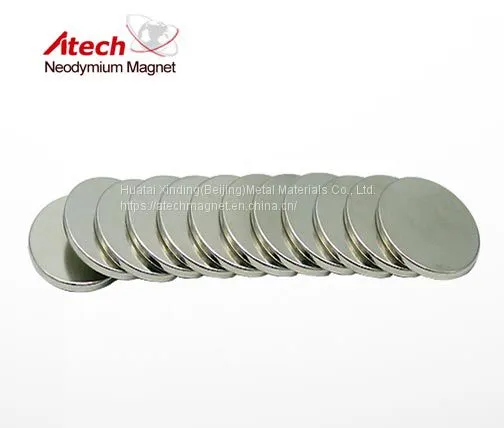

This powerful neodymium disc magnet measures 1/2" in diameter, 1/16" in thickness, with the pull force of 3.84lb vertically. It is made from an alloy of neodymium, iron and boron, plated with triple layers of nickel-copper-nickel for effective corrosion protection.

The applications of this circle magnets include consumer electronics, home appliances, industrial equipment & automation, information technology products, medical devices and so on.

Why Choose Us

1. ISO9001: 2015 Quality Management System certified by TUV with continuous improvements.

2. 25 years experience in neodymium magnet R&D and Manufacturing with over 1000 customized designs.

3. R & D team with multiple patents led by national "scientific and technological progress" award winner.

4. Ultimate magnetic solution provided with easy communication and fast response.

Please Note:

1. All neodymium magnets are very strong and brittle.

2. Must be handled with extreme care to avoid personal injury.

3. Eye protection should be worn when handling magnets.

4. Keep the magnets away from pacemakers.

5. The neodymium magnet should NOT be for children.

SKU Code: ATECHDI008

Dimensions: D1/2" x1/16" Thick

Tolerances: ±0.05mm

Material: NdFeB, Grade N52

Plating/Coating: Ni-Cu-Ni

Magnetization Direction: Axial

Weight: 1.7 g

Br Max/Gauss rating: 14800 GS

Max Operating Temp: 80ºC (176ºF )

We provide 1 inch round magnets, 1 inch magnets, round magnets for sale, n52 magnets for sale, etc. Contact us to know more.
