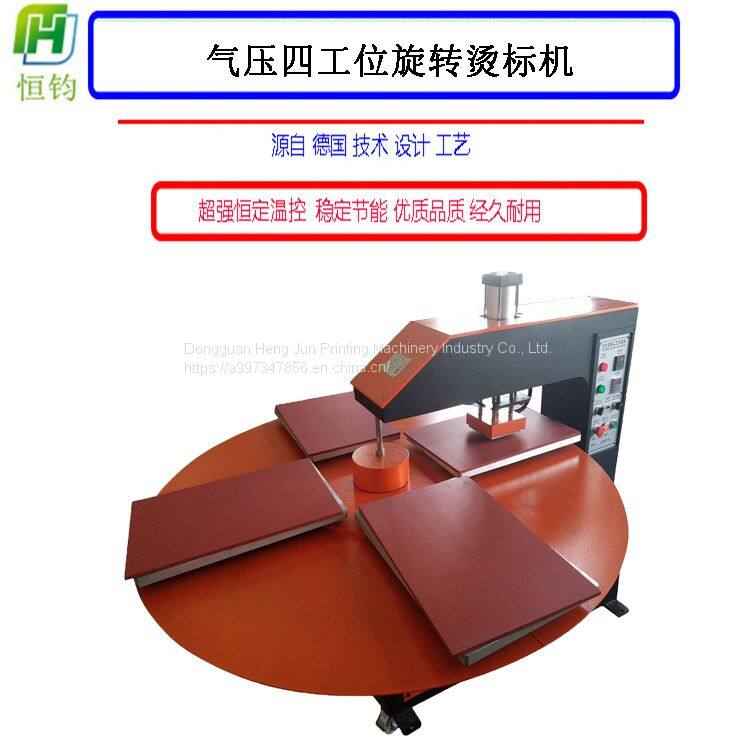

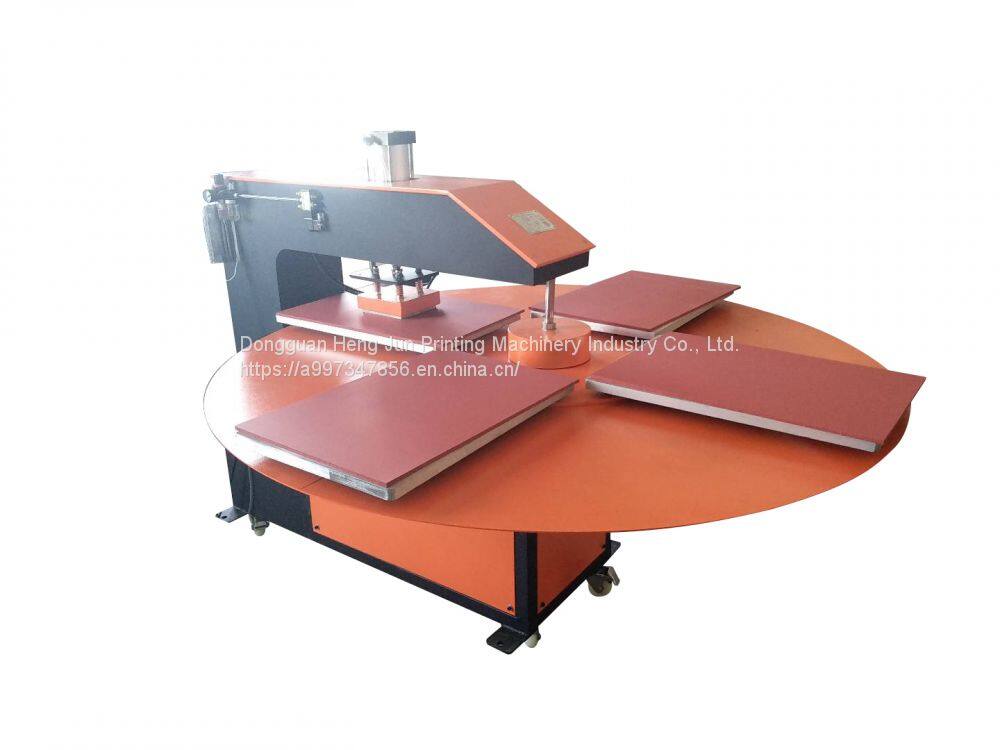

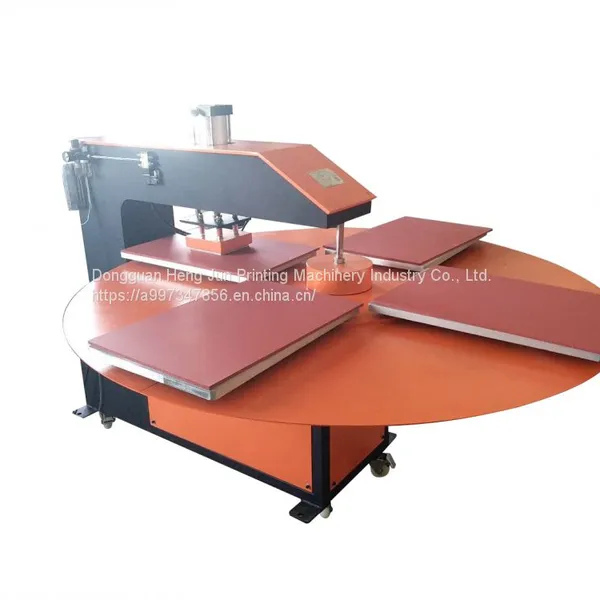

Automatic rotating four-station heat press machine
product information:
Technical parameters: Voltage: 110v 220v 380v Power: 2250w
Temperature range: 0-399℃ Time control: 0-999ses Air pressure: 8kg
Workbench size: 30×30 Packing size: 100×80×80 Weight: 110kg
Product use: This machine can heat transfer the color patterns and characters of sublimation and solvent inks on cotton, linen, chemical woven fabrics, etc. It can also bake color labels, portrait photos, landscape patterns, etc. on porcelain plates and metal plates. It is especially suitable for making medals, commemorative cards, tombstone statues, cultural shirts, etc. It is economical and practical.

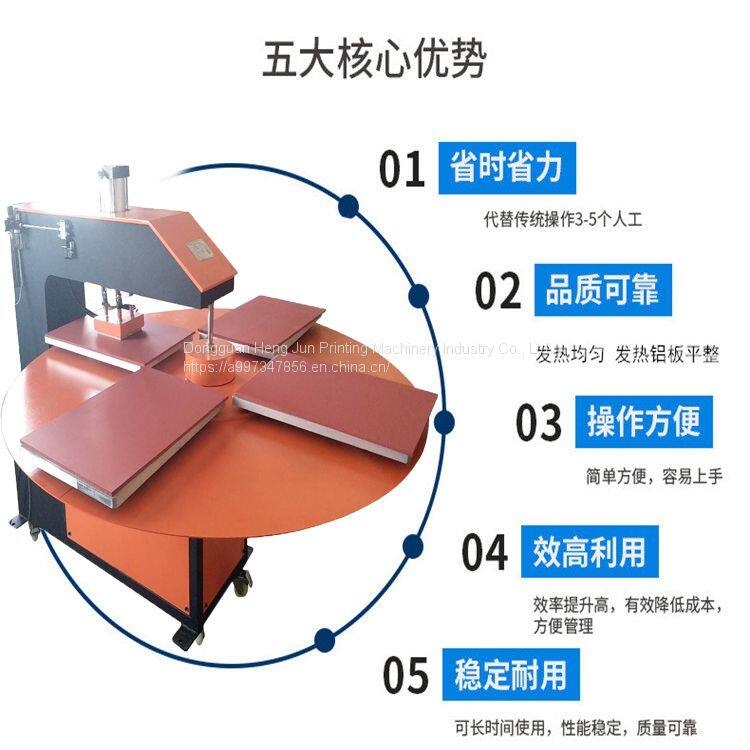

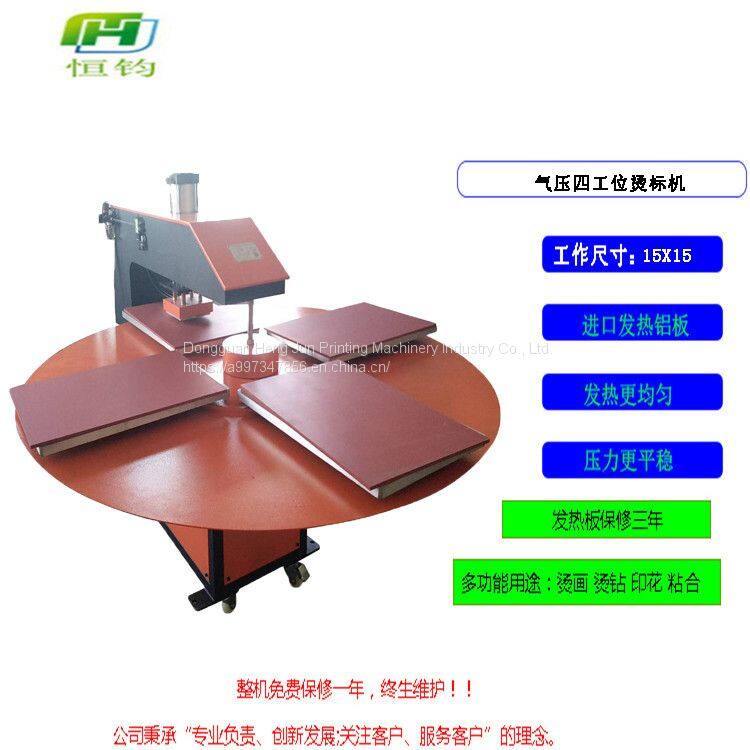

Product features: The overall structure of the equipment is stable, not easy to deform, runs smoothly, and has low noise. The workbench can be switched between manual and automatic operation. Fully automatic control, the pressure is stable and uniform, and the pressure can reach 8kg/cm.
The heating plate adopts a special tube surrounding design, and the heating is uniform. The heating tube and the heating plate are integrated, safe and reliable, and the heat is evenly heated, with strong thermal conductivity. Digital control system, process completion signal prompt, strong performance (accurate and safe)
Long service life; pid microcomputer control, high accuracy (0.5℃); full digital display of time, high accuracy; adjustable pressure, easy operation, suitable for factory assembly line operations; beautiful appearance. The work surface is specially treated, which can print sublimation, heat transfer, bronzing and other products.
Operation process: Turn on the power switch, and adjust the temperature, time, and air pressure to the required requirements; when the temperature reaches, please try to iron the desired product first, turn the switch to the "manual" position, and confirm that the quality of the trial ironing product is approved before switching to "Auto" position mass production; when the switch is in the "manual" position, manually press the "manual start" heating plate to press down until the time is up, and it will automatically rise. "Emergency stop" to stop ironing, when the switch is in the "automatic" position, just push the heating plate into place and the heating plate will automatically press down. Matters needing attention: The whole machine must be protected by a suitable and reliable ground wire.
Maintenance matters: Air pressure: If the pressure is not enough or too high, adjust the pressure regulating valve on the gas cylinder, increase the pressure in the (+) direction, and reduce the pressure in the (-) direction (please pay attention to whether there is lubricating oil in the gas cylinder); Temperature : When the device reaches the set temperature, the heating plate does not heat up or the heat is uneven, please check the wiring of the thermostat and confirm whether the thermocouple is damaged; Time: When the switch is set to "Manual", press "Manual Start" When pressing down, check the "manual" switch. When the switch is set to "automatic", the platen will not be pressed down when it is in place. Check whether the contact point of the micro switch in the box is in place. If it is not in position, it should be adjusted; if there is a quality problem, Please contact our company in time for thermal transfer printing
