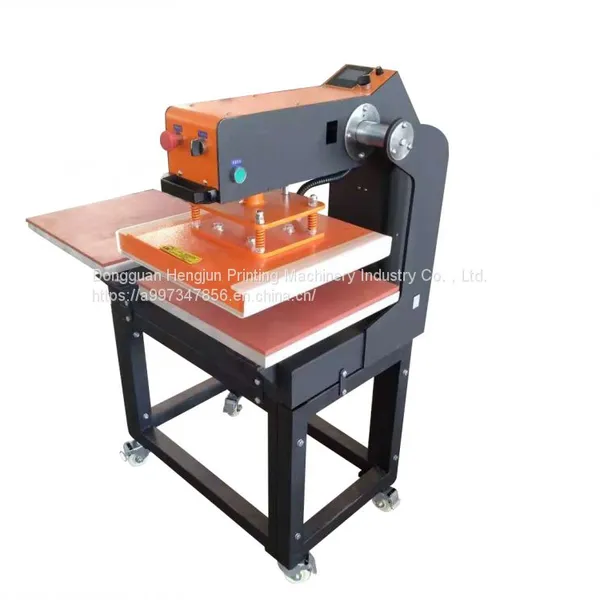

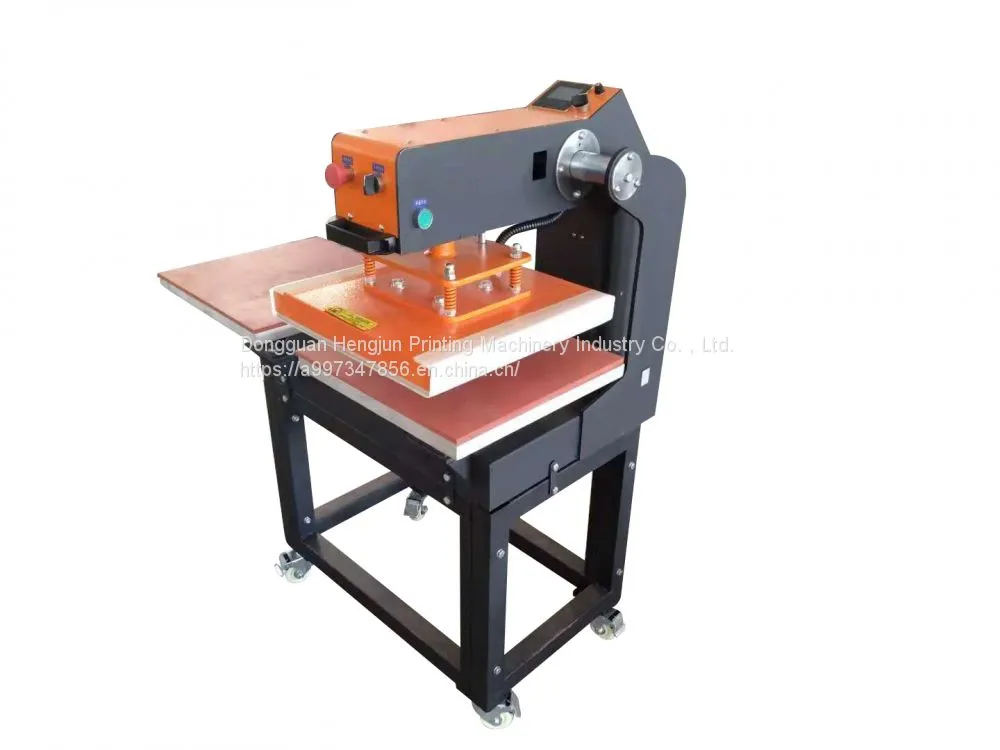

Hengjun adjustable garment heat transfer printing machine pneumatic sleeve garment hot stamping machine U type vertical pressing drill T - shirt printing machine

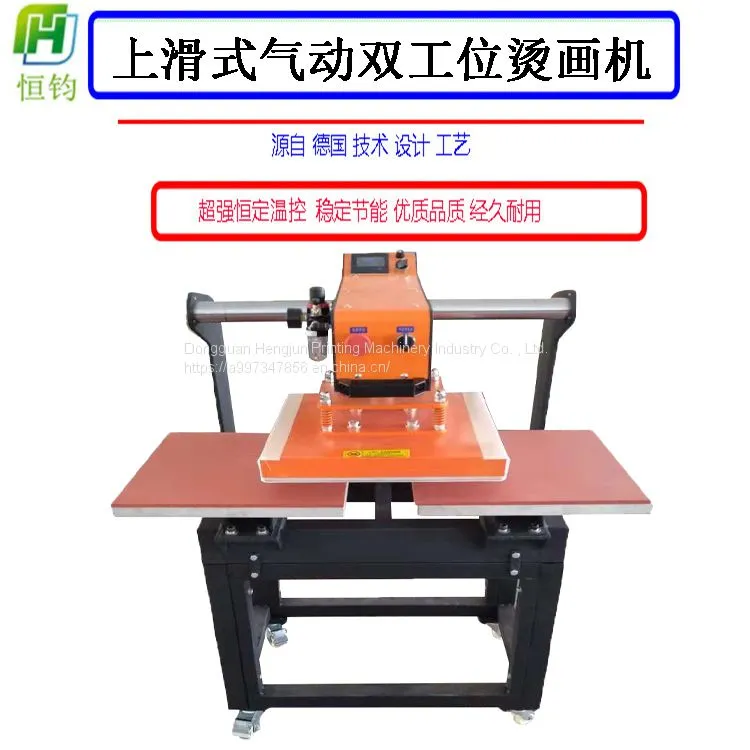

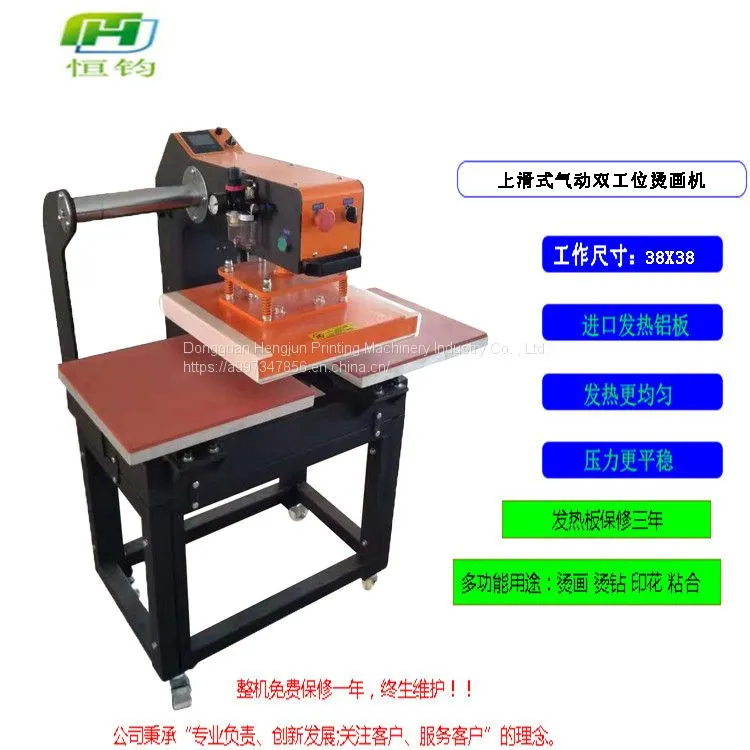

Pneumatic double position hot stamping machine
Pneumatic double location pyrograph machines can be sublimated, solvent ink color logo and the thermal transfer in the fabric such as cotton, hemp, chemical fiber, nylon and ceramics, glass products, also can be flocking pyrograph and foaming printing process such as heat treatment, and the low temperature low pressure line of the clothing and fabric of the adhesive, such as children's clothing, shoes and hats glue, also can be used in the production of small batch handkerchief.

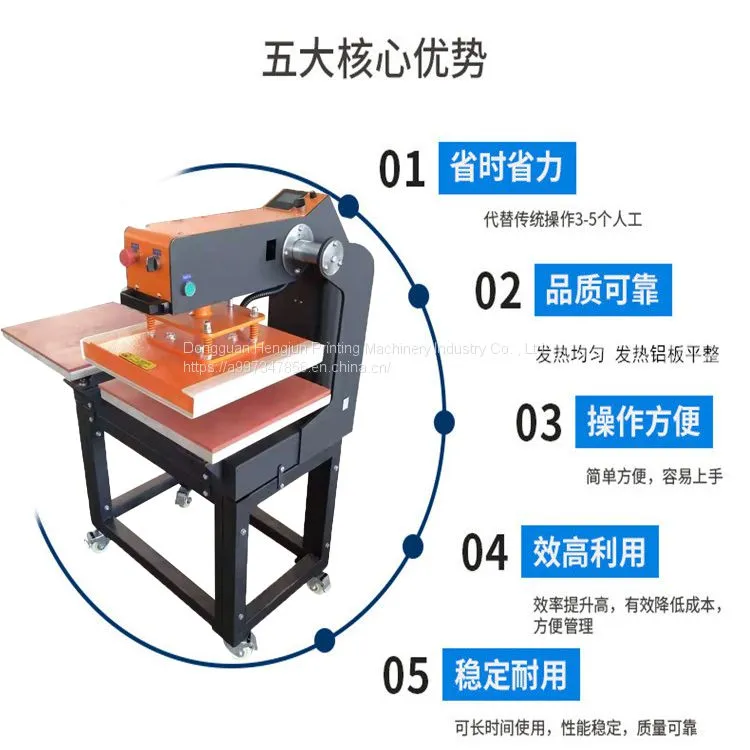

2 the characteristics of
3 Precautions for Operation
Pneumatic double location pyrograph machines can be sublimated, solvent ink color logo and the thermal transfer in the fabric such as cotton, hemp, chemical fiber, nylon and ceramics, glass products, also can be flocking pyrograph and foaming printing process such as heat treatment, and the low temperature low pressure line of the clothing and fabric of the adhesive, such as children's clothing, shoes and hats glue, also can be used in the production of small batch handkerchief.
1, temperature control, using imported components, high accuracy;
2, electronic time control, signal indicating process completion;
3, the working surface with high temperature into the cloth, long service life, convenient cleaning;
4. Adjust pressure at will;
5, the bottom plate is equipped with high temperature silica gel sponge, hot stamping extensive;
6, heating tube and heating plate injection into one, short heating time, safe, accurate, uniform temperature.
Pneumatic double position hot stamping machine technical indicators:
Model Working face voltage power temperature delay Volume Weight
Xy-007c 40×60cm 220V 3KW 20-300℃ 0-999s 160×70×80cm 85KG
The unit must have a strong protective grounding wire.
1, plug in the power supply, open the red rectangular power switch, switch indicator light.
2, the air inlet of the air filter regulator is connected with 6-8 kg of air pressure, the cylinder works, and the heating plate rises.
3. Adjust the set temperature of the digital display temperature controller. After the temperature reaches the set temperature, you can start working at this time.
4. Set the time relay to the required time.
5. Press the red circular button, rotate the green switch to the left, and set the machine as automatic. Push the working table from left to right, and the machine will start to work after reaching the set position. After reaching the set time, the machine will automatically return to the position and complete the work once, so the cycle works.
The machine does not work if the working table is not in the set position.
6. Press the red circular button, rotate the green switch to the right, and set the machine to manual. That is, push the table around to the set position, the green switch to the right rotation, can work, to set the time after the hot plate back, the green switch left rotation stop 6 work.
7. The red circular button is "emergency stop" button, which automatically pops open and can start working again.
