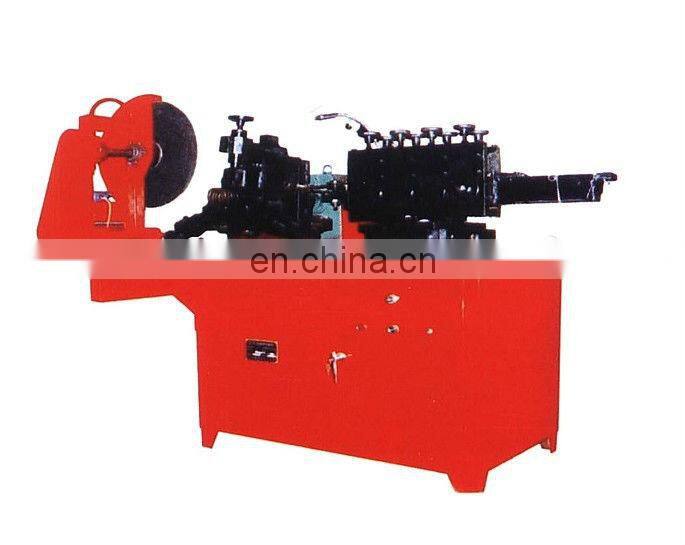

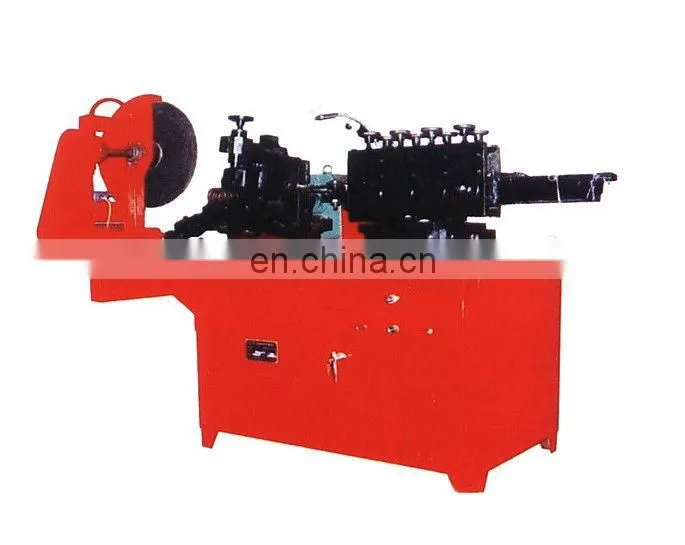

Prestressed Round Spiral Metal Duct Making Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2008
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Simple Innovative Products Raw Material Galvanized Steel Strip 0.3mm-0.4mm Thick Auto Wind Duct Making MachineNegotiableMOQ: 1 -
Chinese Products 3 Tons CGR15 Ball Bearing Steel Automatic Post Tension Duct Making MachineNegotiableMOQ: 1
-
Innovative Chinese Products Low Carbon Steel Wire Custom Wire Forming Type AutomataNegotiableMOQ: 1
-
Search the Product 450kg Post Tension Prestressed Concrete Duct Pipe Corrugated Pipe Production Line Use Construction and BridgeNegotiableMOQ: 1
-
New Product Idea Brand New Metal Corrugated Spiral Round Duct Form Machine Application POST TENSION DUCT StandNegotiableMOQ: 1

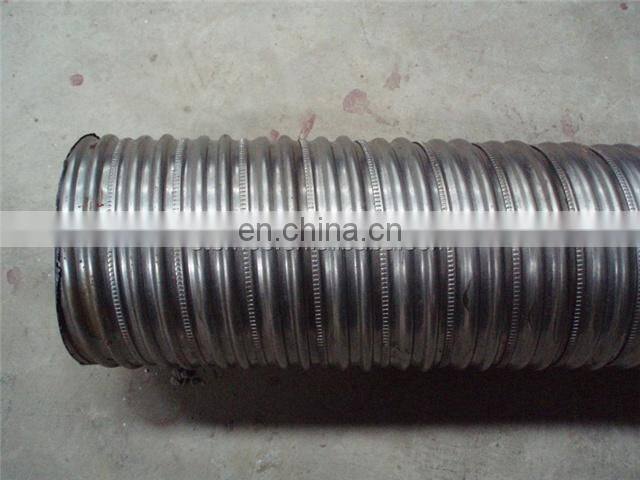

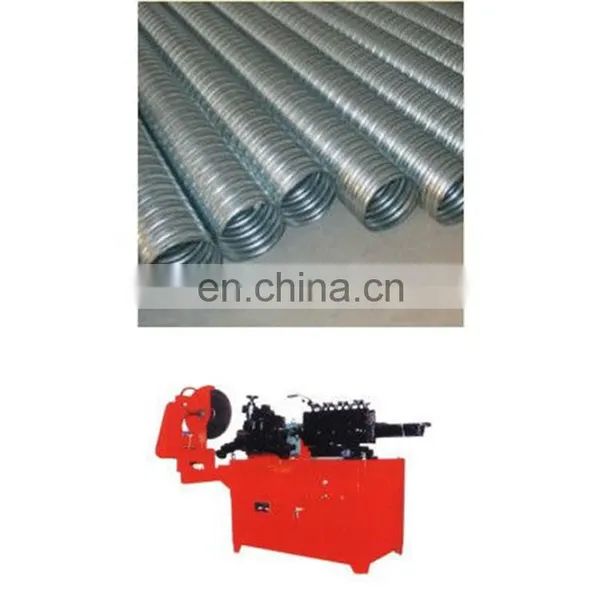

double waves bellows making machine is for manufacturing the bellows used for prestressed concrete, whose features are small size, high efficiency and simple operation and maintence, adaptable to factory or working site using.
Technical parameters:
1, Main motor power:N=3KW n=1430rad/min
2, Steel belt width:b=36mm
3, Steel belt thickness:a=0.25~0.3m
4, The diameter range of pipe: 35~135mm
5, Manufacturing speed: 35~65 4m/min
70~135 2m/min
6, Cutting machine power:N=0.75KW n=1380rad/min
| inner diameter | 35mm | 40mm | 45mm | 50mm | 55mm | 60mm | 65mm | 70mm | 75mm |
| outer diameter(mm) | 40mm | 45mm | 50mm | 55mm | 60mm | 65mm | 70mm | 75mm | 80mm |
| gross weight(kg/m) | 0.37 | 0.43 | 0.48 | 0.56 | 0.63 | 0.7 | 0.76 | 0.86 | 0.96 |
| 80mm | 85mm | 90mm | 95mm | 100mm | 105mm | 110mm | 115mm | 120mm | 125mm | 130mm |
| 85mm | 90mm | 95mm | 100mm | 105mm | 110mm | 115mm | 120mm | 125mm | 130mm | 135mm |
| 1.06 | 1.16 | 1.26 | 1.36 | 1.46 | 1.56 | 1.66 | 1.8 | 2.02 | 2.3 | 2.55 |
